General

Brand

Cudy

Model

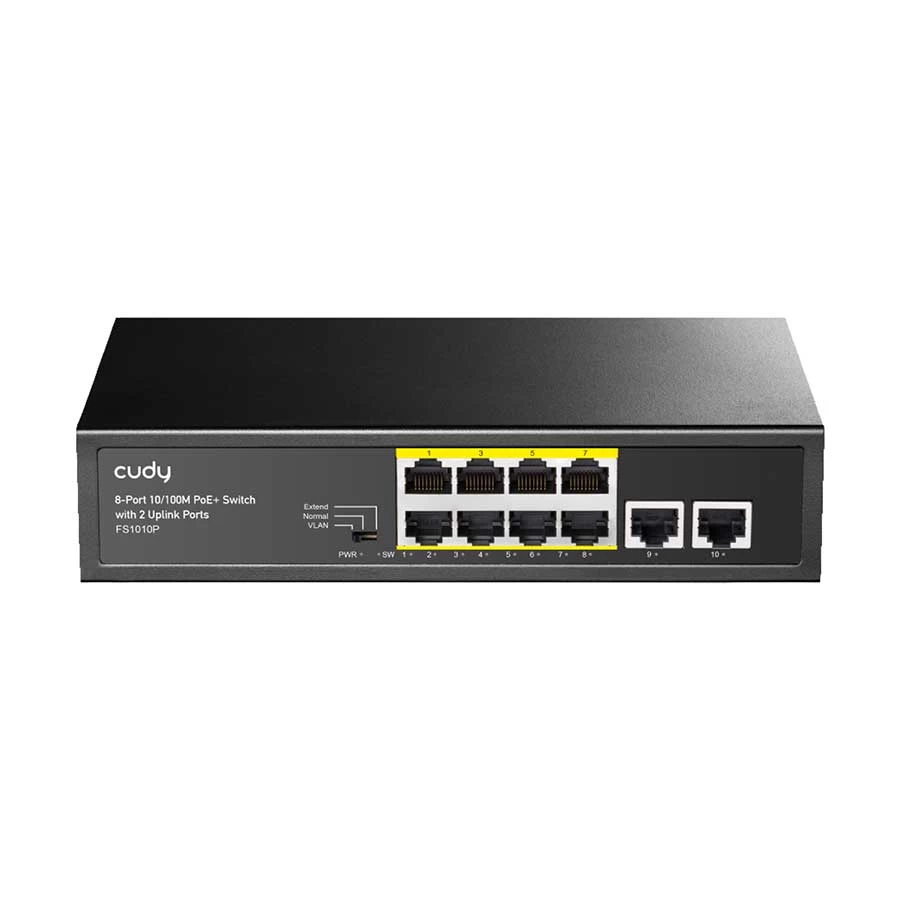

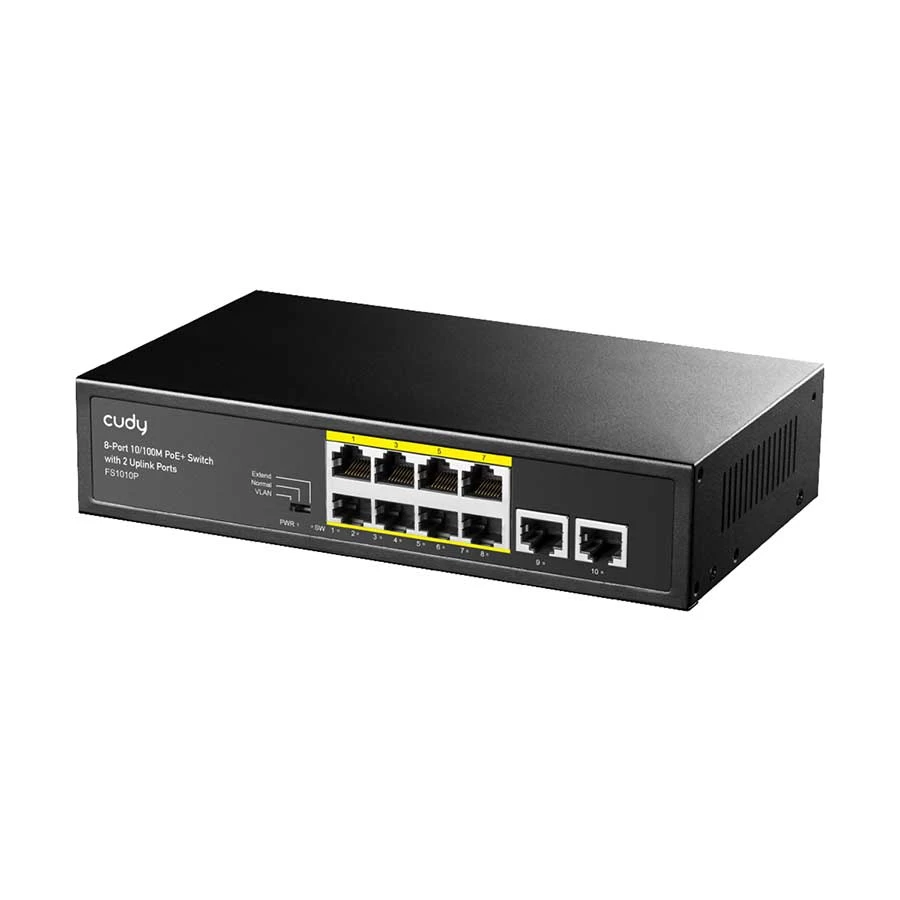

Cudy FS1010P

Type

Network Switch

Ports & Slots

Number of Total Port

10 Port

Gigabit Port

SFP Port

SFP+ Port

PoE Port

PoE+ Port

Technical Info

PoE

Yes

Manageability

Unmanaged

Interface(s)

8 PoE+ Switch , 2 Uplink

Network Standards

IEEE802.3at and IEEE802.3af

Data Transfer Rate

10/100 Mbps

Memory

Transmission Method

Store-and-forward

Connector Type

10 x 10/100Mbps The RJ45 port

MTBF

>50000 hour

Physical Description

Fan/Fanless

Fanless

Indicators

PWR, LNK/ACT, PoE

Body Color

Black

Form Factor

Rackmount

Dimension

220 x 150 x 44mm

Weight

1kg

Packet Contents

1 x FS1010P, 1 x Power Cord, 1 x Installation Guide

Power

Power Supply

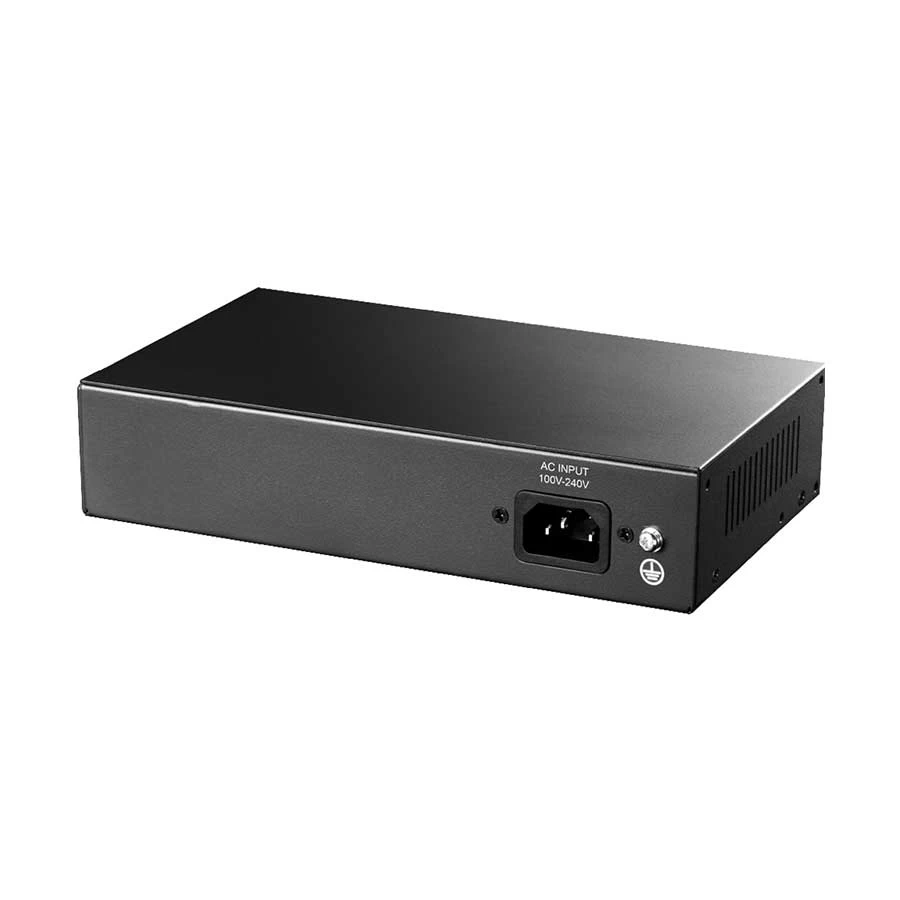

100-240V AC, 50/60Hz

Approx. Power Consumption

120W

Warranty

2 Year (Without Adapter)

Additional Info

Others

Key function : CCTV&VLAN, MAC Address Table: 8K, Automatic study, automatic updates. Green energy saving : Support IEEE 802.3az), Electrostatic standard : Contact 4KV, air 6KV

Specialty

120W PoE power output totally up to 32W for one PoE port, Support IEEE802.3x full duplex and half duplex ow control, Support VLAN and CCTV Function, Panel lights to monitor working state and help fault analysis, Perfect security mechanism, Line-speed forwarding intelligent identification

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Cudy FS1010P Network Switch In Bangladesh

● Support IEEE802.3at and IEEE802.3af Standard
● 120W PoE power output totally，up to 32W for one PoE port
● Support IEEE802.3x full duplex and half duplex ﬂow control

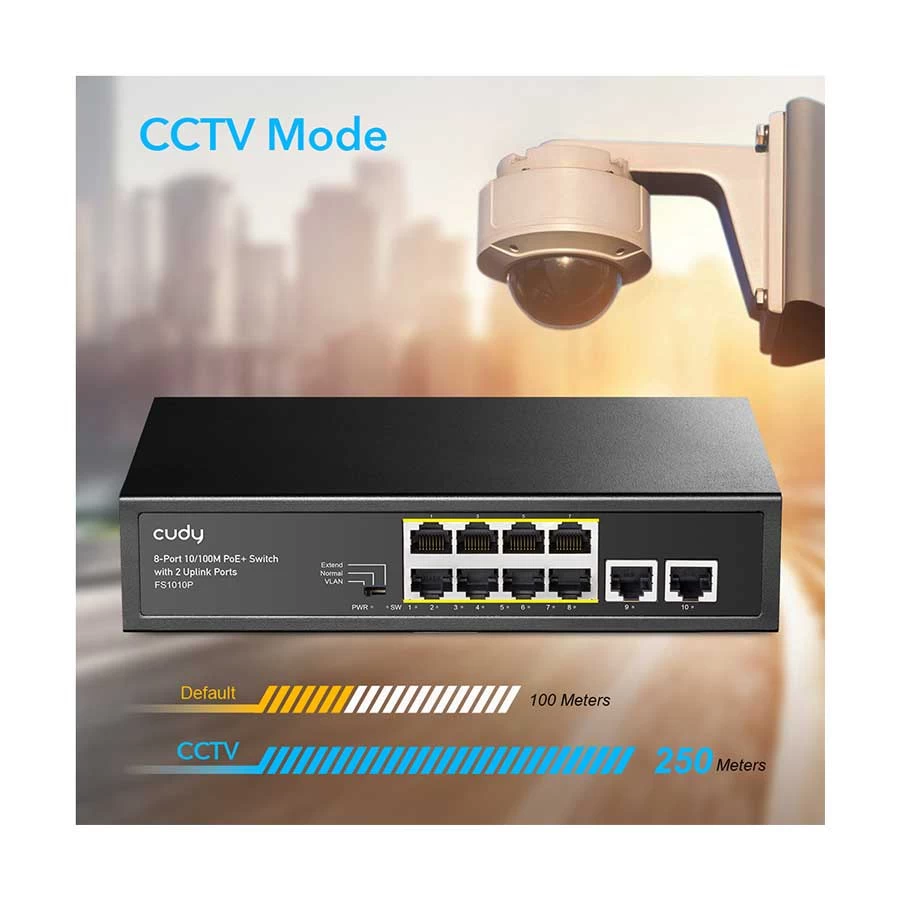

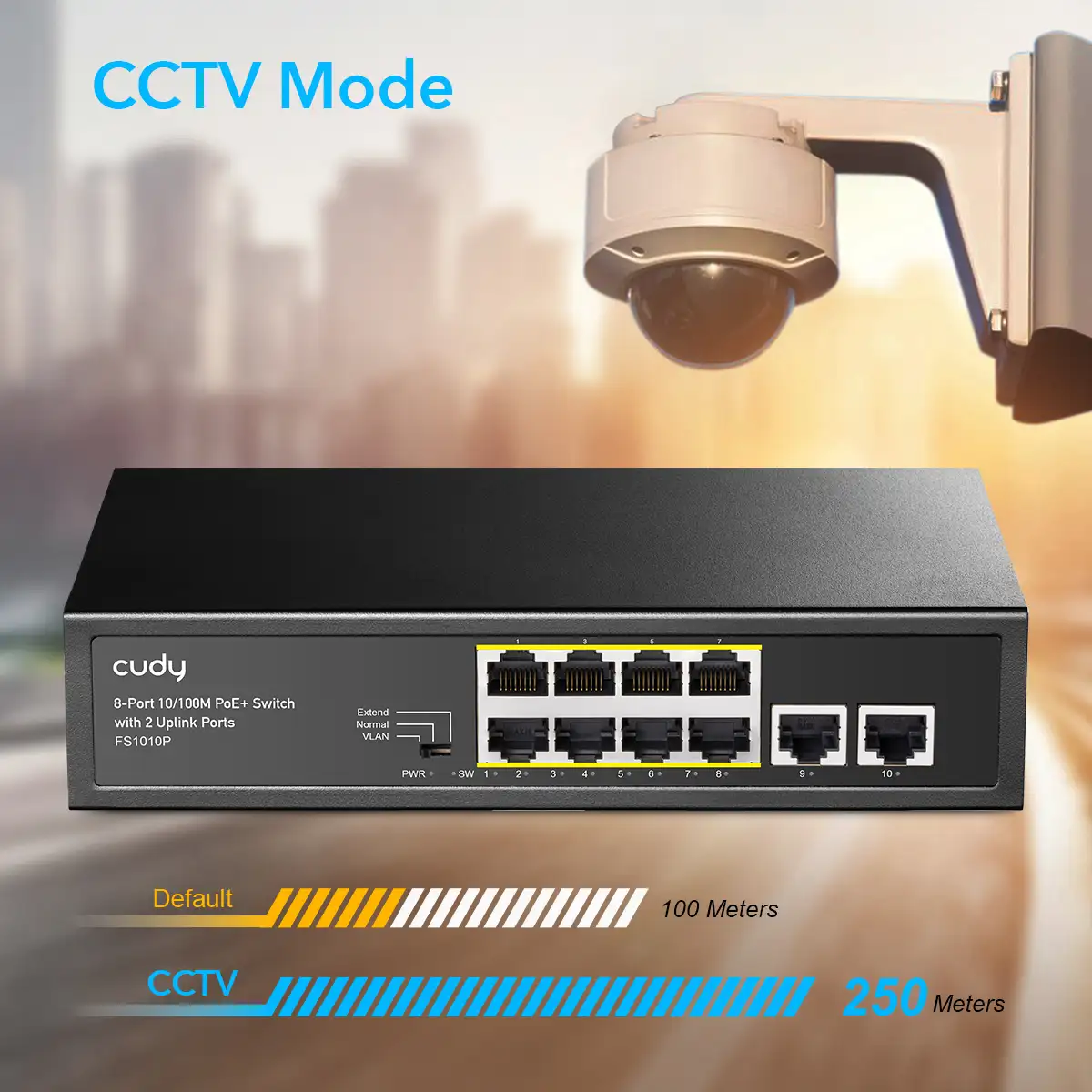

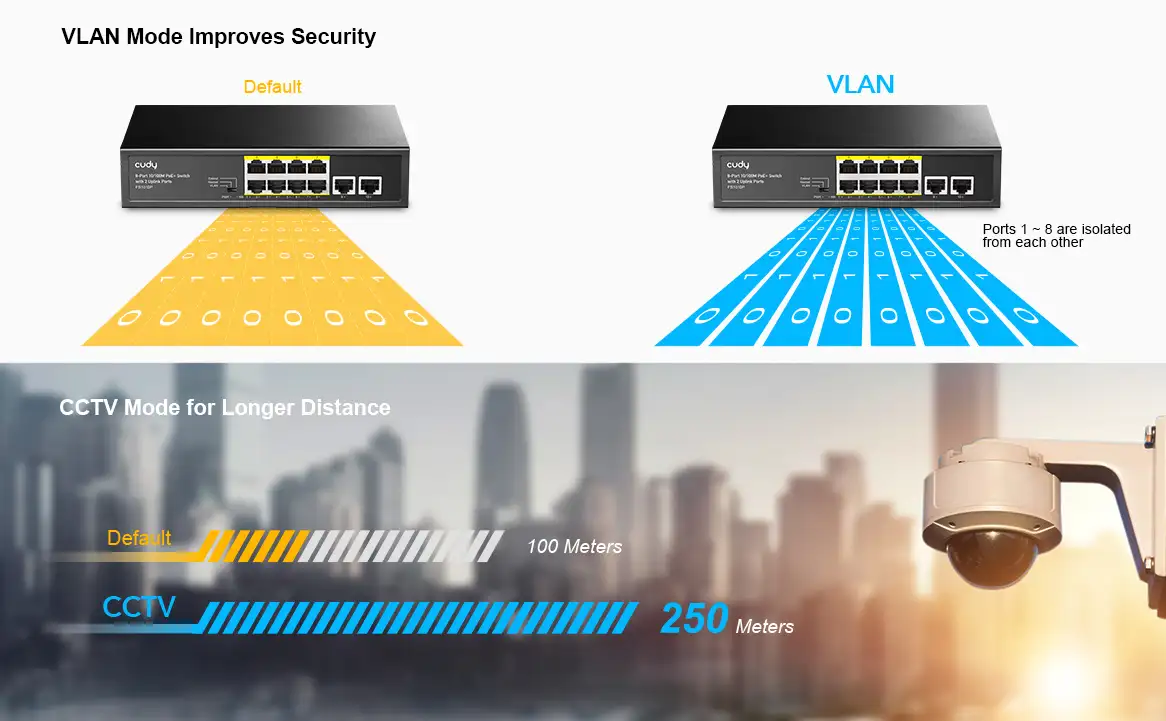

● Support VLAN and CCTV Function
● Panel lights to monitor working state and help fault analysis
● Perfect security mechanism
● Line-speed forwarding intelligent identiﬁcation

120 W Power budget & 30 W Maximum One Port

Supports a total PoE power of 120 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

Watchdog guarantees uninterrupted operation of the PoE devices

The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

Plug&Play, Fanless design

Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

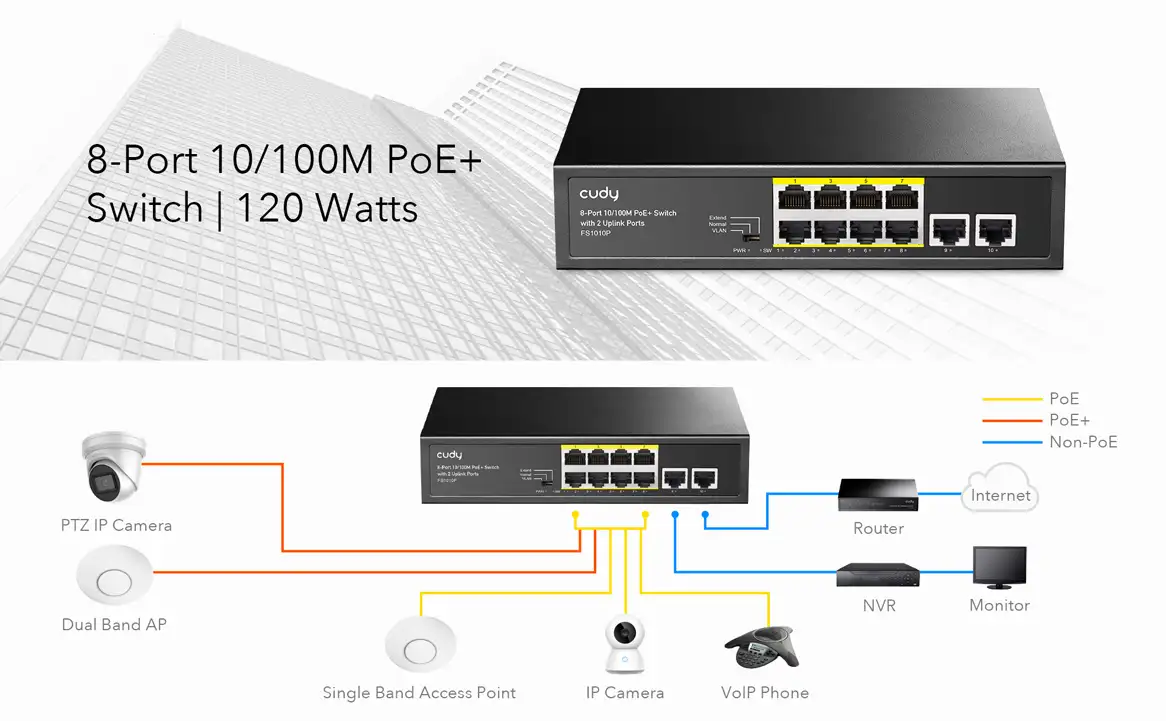

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business

What is the price of Cudy FS1010P Network Switch In Bangladesh?

The price of Cudy FS1010P Network Switch starts from 3,400 . The price may vary due to your customization and product availability. You can buy Cudy FS1010P Network Switch from our website or visit our showrooms nearby.
