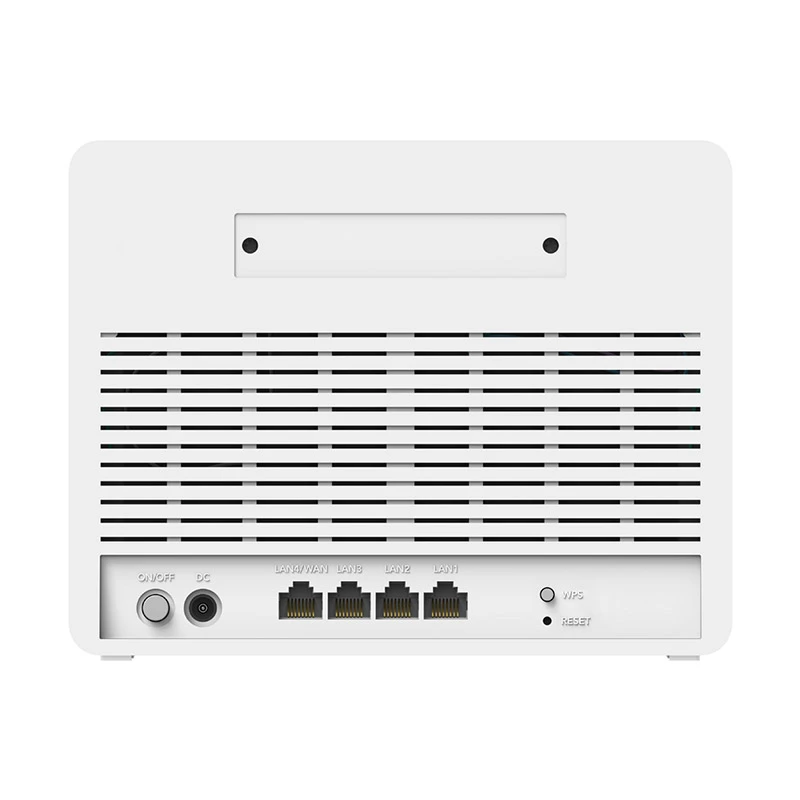

1 x RJ45 10/100 Mbps WAN/LAN, 3 x RJ45 10/100 Mbps WAN/LAN
Number of WAN Port
1
Number of LAN Port
3
Internet Connectivity
WAN + SIM
SIM Card Slot Included
Yes
Sim Card Slot
1
Wireless
Antenna (Type & Qty)
2 x Internal
WAN Type
DHCP, Static IP, PPPOE
Wi-Fi Generation
Wi-Fi 4
Band
Single
Wi-Fi Coverage (Approximate)
Up to 1399 sq. ft.
Number of Concurrent User
Up to 64 Devices
Performance
3G/4G
Yes
Mesh Technology
No
MIMO Technology
Yes
Security
Operating Frequency
2.4 GHz
Operation/Working Wireless Modes
Cellular Router, Wi-Fi Router, WISP
Security Protocols
WPA/WPA2/WPA3
Firewall Protocols
SPI Firewall, DoS Protection, Block PING
VPN Support
Yes
Built in Antivirus
No
Electrical
Power
Input: 100 - 240 V, 50/60Hz AC, Output: 12V 1A DC
Operating Temperature
0 Degree C - 40 Degree C
Storing/Storage Temperature
-40 Degree C - 70 Degree C
Operating Humidity
10% ~ 90% non-condensing
Storing/Storage Humidity
5% ~ 90% non-condensing
Physical Description
Wall Mountable
No
Button
Power On/Off Button, WPS Button, Reset Button
LED Indicators
System, Internet, Wi-Fi, LAN, WAN/LAN, Cellular Signal Strength
Weight (Kg)
0.300kg
Dimensions
190x50x148.8mm
Color
White
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Feature
Beamforming: True, VPN Server and Client, 4G LTE, Shares with Wired Devices Flawlessly, Network Redundacy, Automobile, Home, Surveillance, Booth for plug in sim Card to Enjoy the Network.
Others
Rom: (64 Mbit ) NOR, RAM: (512 Mbit) DDR2, Cellular/ Wi-Fi Router/ WISP Mode, LTD-FDD/ LTE-FDD/ LTE-TDD/ WCDMA/ GSM/ 3G DC-HSPA +/ HSPA +/ HSPA/ UMTS B1/ B8, MU-MIMO, 1x Guest Network, DDNS, PPTP/ L2TP/ OpenVPN/ WireGuard VPN Client , WPS, Manual DNS, Band locking, TTL Setting, Parental Controls, QoS, CUDY Mesh & Local Control App. 2T2R (2x2 MIMO), Max: 130 m (427 ft), Wall Performance: One wooden walls with thickness < 10 cm, One concrete wall with thickness < 10 cm. Max Power Consumption (W): 8W, Idle Power Consumption (W): 4W, EMC: ESD: Contact: 4kV; Air: 8kV, Package Content: LT400E, Power Adapter, Ethernet Cable, Installation Guide, Max Wi-Fi Modulation: 64-QAM, Max Capacity: 64, Recommended Client Upper Limit: 30, Max Wi-Fi Channel Width: 40 MHz, Guest Network: 2.4 GHz, WPS: True, Cellular APN: Band Select (Band Lock) Cellular Mode Select Data Roaming APN Profile Manual APN Profile MBN MTU Value, Cellular Mode: 4G Only, Auto, Internet Failover Sequence: WAN WISP Cellular, QoS: Per-User Rate Limiting, DHCP: Address Reservation DHCP Client List Server, IP Versions: IPv4/IPv6, IPv6 Protocols: Relay, Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite, IPTV/VLAN: Bridge Tag VLAN, TTL Customization: Extend Spoof Custom, IGMP: IGMP Proxy IGMP Snooping, Forwarding: Port Forwarding Port Triggering UPnP DMZ, VPN Server: WireGuard OpenVPN Zerotier PPTP L2TP, VPN Client: WireGuard OpenVPN Zerotier PPTP L2TP, Online Detection: True, Parental Controls: Profiles Settings Offline Time Online Time Pause the Internet Web Filter, All Devices Management: Wi-Fi Time Schedule MAC Filter IP/MAC Binding, Per-Devices Management: Internet On/Off VPN On/Off Online Time Schedule Device Rename, Content Management: Domain Filter IP Filter, Local Control Method: Config Web Page App Control, Remote Control Method: Config Page via HTTP.
Certifications
FCC, CE
Country Of Origin
China
Made in/ Assemble
China
