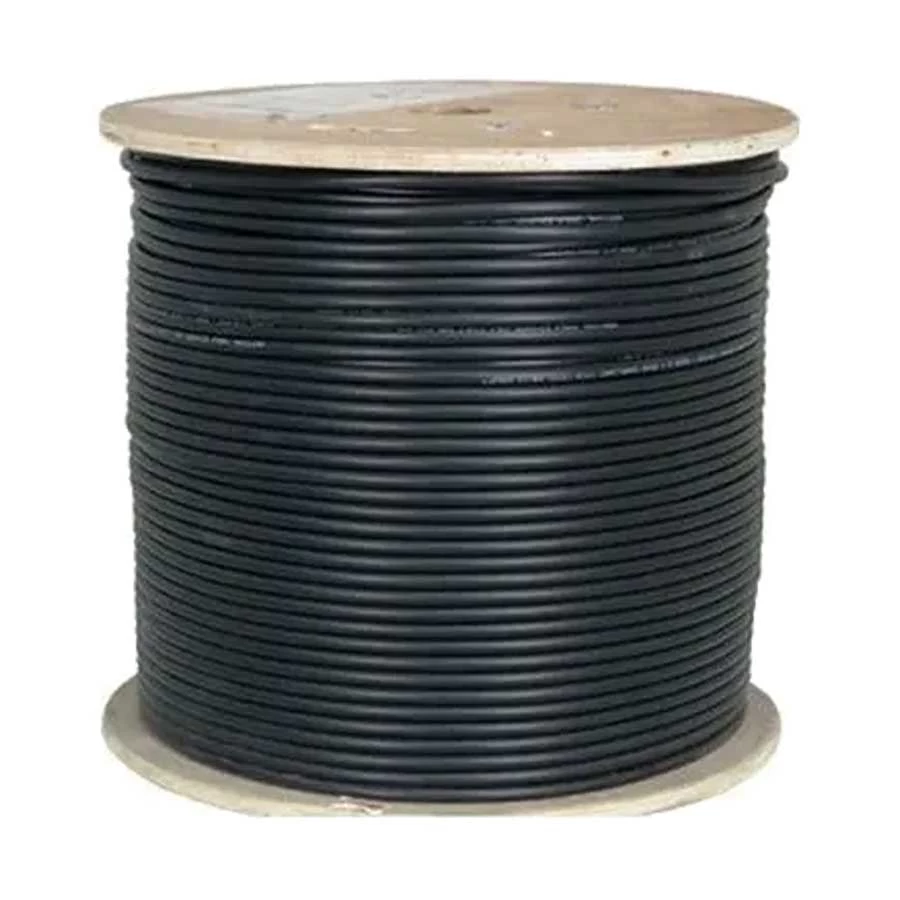

D-Link Cat-6, 305 Meter, Black Outdoor Network Cable #NCB-C6UBLKR-305-O

Product Id: 29.06.014.96

Brand D-link

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Type - Network Cable
  • Length - 305 Meter
  • Cable Shielding - Unmentioned
  • Conductor Material - Solid Bare Electrolytic Grade Copper
  • Jacket Material - UV-PE
General
Brand
D-Link

Model
D-Link Cat-6

Type
Network Cable

Part No
NCB-C6UBLKR-305-O


Technical Info
Length
305 Meter

Connector Type
No

Product Type
Round Cable


Main Features
Network Speed
1000Mbps

Channel Bandwidth
250MHz

Conductor Material
Solid Bare Electrolytic Grade Copper

Jacket Material
UV-PE

Cable Shielding
Unmentioned

AWG
23AWG

OD
7.1 mm


Physical Description
Color
Black


Warranty
Warranty Details
No warranty


Additional Info
Others
Jacket Material Detail: UV-PE (Outer Jacket), CONDUCTOR RESISTANCE (DC): 9.38/100MTR@20 Degree C. MAX, RESISTANCE UNBALANCE: 4 %MAX, DIELECTRIC STRENGTH: 1.7 KV AC for 2S, INSULATION RESISTANCE: 5000 M/km, MUTUAL CAPACITANCE: 5.6 nF/100 mtrs MAX, CAPACITANCE UNBALANCE PAIR/GROUND: 330 pF/100M MAX, PROPAGATION DELAY: 536 nS/100m max @ 250 MHz, DELAY SKEW: <45 nS/100M, NORMAL VELOCITY OF PROPAGATION: 69%, TENSILE STRENGTH: >9MPa, (9000KN/Square Meter), IMPEDANCE: 100 + - 15%. Insulation: Polyethylene, Insulation Diameter: 0.973 + - 0.05 mm, Insulation Thickness: 0.217mm, Sheath Thickness: 0.5 + - 0.15 mm, Sequential Marking: At Every Meter, Filler: Yes. Central Slit Film Cross Filler. Flame Test: NEC article 800, Material and Construction: UL 444. Applicable Standard: ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2), IEC 61156-5 (Edition2.0), IEC 60332-1-2, EN50288-6-1 & EN50173-1

Feature
PE Sheathed for greater protection, UV Resistant, Suitable for Outdoor Installations.

Specialty
Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 BaseT) standard. Operates at bandwidth of 250 MHz. This cable well exceeds the requirements of TIA/EIA568- C.2 and ISO/IEC 11801 and RoHS compliant.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
