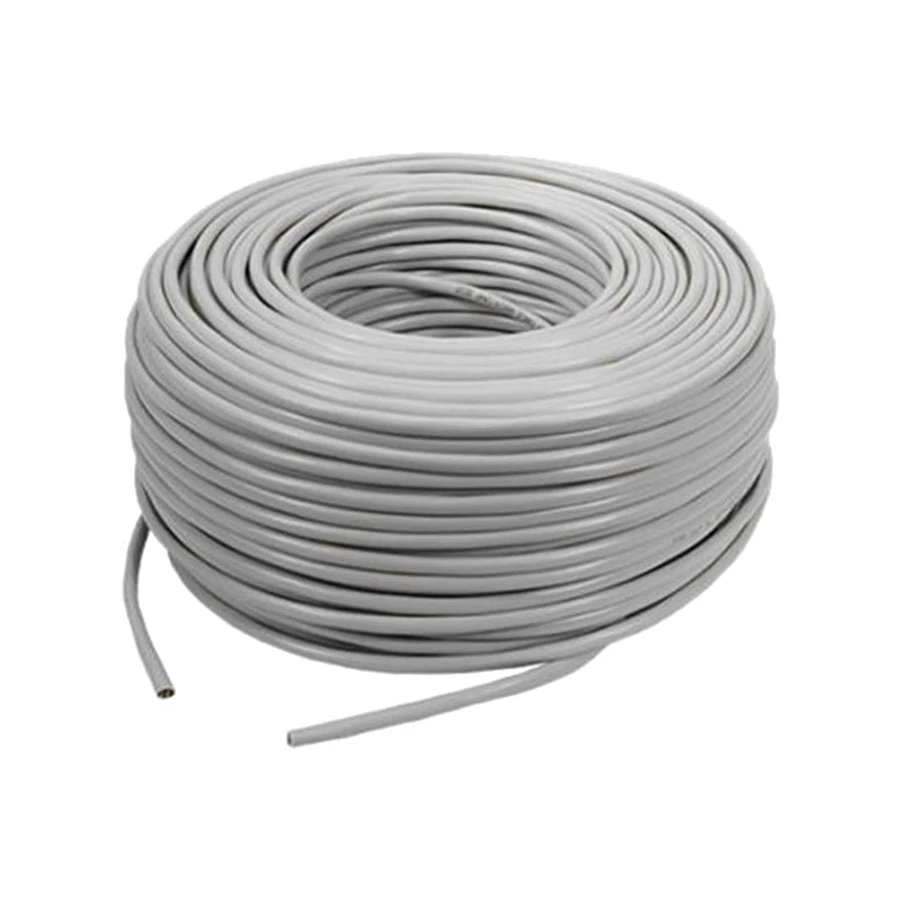

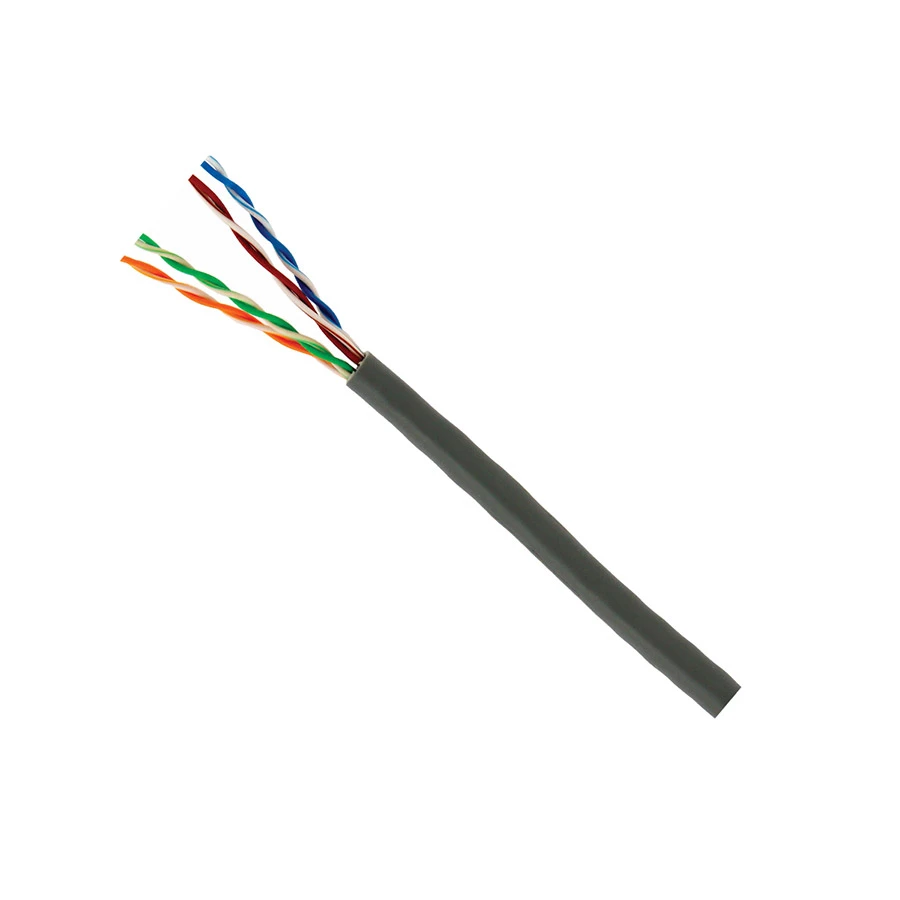

D-Link Cat-6 UTP LSZH, 305 Meter, Gray Network Cable #NCB-C6UGRYR-305-LS

Product Id: 29.06.014.121

Brand D-link

Coming Soon

Quick Overview

  • Type - Network Cable
  • Length - 305 Meter
  • Conductor Material - Solid Bare Copper
  • Jacket Material - LSZH
  • Cable Shielding - UTP (Unshielded Twisted Pair)
General
Brand
D-Link

Model
D-Link Cat-6 UTP

Type
Network Cable

Part No
NCB-C6UGRYR-305-LS


Technical Info
Length
305 Meter

Connector Type
RJ45

Product Type
Round Cable


Main Features
Network Speed
1000Mbps

Channel Bandwidth
250MHz

Conductor Material
Solid Bare Copper

Jacket Material
LSZH

Cable Shielding
UTP (Unshielded Twisted Pair)

AWG
23AWG


Physical Description
Color
Gray


Warranty
Warranty Details
No warranty


Additional Info
Others
Conductor Diameter: 0.560mm Nominal, Insulation Diameter: 0.970mm Nominal, Insulation Material: HD-PE, Cable Diameter: 6mm Nominal, PE Central Cross separator, Mutual Capacitance: 5.6nF/ 100m nominal, Characteristic Impedance: 100 ohm +-15%, Nominal Velocity of Propagation: 69%, Conductor Resistance: <9.38 ohm/ 100m, Resistance Unbalance: 5% Max, Capacitance Unbalance: 330pF/ 100m, Delay Skew: <45nS, Bending Radius: < 4 X Cable Diameter at -20 Degree C +- 1 Degree C, Pulling Force: 11.5Kg, Temperature Range: -20 Degree to +70 Degree C.

Feature
4 Pairs Unshielded Twisted Pair (UTP) Cable, CAT 6 cables reduce crosstalk and system noise. The superior insulation around the 23 AWG copper wires attribute to the increased performance. They can transmit data at 1000 Mbps (1 Gigabit per second) with a frequency of 250 MHz and suitable for 10BASE-T, 100BASE-TX Fast Ethernet and 1000BASE-T/ 1000BASE-TX (Gigabit Ethernet).

Specialty
D-Link solid cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by the TIA/EIA-568C.2 and IEC 60603-7-4 standards. As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time. D-Link cables are ideal for simple, cost-effective and high-speed transmission performance. They support a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
