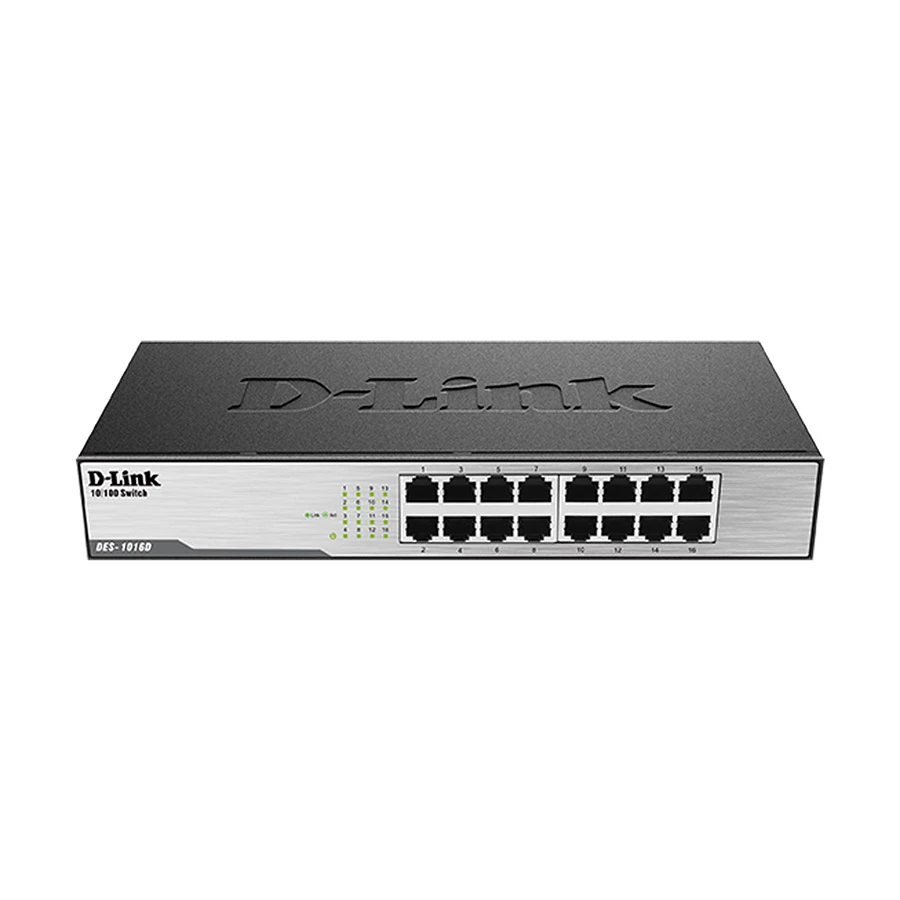

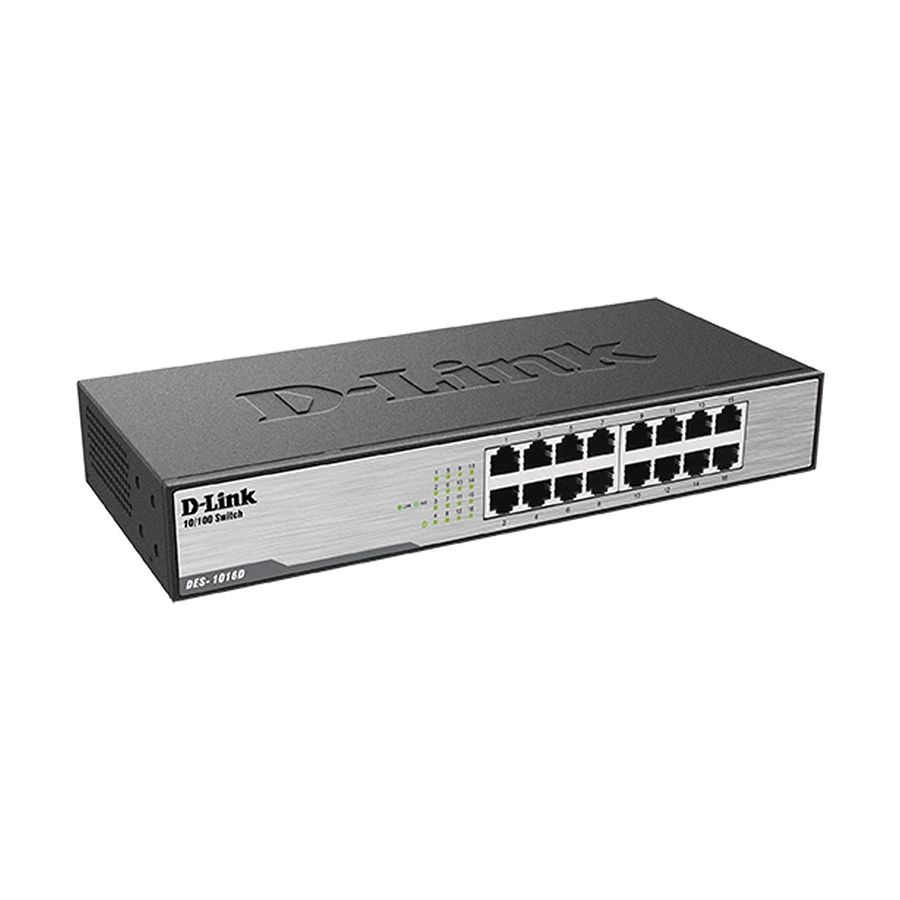

D-Link DES-1016D 16-Port Unmanaged Network Switch

Product Id: 29.05.014.161

Brand D-Link

Coming Soon

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 16 Port
  • PoE - No
  • Manageability - Unmanaged
  • Network Standards - IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, ANSI/IEEE 802.3 NWay auto-negotiation, IEEE 802.3x flow control, IEEE 802.3az EEE function.
  • Data Transfer Rate - 10/100 Mbps
  • Form Factor - Desktop
  • Body Color - Black
General
Brand
D-Link

Model
D-Link DES-1016D

Type
Network Switch


Ports & Slots
Number of Total Port
16 Port

SFP Port
No


Technical Info
PoE
No

Manageability
Unmanaged

Interface(s)
16 x 10/100Mbps Fast Ethernet Ports

Network Standards
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, ANSI/IEEE 802.3 NWay auto-negotiation, IEEE 802.3x flow control, IEEE 802.3az EEE function.

Data Transfer Rate
10/100 Mbps

Transmission Method
Store-and-forward

Connector Type
RJ45

Switching Capacity
3.2 Gbps

MTBF
492,096 Hours


Physical Description
Indicators
Per Port: Link/Activity

Body Color
Black

Form Factor
Desktop

Dimension
282 x 150 x 44mm

Weight
1.06 kg


Power
Approx. Power Consumption
0.9W - 2.1W


Warranty
Warranty
1 Year (Without Adapter)


Additional Info
Others
LAN: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX compliance, IEEE 802.3x Flow Control support. Data Transfer Rates: Fast Ethernet - 100 Mbps Half-Duplex, 200 Mbps Full-Duplex. Ethernet - 10 Mbps Half-Duplex, 20 Mbps Full-Duplex. Port Packet Filtering/ Forwarding Rate: 148,800 pps for 100 M, 14,880 pps for 10 M. Swithing Fabric: 3.2 Gbps switching fabric. Network Cables:- 10BASE-T: UTP CAT 3/4/5/5e (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.). 100BASE-TX: UTP CAT 5/5e (100 m max.), EIA/TIA-568 100-ohm STP (100 m max.). Media Interface Exchange: Auto MDI/MDIX adjustment for all ports. MAC Address Table: 8K entries per device. MAC Address Learning: Automatic update. Topology: Star. Protocol: CSMA/CD. Heat Dissipation: Maximum Heat Dissipation: 7.1652 BTU/h. Temperature: Operating: 0 to 40 Degree C. Humidity: Operating: 10% to 90% non-condensing.

Specialty
With the D-Link 16-Port Fast Ethernet Unmanaged Switches, you can easily expand your business or home network by adding more computers and devices, each achieving speeds up to 200 Mbps per port in full-duplex mode. Quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
