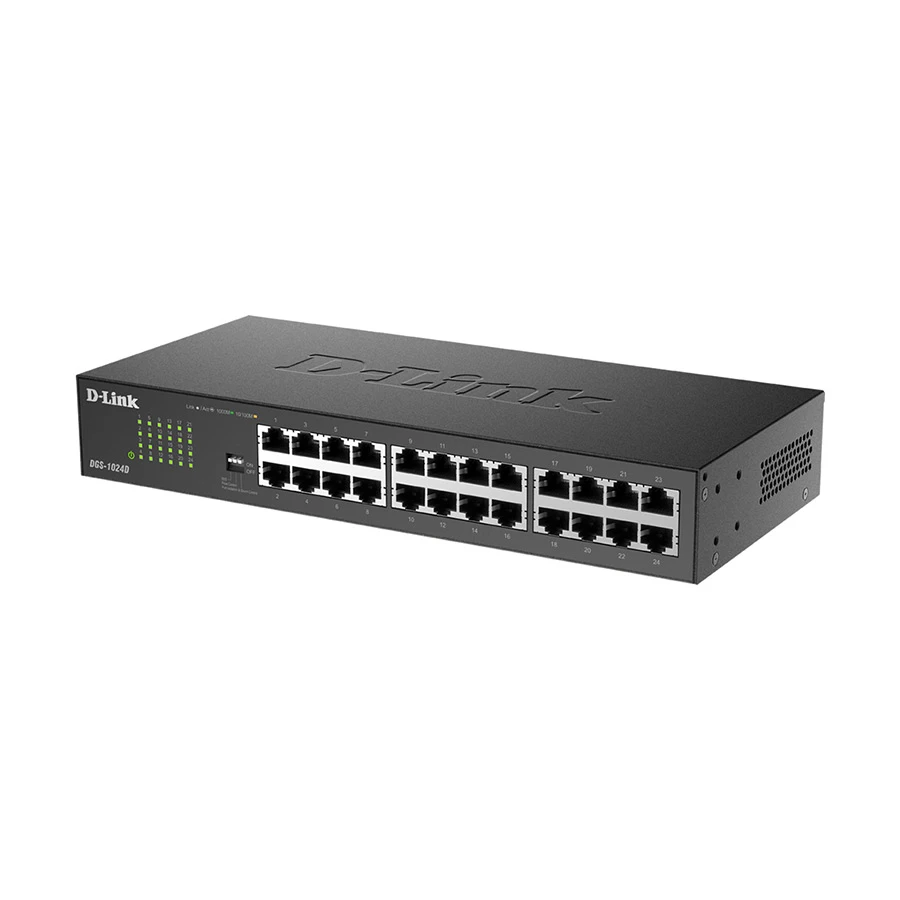

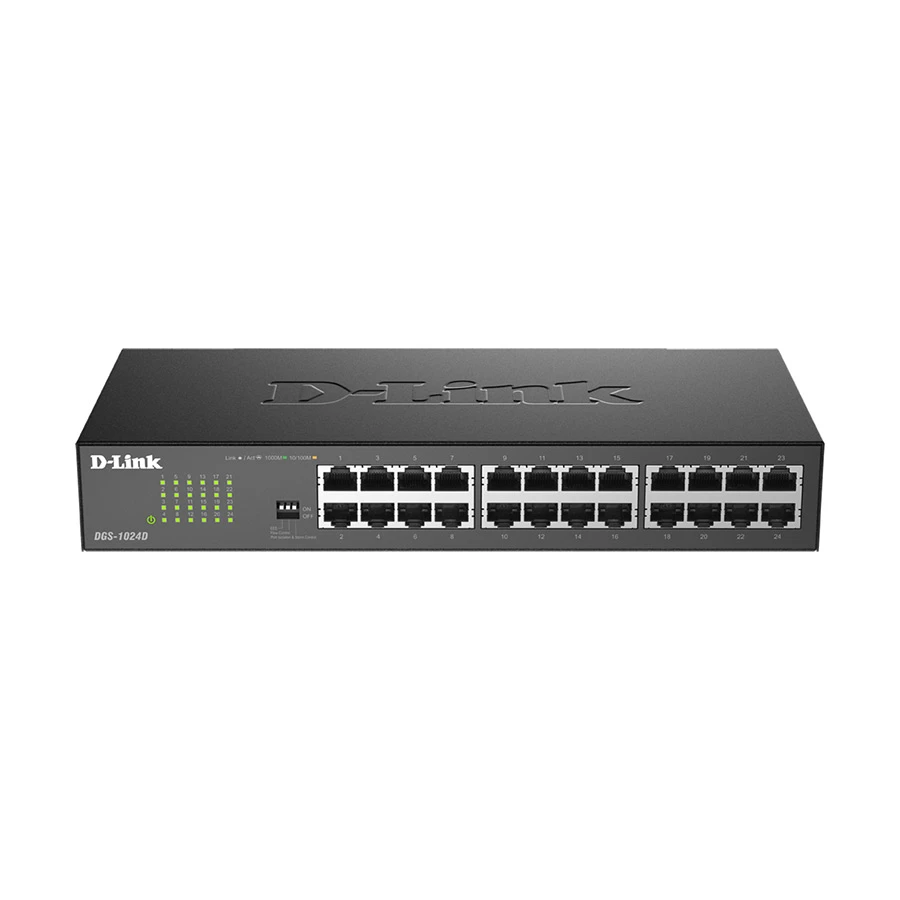

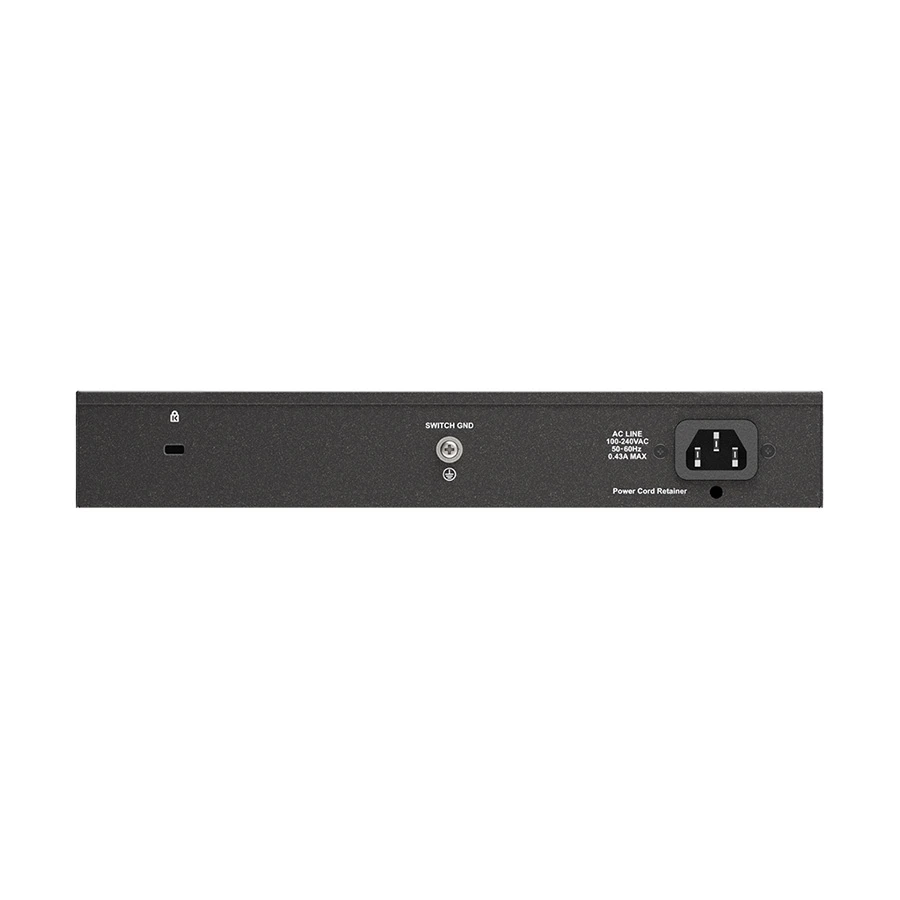

D-Link DGS-1024D 24-Port Unmanaged Network Switch (1 Yr Warranty)

Product Id: 29.05.014.10

Brand D-Link

Out Of Stock

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 24 Port
  • PoE - No
  • Manageability - Unmanaged
  • Network Standards - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.1p Quality of Service (QoS), IEEE 802.3x Flow Control supported for full-duplex, Auto-negotiation, IEEE 802.3az Energy-Efficient Ethernet (EEE).
  • Data Transfer Rate - 10/100/1000 Mbps
  • Form Factor - Desktop/Rackmount
  • Body Color - Black
General
Brand
D-Link

Model
D-Link DGS-1024D

Type
Network Switch


Ports & Slots
Number of Total Port
24 Port

Gigabit Port
24

SFP Port
No

SFP+ Port
No

PoE Port
No

PoE+ Port
No


Technical Info
PoE
No

Manageability
Unmanaged

Interface(s)
24 x 10/100/1000 Mbps RJ45

Network Standards
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.1p Quality of Service (QoS), IEEE 802.3x Flow Control supported for full-duplex, Auto-negotiation, IEEE 802.3az Energy-Efficient Ethernet (EEE).

Data Transfer Rate
10/100/1000 Mbps

Transmission Method
Store-and-forward

Access Method
CSMA/CD

Connector Type
RJ45

Switching Capacity
48 Gbps


Physical Description
Fan/Fanless
Fanless

Indicators
Link/Activity/Speed LEDs (per port)

Body Material
Metal

Body Color
Black

Form Factor
Desktop/Rackmount

Dimension
280 x 126 x 44mm


Power
Power Supply
Internal universal power supply, 100-240V AC, 50 to 60 Hz, 0.35A max.

Approx. Power Consumption
16W


Warranty
Warranty
1 year


Additional Info
Others
Green Features: Power saving by link status and cable length, Security: Storm Control, Port isolation, QoS (Quality of Service): 802.1p priority, 8 queues, Cable Diagnostics: Indicated through port LEDs, Max. Forwarding Rate: 35.71 mpps, Packet Buffer RAM: 512 KBytes per device, Filtering Address Table: 8K MAC addresses per device, Packet Filtering/Forwarding Rate: (Ethernet: 14,880 pps per port, Fast Ethernet: 148,800 pps per port, Gigabit Ethernet: 1,488,000 pps per port), MAC Address Learning: Self-learning, auto-aging, Operating Temperature: 0 to 40 degree C, Storage Temperature: -10 to 70 degree C, Operating Humidity: 10% to 90% RH, non-condensing, Storage Humidity: 5% to 90% RH, Safety: CB, BSMI.

Specialty
The D-Link DGS-1024D 24-Port Unmanaged Gigabit Switch series offer an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds while reducing energy consumption and minimising noise output.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
