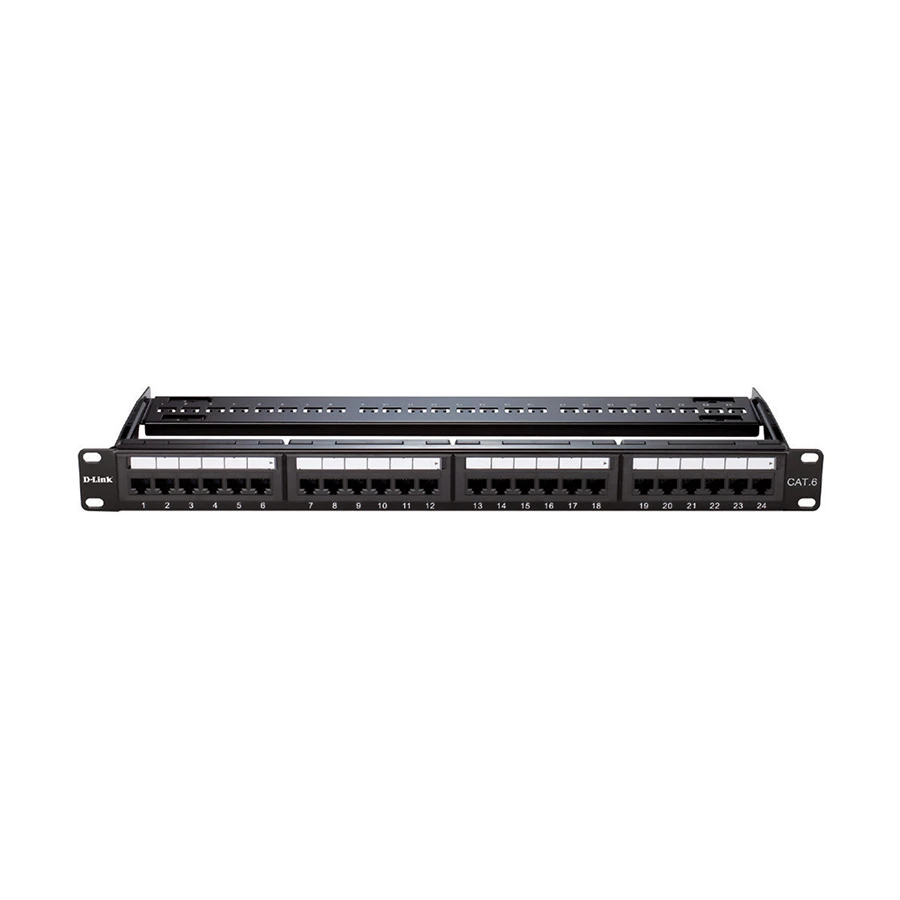

D-Link NPP-C61BLK241 24 Port Black Fully Loaded Patch Panel

Product Id: 29.10.014.106

Brand D-link

Special Price
Tk 6,999
Save Extra Tk 149 on online order
Regular Price
Tk 7,593
EMI TK 633

Quick Overview

  • Color - Black
  • Type - Patch Panel
  • Length - No
Avail EMI Offer
EMI starts from Tk 844/months
Additional Info
Brand
D-link

Model
D-Link NPP-C61BLK241

Type
Patch Panel

Port Side-1
Not Applicable

Port Side-2
Not Applicable

Length
No

Color
Black

Others
Features: Six Port RJ45 modules applied, ID stripes for identifying port allocations, IDC: suitable for 22-26 AWG stranded and solid wire, Compatible with both 110& Krone punch down tools, Improved Cable Management with optional cable management bar, Available in 1U and 2U. Specifications: Identification: ID plate, PVC, Transparent color with paper. Panel: SPCC, 1.5mm thickness with Black (RAL 9005) color painted. RJ45 Jack: Housing: ABS, UL 94V-0 Contact Brackets: PC, UL 94V-2, Transparent color. RJ45 Jack Contact: Material: Phosphor Bronze with Nickel Plated Finish: 50 micro-inches Gold plated on plug contact area. IDC: Housing: PC+ Glass Fiber, UL 94V-2 Terminal: phosphor Bronze with Tin plated. Jack Bracket Set: ABS, UL 94V-0. Support Bar: SPCC, 1.5 mm thickness with Black (RAL 9005) color painted. PCB: FR4, UL 94V-0. Performance: T568A & T568B wiring scheme, Insertion force: 20N max. (IEC 60603-7-4), Retention strength: 7.7 kg between jack and plug, Operating temperature: -10 Degree C to 60 Degree C (ISO/IEC 11801, ANSI/TIA/EIA 568B.2). Life (mating cycles): Jack: 750 cycles min (ISO/IEC 11801, IEC 60603-7-4) IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools. The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568B.2 -1 standard. Six port modules applied.

Warranty Details
No warranty

Country Of Origin
China

Made in/ Assemble
Taiwan


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
