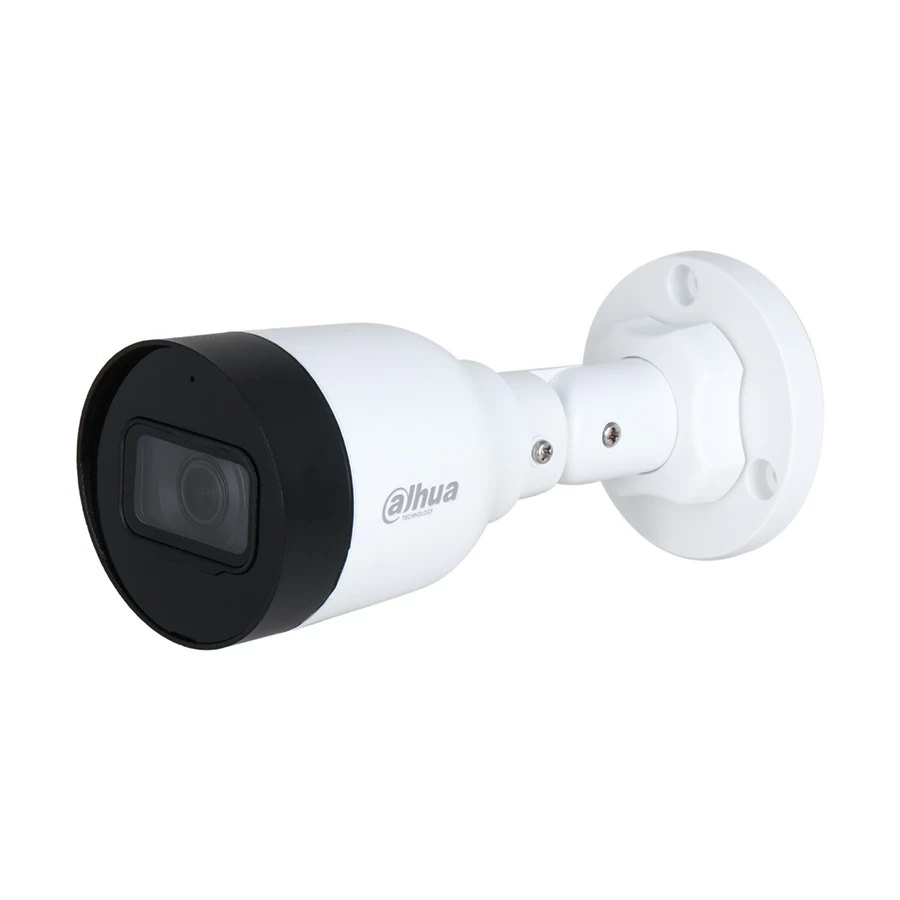

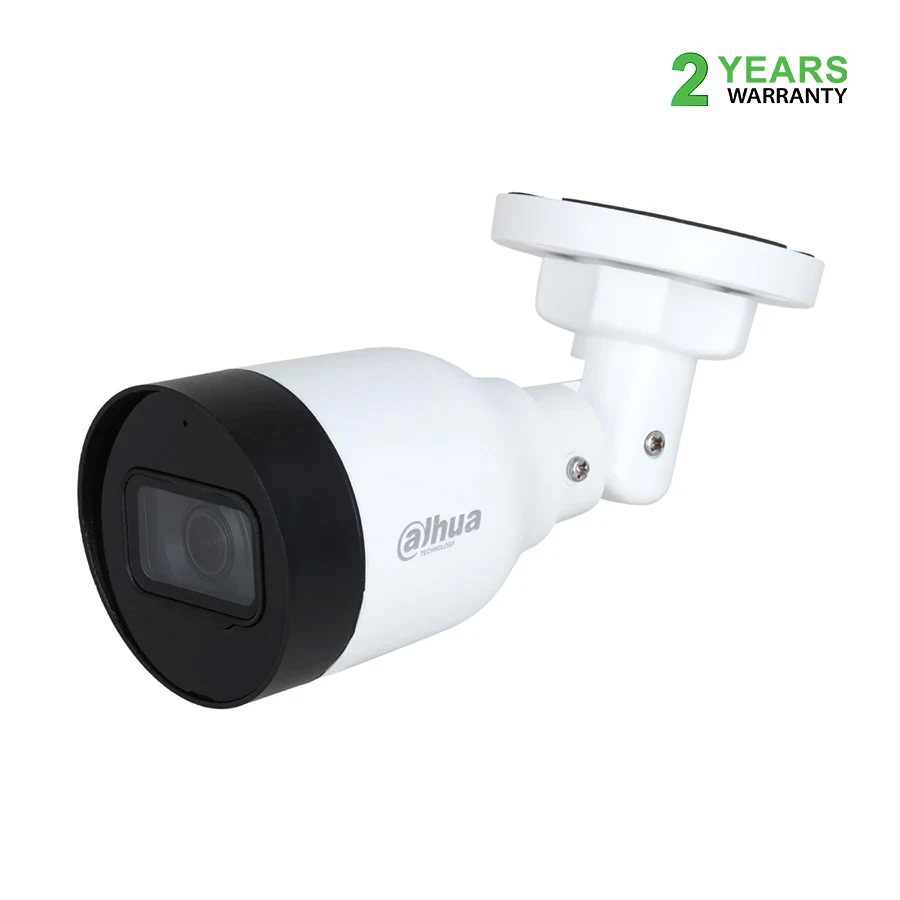

Dahua DH-IPC-HFW1230S1-A-S5 (3.6mm) (2MP) Bullet IP Camera

Product Id: 127.03.776.205

Brand Dahua

Regular Price Tk 3,690
Special Price Tk 3,500

Quick Overview

  • Usage - Outdoor
  • Form-Factor - Bullet
  • Mega Pixels - 2.0MP
  • Night Vision Mode - Color
  • Working Distance - Unmentioned
General
Brand
Dahua

Model
Dahua DH-IPC-HFW1230S1-A-S5

Usage
Outdoor

Type
Bullet IP Camera


Camera
Camera Type
Fixed

Mega Pixels
2.0MP

Max. Camera Resolution
1920 x 1080

Image Sensor
1/2.8 Inch CMOS

Resolution
1080p (1920 x 1080), 1.3M (1280 x 960), 720p (1280 x 720), D1 (704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240)

Shutter Speed
1/3s - 1/100,000s (Auto/Manual)

Day & Night
Auto (ICR)/Color/B/W

Night Vision
Yes

S/N Ratio
>56 dB


Lens
Lens
Fixed-focal

Lens Mount
M12

Focal Length
3.6mm

Viewing Angle.
88degree (H), 47degree (V), 104degree (D)


Dual-Stream
Yes

Triple-Stream
Yes

Frame Rate
Main stream: 1920 x 1080@1-25/30 fps, Sub stream: 704 x 576@1-25 fps, 704 x 480@1-30 fps

Digital Noise Reduction (DNR)
3D NR

Wide Dynamic Range (WDR)
DWDR


Network & Connectivity
Interface(s)
RJ-45 (10/100 Base-T)

Wi-Fi
No


Security
Watermark
Yes

Motion Detection
Yes

Water Protection
Yes


Technical Info
Scanning System
Progressive

Video Type
H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)

Mic & Speaker
Only Mic

Audio Communication
G.711A, G.711Mu, G.726

Ingress Protection Grade
IP67

Working Distance
Unmentioned

Protocols
IPv4, IPv6, HTTP, TCP; UDP, ARP, RTP, RTSP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP

Supported Operating System
iOS, Android


Physical Description
Form-Factor
Bullet

Storage Type
FTP

Body Material
Metal + Plastic

Color
White

Dimensions
162.6 x 70 x 70mm

Weight (gm)
200 gm


Power
Power Supply
12 VDC/ PoE (802.3af)

Approx. Power Consumption
1.2W (12 VDC), 2W (PoE) (Basic), 3.2W (12 VDC), 4.1W (PoE) (Max. (ICR + H.265 + IR intensity))

Operating Temperature
-40 Degree C - +60 Degree C

Storage Temperature
-40 Degree C - +60 Degree C

Operating Humidity
<=95%


Warranty
Warranty Details
1 year


Additional Info
Night Vision Mode
Color

Others
ROM: 16MB, RAM: 64MB, Min. Illumination: 0.01 [email protected] (Color, 30 IRE), 0.001 [email protected] (B/W, 30 IRE), 0 lux (Illuminator on), Illumination Distance: 30 m (98.43 ft) (IR), Illuminator On/Off Control: Auto, manual, Illuminator Number: 1(IR LED), Pan/Tilt/Rotation Range: Pan: 0 Degree - 360 Degree, Tilt: 0 Degree - 90 Degree, Rotation: 0 Degree - 360 Degree, Max. Aperture: 3.6 mm: F2.0, Iris Control: Fixed, Close Focus Distance: 3.6 mm: 0.8 m (2.62 ft), DORI Distance: Detect: 49.7 m (163.06 ft), Observe: 19.9 m (65.29 ft), Recognize: 9.9 m (32.48 ft), Identify: 5.0m (16.40 ft), Smart Codec: Smart H.265+; Smart H.264+, Bit Rate Control: CBR/VBR, Video Bit Rate: H.264: 32 kbps, 6144 kbps, H.265: 12 kbps, 6144 kbps, White Balance: Auto; natural; street lamp; outdoor; manual; regional custom, Gain Control: Auto; manual, Image Rotation: 0 Degree/90 Degree/180 Degree/270 Degree (Support 90 Degree/ 270 Degree with 1080p resolution and lower), Cyber Security: Configuration encryption, Trusted execution, Digest, Security logs, Trusted upgrade, WSSE, Trusted boot, Account lockout, Generation and importing of X.509 certification, Video encryption, Interoperability: ONVIF (Profile S); CGI; P2P; Genetec, User/Host: 6 (Total bandwidth: 36 M), Browser: IE, Chrome, Firefox, Management Software: Smart PSS; DSS; DMSS.

Specialty
BLC, HLC, Region of Interest (RoI), Smart Illumination, Mirror, Privacy Masking: 4 areas, Alarm Event: Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception, SDK and API.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
