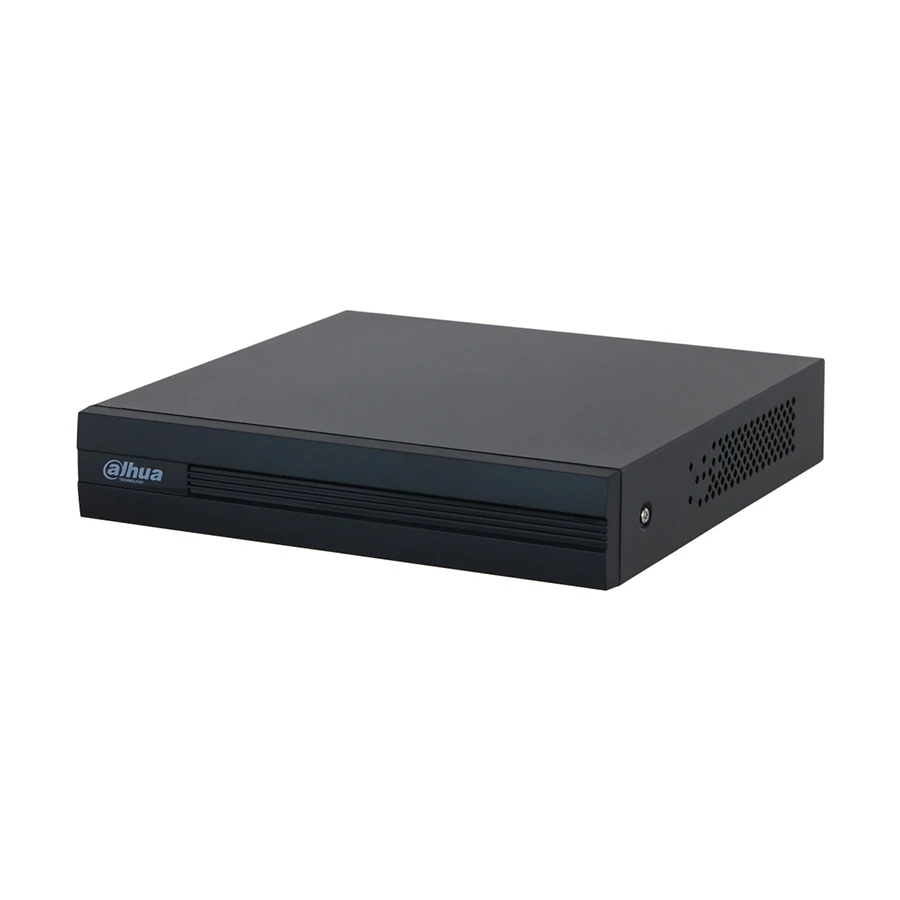

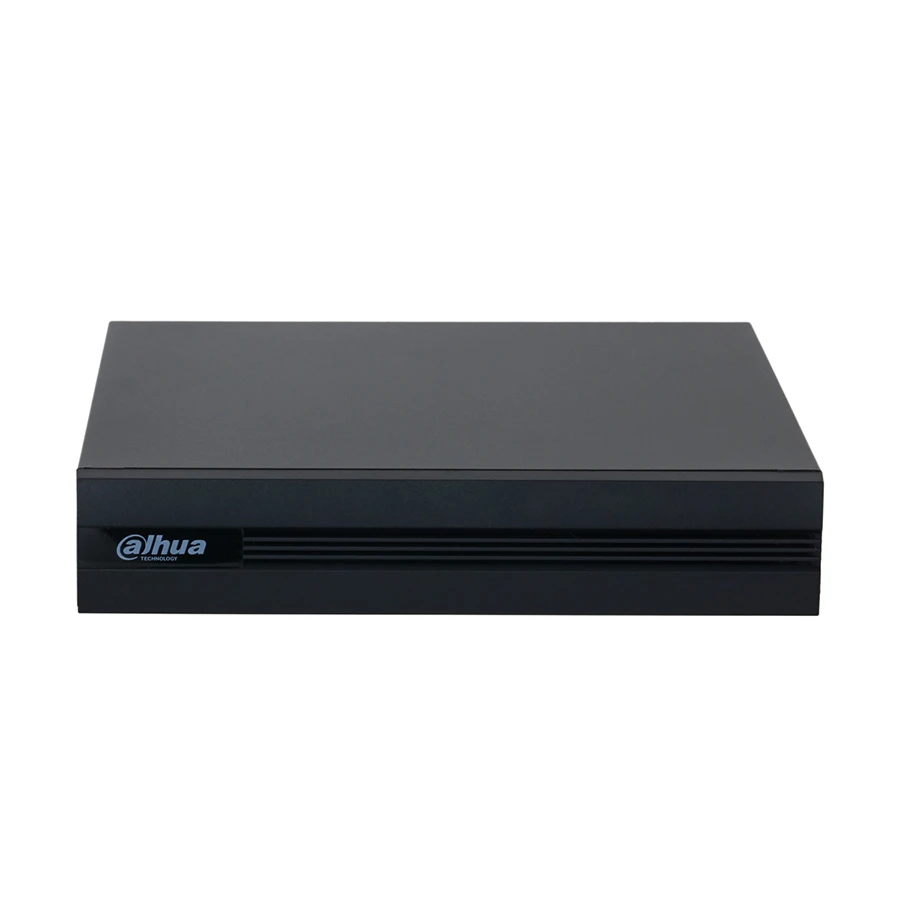

Dahua DH-XVR1B04-I-SSD-1TB 04 Channel 1080N/720P XVR

Product Id: 127.08.776.233

Brand Dahua

Regular Price Tk 3,090
Special Price Tk 2,900

Quick Overview

  • Dual Stream Support - Yes
  • Number HDD Interface (SATA) - 1 SSD
  • Max. Storage Support - 1TB
Brand
Dahua

Model
Dahua DH-XVR1B04-I-SSD-1TB

Type
1080N/720P XVR

Video Compression/Format
AI Coding; H.265+; H.265; H.264+; H.264

Video Output (VGA)
1920 x 1080, 1280 x 1024, 1280 x 720

Video Output (HDMI)
1920 x 1080, 1280 x 1024, 1280 x 720

Max. Video Recording Res.
1920 x 1080

Video Bit Rate
32 kbps - 4096 kbps

Audio Input Channel (RCA)
1-channel RCA

Audio Compression
G.711a; G.711u; PCM

Audio Output Channel
1-channel RCA

Two way Audio
Yes

Audio Bit Rate
64 kbps

Frame Rate
PAL: 1 fps/s - 25 fps/s, NTSC: 1 fps/s - 30 fps/s

Stream Type
Main Stream, Dual Stream, Sub Stream

Dual Stream Support
Yes

Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Number HDD Interface (SATA)
1 SSD

Max. Storage Support
1TB

Network Interface (RJ45)
1

USB Port
Rear: 2 x USB 2.0

Main Processor
Industrial-grade processor

CVBS Input
Yes

Incoming Bandwidth
20 Mbps

Outgoing Bandwidth
20 Mbps

Interoperability
ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK

Video Detection
General; Motion Detection; Intelligent; Alarm

Backup Storage
USB device and network

Operating System.
Embedded Linux

Power Supply
12 VDC, 1.5 A

Approx. Power Consumption
<7W (with SSD)

Dimensions
198.3 x 202.9 x 41.5mm

Weight (Kg)
0.57 kg (Net)

Smart Phone Supported
Android, iOS

Feature
4 Channels Penta-brid 1080N/720p Cooper 1U 1SSD 1TB WizSense Digital Video Recorder. Supports Full channel AI-Coding. Supports HDCVI/AHD/TVI/CVBS/IP video inputs. Max 5 channels IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth. Long transmission distance over coax cable. Up to 4 channels video stream (analog channel) SMD Plus.

Others

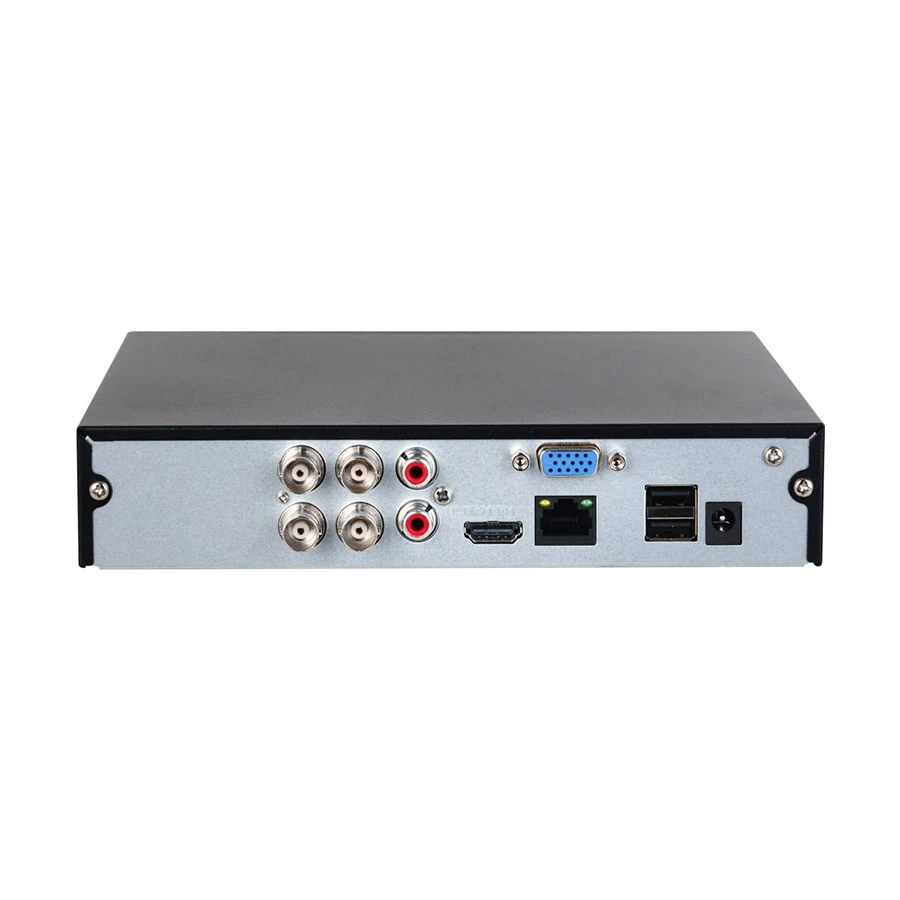

Operating Interface: Web; Local GUI. SMD Plus by Recorder: 4-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect, Camera Input: 1. CVI: 1080p 25/30 fps; 720p 25/30/50/60 fps. 2. TVI: 1080p 25/30 fps; 720p 25/30 fps. 3. AHD: 1080p 25/30fps, 720p25/30 fps. IP Camera Input: Up to 5 channels of IPC access. Encoding Capacity: Main stream: All channel 1080N (1-25/30 fps);720p (1-25/30 fps); 960H (1-25/30 fps); D1 (1-25/30 fps); CIF (1-25/30 fps), Sub stream: CIF (1-15 fps). Multi-screen Display: When IP extension mode not enabled: 1/4. When IP extension mode enabled: 1/4/6. Third-party Camera Access: ONVIF; Panasonic; Sony; Axis; Arecont; Samsung. Browser: Chrome IE 9 or later Firefox, Network Mode: Single-address mode. Recording Playback: 1/4, Playback Mode: Instant playback, general playback, event playback, tag playback, smart playback (motion detection). HDD Interface: 1 SSD: 1TB (replaceable with 256 GB or 512 GB) Stores for 44 days under default settings. HDMI: 1. VGA: 1. Network Port: 1 (10/100 Mbps Ethernet port, RJ-45).

Warranty Details
1 year

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
