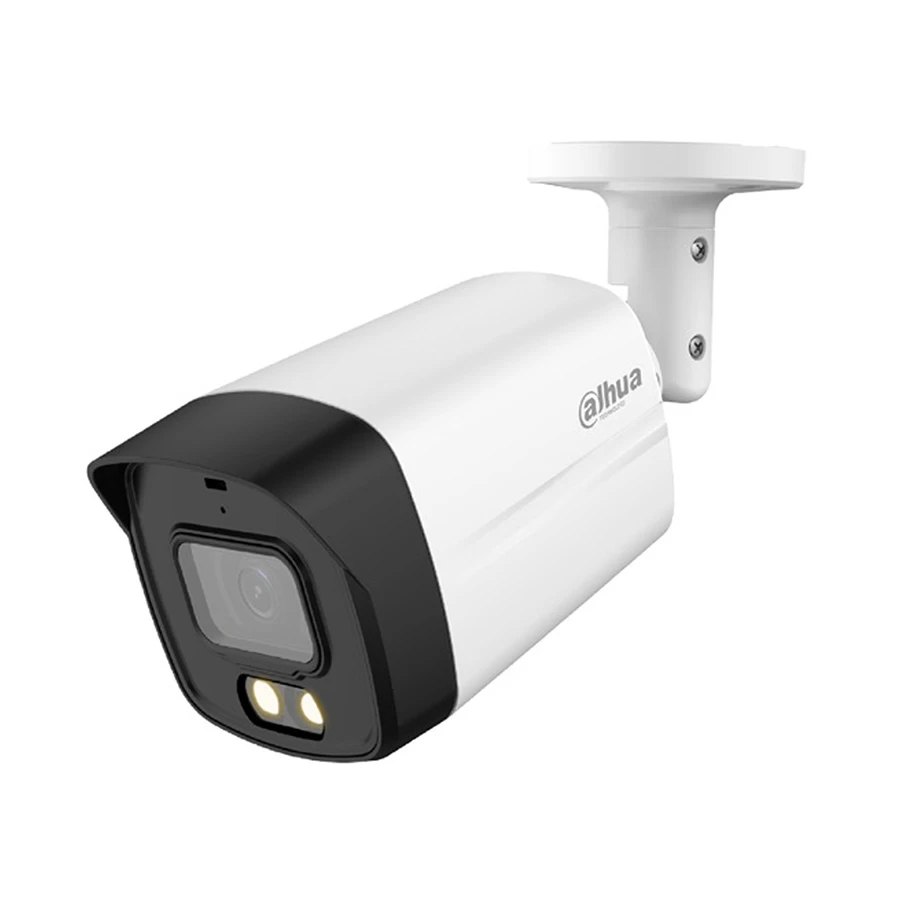

Dahua HAC-HFW1509TLM(-A)-LED 5MP Bullet CC Camera

Item: Dahua HAC-HFW1509TLM(-A)-LED 5MP Bullet CC Camera
Rating: 5
Author: Verified Buyer

1 reviews

Product Id: 127.01.776.165

Out Of Stock

See similar model

Quick Overview

Usage - Outdoor
Form-Factor - Bullet
Mega Pixels (MP) - 5.0
Night Vision Mode - Color
IR Range - 40 Meter
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Dahua

Model

Dahua HAC-HFW1509TLM(-A)-LED

Usage

Outdoor

Type

CC Camera

Form-Factor

Bullet

Camera Type

Fixed

Mega Pixels (MP)

5.0

Max. Camera Resolution

2880 x 1620

Sensor Type.

5MP Image Sensor CMOS

Night Vision

Yes

Night Vision Mode

Color

Audio

Only Mic

Capture Distance

Unmentioned

Noise Reduction

Yes

IR Range

40 Meter

Color

White

Approx. Power Consumption

Max 6.4 W (12 V DC, warm light on)

Body Material

Metal (Front Cover), Plastic (Main Body), Metal (Bracket)

Dimensions

198.4 x 80.2 x 76.2mm

Weight (gm)

330gm

Warranty

1 year

General

Brand

Dahua

Model

Dahua HAC-HFW1509TLM(-A)-LED

Usage

Outdoor

Type

CC Camera

Camera

Mega Pixels (MP)

5.0

Resolution

5MP (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480)

Max. Camera Resolution

2880 x 1620

S/N Ratio

> 65 dB

Shutter Time

PAL: 1/3 s - 1/100,000 s, NTSC: 1/4 s - 1/100,000 s

Sensor Type.

5MP Image Sensor CMOS

Night Vision

Yes

Night Vision Mode

Color

Lens

Field of View

H: 88; V: 46 Degree; D: 104 Degree

Lens Mount

M12

Lens Adjustment Range

Pan: 0 Degree - 360 Degree, Tilt: 0 Degree - 90 Degree, Rotation: 0 Degree - 360 Degree


Function

Full-color, Broadcast-quality Audio, Wide Dynamic Range, Super Adapt, Advanced 3D NR, Warm Supplemental Lights, 4 Signals over 1 Coaxial Cable, Long Distance Transmission, Protection

Capture Distance

Unmentioned

Noise Reduction

Yes

Digital Noise Reduction (DNR)

3D NR

Technical Info

Camera Type

Fixed

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio

Only Mic

Audio Type

One channel built-in mic (-A)

IR Range

40 Meter

Privacy Mask

Off/On (8 areas, rectangle)

Ingress Protection Grade

IP67

Physical Description

Form-Factor

Bullet

Color

White

Body Material

Metal (Front Cover), Plastic (Main Body), Metal (Bracket)

Dimensions

198.4 x 80.2 x 76.2mm

Weight (gm)

330gm

Power

Power Supply

12 V + - 30% DC

Approx. Power Consumption

Max 6.4 W (12 V DC, warm light on)

Warranty

1 year

Additional Info

Feature

Max 25 fps@5MP (16:9 video output), 120 dB true WDR, 3D NR, 24/7 color imaging, 40 m illumination distance, CVI/CVBS/AHD/TVI switchable, Built-in mic (-A), 3.6 mm fixed lens (2.8 mm optional), IP67, 12 V DC

Others

Scanning System: Progressive, Min. Illumination: 0.001 Lux/F1.0, 0 Lux warm light on. Illumination Distance: 40 m (131.2 ft), Illuminator On/Off Control: Auto; manual, Illuminator Number: 2, Max. Aperture: F1.0. Frame Rate: CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H. BLC: BLC/HLC/WDR/HLC-Pro, White Balance: Auto; Area WB, Gain Control: Auto; manual, Smart Light: Yes, Mirror: Off/On

Specialty

120 dB true WDR, 3D NR, 24/7 color imaging, 40 m illumination distance

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Dahua HAC-HFW1509TLM(-A)-LED CC Camera In Bangladesh

Key Features:

Max 25 fps@5MP (16:9 video output)
120 dB true WDR, 3D NR
24/7 color imaging
40 m illumination distance
CVI/CVBS/AHD/TVI switchable
Built-in mic (-A)
IP67, 12 V DC

What is the price of Dahua HAC-HFW1509TLM(-A)-LED CC Camera In Bangladesh?

The price of Dahua HAC-HFW1509TLM(-A)-LED CC Camera not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Dahua HAC-HFW1509TLM(-A)-LED CC Camera from our website or visit our showrooms nearby.
