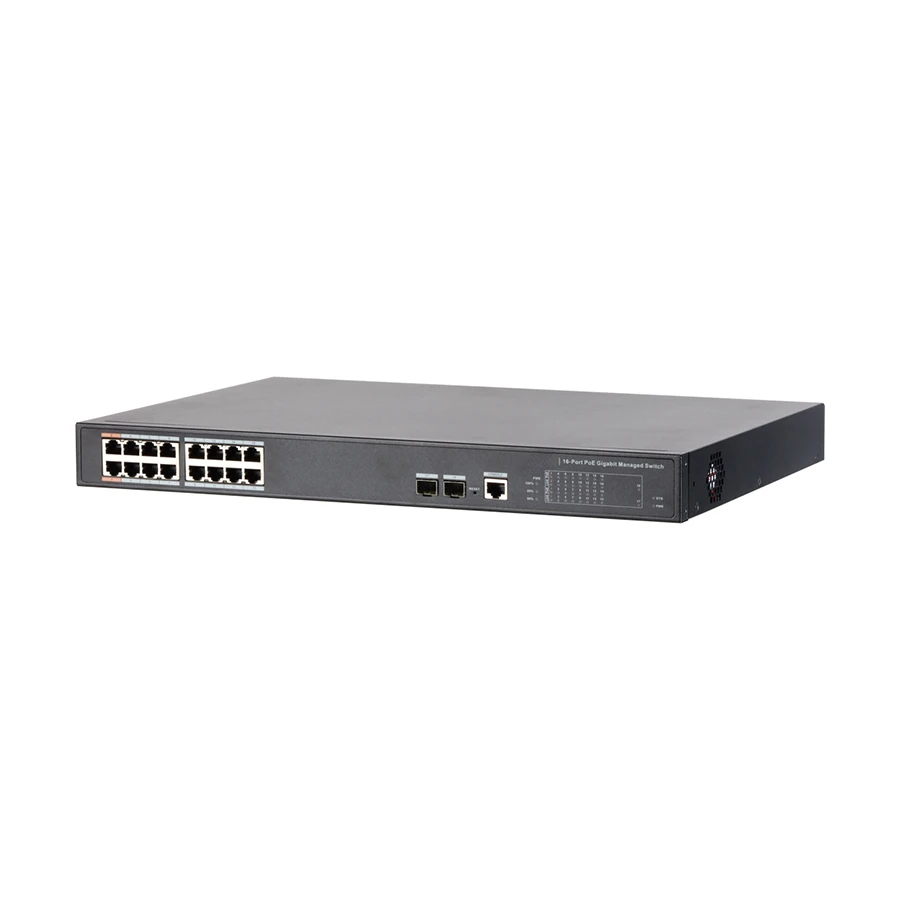

Dahua PFS4218-16GT-240 18 Port Managed Switch

Product Id: 29.05.776.06

Brand Dahua

Special Price
Tk 29,300
Save Extra Tk 1,791 on online order
Regular Price
Tk 31,790
EMI TK 2,650

1 Discounted unit available, call +8809638442121 for details.

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 18 Port
  • PoE - Yes
  • Manageability - Managed
  • Data Transfer Rate - 10/100/1000 Mbps
  • Form Factor - Rackmount
Avail EMI Offer
EMI starts from Tk 3,532/months
General
Brand
Dahua

Model
Dahua PFS4218-16GT-240

Type
Network Switch


Ports & Slots
Number of Total Port
18 Port

Gigabit Port
2

PoE Port
16


Technical Info
PoE
Yes

Manageability
Managed

Interface(s)
16 x 10/100/1000 Base-T (PoE power supply), 2 x 100/1000 Base-X, 1 x RS232 in RJ45 connector with console cable

Data Transfer Rate
10/100/1000 Mbps

Switching Capacity
52Gbps


Physical Description
Form Factor
Rackmount

Dimension
440 x 300 x 44mm

Packet Contents
1 x Dahua PFS4218-16GT-240, 1 x User manual


Power
Approx. Power Consumption
Port1 and port 2 support Hi-PoE: 60W, Each power: <- 30W, Total <- 240W


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
PoE Protocol: IEEE802.3af, IEEE802.3at, Hi-PoE, Packet Forwarding Rate: 23.81Mpps, Packet Buffer Memory: 4MB, Application Humidity: 5 - 95%, Lightning Protection: Common Mode 2KV, Differential Mode 1KV, Working Temperature: -10 Degree C - 55 Degree C

Specialty
Service Characteristics - Username / password: admin/admin, IP Address :192.168.1.110/24. PoE Budget: Total <- 240W, MAC Table: 8K, NTP: Support, DHCP: Support DHCP client/server, Support DHCP snooping. VLAN: 802.1Q Standard VLAN, Port Aggregation: Manual aggregation/LACP, Mirroring: Many-to-one port mirroring. Flow Control: Half-duplex based on back pressure type control; Full duplex based on PAUSE frame. Multicast: IGMP Snooping v1/v2/v3, Security Features: Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection. Spanning tree: Support STP/RSTP/MSTP, LLDP: Support, MAC Table: Support MAC address table configuration. QoS: Support QoS base on CoS/DPL/PCP/DEI, Each port support 8 output queue, Support port shaping, Support port tag remarking, Support QoS base on DSCP. System Maintenance: Support the configuration file upload/download, Support the updated packet upload, System log. Network Management: WEB(http protocol), serial, SNMP

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
