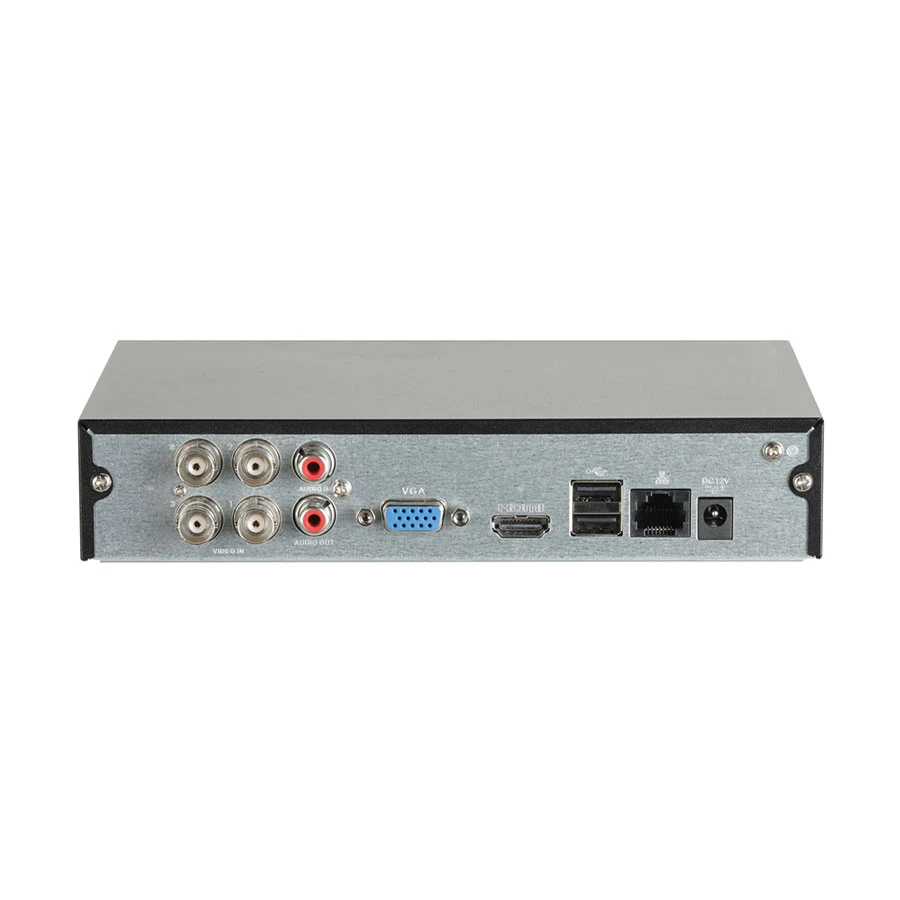

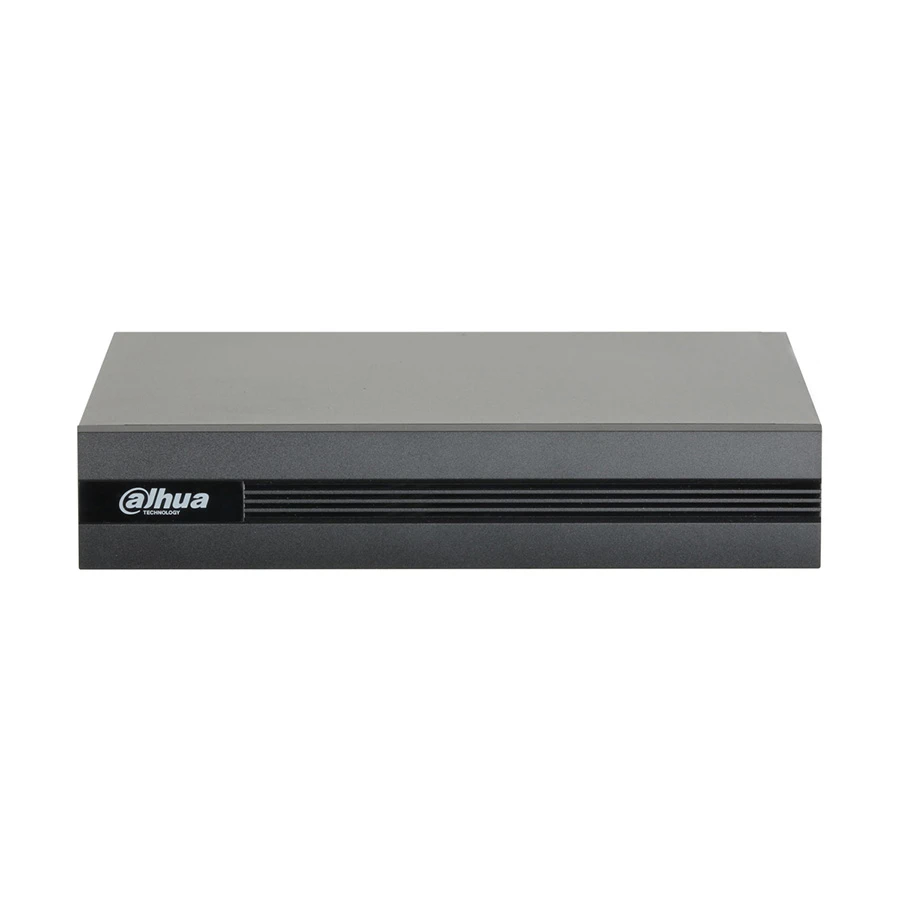

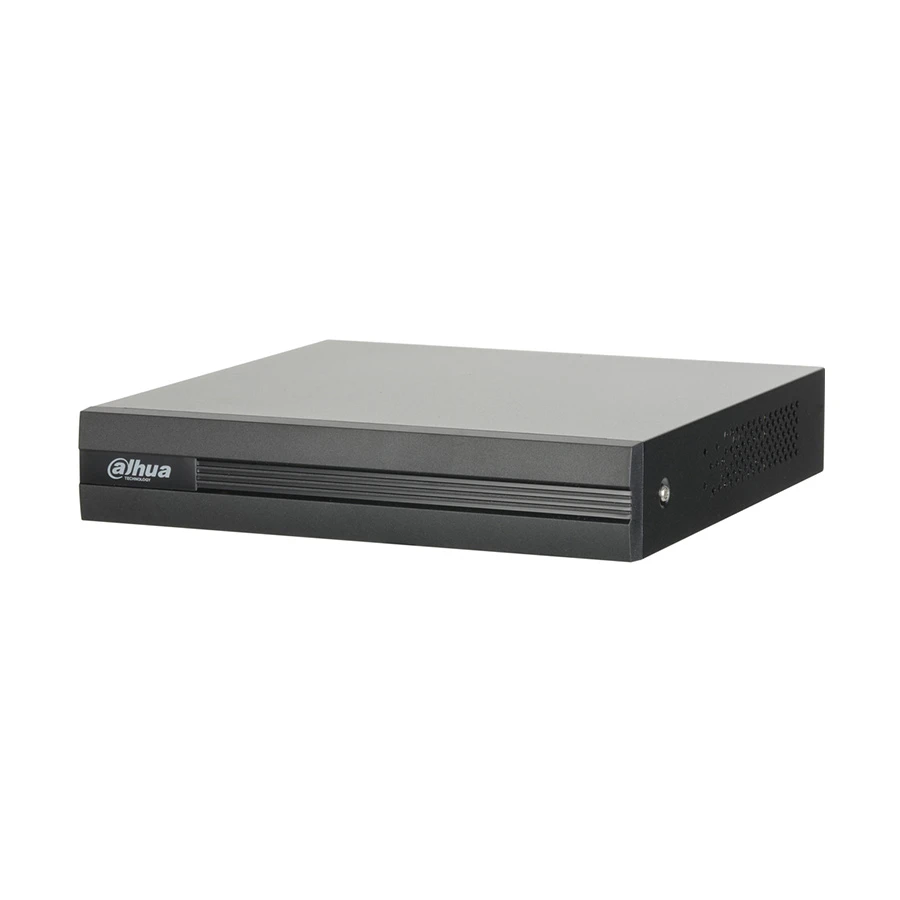

Dahua XVR1B04H-I 04 Channel XVR
Product Id: 127.08.776.123
Brand
Dahua
Regular Price Tk 5,430
Monthly EMI Tk 453
Special Price Tk 5,200
Quick Overview
- Dual Stream Support - Yes
- Number HDD Interface (SATA) - 1 SATA
- Max. Storage Support - 6TB
Brand
Dahua
Model
Dahua XVR1B04H-I
Type
XVR
Video Input Channel (BNC)
4 channels
Video Compression/Format
AI Coding; H.265+; H.265; H.264+; H.264
Video Output (VGA)
1 VGA, 1920 x 1080, 1280 x 1024, 1280 x 720
Video Output (HDMI)
1 HDMI, 1920 x 1080, 1280 x 1024, 1280 x 720
Max. Video Recording Res.
1920 x 1080
Video Bit Rate
8 kHz, 16 bit
Analog & HD-TVI Video Input
CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
Audio Input Channel (RCA)
1-channel RCA, 4-channel BNC (Coaxial Audio)
Audio Compression
G.711a, G.711u, PCM
Audio Output Channel
1-channel RCA
Two way Audio
Yes
Audio Bit Rate
64 kbps
Dual Stream Support
Yes
Network Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Number HDD Interface (SATA)
1 SATA
Max HDD Support (GB,TB)
Up to 6 TB
Max. Storage Support
6TB
Network Interface (RJ45)
1 x 10/100 Mbps Ethernet port, RJ-45
USB Port
2 x USB 2.0
Main Processor
Industrial-grade processor
Display Split
When IP extension mode not enabled: 1/4 . When IP extension mode enabled: 1/4/6
CVBS Input
PAL/NTSC
Incoming Bandwidth
32 Mbps
Outgoing Bandwidth
32 Mbps
Interoperability
ONVIF 21.06, CGI Conformant
Backup Storage
Network, USB
Operating System.
Embedded Linux
Power Supply
12 VDC, 1.5 A
Approx. Power Consumption
<4 W
Dimensions
197.0 x 203.4 x 41.5mm
Weight (Kg)
0.55 Kg
Smart Phone Supported
iOS; Android
Feature
H.265+/H.265 dual-stream video compression, Supports Full-channel AI-Coding, Supports HDCVI/AHD/TVI/CVBS/IP video inputs, Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth, Up to 4 channels video stream ( analog channel ) SMD Plus
Others
Operating Interface: Web; Local GUI. SMD Plus by Recorder: 4-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change. IP Camera Input: Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps (After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled). Encoding Capacity: Main Stream: All channel 5M-N@ (1 fps 10 fps); 4M-N/1080p@ (1 fps 15 fps); 1080N/ 720p/960H/D1/CIF@ (1 fps 25/30 fps) Sub stream: D1/CIF (1 fps 15 fps). Multi-screen Display: When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6. Third-party Camera Access: ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung. Mobile Phone Access: iOS; Android. Browser: Chrome IE9 or later Firefox. Network Mode Single-address mode: Single-address mode. Record Mode: General, motion detection, alarm,POS. Recording Playback: 1/4. Playback Mode: Instant playback, general playback, event playback, tag playback. General Alarm: Motion detection, video loss, tampering. Anomaly Alarm: No disk, disk error, low space, offline, ip conflict, MAC conflict. Alarm Linkage: Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email.
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
