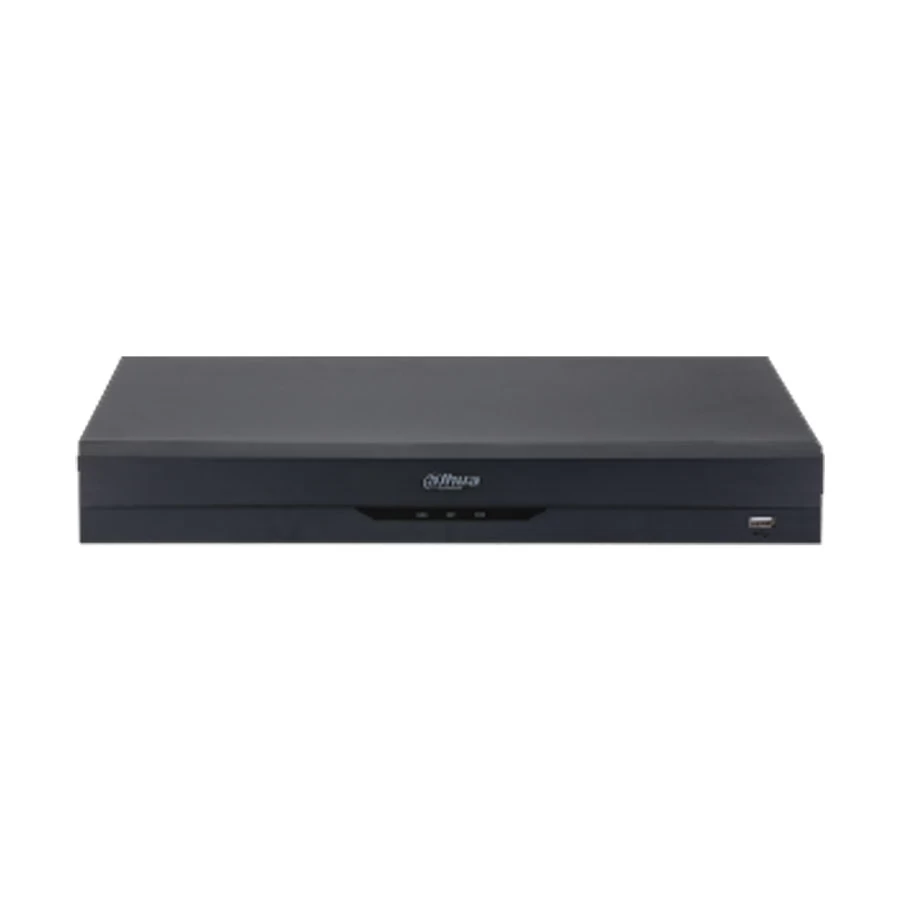

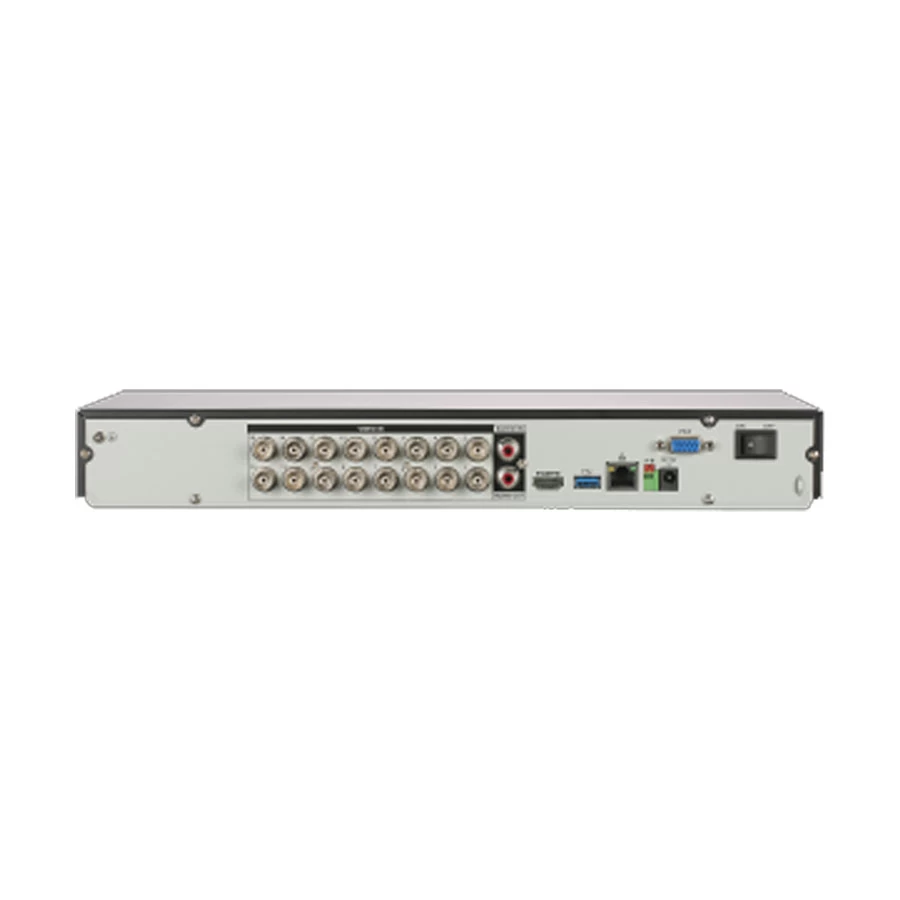

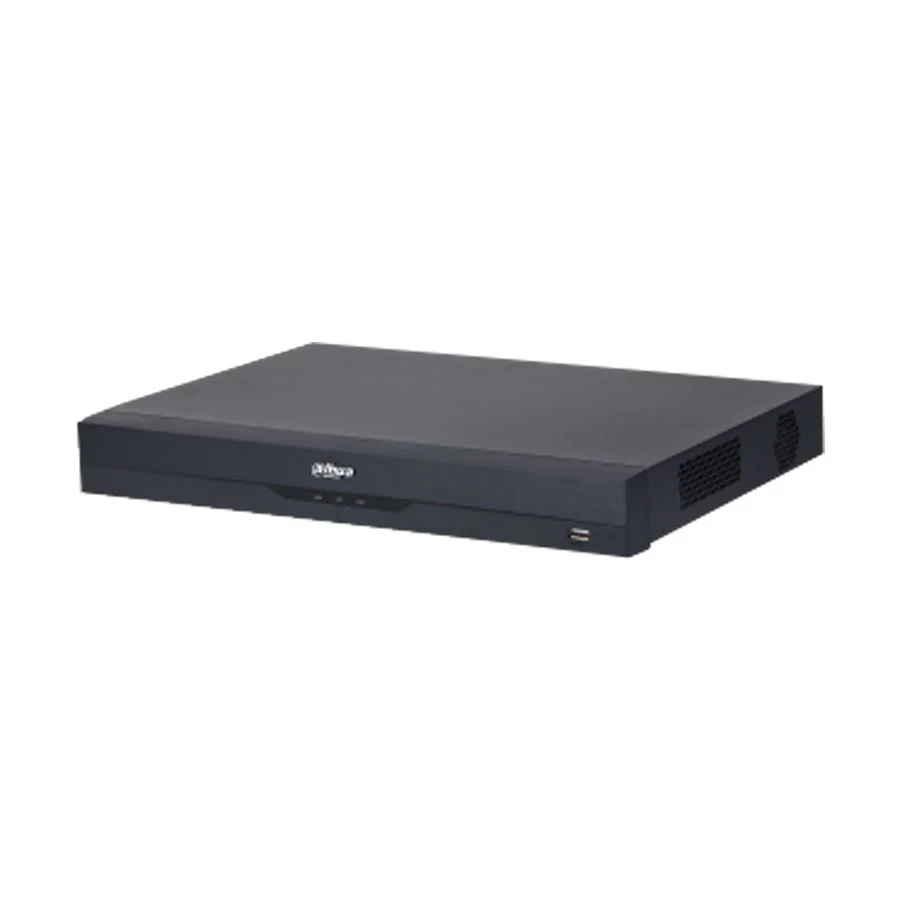

Dahua XVR5216AN-I2 16 Channel 1080P XVR
Product Id: 127.08.776.137
Brand
Dahua
Quick Overview
- Dual Stream Support - Yes
- Number HDD Interface (SATA) - 2 SATA
- Video Recording Res. - 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
- Max. Storage Support - 20TB
Brand
Dahua
Model
Dahua XVR5216AN-I2
Type
XVR
Video Compression/Format
AI Coding/H.265+/H.265/H.264+/H.264
Video Output (VGA)
1 x VGA, 1920 × 1080, 1280 × 1024, 1280 × 720
Video Output (HDMI)
1 x HDMI, : 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Video Recording Res.
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Max. Video Recording Res.
1920 x 1080
Video Bit Rate
32 Kbps - 6144 Kbps
IP Video Input
16+8 channels, each channel up to 6MP
Analog & HD-TVI Video Input
Analog Camera Input: 16 channels, BNC. HDCVI Camera Input: 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps. TVI Camera Input: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps. AHD Camera Input: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
Audio Input Channel (RCA)
1 Channel RCA
Audio Compression
G.711A, G.711U, PCM
Audio Output Channel
1 Channel RCA
Two way Audio
Reuse audio in/out, RCA
Audio Bit Rate
64 kbps per channel
Stream Type
Main stream: All channel 5M-N (1fps - 10fps); 4M-N/1080P (1fps - 15fps); 1080N/720P/960H/ D1/CIF (1fps - 25/30fps) Sub stream: D1/CIF (1fps - 15fps)
Dual Stream Support
Yes
Live View / Playback Resolution
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Decoding Capability
H.265
Synchronous Playback
1/4/9/16 Channel
Network Protocol
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Number HDD Interface (SATA)
2 SATA
Max HDD Support (GB,TB)
up to 10TB capacity for each disk
Max. Storage Support
20TB
eSATA
None
Network Interface (RJ45)
1 x RJ-45 Port (1000 MB)
Serial Interface
1 x RS485 for PTZ Control
USB Port
1 x USB 2.0, 1 x USB 3.0
Main Processor
Embedded Processor
CVBS Input
PAL/NTSC
Incoming Bandwidth
128 Mbps
MD Zones
396 (22 × 18)
Interoperability
ONVIF 16.12, CGI Conformant
Video Detection
Motion Detection, Video Loss, Tampering and Diagnosis
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
PTZ Controler
Yes
Backup Storage
USB Device/Network
Chassis
1U Chassis
Operating System.
Embedded Linux
Power Supply
DC 12V/4A
Approx. Power Consumption
<12W (without HDD)
Max. Power
DC 12V/4A
Dimensions
375 x 288 x 53mm
Weight (Kg)
1.8 Kg
Smart Phone Supported
iPhone, iPad, Android
Feature
Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop. Record Interval: 1 - 60 min (default: 60 min), Pre-record: 1 s - 30 s, Postrecord: 10 s - 300 s
Others
Perimeter Protection - Performance: 2 channels, 10 IVS for each channel. Object classification: Human/Vehicle secondary recognition for tripwire and intrusion. AI Search: Search by target classification (Human, Vehicle). Max. User Access: 128 users
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
