N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

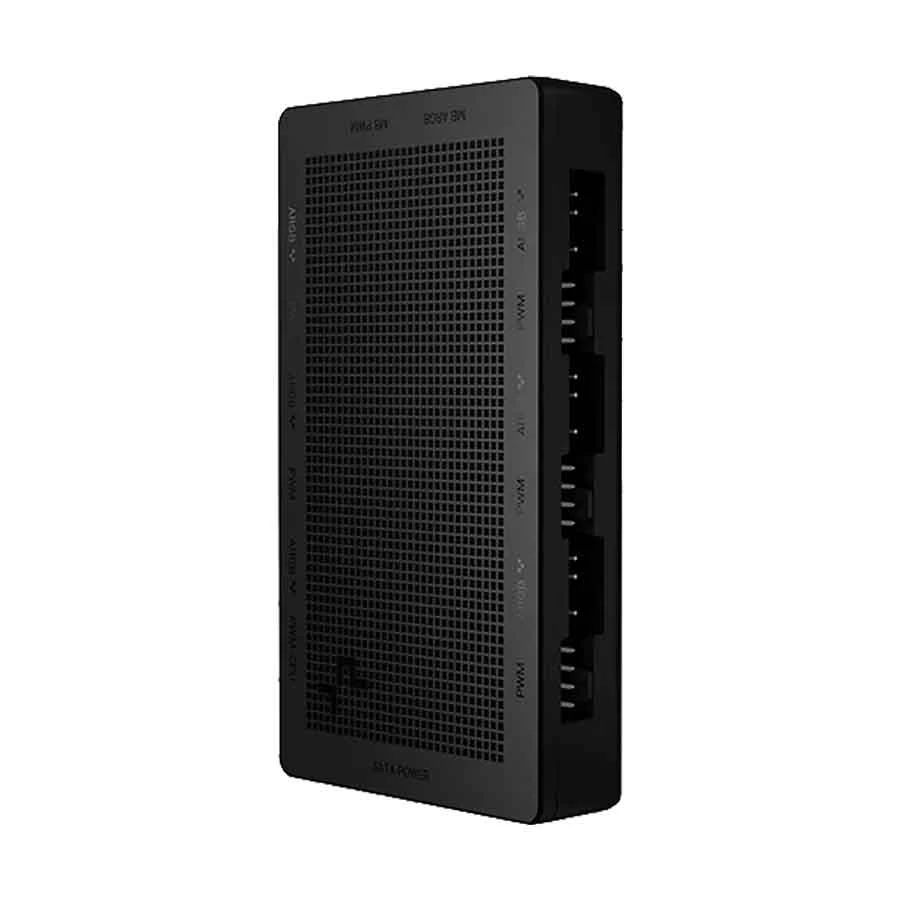

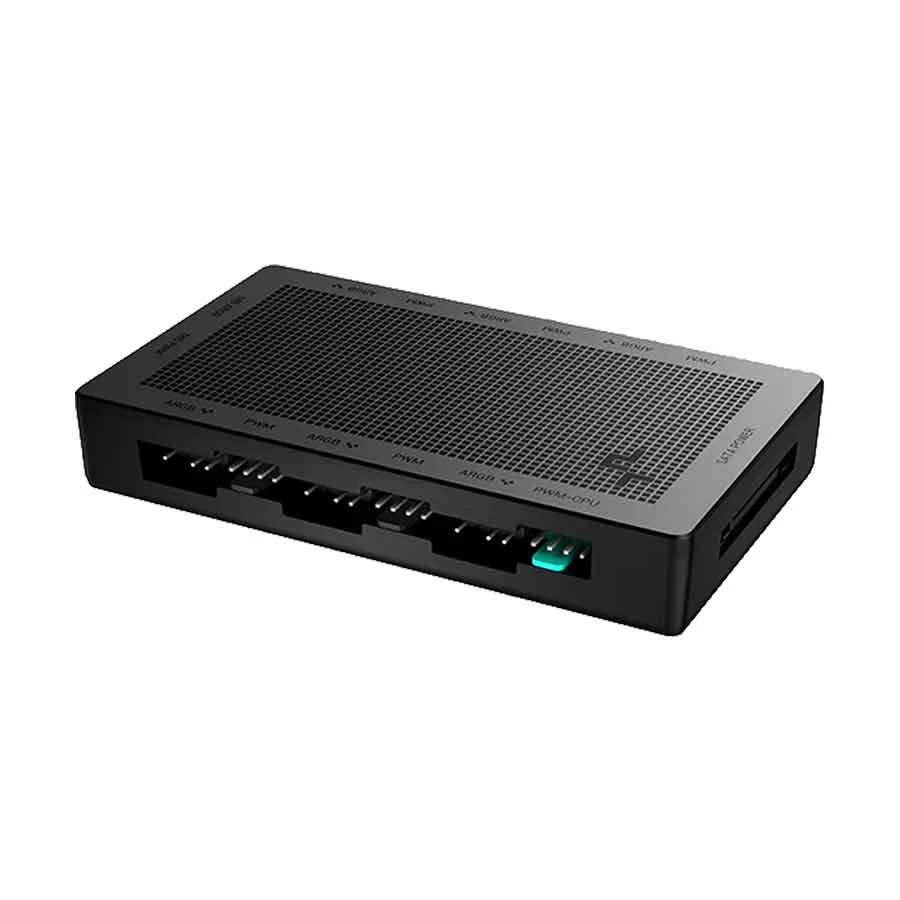

Deepcool SC790 2-in-1 PWM & RGB hub

Product Id: 55.05.427.138

Brand Deepcool

Regular Price Tk 1,520
Special Price Tk 1,400 Ecom Discount Tk 50

Quick Overview

  • Type - RGB Controller
  • Fan Size (Height) - No
  • Fan Speed - No
  • Blade Qty - No
  • Lighting Effect - RGB
General
Brand
Deepcool

Model
Deepcool SC790

Type
RGB Controller


Fan Details
Speed Control
Controllable

Bearing Type
No

Fan Size (Height)
No

Fan Speed
No

Flow Type
No

Air Flow
No

Air Pressure
No

Static Pressure
No

Noise
No

Fan Connector
ARGB-3Pin & PWM-4 Pin

Blade Qty
No


Radiator & LED Details
Radiator Material
No

Lighting Effect
RGB


LED Strips Details
Number of Strips
No

LED Strips Type
No

Length of Strips
No

Length of Extension Cable
500mm (Fan Connector cable)


Technical Info
PWM Control
Yes

Compatibility

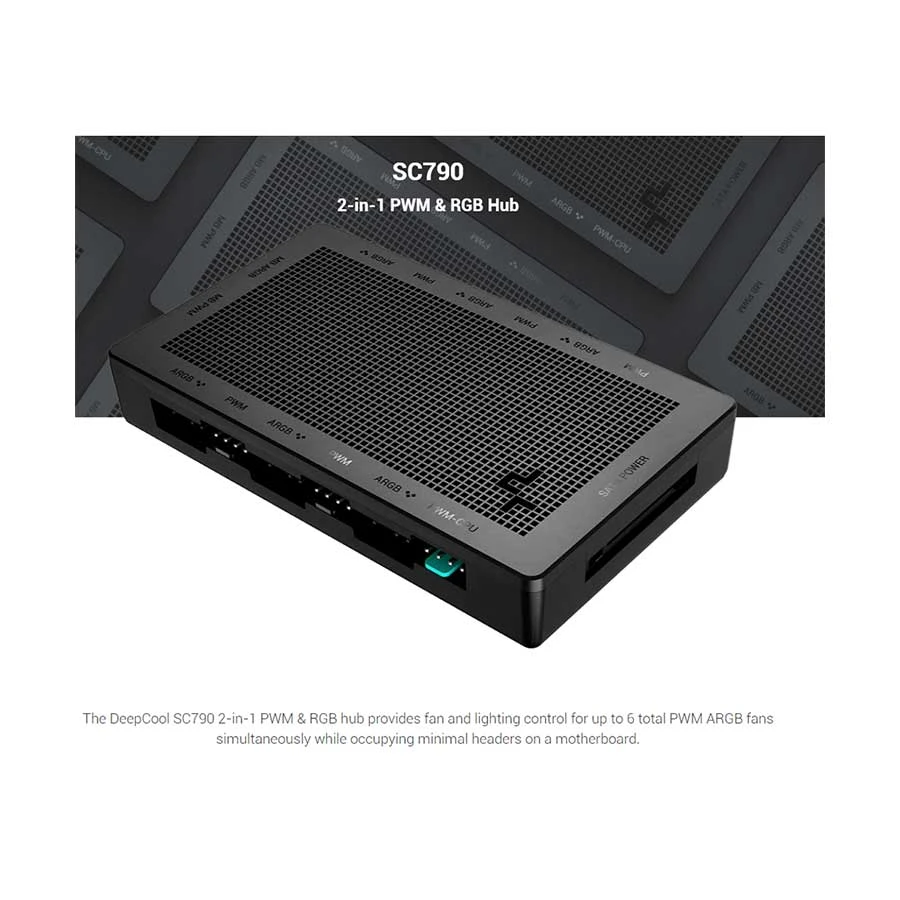

The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.


Power
Power Connectors
SATA

Voltage
12V DC

Rated Current
4.5A


Physical Description
Body Color
Black

Dimensions
102 x 60 x 17mm

Weight (Kg)
69 gm


Warranty
Warranty Details
1 year


Additional Info
Feature

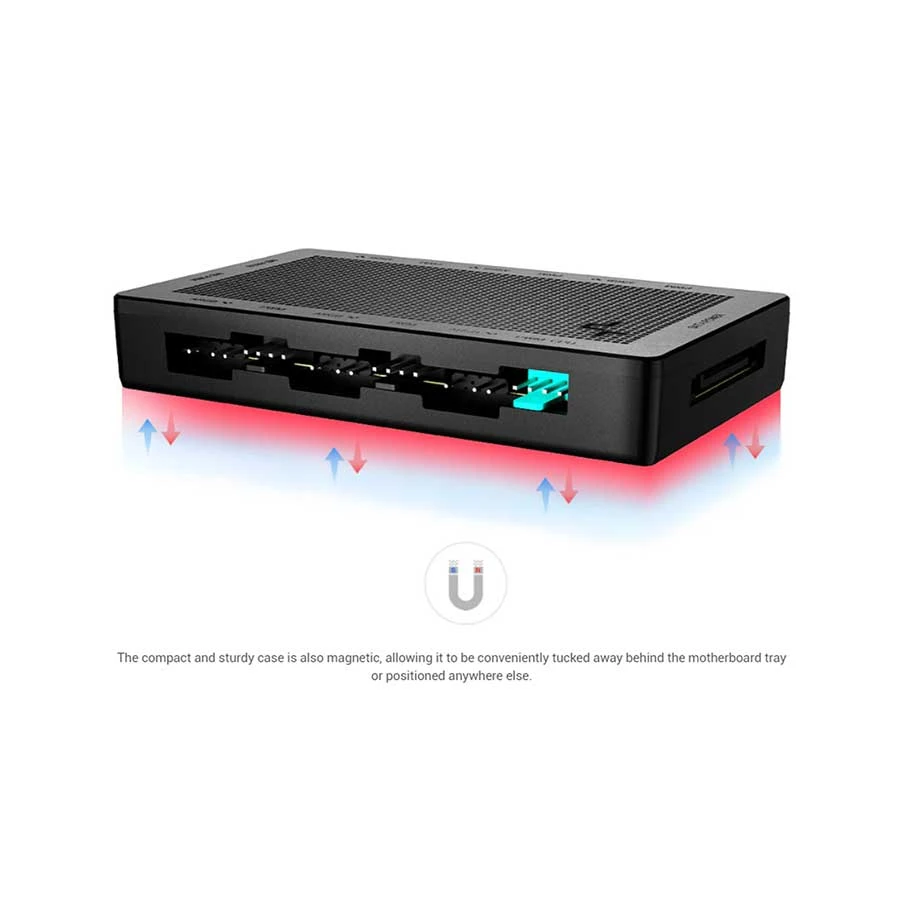

The SC790 connects to a 3-pin 5V ARGB header and 4-pin PWM header on a motherboard and extends their signal to connect up to 6 PWM ARGB fans for total synchronization. The included SATA interface ensures stable continuous power for all connected devices. The compact and sturdy case is also magnetic, allowing it to be conveniently tucked away behind the motherboard tray or positioned anywhere else. Supports ASUS Aura, GIGABYTE Fusion, MSI Mystic Light, and ASRock Polychrome.

Others
Port Type - ARGB-3Pin & PWM-4 Pin, Fan Ports - 6 Ports x 4Pin PWM, Length of Fan Connector cable - 24AWG 500 mm, Fan Rated Voltage - 12V DC, Fan Rated Current - 2.0A(1Port) / Total 4.5A(6Ports), RGB Ports - 6 Ports x 3Pin Addressable RGB, Length of ARGB Connector cable - 24 AWG 538mm (Asus Asrock MSI) +50mm (Gigabyte), RGB Rated Voltage - 5V DC, RGB Safety Current - 2.0A(1Port) / Total 4.5A(6Ports), Power Connector - SATA Power, Power Safety Current - 4.5A Max, Mounting Method - Magnetic.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
Hi, i had one of these, i connect 4 fans to this and the cable pwm of the hub to system fan 2. In bios system fan 2 it’s always 0 rpm, seems like they aren’t recognized. How i resolve?
By Raffaele
