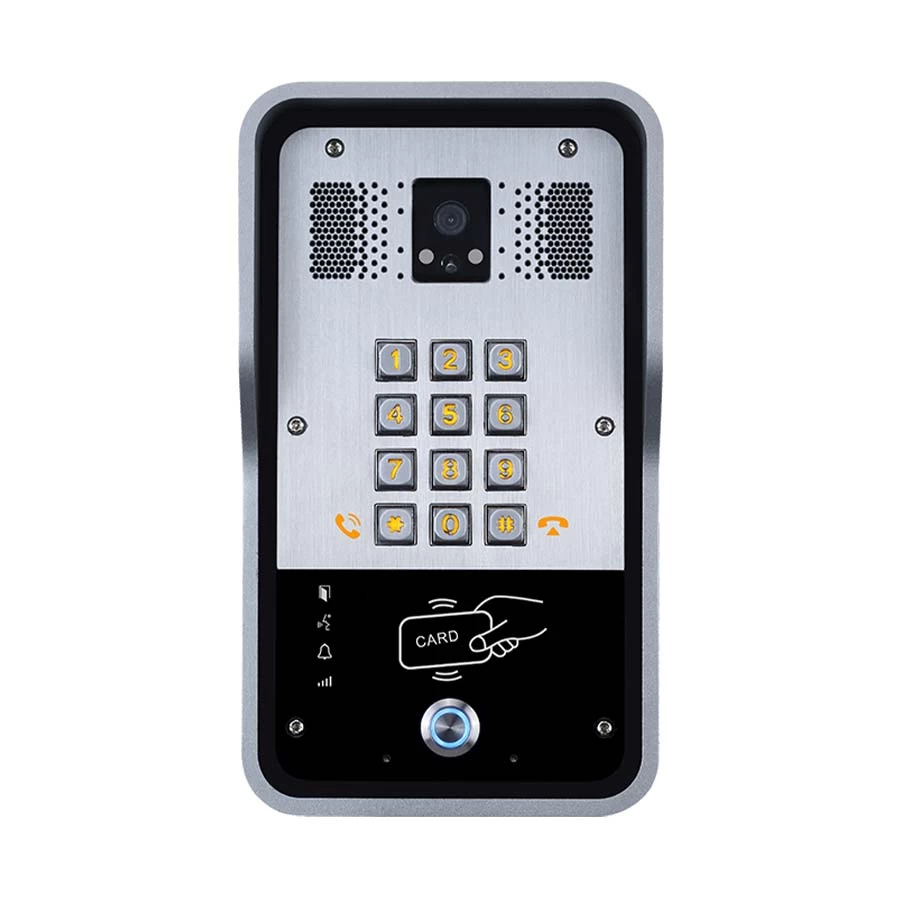

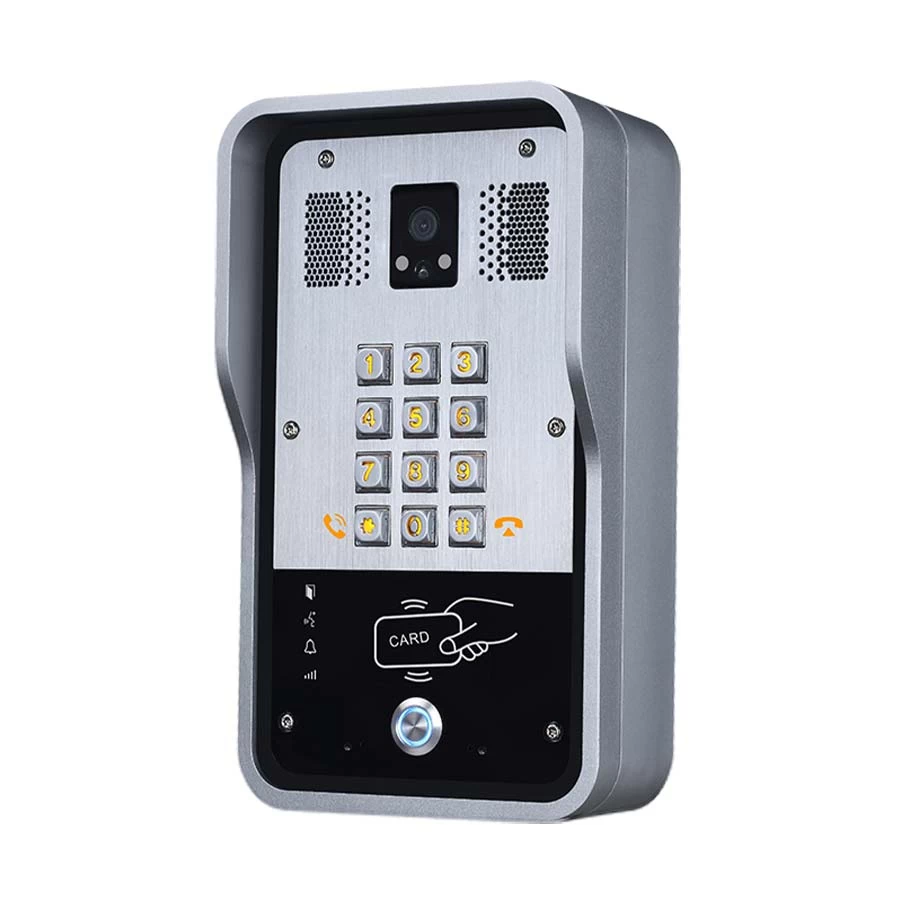

Fanvil i31S IP Video Door Phone
Product Id: 127.07.766.01
Brand
Fanvil
Coming Soon
Quick Overview
- Type - Video Door Phone
- Connectivity Mode - Wired
General
Brand
Fanvil
Model
Fanvil i31S
Type
Video Door Phone
Display & Camera
Camera
Yes
Camera Megapixel
2MP
Camera Details
1/2.7 Inch Color CMOS, HD Camera, 130W CMOS /IR-CUT
Technical Info
Door Type
Not Applicable
Main Features
Compatible With
Not Applicable
Lock Features
Password, Card
Mobile Apps
No
Card Capacity
5000PCS
Fingerprint Sensor
No
Facial Recognition
No
Weather Resistance
IP65
Handle Direction
No
Audio & Video
Communication
2-Way
Video Transmission
H.264
Audio Transmission
IP / RTP / RTSP
Speaker (Built-in)
Yes
Microphone (Built-in)
Yes
Connectivity
Connectivity Mode
Wired
Power
Power Input
12V +- 15% / 1A DC or POE
Physical Description
Color
Black & Silver
Dimensions
223 x 130 x 74mm
Weight
1800 gm
Warranty
Warranty Details
1 year
Additional Info
Feature
Compatible with standard SIP(RFC3261) protocol and main IPPBX/IMS platfo, Enclosure designed on International Protection (IP) markings to protect against t against intrusion - accidental or intentional - waterproofed to IP65 and anti-collision up to IK10. The system design adapts to operating under various environmental conditions and temperatures (supports temperatures ranging from -40 to +70 Celsius, Status indication icon, All-in-One(Access Control, Intercom and Broadcasting, Access Control(DTMF, Password, RFID/IC, Indoor Switch), Built-in 3W speaker and AEC, support high quality hand-free communicatio, Built-in HD camera and with backlight compensation ion function. System online maintenance and management.
Others
Access control function: Two SIP lines, support SIP 2.0 (RFC3261) and related RFC, POE Enabled, Duplex handsfree (HF), Default Auto Answer, Open the door operation: DTMF, password, RFID card, indoor switch, 200,000 door open records, 5000 remote access list, 5000 RFID/IC cards, electric lock internal or external power supply options, customized DSS keys, Network Time Synchronization, Action URL / Active URI remote control. Audio: Narrowband speech codec: G.711a / u, G.723.1, G.726-32K, G.729AB, Broadband speech codec: G.722, Duplex intercom with Acoustic Echo Canceller (AEC) 96ms, tail-length, DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Inf. Video: Sensor: 1/2.7 inch color CMOS, 2 Megapixels, Video codec: H.264, Resolution: main stream 1280x720@2. Sub-stream 704x576(D1)@25fps, Viewing angle: 112 Degree (H), 84 Degree (V), Minimum illumination: 0.1Lux, support for infrared illuminat. Networking/ Protocols: PoE (802.3af), Primary and secondary DNS servers are supported, RTSP, SNTP client, VPN L2TP / openVPN, SRTP, HTTP / HTTPS web pages, Qos: 802.1p / q, DSCP, MD5 authentication, Web Filter, DHCP / static / PPPoE, STUN. Deployment & Maintenance: Auto-Provisioning via, FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP, Web Management Portal, Web-based Packet Dump, Configuration Backup / Restore, Entry Log Export, Access Table Export / Impo, Firmware Upgrade, Syslog(include door access log. Physical: 1 DSS button (speed dial button), 5 indicator lights (including hot-key backlight), 12 Numeric keypad (with backlight), 1 indoor switch, RFID/IC Card: ID (EM4100,125KHz) & IC(MIFARE ONE,13.56MHz), Microphone: -38dB, Speaker: 4ohm / 3W, WAN port: RJ-45, 10 / 100M adaptive, Power supply: 12V -+ 15% / 1A DC or POE, Network cable: CAT5 or better, Shell Material: Aluminum Cover and Cast-Aluminum back case, Installation method: Wall-mounting or Flush-mounting, Storage Temperature:-40-70 Degree C, Working Humidity: 10-90%, Protection level: IP65 and IK10.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
