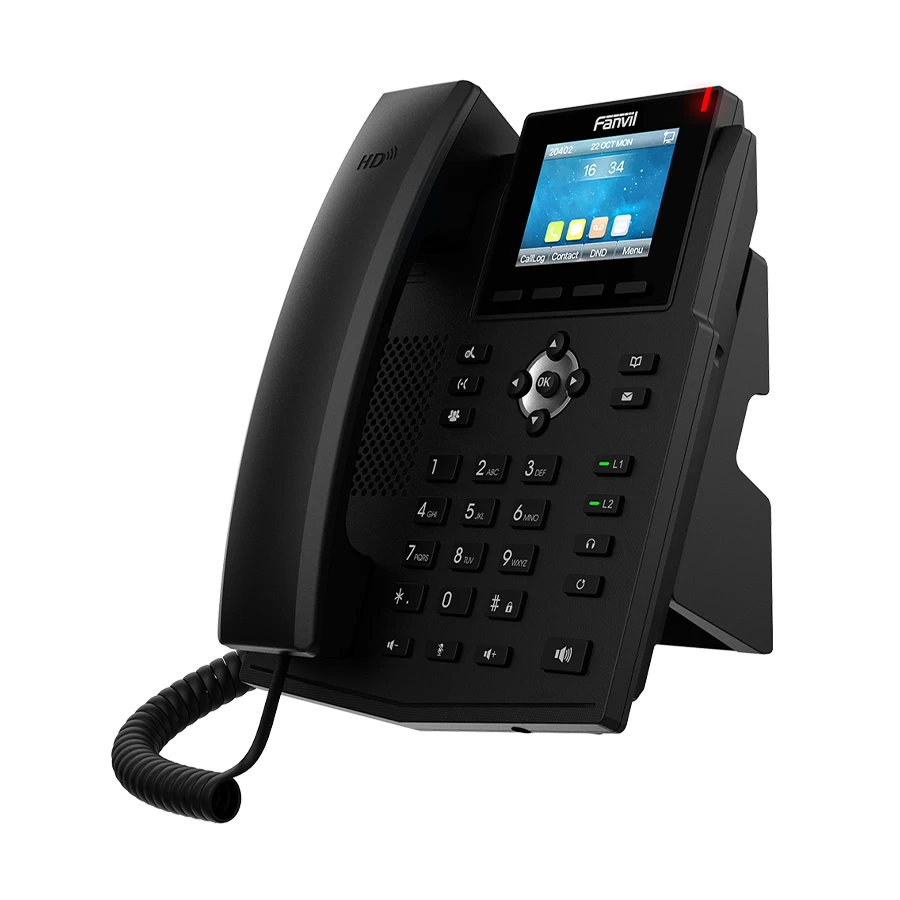

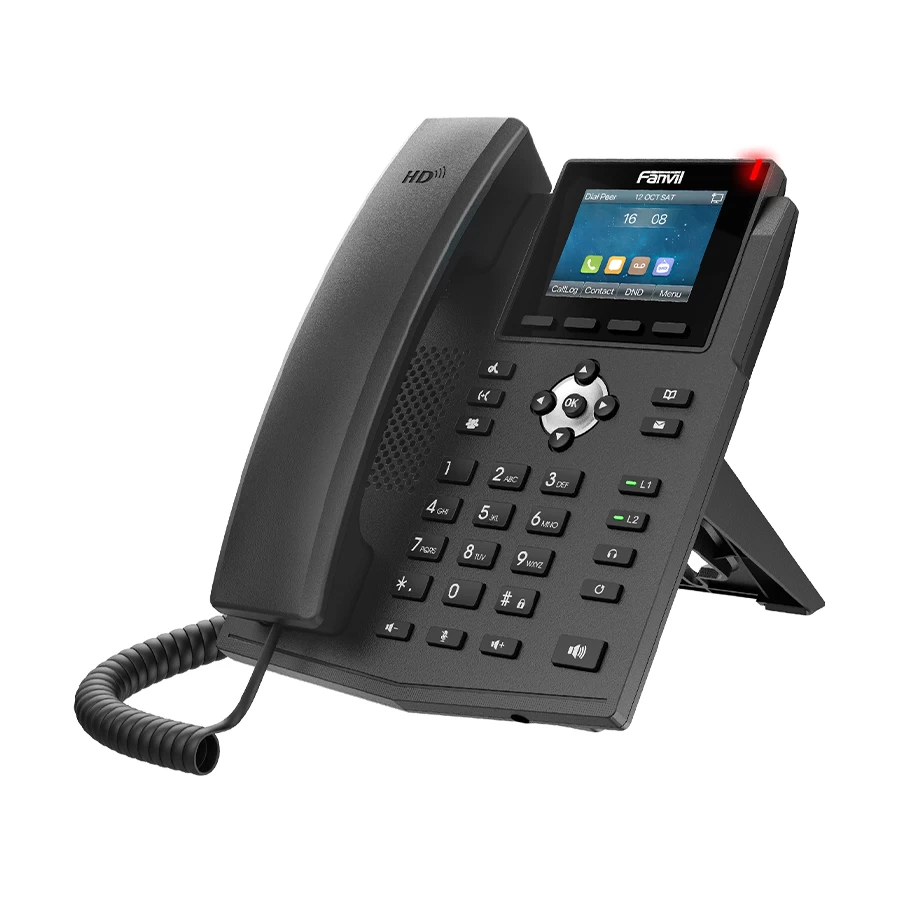

Fanvil X3SG 4-SIP Color Display IP Phone
Product Id: 37.02.766.23
Brand
Fanvil
Quick Overview
- Caller ID - Yes
- Number of phone Line - 4 Line
- Type - IP Phone
- Wall Mount - Yes
- Conference Call - Yes
General
Brand
Fanvil
Model
Fanvil X3SG
Type
IP Phone
Call Feature
Number of phone Line
4 Line
Caller ID
Yes
Call Waiting Caller ID
Yes
Conference Call
Yes
Speed Dialer
Yes
Redial Button
Yes
Call Log
600
Display Details
Display
LCD Display
Display Size
2.8 Inch
LCD Backlight
Yes
LCD Backlight Colour
Yes
LED Indicators
Yes
Main Features
Volume Control
Yes
HAC (Hearing Aid Compatibility) Support
Yes
Flash Button
No
Auto Answer
Yes
Hold Key
Yes
Mute Key
Yes
Navigation Key
Yes
Transfer Key
Yes
Storage & Interface
Sim Slot
No
Sim Size
No
Card Slot
No
Card Type
No
Speaker
Yes
Speaker Type
HD audio
Phone Book Memory
1000 entries
Connectivity
Network Interfaces
10/100/1000 Mbps Ethernet, dual bridged port for PC
WiFi
No
WiFi Technology
No
Bluetooth
No
Bluetooth Version
No
Power
Power Source.
Adapter
Input Power
5V/0.6A
Approx. Power Consumption
1.8 - 2.95W
Battery Type
No
Battery Qty.
No
Charging Time
No
Talk Time
No
Technical Info
Frequency
0~7KHz
Network Protocol
SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, AES128 & AES256.
Indoors Range
No
Outdoors Range
No
Working Distance
No
Wall Mount
Yes
Installation
Desktop Desktop Stand / Wall-mounted (need an additional wall hanging parts)
Physical Description
Dimensions
Desktop Stand (Angles 1): 169 x 186.3 x 174.5mm, Desktop Stand (Angles 2): 169 x 177.6 x 183.7mm, Wall-mounted: 169 x 115.6 x 212.5mm
Color
Black
Warranty
Warranty Details
1 year
Additional Info
Feature
4 SIP lines, 3-way conference, SIP hotspot, HD audio on speakerphone and handset, Opus voice: can handle a variety of audio applications, including IP voice, multiparty conference etc. Support EHS wireless headset. Dual Gigabit ports, integrated PoE.
Others
Voice Message Waiting Indication (VMWI), Programmable DSS/Soft keys, Network Time Synchronization, Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable), Handset / Hands-free / Headset mode, Optional External Power Supply, Remote Phonebook (XML/LDAP, 1000 entries), Call logs (In/Out/Missed, 600 entries), Black/White List Call Filter, Screen saver, Programmable DSS/Soft keys, Network Time Synchronization, Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable), Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable), Support Recording (Through Server), Action URL / Active URI, uaCSTA, Call out / Answer / Reject, Mute / Unmute (Microphone), Intercom, Anonymous Call (Hide Caller ID), Call Forward (Always/Busy/No Answer), Call Transfer (Attended/Unattended), Call Parking/Pick-up (Depending on server), Do-Not-Disturb, 3-way Conference, Hot Line, Hot desking, Wideband ADC/DAC 16KHz Sampling, Narrowband Codec: G.711a/u, G.726-32K, G.729A/B, iLBC, G723.1(Optional), Wideband Codec: G.722, Opus, Full-duplex Acoustic Echo Canceller (AEC), Voice Activity Detection (VAD) / Comfort Noise Generation(CNG)/ Background Noise Estimation (BNE) / Noise Reduction(NR) /Automatic Gain Control (AGC), DTMF: In-band, ODTMF-Relay (RFC2833) / SIP INFO, Networking - Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass, IP Mode:IPv4/IPv6/IPv4&IPv6, IP Configuration: Static IP / DHCP / PPPoE, Network Access Control: 802.1x, VPN: L2TP / OpenVPN, VLAN, LLDP, QoS, RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035), Protocols - SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1 x L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, AES128 & AES256, Deployment & Management - Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP, OPT66/SIP, PNP/TR-069, Web Management Portal, Web-based Packet Dump, Configuration Export / Import, Phonebook Import/Export, Firmware Upgrade, Syslog, Physical Specifications - Keypad: 34 keys, including - 4 Soft-keys, 7 Function keys (Hold/Transfer/Conference/Phonebook/MWI/Headsets/Redial), 2 Line keys (With LED Indicator Light), 4 Navigation keys, 1 OK key, 12 Standard Phone Digits keys, 3 Volume Control keys (Up/Down/Mute (Microphone)), 1 Hands-free key, HD Handset (RJ9) x1, Standard RJ9 Handset Wire x1, 1.5M CAT5 Ethernet Cable x1, Back Rack x1, Status Indicator Light x1 (Red), RJ9 Port x2: Handset x1, Headset x1, RJ45 Port x2: Network x1, PC x1 (Bridged to Network), Safety Keyhole x1, DC Power Input: 5V/0.6A, Power Consumption: Idle 0.9 - 1.65W, Peak 1.8 - 2.95W, Working Temperature: 0 - 45 Degree C, Working Humidity: 10 - 95%, Installation: Desktop Stand, Gift Box Dimensions: 274 x 215 x 68mm
Specialty
2.8 Inch main color display, Opus voice: can handle a variety of audio applications, including IP voice, multiparty conference etc, Support EHS wireless headset, Dual Gigabit ports, integrated PoE, Stand with 2 adjustable angles of 45 and 50 degrees, Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Fanvil X3SG Phone Set In Bangladesh
As the Gigabit IP phone with a 2.8-inch color display, Fanvil X3SG new version has better improvement on elegant appearance as well as functional performance than Fanvil X3G.
Brand - Fanvil, Model - Fanvil X3SG, Type - IP Phone, Number of phone Line - 4 Line, Caller ID - Yes, Caller ID Memory - Not Specified, Call Waiting Caller ID - Yes, Call Restriction - Not Specified, Call Block - Not Specified, Conference Call - Yes, Design - Not Specified, Speed Dialer - Yes, Dialing Mode - Not Specified, Redial Button - Yes, Redial Memory - Not Specified, Auto Redial - Not Specified, Digits of Redial Number - Not Specified, Memory Last Number Dialed - Not Specified, Call Log - 600, One-Touch Dialer - Not Specified, One-Touch Eco Mode - Not Specified, Intelligent Eco Mode - Not Specified, Display - LCD Display, Display Size - 2.8 Inch, LCD Contrast - Not Specified, LCD Backlight - Yes, LCD Backlight Colour - Yes, LED Indicators - Yes, Volume Control - Yes, HAC (Hearing Aid Compatibility) Support - Yes, Voice Mail - Not Specified, Flash Button - No, Auto Answer - Yes, Any Key Answer - Not Specified, Hold Key - Yes, Mute Key - Yes, Navigation Key - Yes, Transfer Key - Yes, Dial Lock - Not Specified, Button/Key Lock - Not Specified, System - Not Specified, Number of Channels - Not Specified, Frequency - Yes, Frequency Range - 0 - 7KHz, Sim Slot - No, Sim Size - No, Card Slot - No, Card Type - No, Memory - Not Specified, Memory Type - Not Specified, Storage - Not Specified, Storage Type - Not Specified, Network Protocols - SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, AES128 & AES256., Network Interfaces - 10/100/1000 Mbps Ethernet, dual bridged port for PC, WiFi - No, WiFi Technology - No, Bluetooth - No, Bluetooth Version - No, Auxiliary Ports - Not Specified, Headphone Jack - Not Specified, Speaker - Yes, Speaker Type - Not Specified, Phone Book Memory - 1000 entries, Power Source - Adapter, Input Power - 5V/0.6A, Output Power - Not Specified, Power Consumption - 1.8 - 2.95W, Battery Type - No, Battery Qty. - No, Charging Time - No, Talk Time - No, Winding Cord length - Not Specified, Telephone Line length - Not Specified, Handset cord (mm) - Not Specified, Multiple Handsets Capability - Not Specified, Indoors Range - No, Outdoors Range - No, Working Distance - No, Wall Mount - Yes, PBX Compatibility - PBX Compatibility, Operating System - Not Specified, Dimensions - Not Specified, Weight (gm) - Not Specified, Color - Black, Features - 4 SIP lines, 3-way conference, SIP hotspot, HD audio on speakerphone and handset, Opus voice: can handle a variety of audio applications, including IP voice, multiparty conference etc. Support EHS wireless headset. Dual Gigabit ports, integrated PoE., Others - Voice Message Waiting Indication (VMWI), Programmable DSS/Soft keys, Network Time Synchronization, Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)., Specialty - Not Specified, Part No - Not Specified, Recommended Accessories (Not Included) - Not Specified, Installation - Not Specified, Availability - Not Specified, Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China
