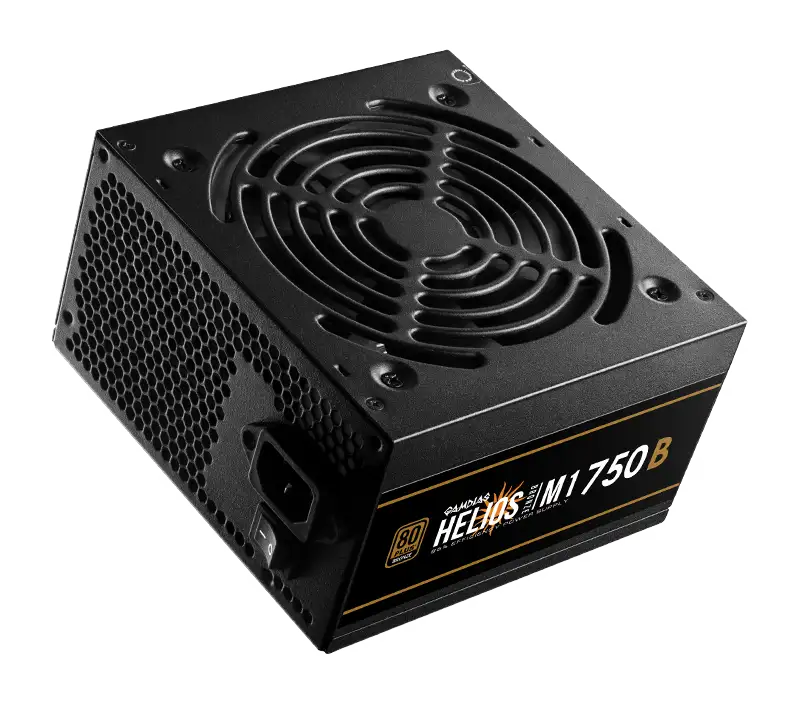

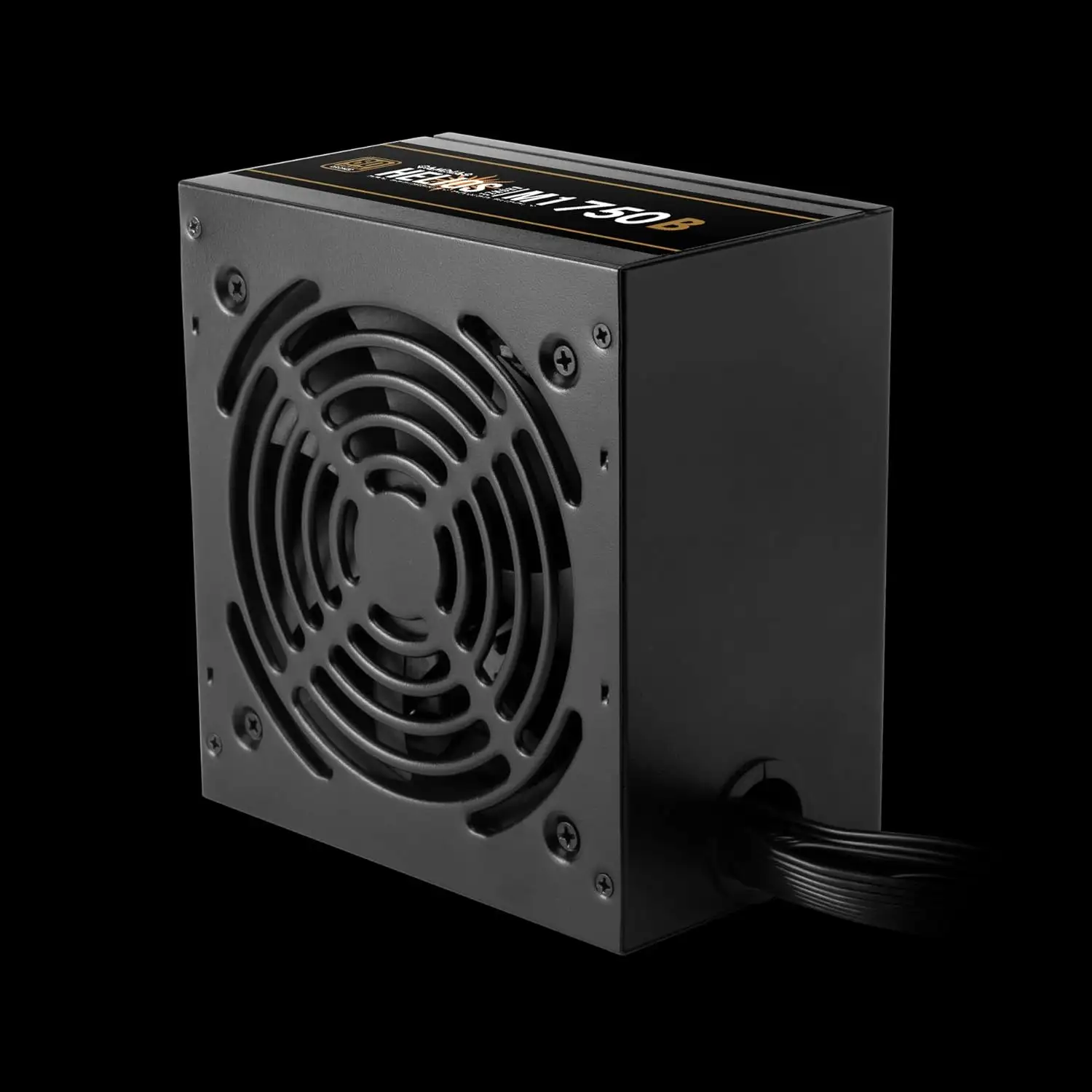

Gamdias HELIOS M1-750B 750W Non Modular 80 Plus Bronze Certified Black Power Supply

Product Id: 55.01.802.42

Brand Gamdias

Regular Price Tk 7,430 Monthly EMI Tk 619
Special Price Tk 6,900

Quick Overview

  • PSU Category - Non Modular
  • Type - ATX12V v2.4
  • Maximum Power - 750 Watt
  • Efficiency - 85% Efficiency
  • Efficiency Rating - 80 Plus Bronze
  • Protection - OVP / UVP / OPP / OCP / SCP
General
Brand
Gamdias

Model
Gamdias HELIOS M1-750B

Series
HELIOS

PSU Category
Non Modular

Type
ATX12V v2.4


Cooling & Lighting
Fan Size
120mm

Lighting Effect
No

Fan Bearing
Hydraulic Bearing


Performance
Efficiency
85% Efficiency

Efficiency Rating
80 Plus Bronze

PFC (Power Factor Correction)
750W


Protection
Protection
OVP / UVP / OPP / OCP / SCP

Over Voltage Protection (OVP)
Yes

Over Power Protection (OPP)
Yes

Over Current Protection (OCP)
Yes

Over Temperature Protection (OTP)
No

Short Circuit Protection (SCP)
Yes

Under Voltage Protection (UVP)
Yes


Connectors
ATX Main Connectors
1

EPS Connectors
1

PCIe Connectors
4

SATA Power Connectors
5

4-Pin Peripheral Connectors
3


Power
Min. Power (Approx.)
635W

Maximum Power
750 Watt

Input Voltage
100 - 240V

Input Frequency Range
47 - 63Hz

Input Current
5.5 - 11A

Peak Output Capacity
750W


Physical Description

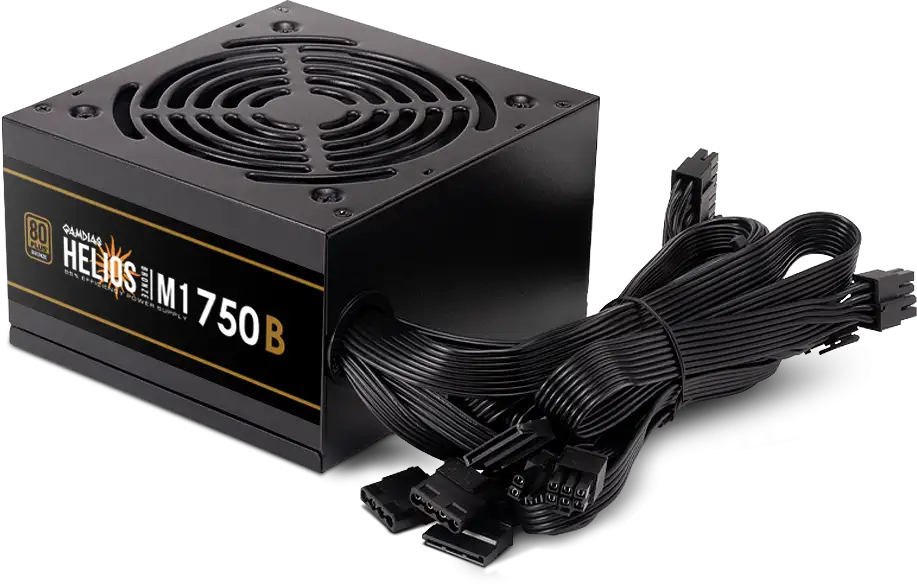

Cable Type
Flat Cable

Form Factor
ATX

Dimensions
150 x 86 x 140mm

Color
Black


Warranty
Warranty Details
5 Year


Additional Info
Others
Power Factor Correction: APFC with PF value of 0.99, Support C6/C7 power state: Yes, DC Output: +3.3V / +5V / +12V / -12V / +5Vsb, Max. Output Current: 18A / 18A / 56A / 0.4A / 2.5A, Max. Output Power: 100W / 672W / 4.8W / 12.5W

Specialty
750W 80 Plus Bronze, Deliver up to 85% Efficiency, High Quality Capacitors Provide Superb Performance and Reliability, Black Flat Cables, 1 x (4+4P) EPS, Compatible with ATX12V v2.4, Support C6/C7 Power State, Automatic Fan Speed Optimization, APFC with PF Value of 0.99, Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP, Smart, Stable And Reliable, Smart Ventilation, Heavy-duty Protection

Country Of Origin
Taiwan

Made in/ Assemble
Taiwan
