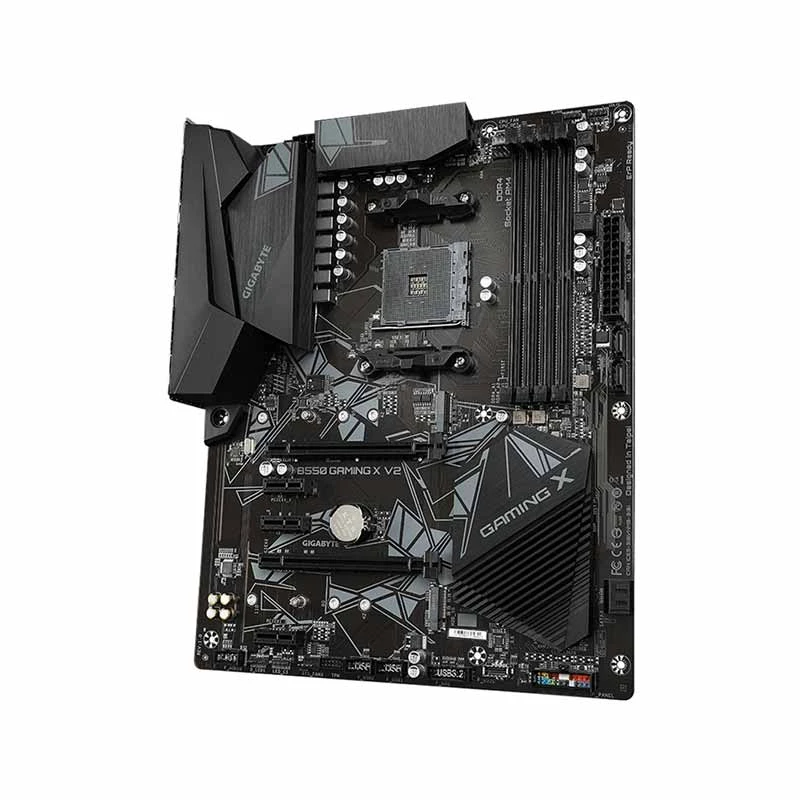

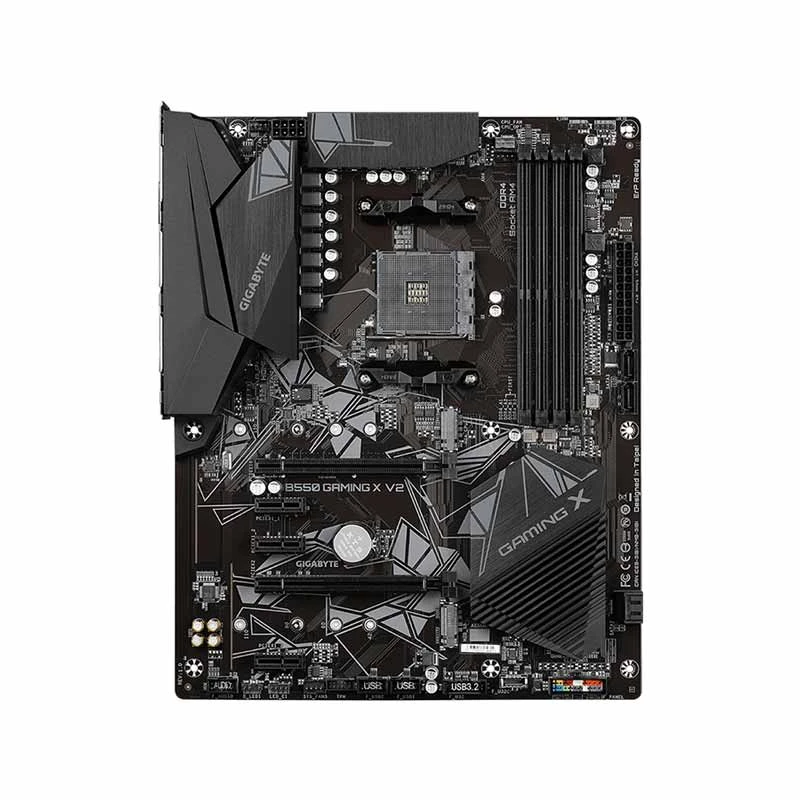

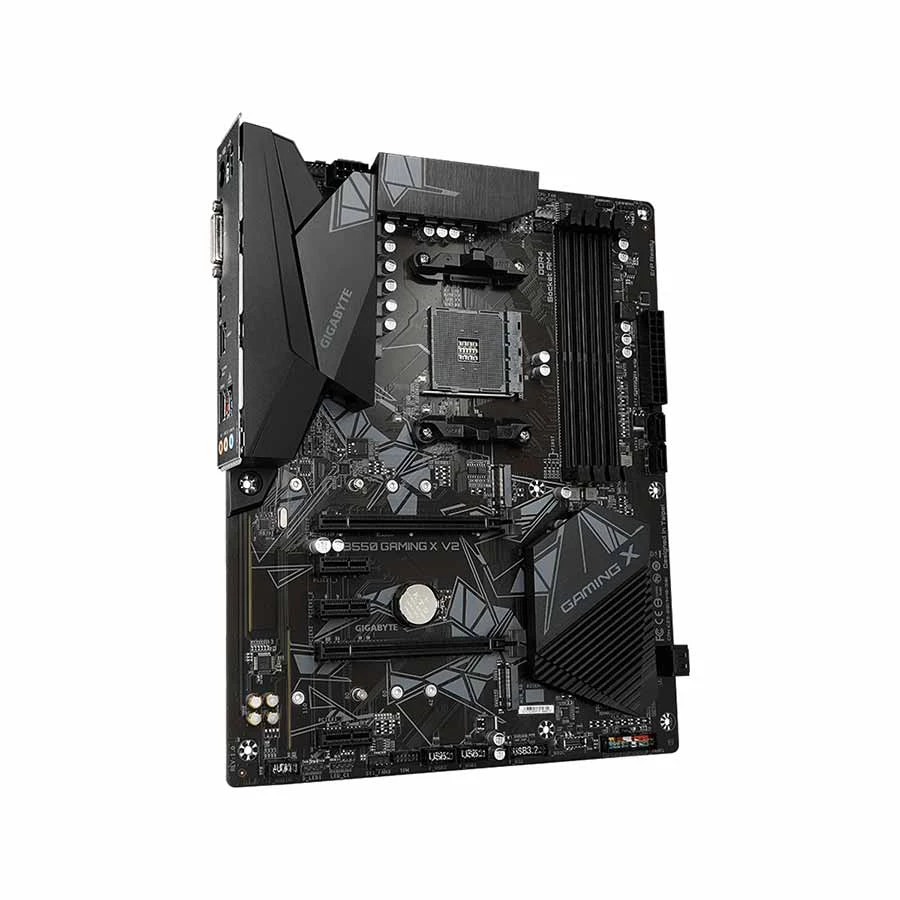

Gigabyte B550 GAMING X V2 Motherboard

Item: Gigabyte B550 GAMING X V2 Motherboard
Rating: 5
Author: Verified Buyer

1 reviews

Product Id: 02.02.018.384

Out Of Stock

See similar model

Quick Overview

Form Factor - ATX
Chipset - AMD B550
Sockets Supported - AM4
Supported CPU - AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte B550 GAMING X V2

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

ATX

Supported Operating System

Windows 10, 11

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte B550 GAMING X V2

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz

Memory Channel

Dual

Memory Slot

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 (1 x M.2 2242/2260/2280/22110 SSDs or SATA and PCIe 4.0 x4/x2 SSDs), (1 x M.2 2242/2260/2280/22110 SSDs or SATA and PCIe 3.0 x4/x2 SSDs)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot (PCIEX2), 3 x PCI Express x1 slots (PCIEX1-1, PCIEX1-2, PCIEX1-3)

Audio & Video

Audio Chipset

Realtek Audio CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek 8118

LAN Speed (Mbps)

1000 Mbit

WiFi

WiFi Technology

Bluetooth

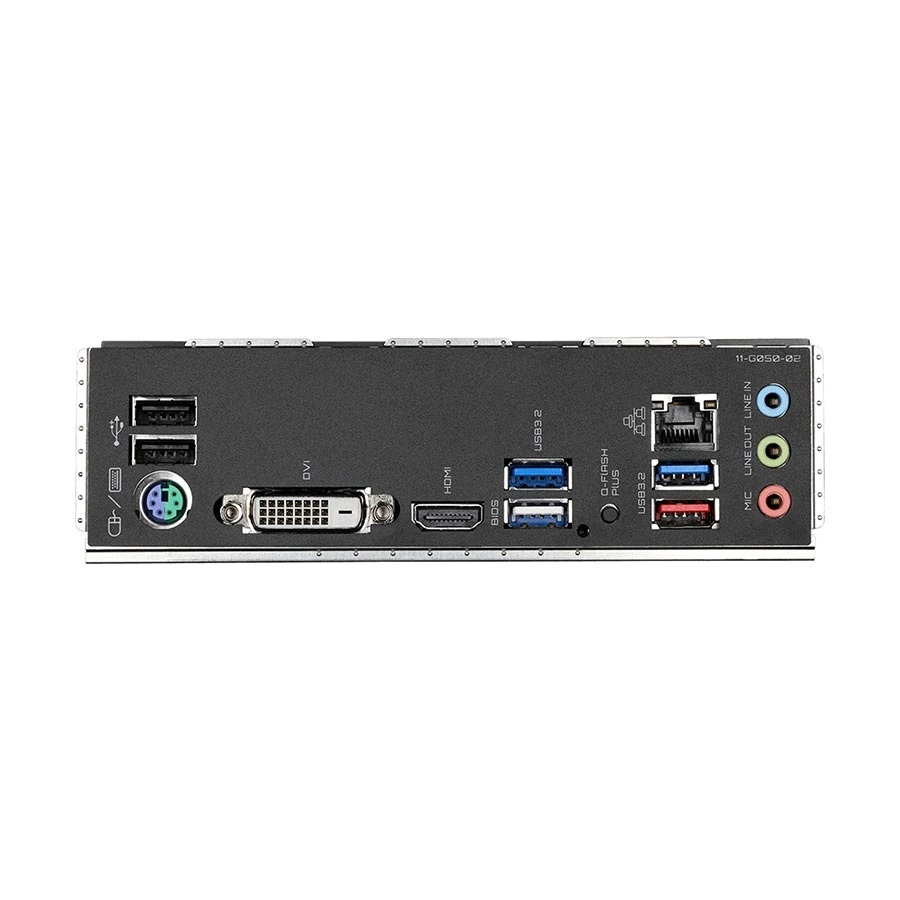

Ports

USB Port

2 x USB 2.0/1.1, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

Yes

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

RGB

RGB Sync

RGB Fusion 2.0

RGB Connector

2 x RGB LED strip headers

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Type

1 x 256 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 10, 11

Compatible Products

Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series and 3000 G-Series Processors

Warranty

3 year

Additional Info

Feature

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs, 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs, Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, RGB FUSION 2.0 support Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card, Anti-Sulfur Resistors Design

Others

Q-Flash Plus Button: Yes

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte B550 GAMING X V2 Motherboard In Bangladesh

Brand - Gigabyte, Model - Gigabyte B550 GAMING X V2, Chipset Brand - AMD, Chipset - AMD B550, CPU Sockets - AM4, Built-in Processor - No, Supported CPU - AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors, Generation - Not Applicable, Back-Connect Design - No, Cable Management - Front, Memory Type - DDR4, Memory MHz - 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz, Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - No, Graphics - Integrated, Graphics Chipset - Integrated With Processor, Multi-GPU Support - No, PCI Express Slot - 1 x PCI Express x16 slot (PCIEX2), 3 x PCI Express x1 slots (PCIEX1-1, PCIEX1-2, PCIEX1-3), Storage Interface - 6Gb/s, M.2 Slot - 2 x M.2 (1 x M.2 2242/2260/2280/22110 SSDs or SATA and PCIe 4.0 x4/x2 SSDs), (1 x M.2 2242/2260/2280/22110 SSDs or SATA and PCIe 3.0 x4/x2 SSDs), LAN Chipset - Realtek 8118, LAN Speed (Mbps) - 1000 Mbit, Audio Chipset - Realtek Audio CODEC, Audio Channel - 2/4/5.1/7.1-channel, Wi-Fi - No, Bluetooth - No, USB Port - 2 x USB 2.0/1.1, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, VGA Port - No, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 4 x SATA, BIOS Type - 1 x 256 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Heatsink - No, FireWire - No, CrossFire Support - No, Sli Support - No, Raid Support - 0, 1, 10, Thunderbolt - No, TPM Port - Yes, COM Port - No, RGB Support - RGB, RGB Sync - RGB Fusion 2.0, RGB Connector - 2 x RGB LED strip headers, Approx. Power Consumption - 70W, Form Factor - ATX, Supported Operating System - Windows 10, 11, Body Color - Black, Special Features - Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs, 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs, Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, RGB FUSION 2.0 support Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card, Anti-Sulfur Resistors Design, Others - Q-Flash Plus Button: Yes, Compatible Products - Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series and 3000 G-Series Processors, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China

What is the price of Gigabyte B550 GAMING X V2 Motherboard In Bangladesh?

The price of Gigabyte B550 GAMING X V2 Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte B550 GAMING X V2 Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

QUESTION & ANSWER

Customer Questions

Amd ryzen 5 5600G support motherboard e ki extra graphics card lagate parboo and ki model er support korbe? (For graphics purpose)

Asked By IB Hossain

প্রিয় গ্রাহক, আপনি যেকোন গ্রাফিক্স কার্ড ব্যবহার করতে পারবেন তবে মাদারবোর্ড এবং পাওয়ার সাপ্লাইয়ের উপর নির্ভর করছে।

বিস্তারিত জানতে কল করুন:১৬৮১০

ধন্যবাদ।

Answered By Ryans Computers Ltd. , 03 Jan 2025

Ai motherboard ti ki chottogram a available ase

Asked By Tawhid

প্রিয় গ্রাহক,এই প্রোডাক্টটি এই মুহূর্তে আমাদের চট্টগ্রাম শাখা এভেলেবল নেই আপনি চাইলে আমাদের ওয়েবসাইট থেকে অনলাইনে অর্ডার করে ডেলিভারি নিতে পারেন।
ধন্যবাদ।

Answered By Ryans Computers Ltd. , 07 Dec 2024

does it support gen 4x4 ssd?

Asked By Niloy

Dear Customer, M.2/SSD Expansion Slot Details- 2 x M.2 (1 x M.2 2242/2260/2280/22110 SSDs or SATA and PCIe 4.0 x4/x2 SSDs), (1 x M.2 2242/2260/2280/22110 SSDs or SATA and PCIe 3.0 x4/x2 SSDs), Thank you.

Answered By Ryans Computers Ltd. , 07 Dec 2024

বরিশাল ব্রাঞ্চে অ্যাভেলেবল আছে

Asked By

প্রিয় গ্রাহক,
দুঃখিত এই মুহূর্তে বরিশাল শাখায় প্রোডাক্টটি available নেই তবে আপনি যদি নিতে চান তাহলে দুই থেকে তিন দিনের মধ্যে এরেঞ্জ করে দিতে পারব।
প্রোডাক্ট পারচেজ সম্পর্কে বিস্তারিত তথ্য জানতে অনুগ্রহ করে এই নাম্বারে যোগাযোগ করুন - 16810, 09609016810
ধন্যবাদ।

Answered By Ryans Computers Ltd. , 27 Nov 2024

আমি কনফার্ম বললে অ্যাভেলেবল করা যাবে এক্ষেত্রে সময় লাগবে। পুরো প্রসেস টা একটু বুঝিয়ে বলবেন

Asked By

প্রিয় গ্রাহক
প্রোডাক্টটি এভেলেবেল রয়েছে আপনি কবে নিতে চাচ্ছেন জানাবেন বিস্তারিত তথ্যচিত্র হেল্পলাইন নাম্বারে যোগাযোগ করতে পারেন
ধন্যবাদ 16810

Answered By Ryans Computers Ltd. , 27 Nov 2024

এটায় কী ইন্টেল প্রসেসর চলবে। মানে ইন্টেল প্রসেসর সাপোর্ট করবে

Asked By

প্রিয় গ্রাহক
Sockets Supported - AM4
না এই মডেলটি শুধুমাত্র এমডি প্রসেসরের জন্য ধন্যবাদ

Answered By Ryans Computers Ltd. , 27 Nov 2024

Can I use r7 5700x and 1050ti with this motherboard?

Asked By Shakil

Dear customer ,
Yes... you can use this processor & graphics card.

Answered By Ryans Computers Ltd. , 11 Nov 2024

এটি কি বগুড়া শাখায় পাওয়া যাবে

Asked By Fuad

প্রিয় গ্রাহক, প্রোডাক্টটি বগুড়া শাখায় নেই, আপনি চাইলে ওয়েবসাইট থেকে অনলাইনে অর্ডার করতে পারবেন, অথবা আপনি কনফার্ম বলে অ্যাভেলেবল করা যাবে এক্ষেত্রে সময় লাগবে , বিস্তারিত জানতে কল করুন -16810 , 09609016810

Answered By Ryans Computers Ltd. , 14 Oct 2024
