Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E) DDR4 Intel Gaming Motherboard
Product Id: 02.01.018.487
Brand
Gigabyte
Regular Price Tk 24,960
Monthly EMI Tk 2,080
Special Price Tk 23,200
Quick Overview
- Chipset - Intel B760
- Memory Max. - 128GB
- Memory Slot - 4
- Sockets Supported - LGA1700
- Supported CPU - 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
- Generation - 12th/13th/14th
General
Brand
Gigabyte
Model
Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E)
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
Generation
12th/13th/14th
Memory Support
Memory Type
DDR4
Memory MHz
5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 Mhz ECC non-ECC Un-buffered memory.
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
4 x DIMM
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 Slot (1 x M.2 connector Socket 3 M key type 2280 support PCIe 4.0 x4/x2 SSD, 1 x M.2 connector Socket 3 M key type 22110/2280 support PCIe 4.0 x4/x2 SSD)
Graphics
Graphics
Integrated
Graphics Chipset
Intel HD Graphics support
Multi-GPU Support
Support for AMD CrossFireX technology
PCI Express Slot
1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot supporting PCIe 4.0 and running at x4 (PCIEX4)
Audio & Video
Audio Chipset
Realtek Audio CODEC High Definition Audio
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN
LAN Speed (Mbps)
10/100/1000/2500Mbps
WiFi
Yes
WiFi Technology
Intel Wi-Fi 6E AX211
Bluetooth
Bluetooth 5.3
Ports
USB Port
1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
2
TPM Port
1
COM Port
No
Technical Info
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Connector
2 x RGB LED strip headers
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 10 / 11
Compatible Products
Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor.
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
Unparalleled Performance Twin 12+1+1 Phases Digital VRM Solution, Next Generation Storage 2 x PCIe 4.0 x4 M.2 Connectors, Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & M.2 SSD Performance, Fast Networks 2.5GbE LAN & Wi-Fi 6E 802.11ax, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS Without Installing the CPU Memory and Graphics Card.
Others
Back Panel Connectors: (2 x SMA antenna connectors (2T2R) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks), I/O Controller: iTE I/O Controller Chip, Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper), HDMI port: (supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.3.), DisplayPort: (supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3), Graphics specifications may vary depending on CPU support.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E) Motherboard In Bangladesh

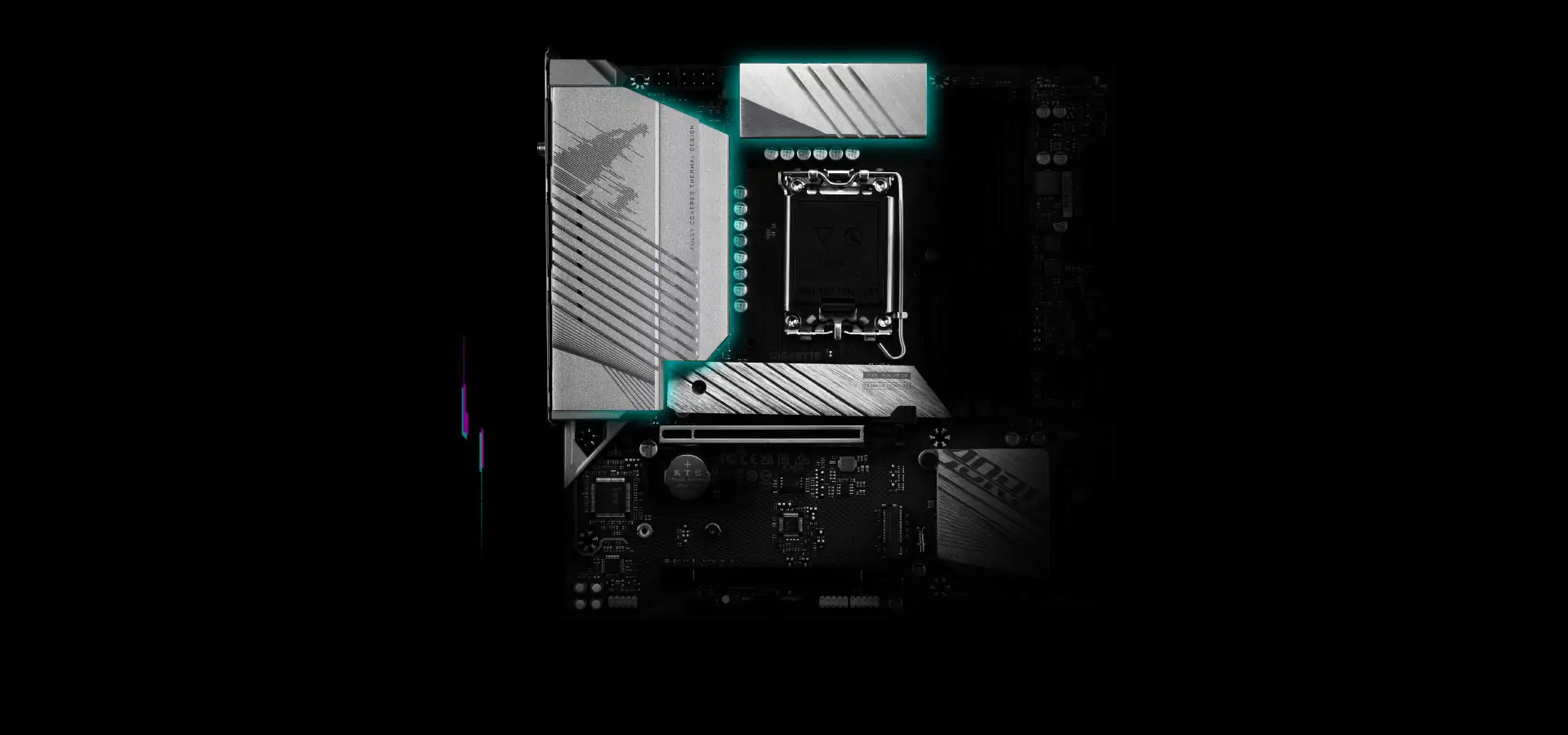

UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

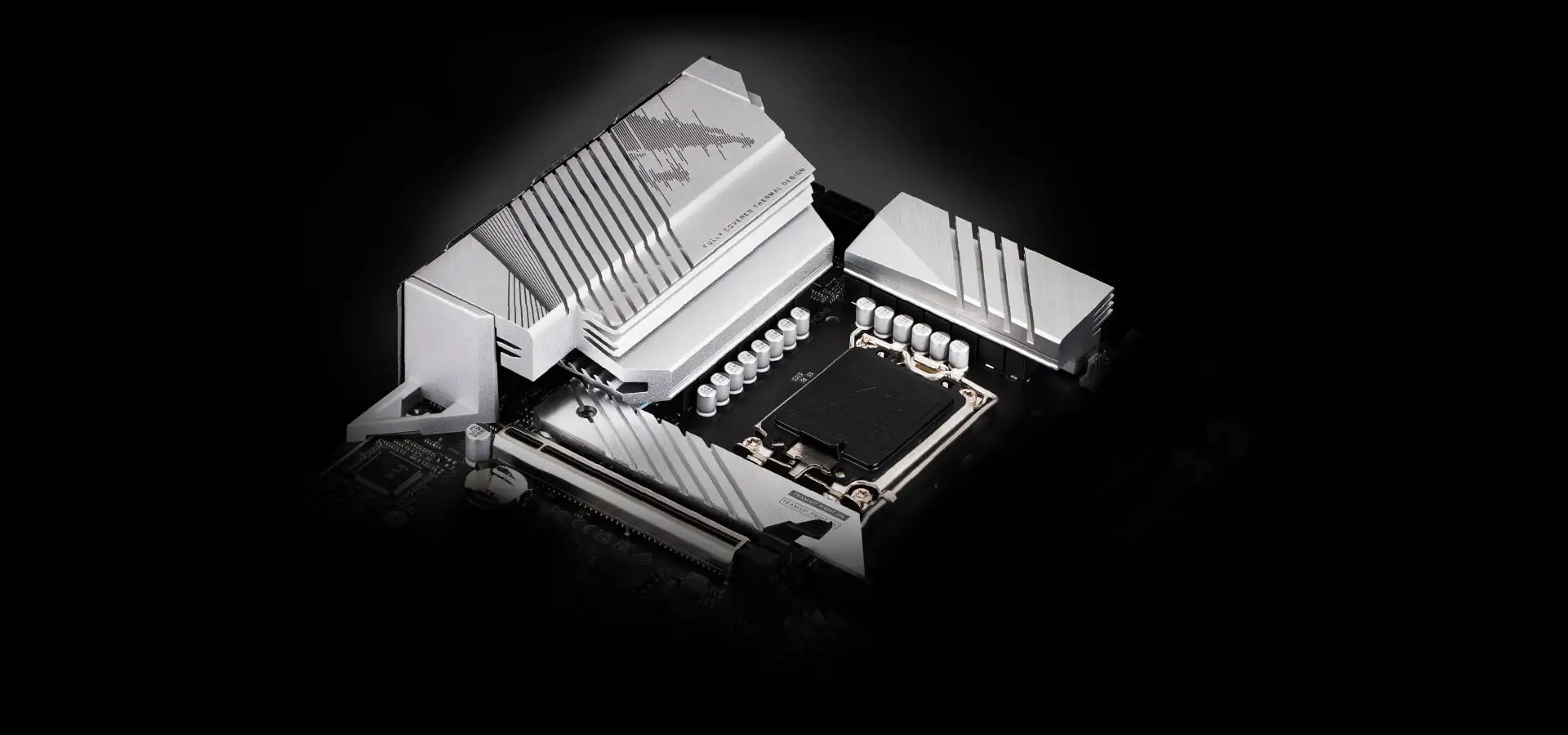

OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

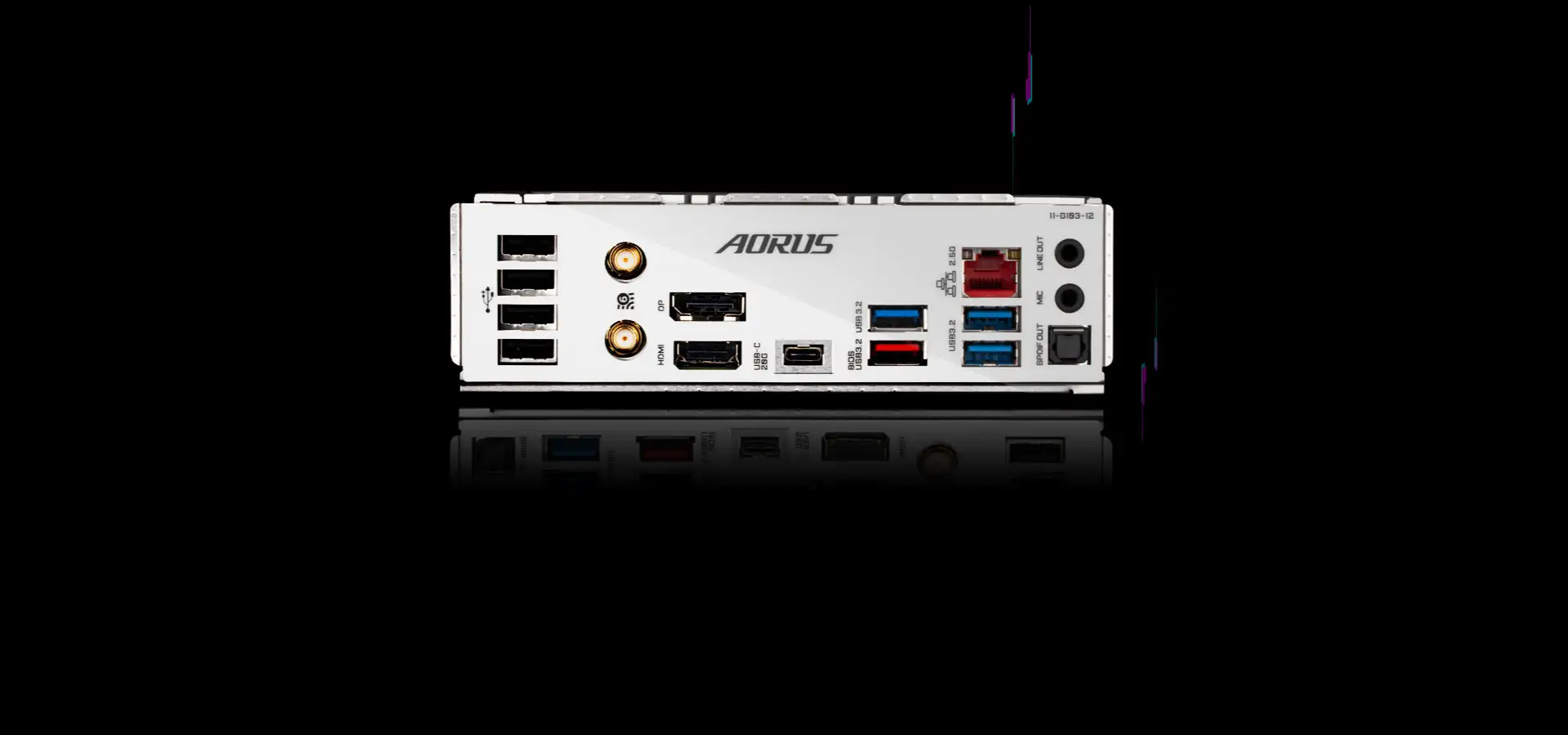

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
What is the price of Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E) Motherboard In Bangladesh?
The price of Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E) Motherboard starts from 23,200 . The price may vary due to your customization and product availability. You can buy Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
