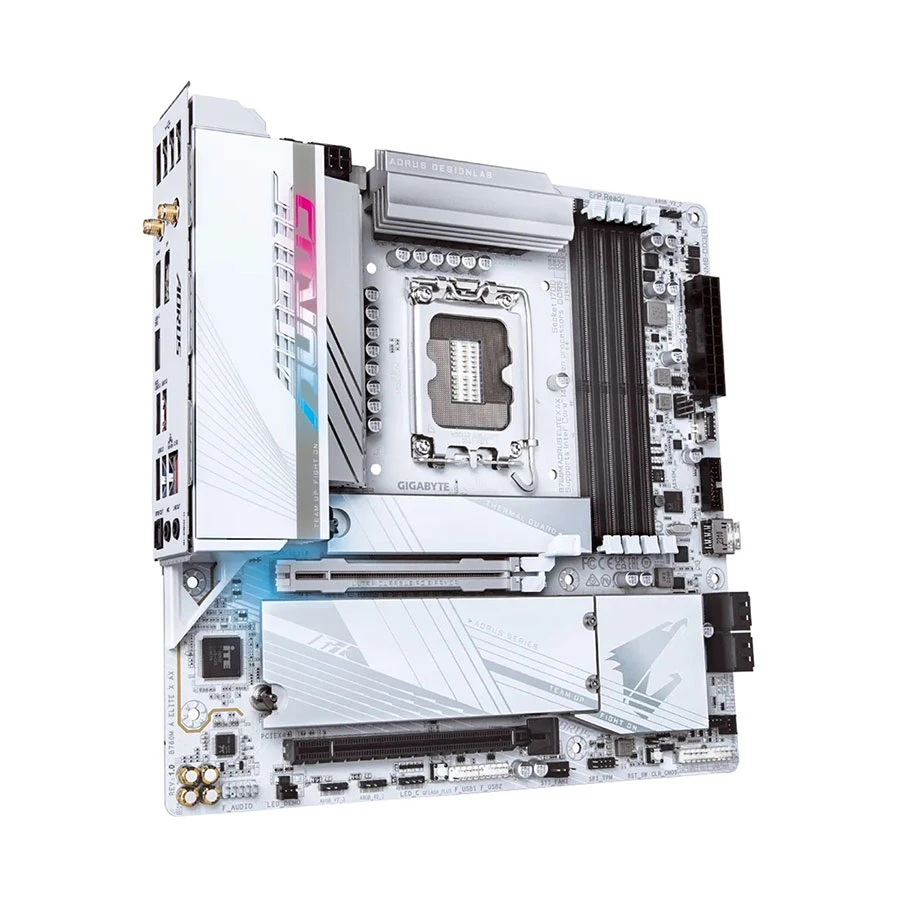

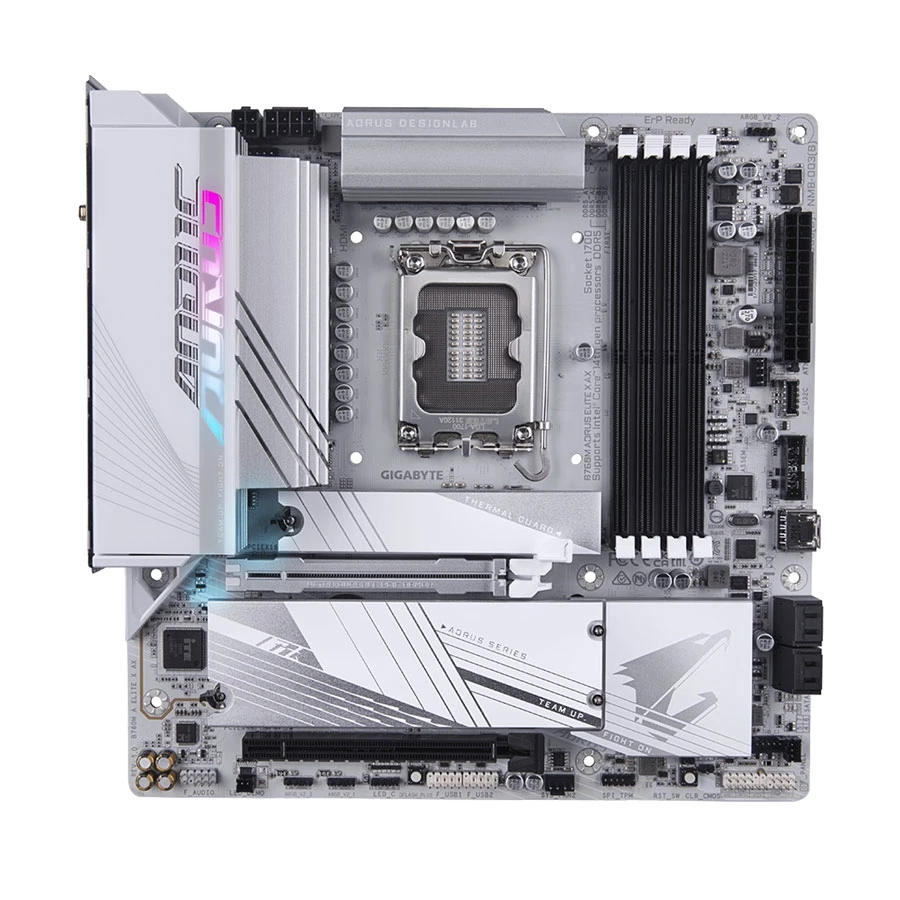

Gigabyte B760M AORUS ELITE X AX (Wi-Fi 6E) DDR5 Intel Gaming Motherboard

Product Id: 02.01.018.513

Brand Gigabyte

Regular Price Tk 29,300 Monthly EMI Tk 2,442
Special Price Tk 27,200

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
Gigabyte

Model
Gigabyte B760M AORUS ELITE X AX (Wi-Fi 6E)

Body Color
White


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules, non-ECC Un-buffered DIMM

Memory Channel
Dual

Memory Slot
4

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 ((1 x M.2 (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)), (1 x M.2 (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB))


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel 2.5GbE LAN

LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
Realtek Wi-Fi 6E RTL8852CE

Bluetooth
Bluetooth 5.3

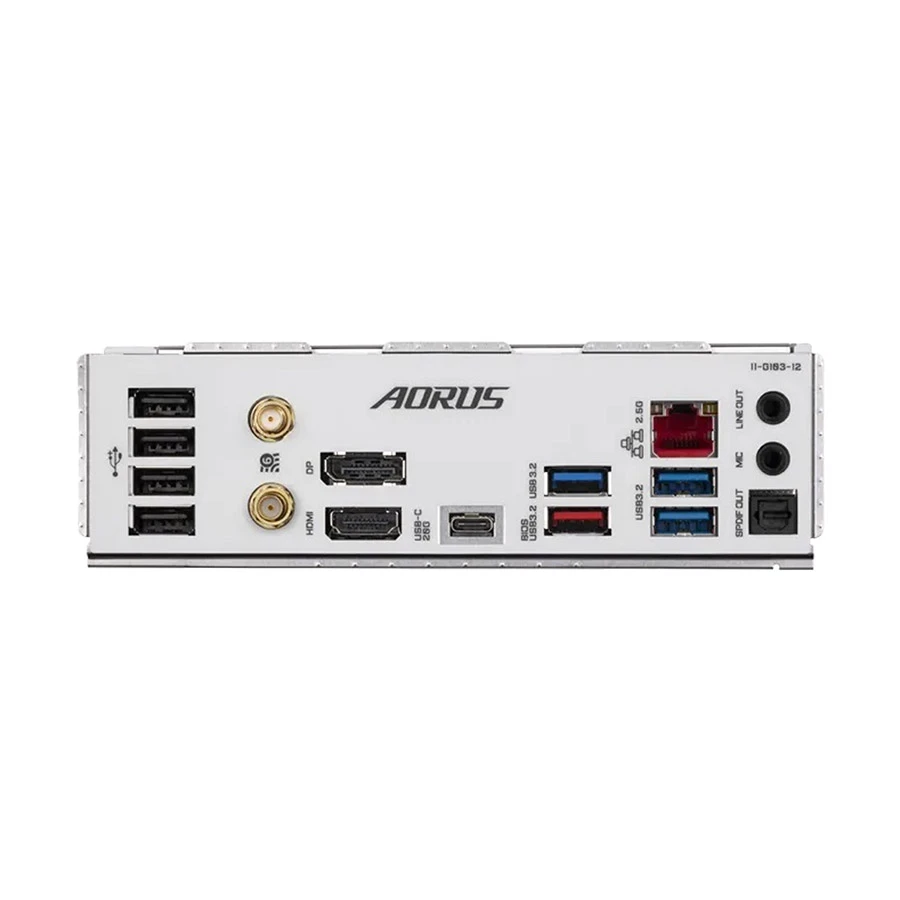

Ports
USB Port
1 x USB Type-C port, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
2

TPM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10, Windows 11

Compatible Products
Core i3 13100, Core i9 14900, Core i7 14700F, Core i5 14400F, Core i7 14400F, Core i5 14600K, Core i5 12400, Core i9 12900K, 14th/ 13th/ 12th Generation Intel Core, Pentium Gold and Celeron Processors


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature

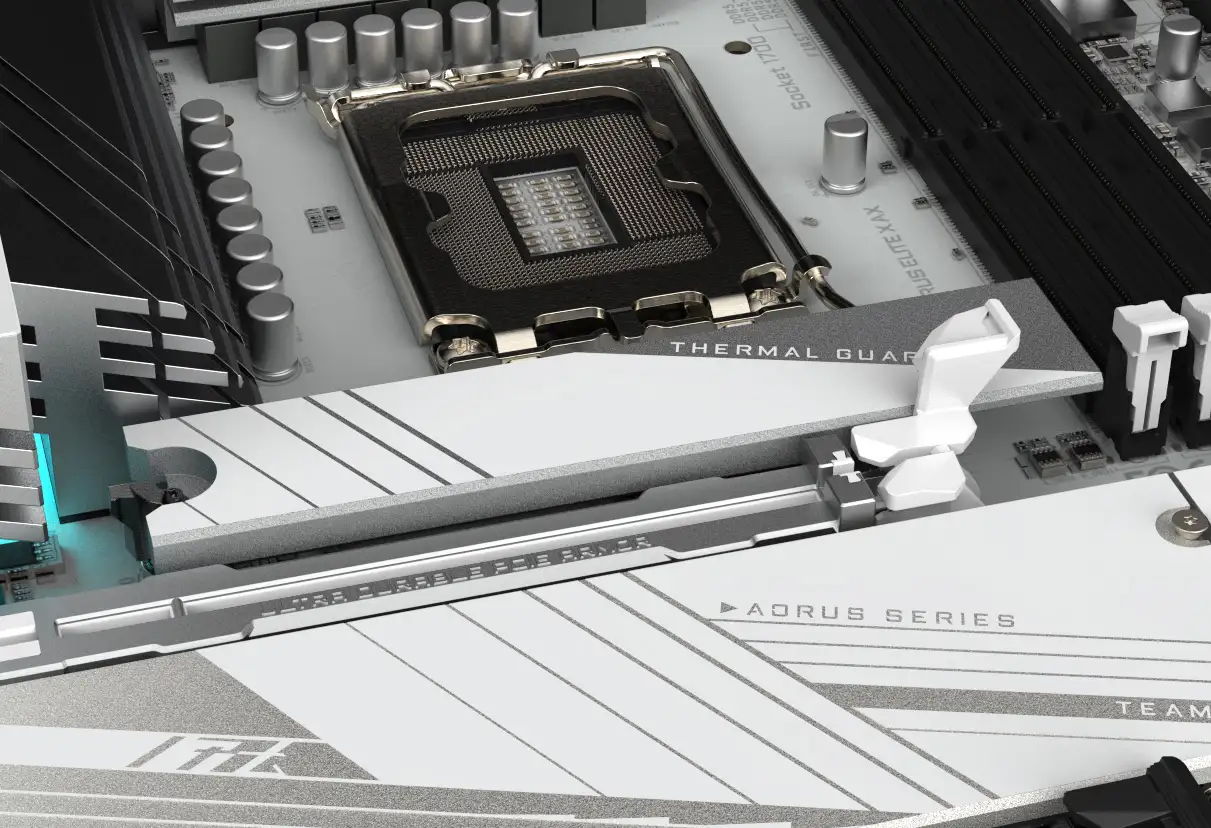

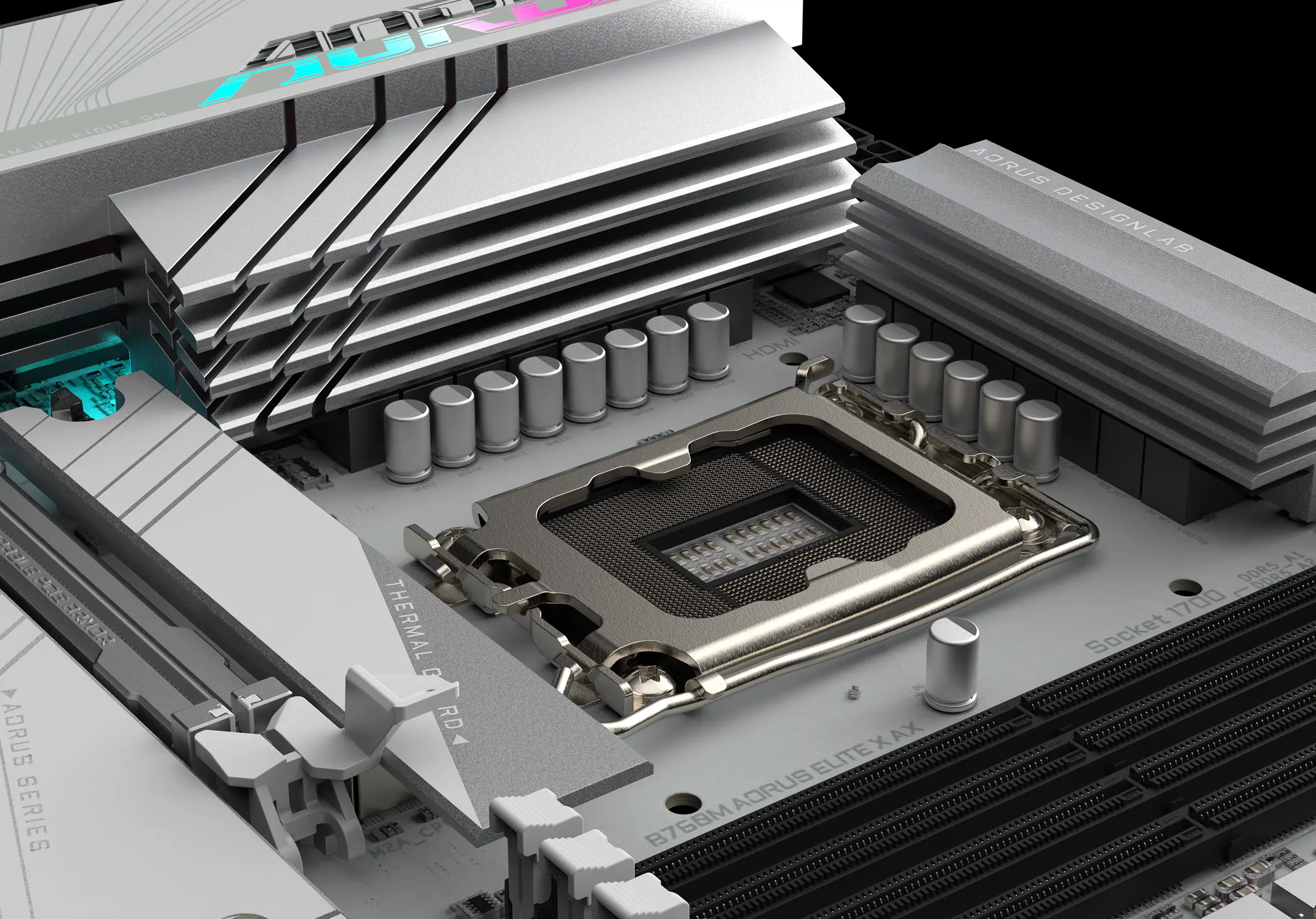

Supports Intel Core 14th and 13th processors, Digital twin 14+1+1 phases VRM solution, Dual Channel DDR5: 4 x DIMMs with XMP 3.0 memory module support, PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card, EZ-Latch Click: M.2 heatsinks with screwless design, EZ-Latch Plus: PCIe 5.0 x16 slot & M.2 slots with quick release design, Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup, UC BIOS: User-Centred intuitive UX with Quick Access function, Ultra-Fast Storage: 2 x M.2 PCIe 4.0 x4 , Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard, Fast Networking: 2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna, Extended Connectivity: DP,Front USB-C 10Gb/s, Rear USB-C 20Gb/s, Reliable Audio: 8-Ch HD Audio & Audiophile Grade Capacitors

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
