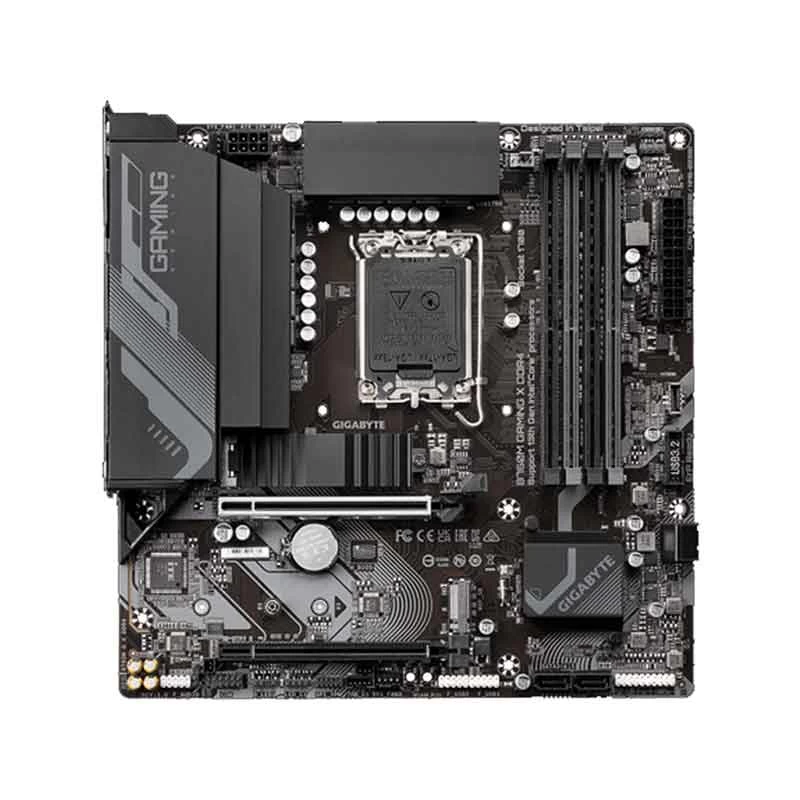

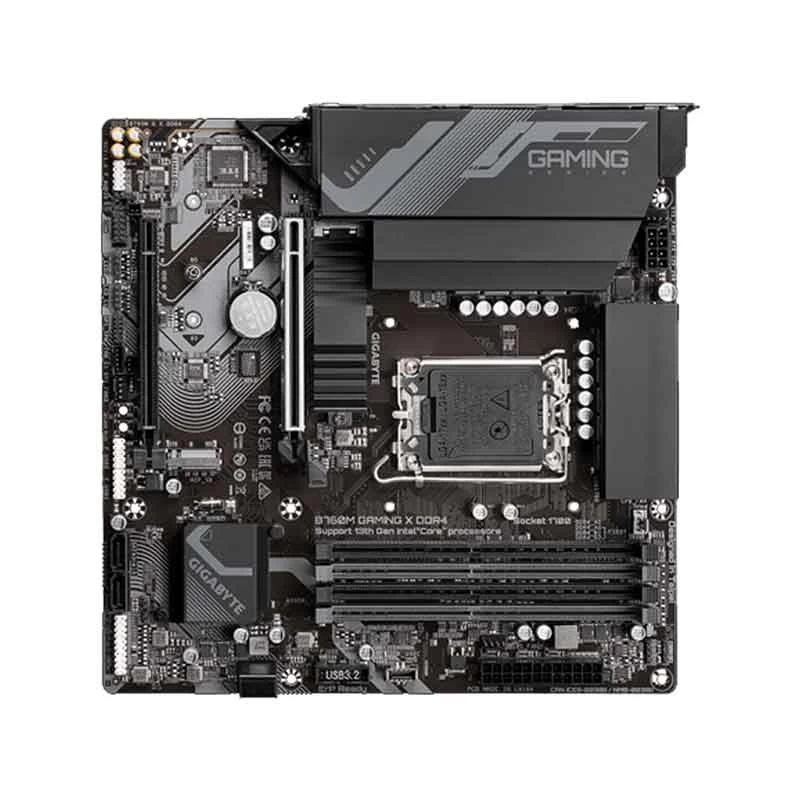

Gigabyte B760M GAMING X DDR4 Intel Motherboard

Product Id: 02.01.018.458

Brand Gigabyte

Regular Price Tk 22,570 Monthly EMI Tk 1,881
Special Price Tk 21,000

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors.
  • Generation - 12th/13th/14th
General
Brand
Gigabyte

Model
Gigabyte B760M GAMING X

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors.

Generation
12th/13th/14th


Memory Support
Memory Type
DDR4

Memory MHz
5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133MHz non-ECC Un-buffered DIMM.

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
Up to 128 GB (32 GB single DIMM capacity)

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2, ((1 x M.2, type 2280 PCIe 4.0 x4/x2 SSD support),(1 x M.2 ,type 22110/2280 PCIe 4.0 x4/x2 SSD))


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE

LAN Speed (Mbps)
10/10/1000/2500Mbps

WiFi
No

WiFi Technology
No

Bluetooth
No

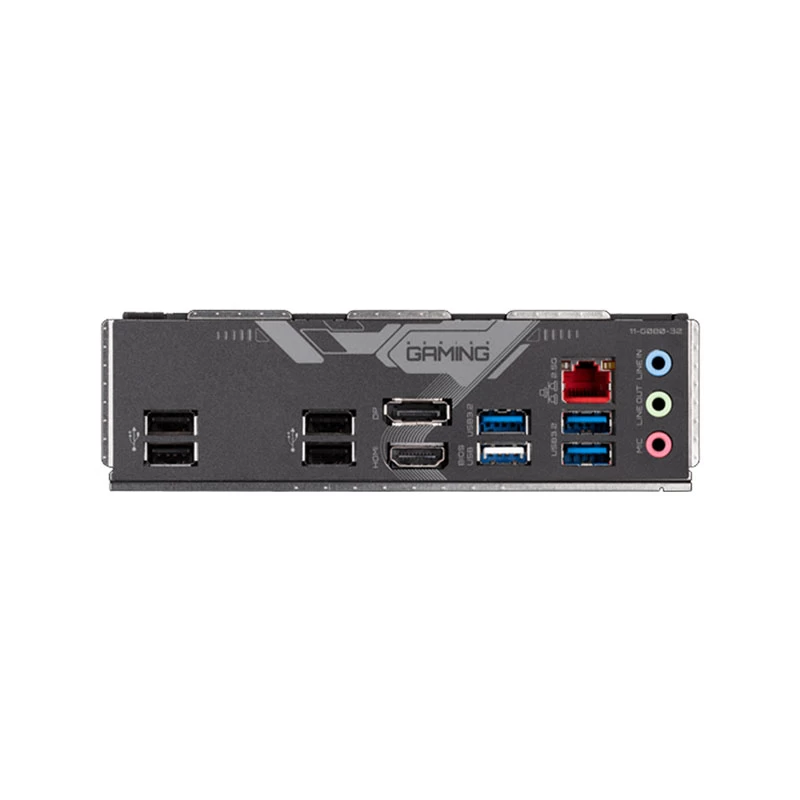

Ports
USB Port
3 x USB 3.2 Gen 1 , 5 x USB 2.0/1.1

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

SATA Port
4

Thunderbolt
2

TPM Port
1

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync
RGB LED strip headers

RGB Connector
2 x RGB LED strip headers

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
12th,13th & 14th Gen Intel Core, Pentium Gold and Celeron Processors.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Fast Networks: 2.5GbE LAN, Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Others
Unparalleled Performance Hybrid 8+1+1 Phases Digital VRM Solution, Dual Channel DDR4 4 DIMMs XMP Memory Module Support, Next Generation Storage 2 PCIe 4.0 x4 M.2 Connectors, Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & M.2 SSD Performance, EZ-Latch PCIe 4.0x16 Slot with Quick Release Design.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
