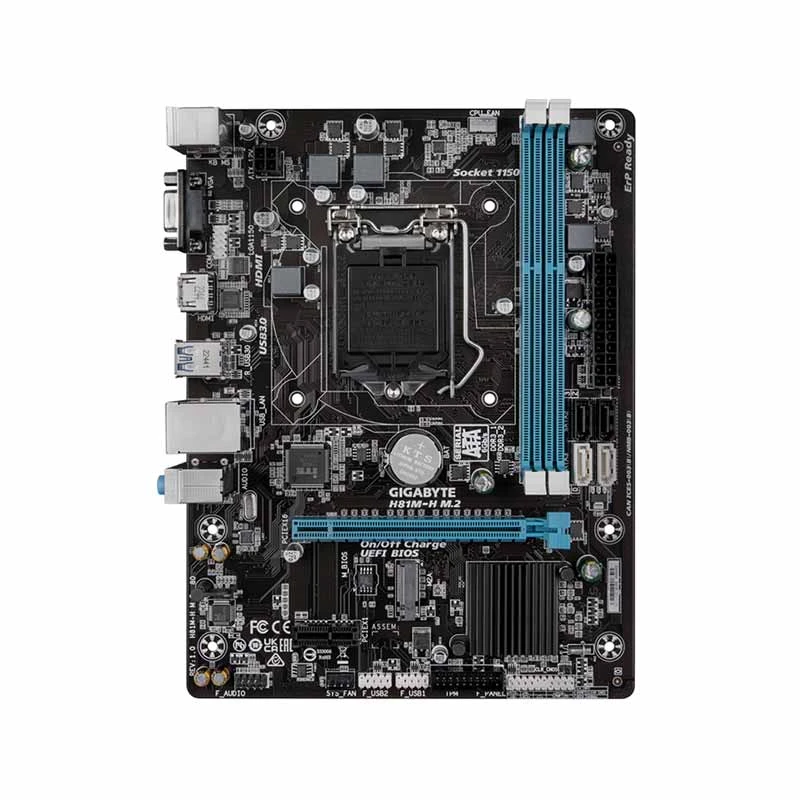

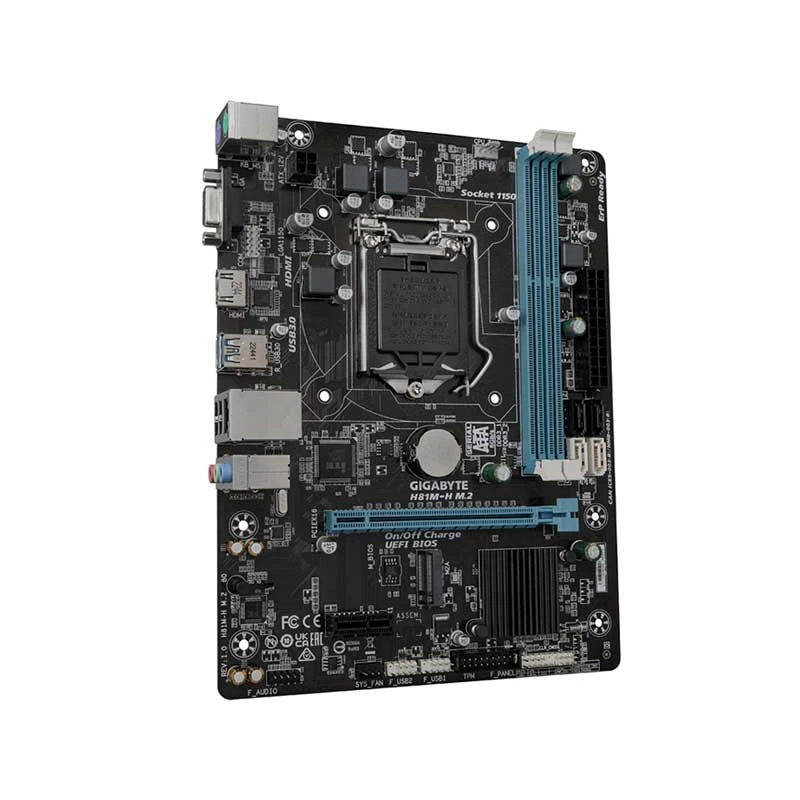

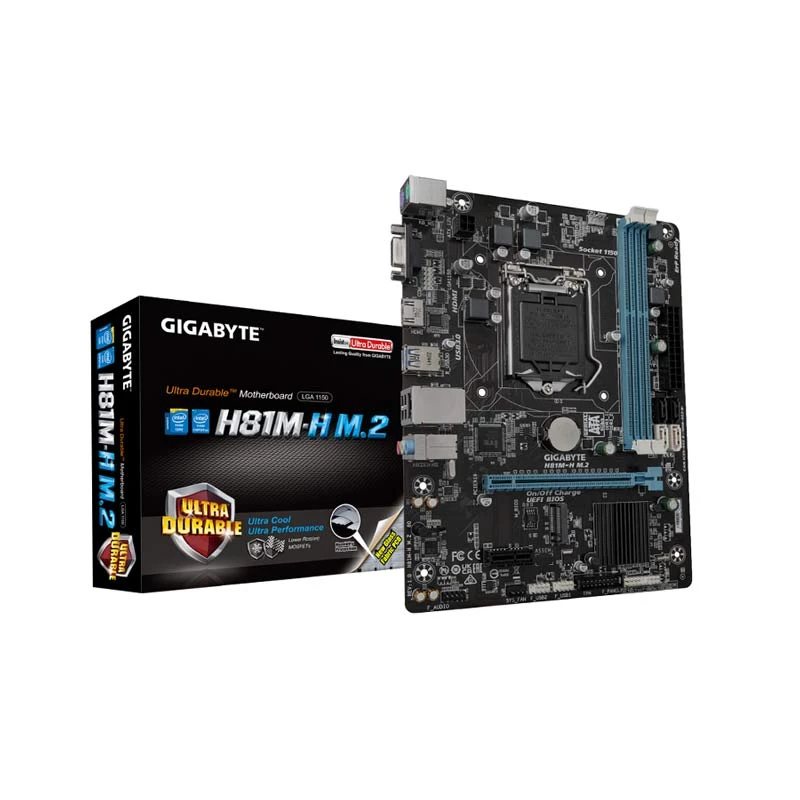

Gigabyte GA-H81M-H M.2 DDR3 Intel Motherboard

Product Id: 02.01.018.504

Brand Gigabyte

Regular Price Tk 10,310 Monthly EMI Tk 859
Special Price Tk 9,600

Quick Overview

  • Chipset - Intel H81
  • Memory Max. - 16GB
  • Memory Slot - 2
  • Sockets Supported - LGA1150
  • Supported CPU - 4th gen Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors.
  • Generation - 4th
General
Brand
Gigabyte

Model
Gigabyte GA-H81M-H M.2

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H81

Sockets Supported
LGA1150

Built-in Processor
No

Supported CPU
4th gen Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors.

Generation
4th


Memory Support
Memory Type
DDR3

Memory MHz
1600/1333 MHz non-ECC memory.

Memory Channel
Dual

Memory Slot
2

Memory Max.
16GB


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (M key) type 2280 support SATA and PCIe 2.0 x4/x2 SSD


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN

LAN Speed (Mbps)
10/100Mbps

WiFi
No

WiFi Technology
Not Applicable

Bluetooth
No


Ports
USB Port
2 x USB 3.0/2.0 Type-A, 2 x USB 2.0/1.1 Type-A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
Yes

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

RGB Support
No

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 32 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10 / 7

Compatible Products
Compatible with LGA1150 Socket 4th Gen Intel Processor.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Others

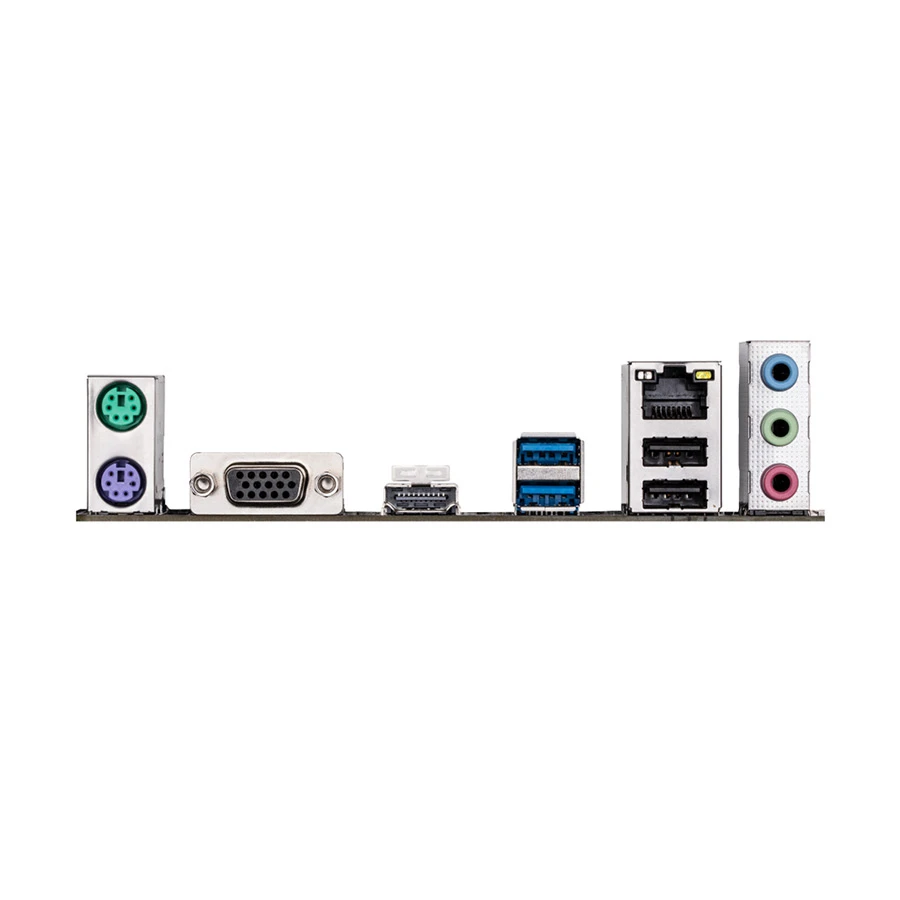

Back Panel Connectors: (1 x PS/2 mouse port 1 x PS/2 keyboard port 3 x audio jacks), Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
