Brand

Gigabyte

Model

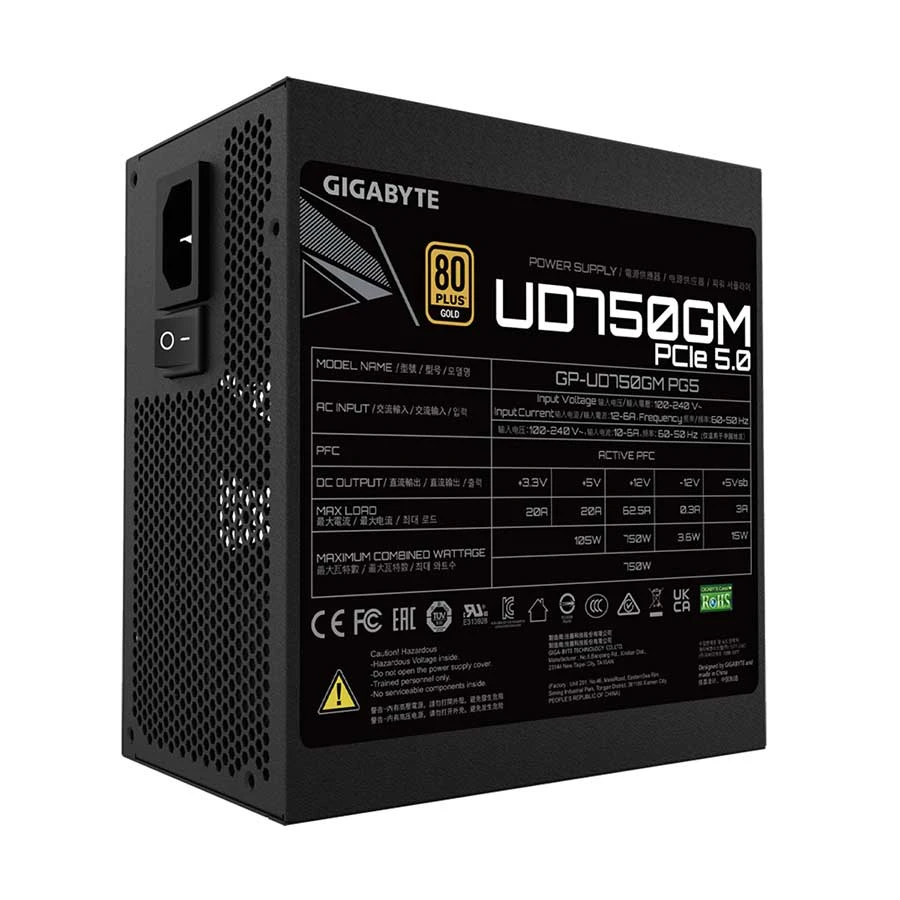

Gigabyte GP-UD750GM PG5

PSU Category

Full Modular

Type

ATX 12V V3.0

Maximum Power

750 Watt

Fan Size

120mm

Lighting Effect

Efficiency Rating

80 Plus Gold

MTBF

>100,000 hours

Form Factor

ATX

Color

Black

Warranty

5 Year with Burn Case

General

Brand

Gigabyte

Model

Gigabyte GP-UD750GM PG5

PSU Category

Full Modular

Type

ATX 12V V3.0

Cooling & Lighting

Fan Size

120mm

Lighting Effect

Lighting Type

Not Applicable

Fan Bearing

Hydraulic Bearing(HYB)

Performance

Efficiency

90% Efficiency

Efficiency Rating

80 Plus Gold

PFC (Power Factor Correction)

Active PFC (>0.9 typical)

Power Good Signal

100-150ms

Hold Up Time

>16ms

Protection

OVP, OPP, SCP, UVP, OCP, OTP

Over Voltage Protection (OVP)

Yes

Over Power Protection (OPP)

Yes

Over Current Protection (OCP)

Yes

Over Temperature Protection (OTP)

Yes

Short Circuit Protection (SCP)

Yes

Under Voltage Protection (UVP)

Yes

Connectors

ATX Main Connectors

EPS Connectors

PCIe Connectors

SATA Power Connectors

4-Pin Peripheral Connectors

Floppy Connectors

Power

Maximum Power

750 Watt

Input AC

100-240 Vac (full range)

Input Voltage

100-240V

Input Frequency Range

60-50Hz

Input Current

12A - 6A

Physical Description

Cable Type

Flat

MTBF

>100,000 hours

Form Factor

ATX

Dimensions

150 x 140 x 86mm

Color

Black

Warranty

5 Year with Burn Case

Additional Info

Others

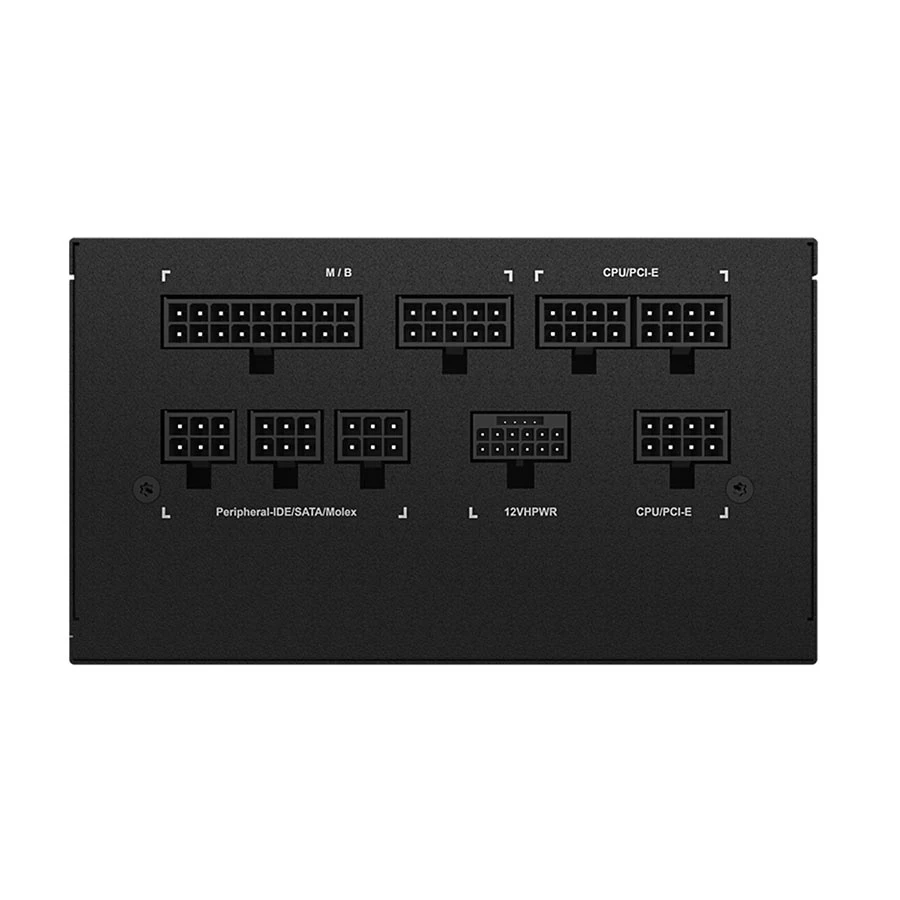

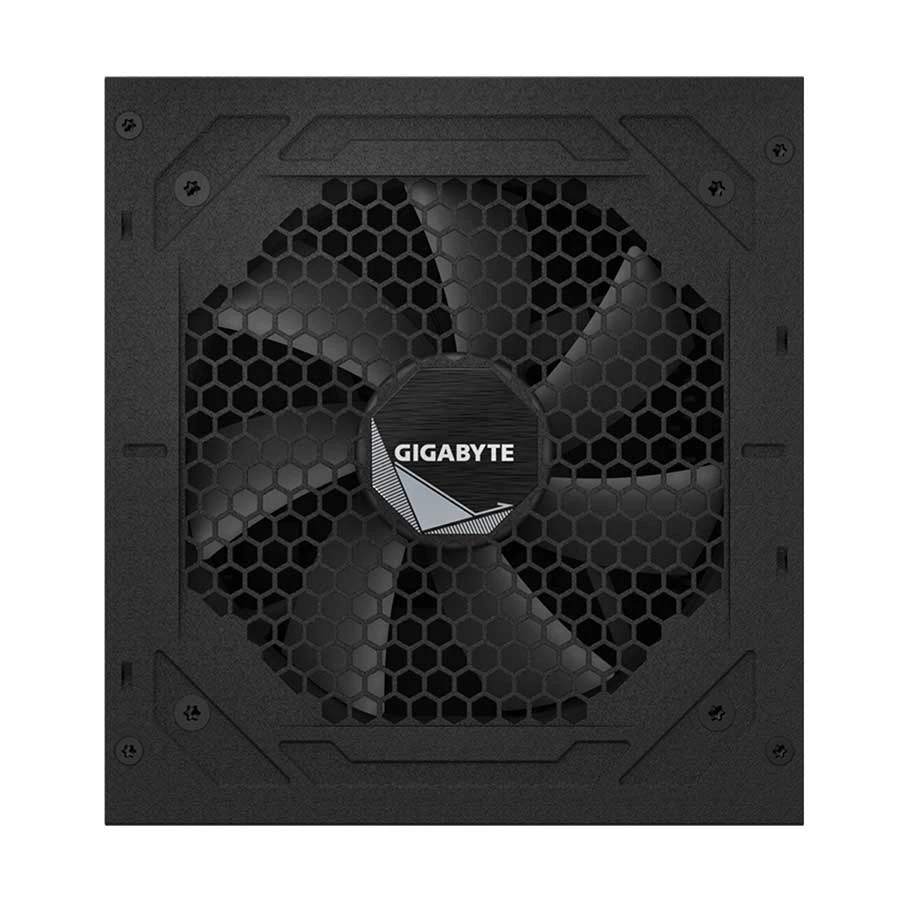

Fan Type: 120mm Hydraulic Bearing(HYB)fan. Connectors: ATX/MB 20+4 Pin x 1 : 610mm x 1, CPU/EPS 4+4 Pin x 2 : 600mm+200mm x 1, PCIe 16 Pin x 1: 700mm x 1, PCIe 6+2 Pin x 4 : 600mm+150mm x 2, SATA x 8 : 600mm+150mm+150mm+150mm x 2, 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm x 1.

Specialty

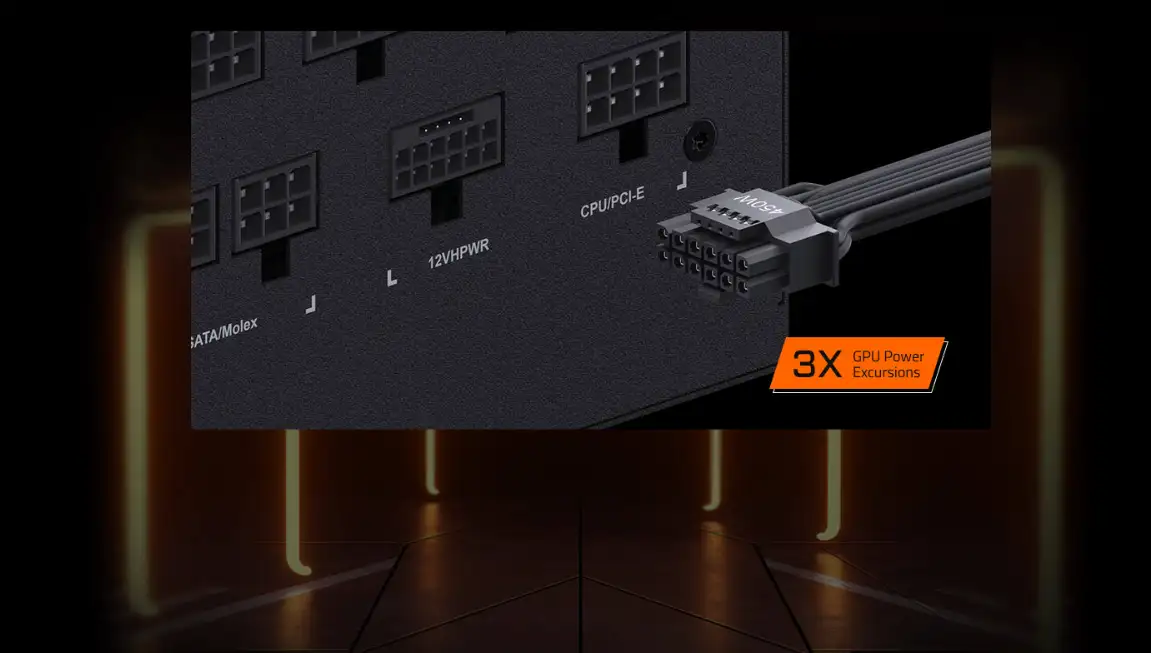

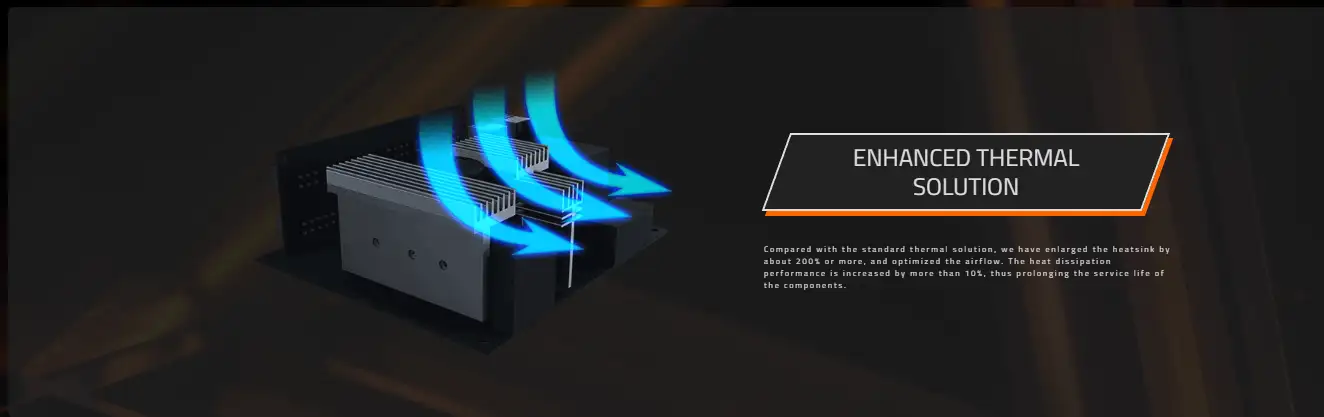

Ultra Durable, Main Japanese capacitors, Enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, OVP/OPP/SCP/UVP/OCP/OTP protection, Support PCIe Gen 5.0 graphics cards, Support Intel ATX 3.0 standard, 80 PLUS Gold certified, Fully modular design, Compact design, The UD750GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 450 watts of power to the graphics card, The UD750GM PCIE 5.0 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards, Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time, The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte GP-UD750GM PG5 Power Supply In Bangladesh

What is the price of Gigabyte GP-UD750GM PG5 Power Supply In Bangladesh?

The price of Gigabyte GP-UD750GM PG5 Power Supply starts from 11,000 . The price may vary due to your customization and product availability. You can buy Gigabyte GP-UD750GM PG5 Power Supply from our website or visit our showrooms nearby.
