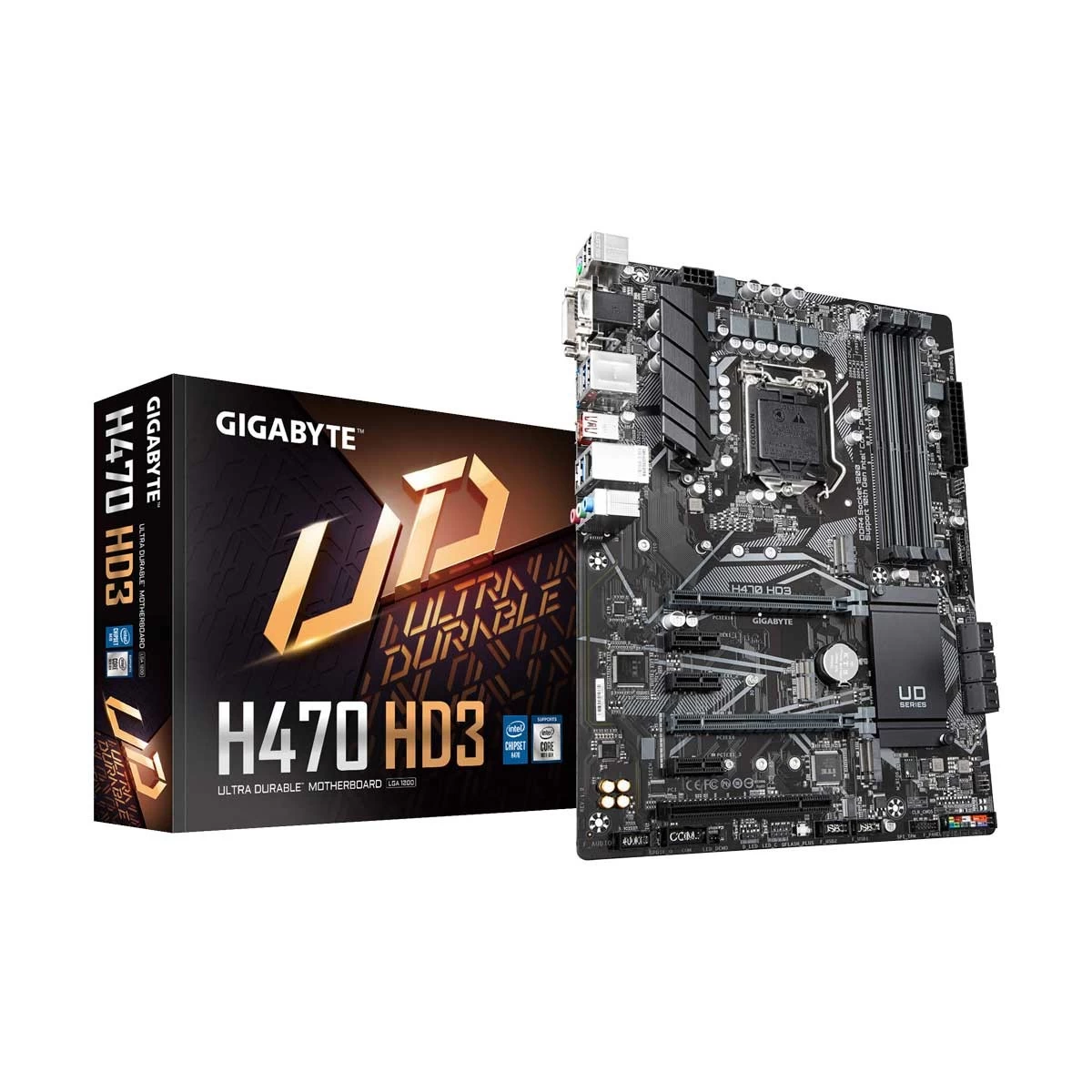

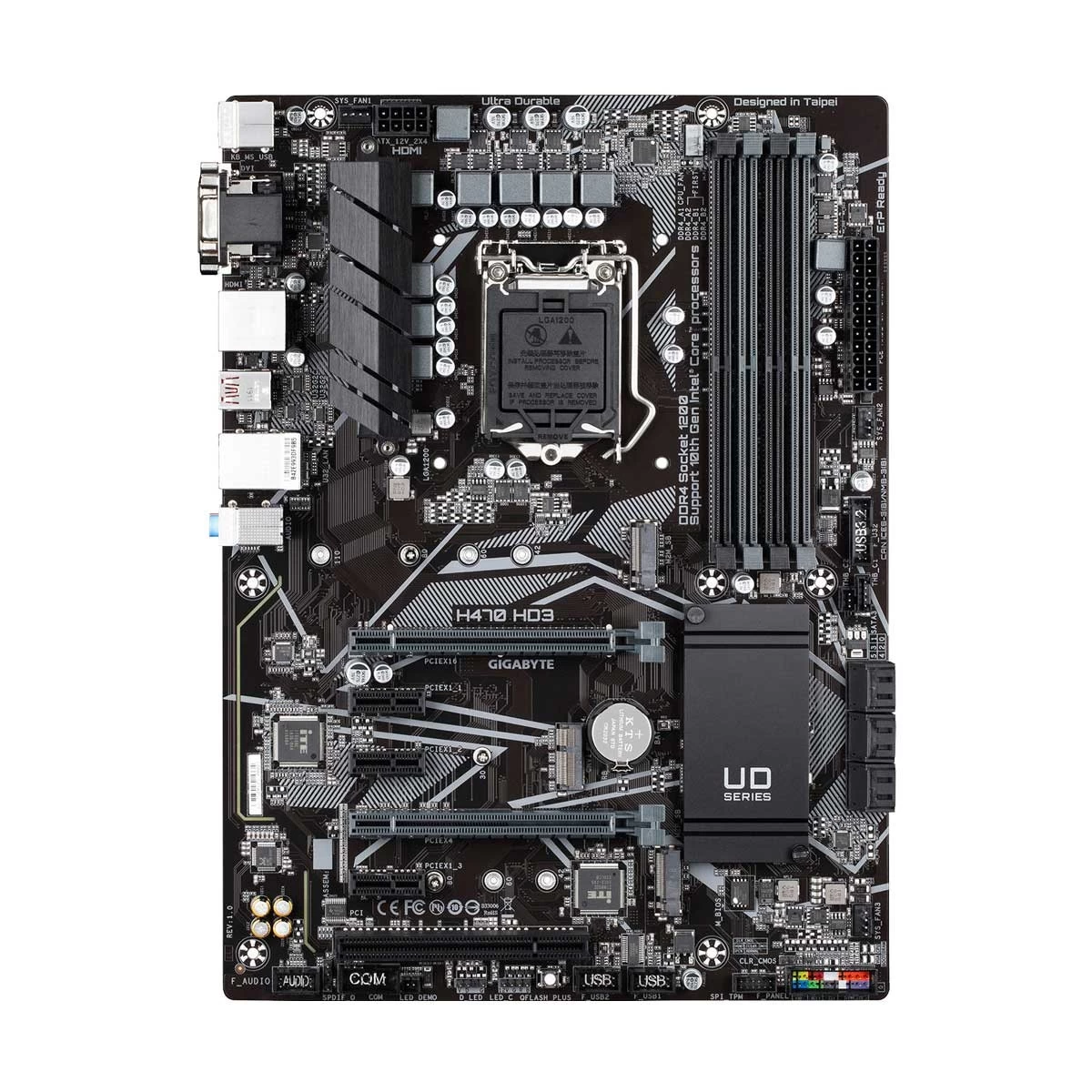

Gigabyte H470 HD3 DDR4 10th Gen Intel LGA1200 Socket Motherboard
Product Id: 02.01.018.311
Brand
Gigabyte
Regular Price
Tk 0
This item is discontinued.
Quick Overview
- Chipset - Intel H470
- Sockets Supported - LGA1200
- Supported CPU - Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors
- Generation - 10th
- Memory Slot - 4
- Memory Max. - 128GB
- Back-Connect Design - No
Brand
Gigabyte
Model
Gigabyte H470 HD3
Chipset
Intel H470
Sockets Supported
LGA1200
Built-in Processor
No
Generation
10th
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
Yes
Graphics
Integrated
Graphics Chipset
Intel HD Graphics support
M.2/SSD Expansion Slot
2
WiFi
No
Bluetooth
No
Form Factor
ATX
Supported Operating System
Windows 10
Body Color
Black
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Gigabyte H470 HD3 Motherboard In Bangladesh

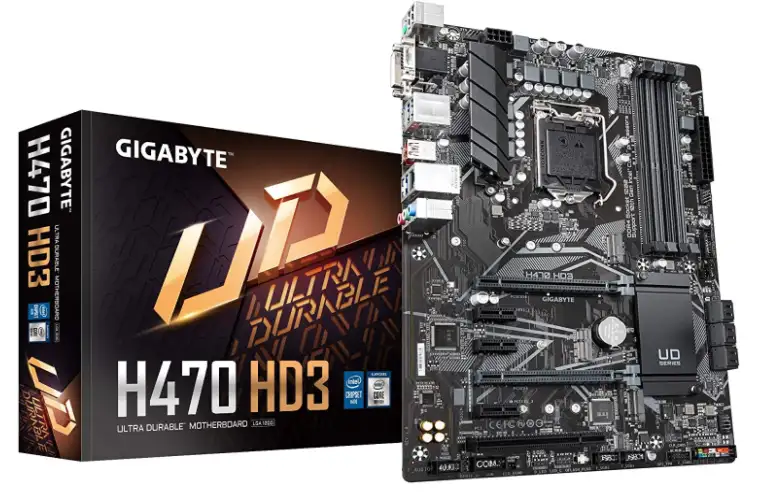

Gigabyte H470 HD3
Intel® H470 Ultra Durable Motherboard with Dual NVMe PCIe Gen3 X4 M.2 Slots, 2-Way CrossFire™ Multi-Graphics, Intel® GbE with cFosSpeed, USB 3.2 Gen1 Type-C™, Q-Flash Plus , Smart Fan 5, RGB FUSION 2.0 ,M.2 E-key Slot for CNVi WIFI Module Upgradable
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Dual NVMe PCIe Gen3 X4 M.2 Connectors
- Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
- Intel® Optane™ Memory Ready
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- Intel® USB 3.2 Gen 1 Type-C™ Support

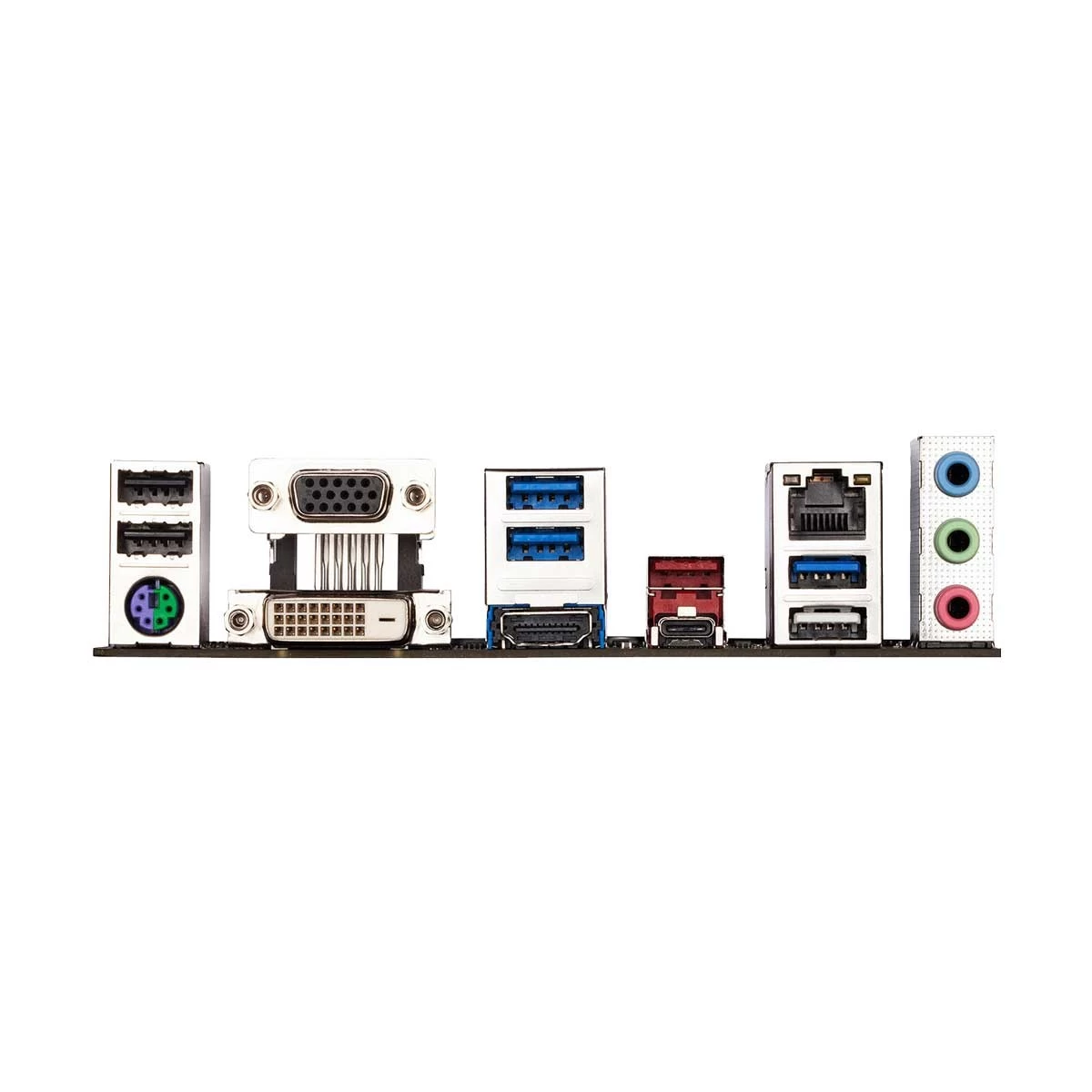

- 3 Display Interfaces Support
- M.2 E-key Slot for PCIe WIFI Module Upgradable
- Anti-Sulfur Resistors Design
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
Direct 6+2 Phases Digital VRM Solution with Lower RDS(on) MOSFET
GIGABYTE 400 series motherboards use a 6+2 phase digital PWM + Lower RDS(on) MOSFETs design to support the latest 10-core Inte® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

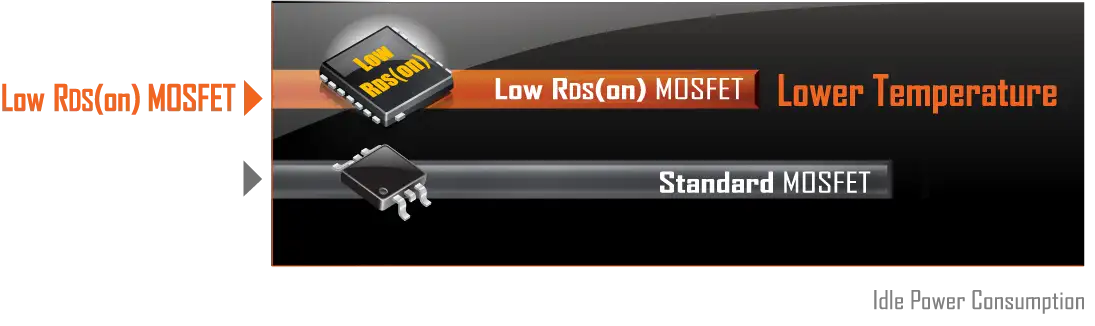

Benefits of Low RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.
Dual NVMe PCIe Gen3 x4 M.2 Connectors
With two NVMe PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE Motherboards bring to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.
2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
USB 3.2 Gen 1 Type-C™ Support
The World's Next Universal Connector
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.2 Gen1 support and faster charging capabilities. Powered by the Intel® controller, this little port is the better USB Type-C™.
Soar Free With WIFI
M.2 E key slot for PCIe WIFI module Upgardable
WIFI module Upgrade kit offers an easy way to upgrade WIFI Upgradeable motherboards with new and faster Gigabit WIFI connectivity without having to upgrade to a whole new system.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Fan / Water Pump Connectors
Internal Temperature Sensors
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Temperature Sensors
Hybrid Fan Headers
■ 4 Fan / Water Pump Connectors
■ 6 Temperature Sensors
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
RGB FUSION 2.0
With H470 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on H470 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
With H470 Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
GIGABYTE Patented Double Locking Bracket
Solid Pin Power Connectors
H470 motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
What is the price of Gigabyte H470 HD3 Motherboard In Bangladesh?
The price of Gigabyte H470 HD3 Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Gigabyte H470 HD3 Motherboard from our website or visit our showrooms nearby.
