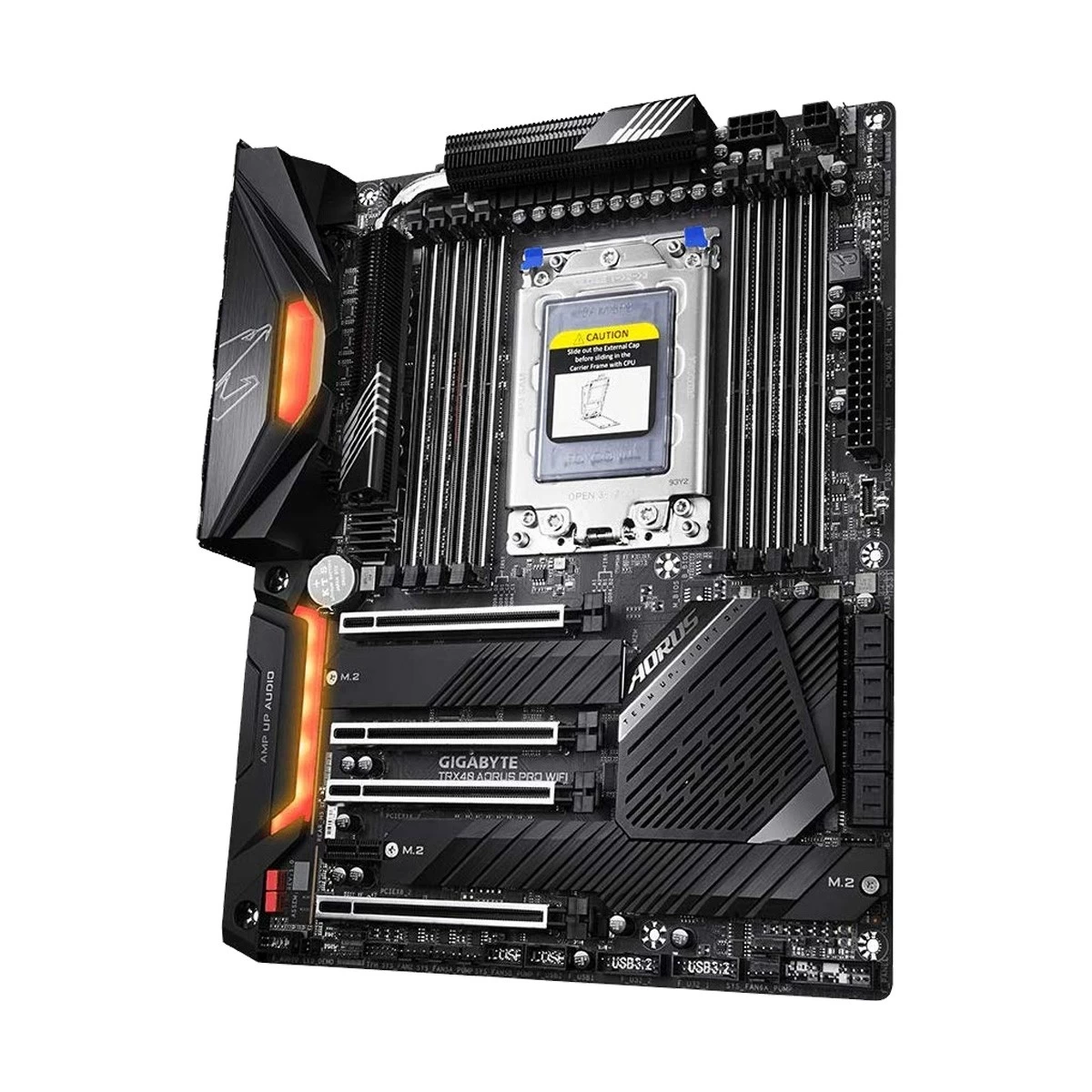

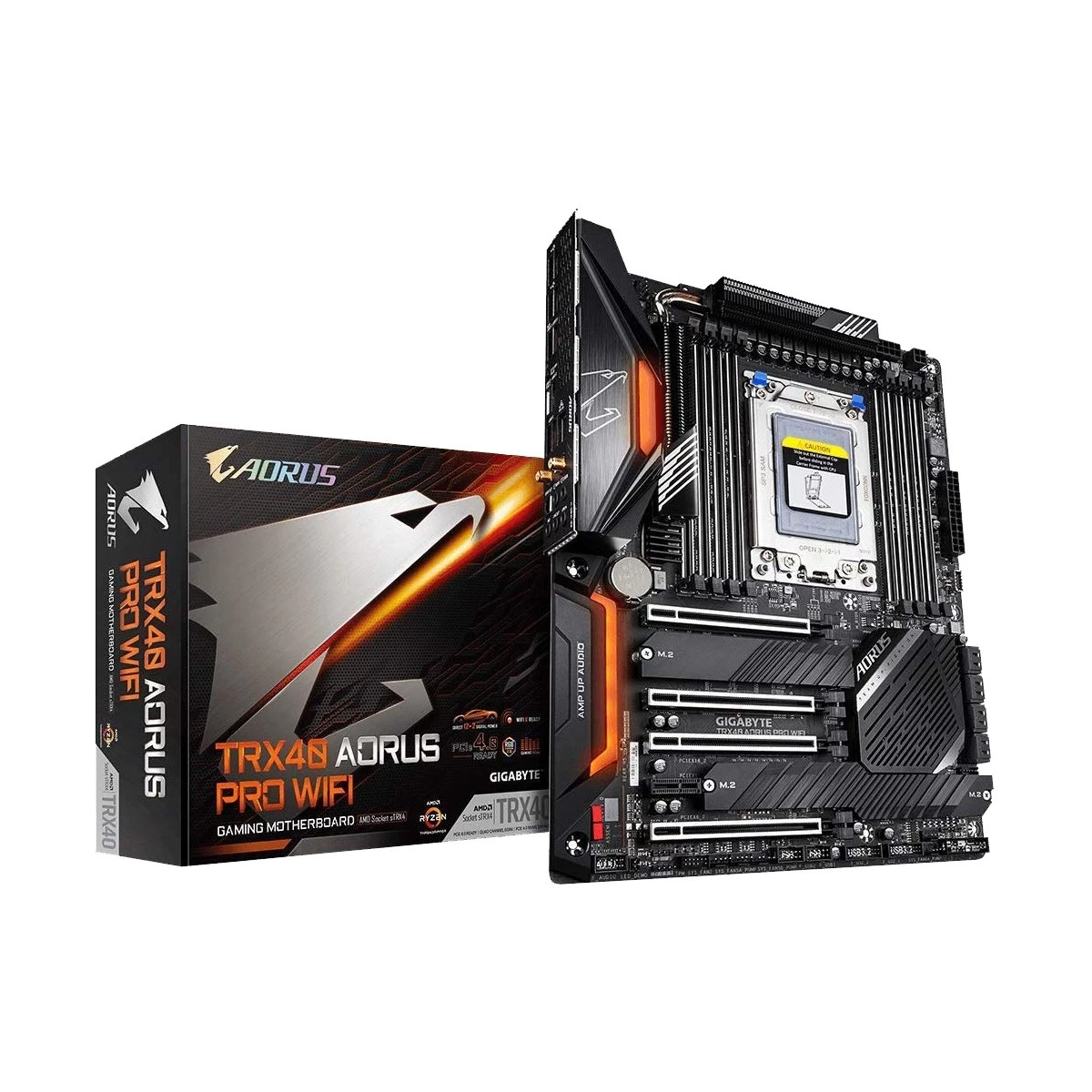

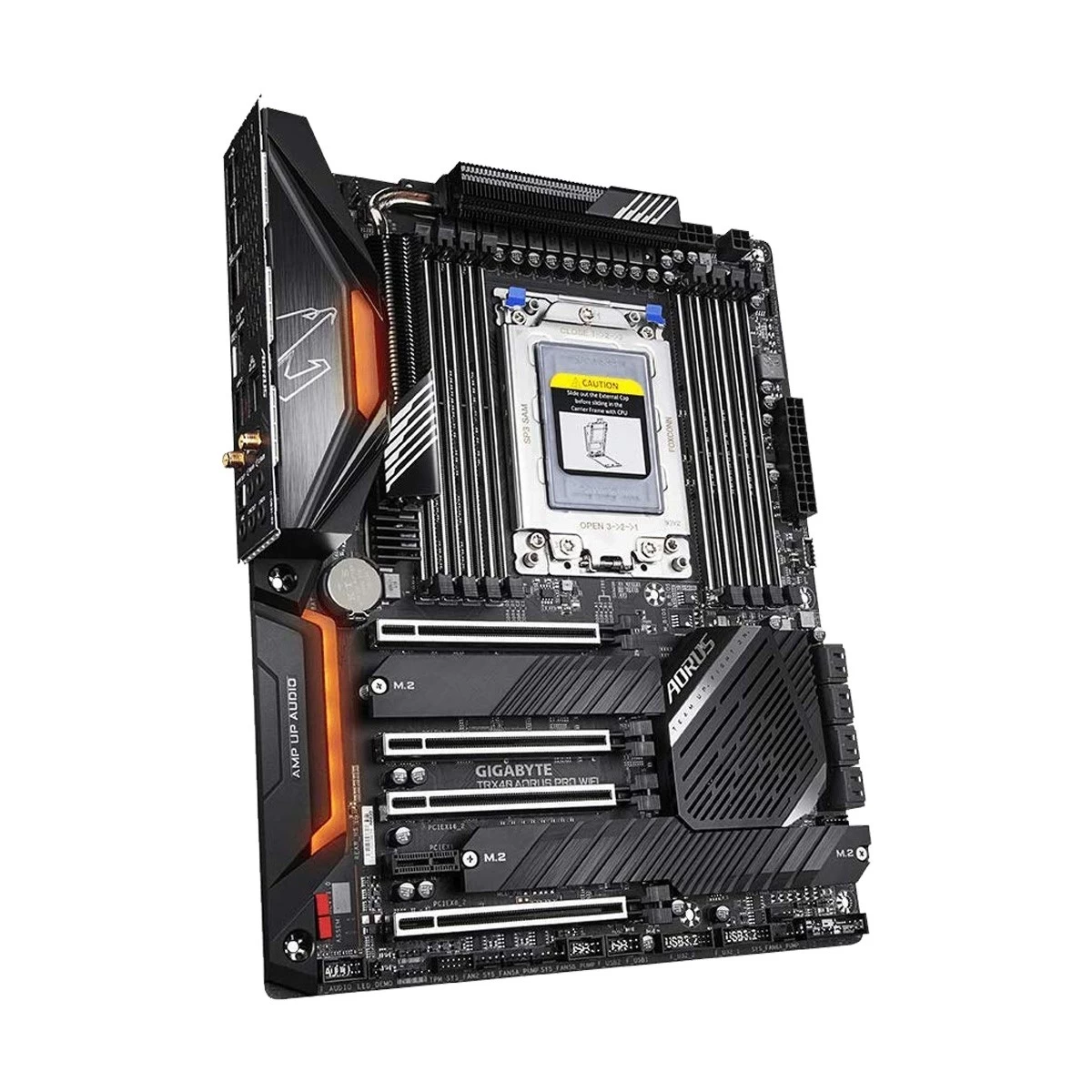

Gigabyte TRX40 Aorus Pro WIFI DDR4 TRX4 Socket AMD Gaming Motherboard
Product Id: 02.02.018.299
Brand
Gigabyte
Regular Price
Tk 0
This item is discontinued.
Quick Overview
- Chipset - AMD TRX40
- Sockets Supported - sTRX4
- Supported CPU - 3rd Gen AMD Ryzen Threadripper processors
- Generation - Not Applicable
- Memory Slot - 8
- Memory Max. - 256GB
- Back-Connect Design - No
Brand
Gigabyte
Model
Gigabyte TRX40 Aorus Pro WIFI
Chipset
AMD TRX40
Sockets Supported
sTRX4
Built-in Processor
No
Generation
Not Applicable
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
8
Memory Max.
256GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
3
WiFi
Yes
Bluetooth
Bluetooth 5
Form Factor
ATX
Supported Operating System
Windows 10
Body Color
Black
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Gigabyte TRX40 Aorus Pro WIFI Motherboard In Bangladesh
Gigabyte TRX40 Aorus Pro WIFI
Save time on demanding projects with the Gigabyte TRX40 AORUS PRO WIFI TRX4 ATX Motherboard. Designed for content creators and professionals, this motherboard is powered by the AMD TRX40 chipset and supports third-generation AMD Ryzen Threadripper processors with the TRX4 socket. It takes full advantage of the large PCIe 4.0 data bandwidth to deliver high performance for tasks such 3D rendering, video editing, and more. Up to 256GB of quad-channel ECC DDR4 RAM, reaching 4400 MHz when overclocked, can be installed across eight memory slots. The ATX motherboard also features advanced cooling and supports up to three M.2 SSDs and eight SATA III storage drives, which can be put into RAID 0, 1, or 10 configuration. Its four PCIe 4.0 x16 slots can accommodate 2-Way, 3-Way, and Quad-GPU NVIDIA SLI or AMD CrossFire configurations to maximize your system's graphical capabilities for high frame rates, connecting 4K and 8K monitors, and faster video rendering times. An additional PCIe 4.0 x1 slot is available for compatible expansion cards.
The TRX40 AORUS PRO WIFI also features the Realtek ALC4050H audio codec, which delivers deep and immersive DTS:X Ultra 7.1-channel surround sound over stereo headphones. Other features include fast internet connections via the wired Gigabit Ethernet port and the built-in 802.11ax Wi-Fi. You can customize your computing experience using the addressable RGB headers to connect light strips, which can be synced with other Gigabyte RGB Fusion 2.0-compatible peripherals such as mice and keyboards using the desktop software or mobile app. Windows 10 64-bit is required to take advantage of all the motherboard's features.
AMD TRX40 Chipset
Supporting third-generation AMD Ryzen Threadripper processors, the TRX40 chipset is designed for visual effects artists, data scientists, and other professionals who require high-end computing power. The chipset takes advantage of PCIe 4.0 bandwidth for multi-GPU configurations, NVMe storage arrays, and more. Additionally, the platform supports quad-channel DDR4 ECC RAM with unlocked overclocking for even greater speed and power.
Enhanced Cooling
- The Gigabyte Fins-Array extended heatsink, heatpipe, and thermal base plate work to deliver lower MOSFET temperatures.
- LAIRD 5W/mK high thermal conductivity pads quickly transfer heat away from components.
- A smart fan is built into the heatsink, featuring several operating modes that are designed to minimize noise and increase longevity according to your preferences.
- Thermal guards help to quickly dissipate heat from the M.2 solid state drives to avoid speed throttling.
- Smart Fan 5 allows users to interchange fan headers to correspond with the thermal sensors located across the motherboard so that the system stays cool while maintaining a high level of performance for games and other demanding applications.
- Fan Stop lets you to take control of your computer's noise level by allowing specified fans to halt when the system drops to a designated temperature level. These settings may be customized according to your preferences.
- Hybrid Fan Headers automatically detect the connected liquid- or air-cooling systems, enabling Smart Fan 5 to monitor information such as flow-rate.
Storage and Memory
- Three M.2 slots are available, supporting up to type 22110 SATA and PCIe NVMe SSDs.
- Eight SATA III headers are available for hard drives and 2.5" SSDs.
- RAID 0, 1, and 10 configurations are supported.
- Up to 256GB of quad-channel DDR4-4400 (OC) memory can be installed across eight slots.
NVIDIA SLI and AMD CrossFireX Support
Installing multiple graphics cards will enhance the computer's performance for demanding tasks such as CAD, 3D rendering, video editing, and more. This motherboard supports 2-way NVIDIA SLI and AMD CrossFireX configurations.
Performance Features
- The TRX40 AORUS PRO WIFI motherboard features an Infineon multiphase PWM controller, a 12+2 phase for vCore and SOC, and an Infineon TDA21472 Power Stage MOSFET to provide up to 70A of power from each phase, totaling 980A.
- This motherboard uses a double copper layer PCB design to efficiently deliver power to critical components at lower temperatures.
Immersive Audio
- The Realtek ALC1220 audio codec provides vibrant 7.1-channel surround sound to your speakers and headphones.
- Featuring 120 dB SNR and a Smart Headphone Amp to help overcome impedance to deliver crystal clear sound to your headphones.
- Gold-plated audio jacks help to ensure a strong connection while resisting corrosion and oxidation.
- A TXC Oscillator is included to provide precise time triggers to digital-analog converters.
- High-grade capacitors are used for feedback signal processing.
- The DTS:X Ultra codec realistically recreates spatial audio experiences for games using almost any headphone or speaker set.
Network Performance
- The Intel Gigabit Ethernet LAN uses the cFosSpeed network traffic management application to automatically allocate bandwidth so that the highest network priority goes to games or specified applications.
- Intel 802.11ax Wi-Fi enables Gigabit wireless performance for online games and streaming media, with speeds up to 2.4 Gb/s.
- Bluetooth 5 offers a faster transmission rate and 4X the range of Bluetooth 4.2.
USB 3.1 Gen 2
Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.
Designed for Durability
- Gigabyte's double-locking brackets keep PCIe slots securely affixed to the motherboard.
- A stainless-steel shield reinforces the PCIe connectors, providing extra strength to support heavy graphics cards.
- The memory slots include stainless-steel shielding, which is designed to prevent bending, twisting, and distortion in addition to protecting against possible electrostatic interference.
- Solid plated ATX 24-pin and 8-pin power connectors deliver a stable power supply to key components.
- With the Q-Flash Plus feature, you can update the BIOS without having to install a CPU or video card. Simply copy the new BIOS file to a USB flash drive, insert it into the designated port, then press the Q-Flash button.
- The DualBIOS design features a secondary backup BIOS to help recover from computer viruses, hardware issues, and other issues that could endanger your computer.
- Onboard diagnostic LEDs indicate whether the CPU, DDR, VGA, or hard disk drives are malfunctioning, allowing you to quickly find and troubleshoot problems.
RGB Fusion 2.0 Lighting
With Gigabyte's RGB Fusion 2.0 technology, you can customize your computer by installing RGB lighting strips alongside compatible components and peripherals for incredible effects. Lighting profiles that cover your entire system, including the motherboard, video card, and CPU can be configured and controlled using the Gigabyte RGB Fusion 2.0 desktop software or mobile app.
What is the price of Gigabyte TRX40 Aorus Pro WIFI Motherboard In Bangladesh?
The price of Gigabyte TRX40 Aorus Pro WIFI Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Gigabyte TRX40 Aorus Pro WIFI Motherboard from our website or visit our showrooms nearby.
