N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

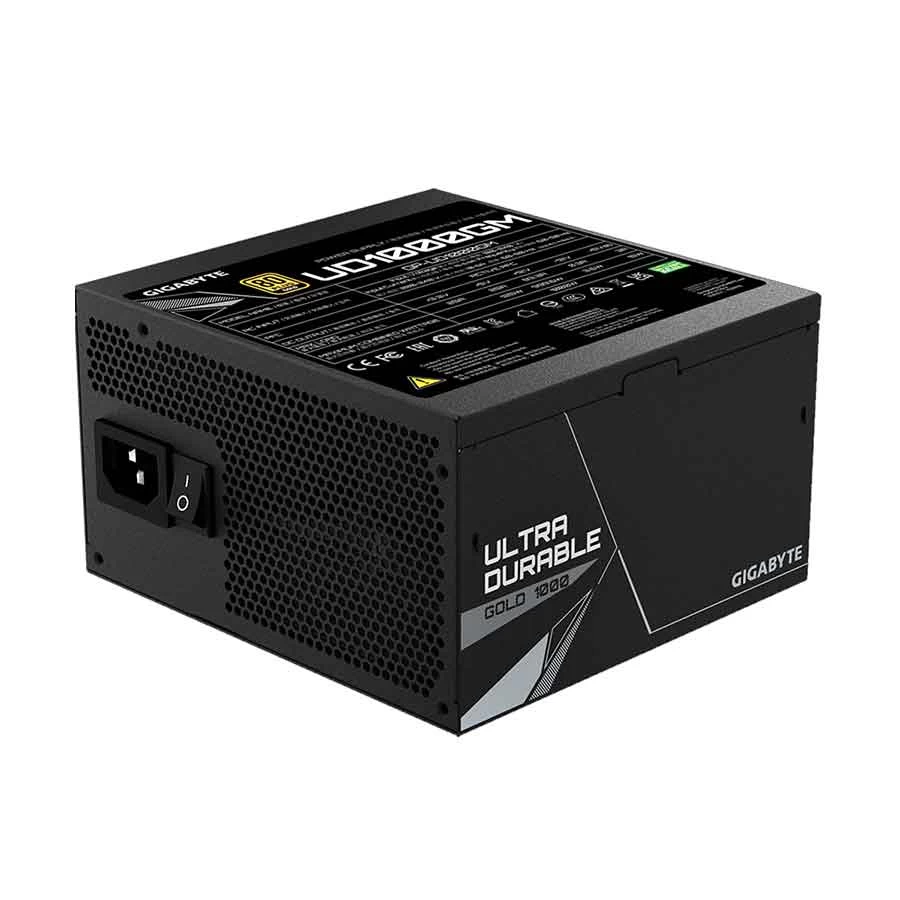

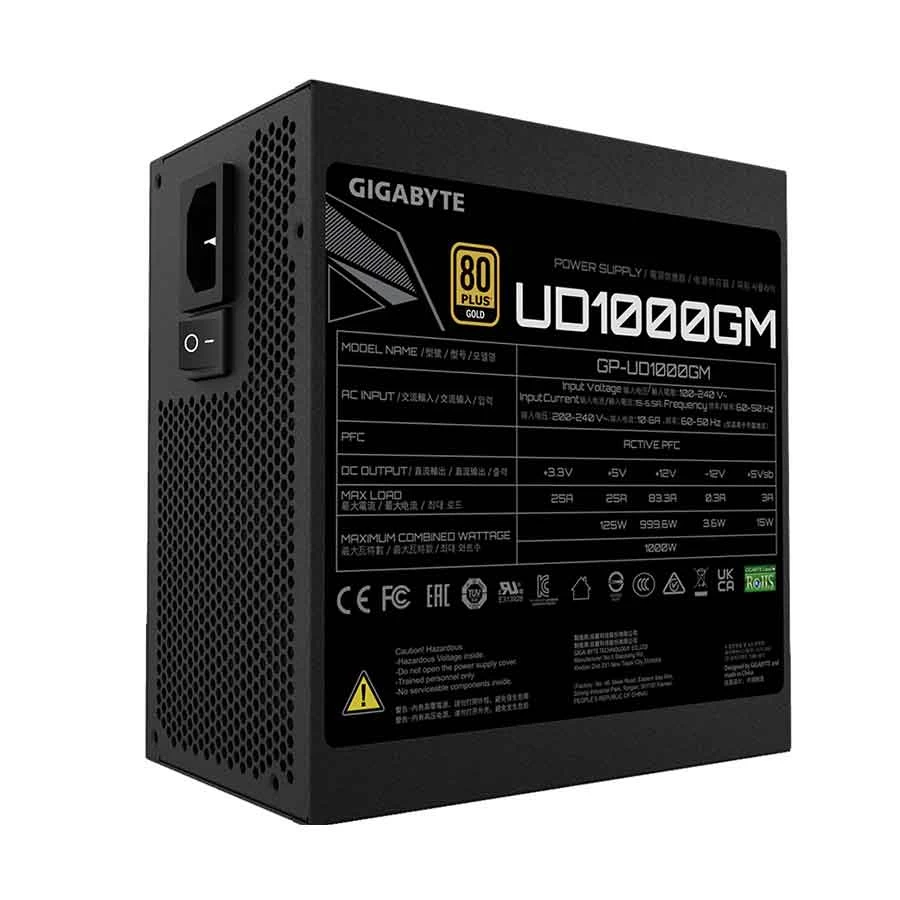

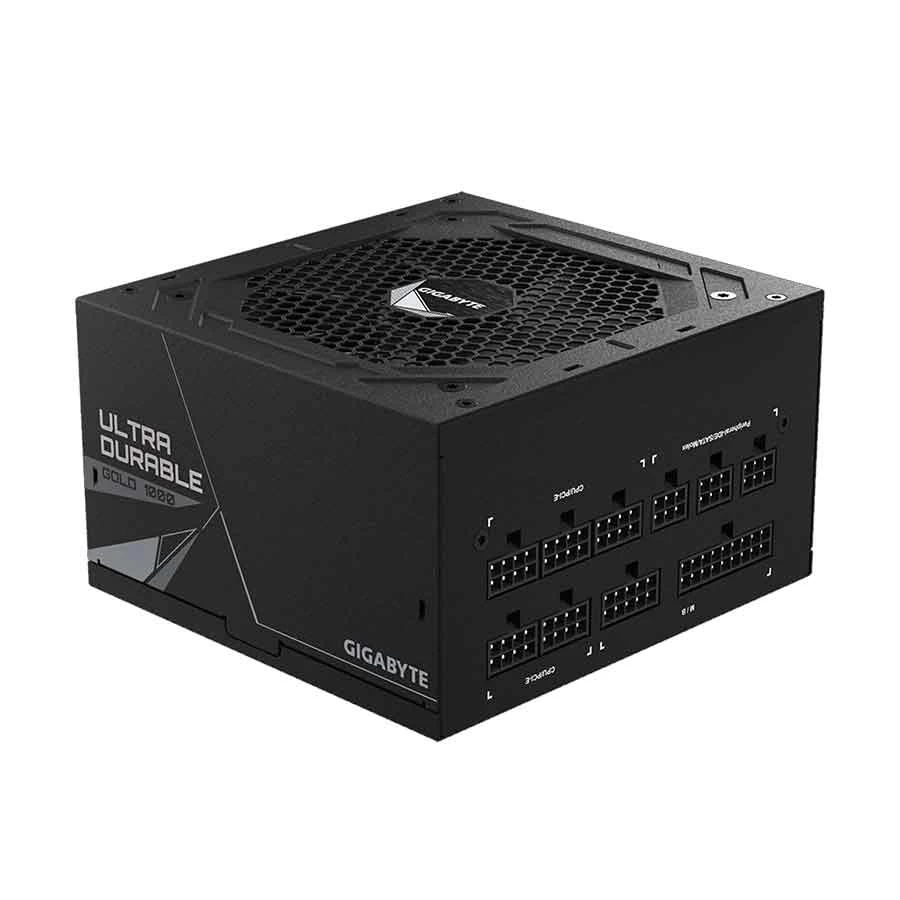

Gigabyte UD1000GM 1000W Full Moduler 80 Plus Gold Certified PSU #GP-UD1000GM

Product Id: 55.01.018.43

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • PSU Category - Full Modular
  • Type - ATX 12V v2.31
  • Maximum Power - 1000 Watt
  • Efficiency - 90% Efficiency
  • Efficiency Rating - 80 Plus Gold
  • Protection - OVP/OPP/SCP/UVP/OCP/OTP
General
Brand
Gigabyte

Model
Gigabyte UD1000GM

PSU Category
Full Modular

Type
ATX 12V v2.31

Part No
GP-UD1000GM


Cooling & Lighting

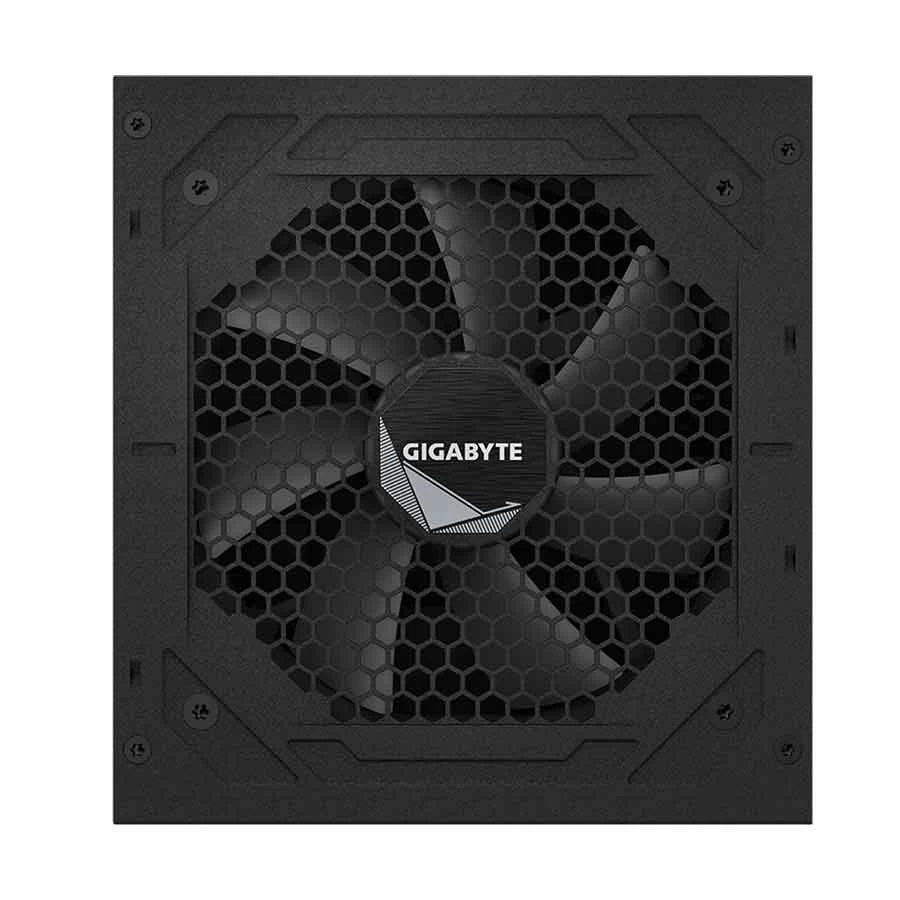

Fan Size
120mm

Lighting Effect
No

Lighting Type
Not Applicable

Fan Bearing
Hydraulic Bearing(HYB)


Performance
Efficiency
90% Efficiency

Efficiency Rating
80 Plus Gold

PFC (Power Factor Correction)
Active PFC (>0.9 typical)

Power Good Signal
100 - 150ms

Hold Up Time
>16ms


Protection
Protection
OVP/OPP/SCP/UVP/OCP/OTP

Over Voltage Protection (OVP)
Yes

Over Power Protection (OPP)
Yes

Over Current Protection (OCP)
Yes

Over Temperature Protection (OTP)
Yes

Short Circuit Protection (SCP)
Yes

Under Voltage Protection (UVP)
Yes


Connectors
ATX Main Connectors
1

EPS Connectors
2

PCIe Connectors
6

SATA Power Connectors
8

4-Pin Peripheral Connectors
3

Floppy Connectors
1


Power
Min. Power (Approx.)
900W

Maximum Power
1000 Watt

Input AC
100-240 Vac (full range)

Input Voltage
100 - 240V

Input Frequency Range
60 - 50 Hz

Input Current
15 - 6.5A

Peak Output Capacity
1000W

Operating Temperature
Temperature

Operating Humidity
Temperature

Storing/Storage Temperature
Temperature

Storing/Storage Humidity
Temperature


Physical Description
Cable Type
Flat, All black

MTBF
100000 Hours

Form Factor
ATX

Dimensions
150 x 140 x 86mm

Color
Black


Warranty
Warranty Details
5 Year


Additional Info
Others
Fan Type: 120mm Hydraulic Bearing(HYB)fan.Connector Details: ATX/MB 20+4 Pin x 1: 610mm x 1, CPU/EPS 4+4 Pin x 2: 600mm x 2, PCI-e 6+2 Pin x 6: 600mm+150mm x 3, SATA x 8, 600mm+150mm+150mm+150mm x 2, 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm x 1

Specialty
Fully modular design Powerful single +12V rail Compact design

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
