Features of Gigabyte X570 Aorus Master Motherboard In Bangladesh

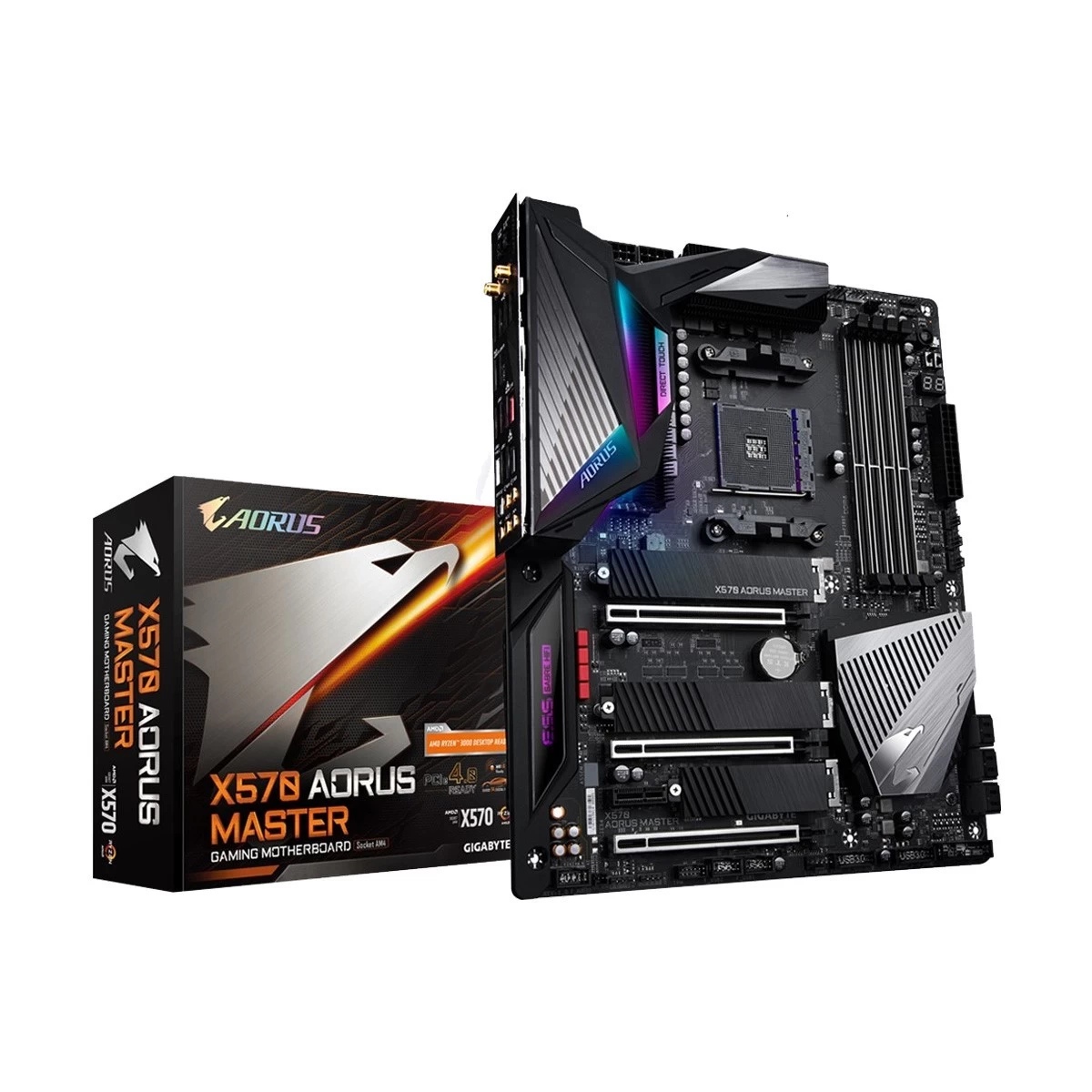

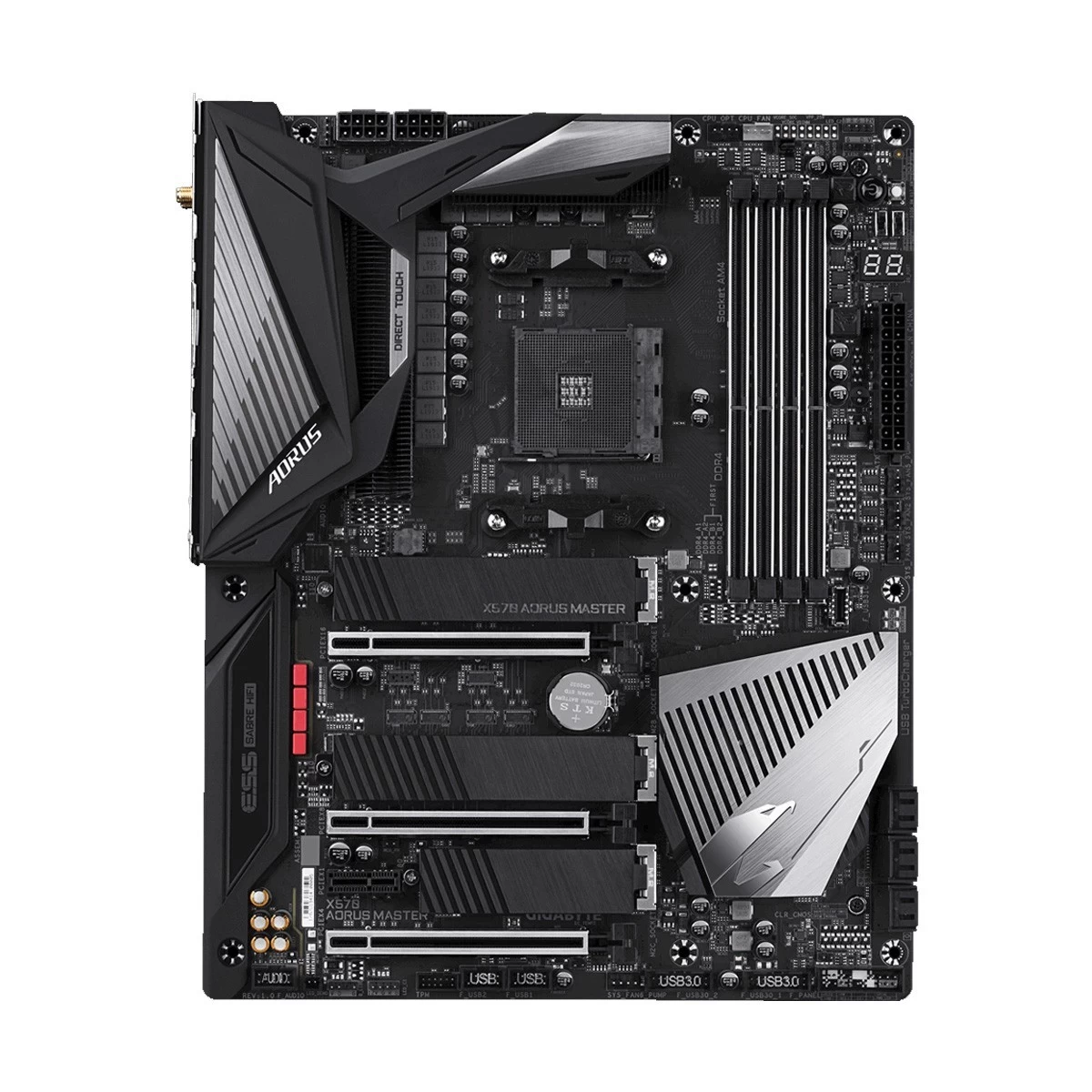

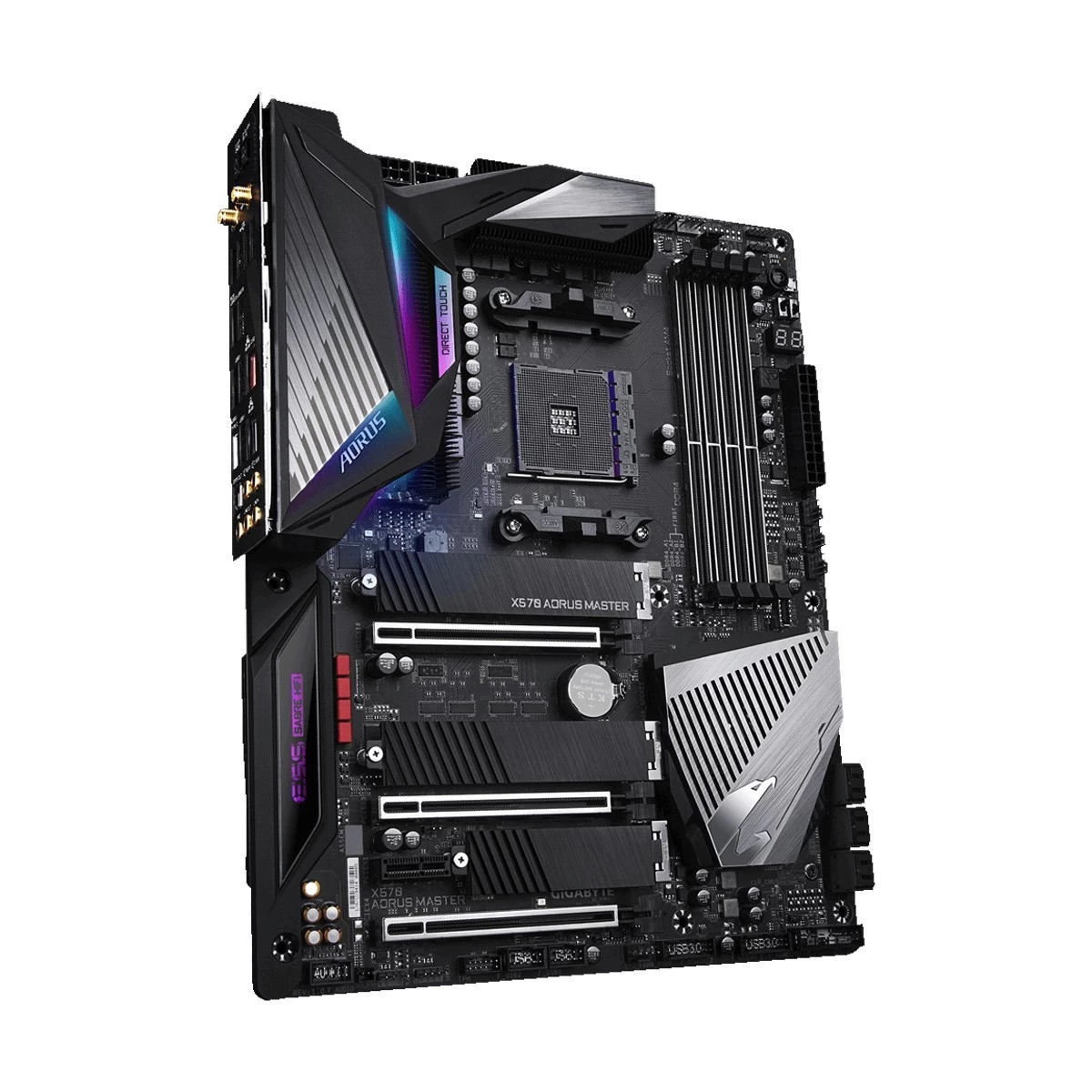

Gigabyte X570 Aorus Master

AMD X570 AORUS Motherboard with Direct 14 Phase Infineon Digital VRM, Fins-Array Heatsink & Direct Touch Heatpipe, Triple PCIe 4.0 M.2 with Thermal Guards, Intel WiFi 6 802.11ax, ESS SABRE HiFi 9118, 2.5GbE+1GbE LAN, USB Type-C, RGB Fusion 2.0

• Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 14 Phases Infineon Digital VRM Solution with PowIRstage
• Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
• Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
• Intel® WiFi 6 802.11ax 2T2R & BT 5
• Rear 125dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9118 DAC with WIMA Audio Capacitors
• Realtek 2.5GbE + Intel Gigabit LAN with cFosSpeed
• USB TurboCharger for Mobile Device Fast Charge Support
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
• Front & Rear USB 3.2 Gen2 Type-C Headers
• Adopts a high quality ball bearing fan which guarantees 60,000 working hours.
• Integrated Base Plate & I/O Shield Armor
• Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

* Product specifications and product appearance may differ from country to country. We recommend that you check w

DESIGN CONCEPT
DOMINANT IN DARKNESS

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

GET READY FOR AMD RYZEN 3000-SERIES

GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.

AMD StoreMI Technology

GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

Ultimate Power Design

To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.

Advanced Thermal Design

X570 AORUS MASTER reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink, a heatpipe, and a thermal baseplate, to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers

Fins-Array Heatsink with Direct Touch Heatpipe and High Thermal Conductivity Pad

X570 AORUS MASTER uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS fins. By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.

Smart Chipset Fan Heatsink
Smart Fan

Provides 3 different operating modes to minimize noise and extend the fan’s longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.

High Durability

X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000* working hours.
* MTBF, A standard measurement that continuously operates under certain criteria with 90 % of confidence level.

Base plate + I/O Shield Armor
Durable design and easy installation

With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs.
With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
Integrated Q-Flash Plus/ Clear CMOS buttons on the I/O shield enable users easier debugging and operation.

Full PCIe 4.0 Design

X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors, PCIe 4.0 B-clock Tuning IC, and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts. The inclusion of the PCIe 4.0 B-Clock Tuning IC and a server grade PCB helps you unlock the best performance from PC peripherals.

ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

RGB Fusion 2.0

With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X570 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Motherboards will support 5v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Team Up . Fight On
Fearsome Arsenal

With a dazzling array of products supported, RGB Fusion 2.0 is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like — have them match, dazzle and impress. Learn more about RGB Fusion 2.0

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Temperature Sensor Cable x 2 Noise Detect Cable x 1
■ 7 Fan / Water Pump Connectors
■ 7 Internal Temperature Sensors
■ 2 External Temperature Sensors
■ 1 Noise Detection Cable
■ All Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
■ Intuitive UI for Fan Control
Fan / Water Pump Connectors
Internal Temperature Sensors
External Temperature Sensors
Noise Detection Cable.

Fan Stop

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Ultra Durable PCIe Armor
Industry Leading Ultra Durable PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Ultra Durable Memory Armor

AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference

Solid Pin Power Connectors

X570 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan

Model - Gigabyte X570 Aorus Master, CPU Sockets - AM4, Chipset - AMD X570, Supported CPU - AMD Ryzen 2nd and 3rd Generation / Ryzen with Radeon Vega Graphics Processors, Memory Type - DDR4, Memory MHz - 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz, Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - No, Multi-GPU Support - NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI, AMD Quad-GPU CrossFire and 2-Way AMD CrossFire, PCI Express Slot - 3rd Generation AMD Ryzen: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8), 2nd Generation AMD Ryzen: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8), 2nd Generation AMD Ryzen with Graphics: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16), Storage Interface - 6Gb/s, M.2 Slot - 3 x M.2 Socket 3 ((type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support), (type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support), (type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)), LAN Chipset - Intel GbE LAN & Realtek 2.5GbE LAN, LAN Speed (Mbps) - 10/100/1000Mbps & 10/100/1000/2500Mbps, Audio Chipset - Realtek ALC1220-VB, Audio Channel - 2/4/5.1/7.1-channel, WiFi - Yes, Bluetooth - Bluetooth 5, USB Port - 2 x USB3.2 Gen 2 Type-C, 1 x USB3.2 Gen 2 Type-A, 4 x USB3.2 Gen 1, 8 x USB2.0, VGA Port - No, DVI Port - No, HDMI Port - No, DisplayPort (DP) - No, IDE Port - No, SATA Port - 6 x SATA, BIOS Type - 2 x 128 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - Yes, Sli Support - Yes, RaidSupport - 0,1,10, Thunderbolt - No, TPM Port - Yes, COM Port - No, Form Factor - ATX, Supported Operating System - Windows 10, Special Features - AORUS Motherboard with Direct 14 Phase Infineon Digital VRM, Fins-Array Heatsink & Direct Touch Heatpipe, Triple PCIe 4.0 M.2 with Thermal Guards, Intel WiFi 6 802.11ax, ESS SABRE HiFi 9118, 2.5GbE+1GbE LAN, USB Type-C, RGB Fusion 2.0, Direct 14 Phases Infineon Digital VRM Solution with PowIRstage, Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards, Intel WiFi 6 802.11ax 2T2R & BT 5, Rear 125dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9118 DAC with WIMA Audio Capacitors, Realtek 2.5GbE + Intel Gigabit LAN with cFosSpeed, USB TurboCharger for Mobile Device Fast Charge Support, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection, Adopts a high quality ball bearing fan which guarantees 60,000 working hours, Integrated Base Plate & I/O Shield Armor, Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card, Others - 3 x M.2 Socket 3, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 2 x system fan/water cooling pump headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x front panel audio header, 1 x noise detection header, 1 x Trusted Platform Module (TPM) header, 2 x temperature sensor headers, 1 x power button, 1 x reset button, 2 x BIOS switches, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x SMA antenna connectors (2T2R), 5 x audio jacks, Wireless Communication module: Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5.0, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China

What is the price of Gigabyte X570 Aorus Master Motherboard In Bangladesh?

The price of Gigabyte X570 Aorus Master Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Gigabyte X570 Aorus Master Motherboard from our website or visit our showrooms nearby.
