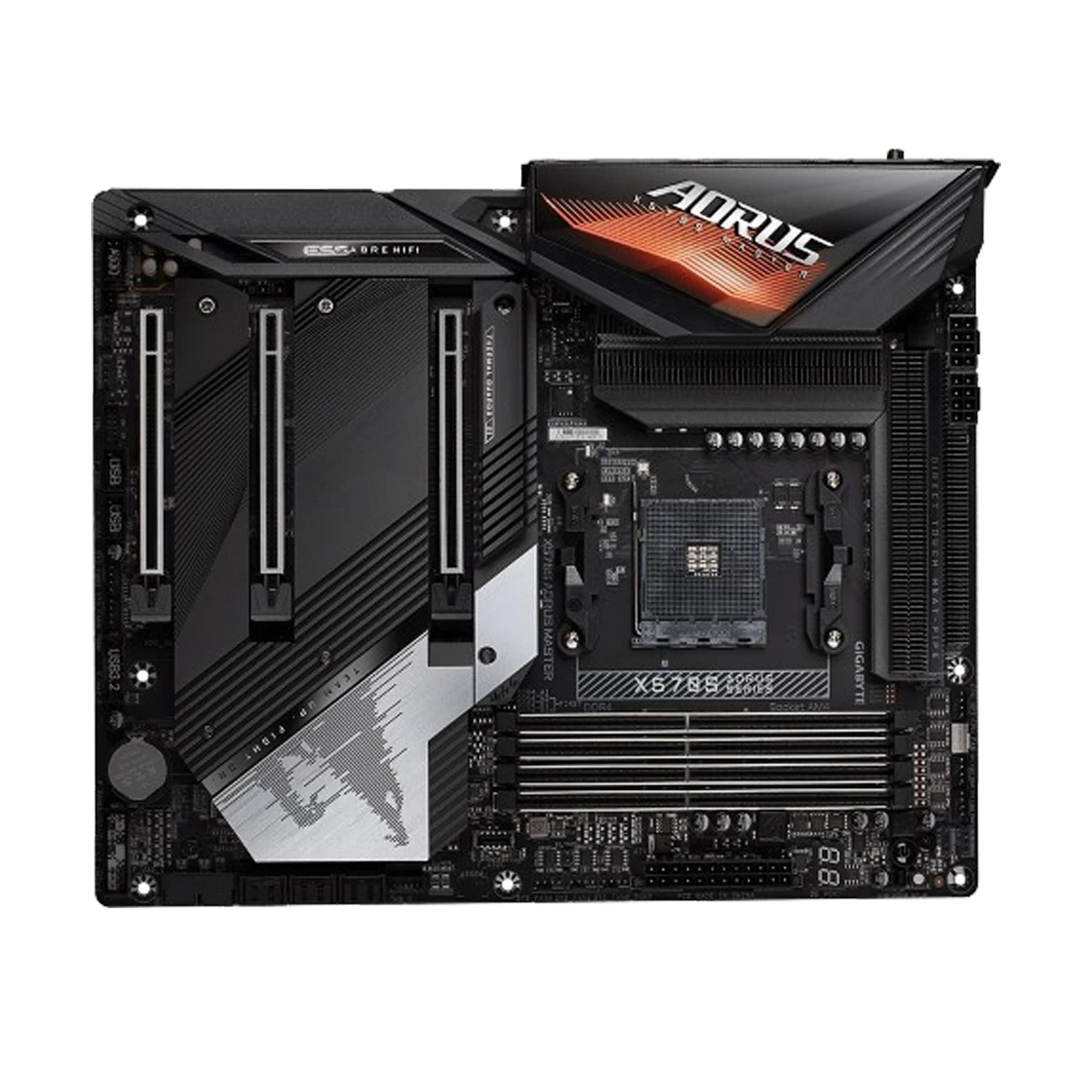

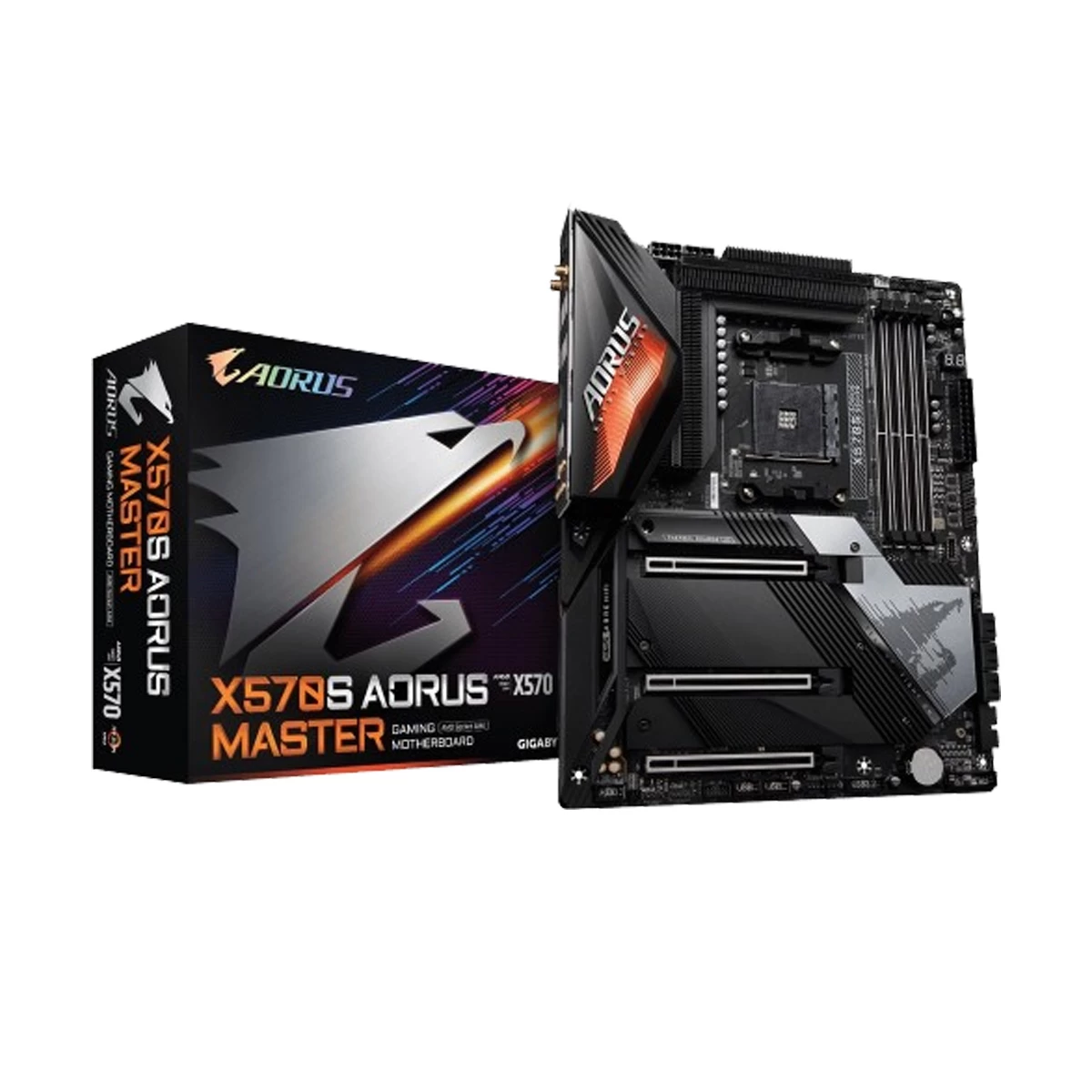

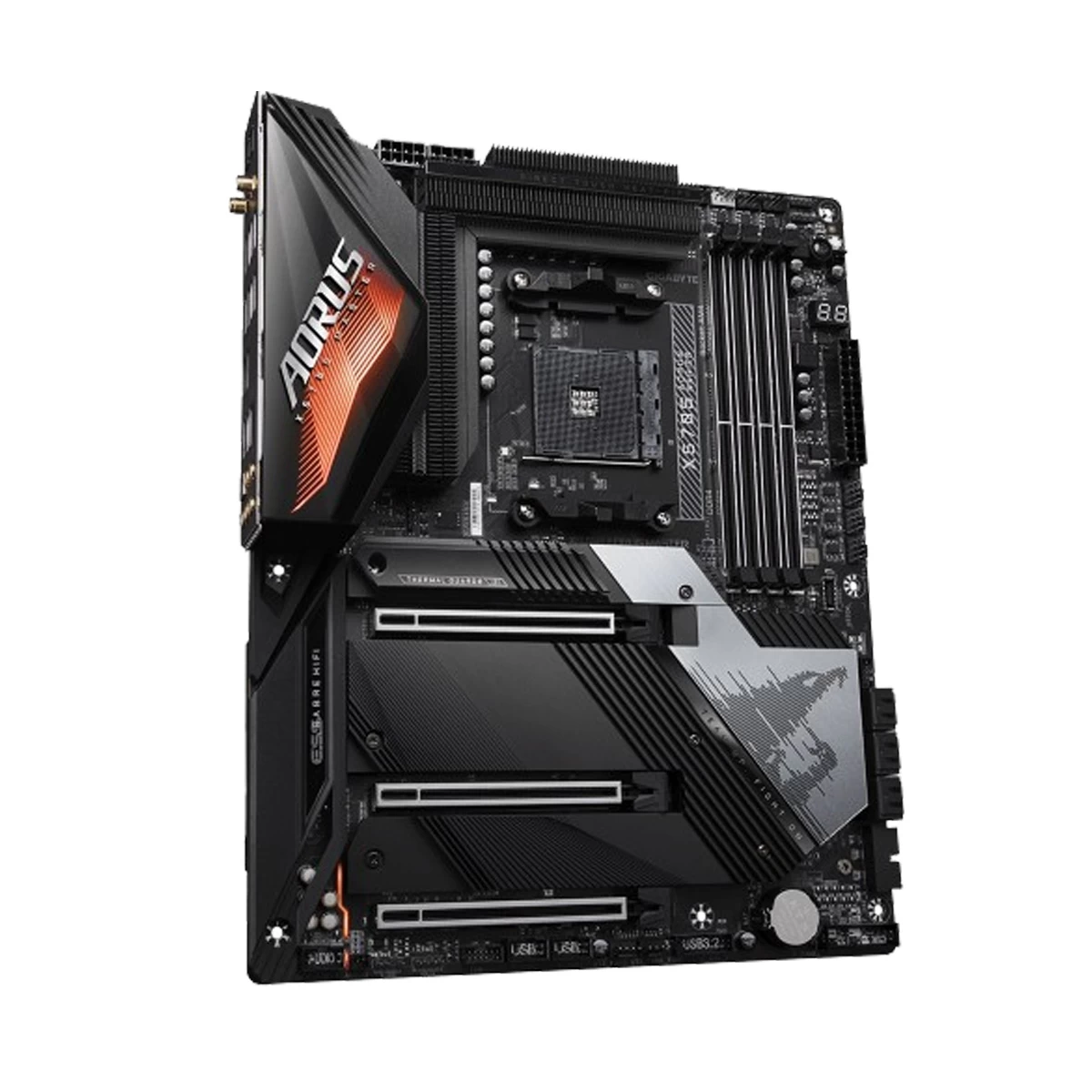

Gigabyte X570S Aorus Master Wi-Fi AMD Gaming Motherboard

Product Id: 02.02.018.366

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0

This item is discontinued.

See similar model

Quick Overview

  • Chipset - AMD X570
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors
  • Generation - Not Applicable
General
Brand
Gigabyte

Model
Gigabyte X570S Aorus Master

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD X570

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
32 GB single DIMM capacity of system memory

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 Socket 3 (1 x M.2, AMD Ryzen 5000/3000 Series SATA and PCIe 4.0 x4/x2 SSDs, AMD Ryzen 4000/3000/2000 G-Series SATA and PCIe 3.0 x4/x2 SSDs), (1 x M.2, AMD Ryzen 5000/3000 Series PCIe 4.0/3.0 x4/x2 SSDs), (2 x M.2, Ryzen 5000/3000 Series SATA and PCIe 4.0/3.0 x4/x2 SSDs)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
AMD Quad-GPU CrossFire and 2-Way AMD CrossFire

PCI Express Slot
1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX8), 1 x PCI Express x16 slot (PCIEX4)


Audio & Video
Audio Chipset
Realtek ALC1220-VB

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Intel 2.5GbE LAN chip

LAN Speed (Mbps)
100 Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6E AX210, WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth
Bluetooth 5.2


Ports
USB Port
1 x USB Type-C, 2 x USB 3.2 Gen 1, 2 x USB 2.0 (Internal), 1 x USB Type-C, 5 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0 (Back Panel)

VGA Port
No

DVI Port
No

HDMI Port
No

DisplayPort (DP)
No

SATA Port
6 x SATA

Thunderbolt
1

TPM Port
Yes

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0,1,10

RGB Support
RGB

RGB Sync
RGB Fusion 2.0

RGB Connector
2 x RGB LED strip headers

Approx. Power Consumption
90W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10 Home


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Q-Flash Plus Button, Intel WiFi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna, Rear USB 3.2 Gen 2x2 Type-C, Intel 2.5GbE LAN, Advanced Thermal Design, Direct 14+2 Phases Digital Power Design, Noise Detection, Solid Pin Power Connectors, Supports AMD Ryzen Series Processors, Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor, Front USB 3.2 Gen 2 Type-C, Ultra Durable PCIe Armor

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
