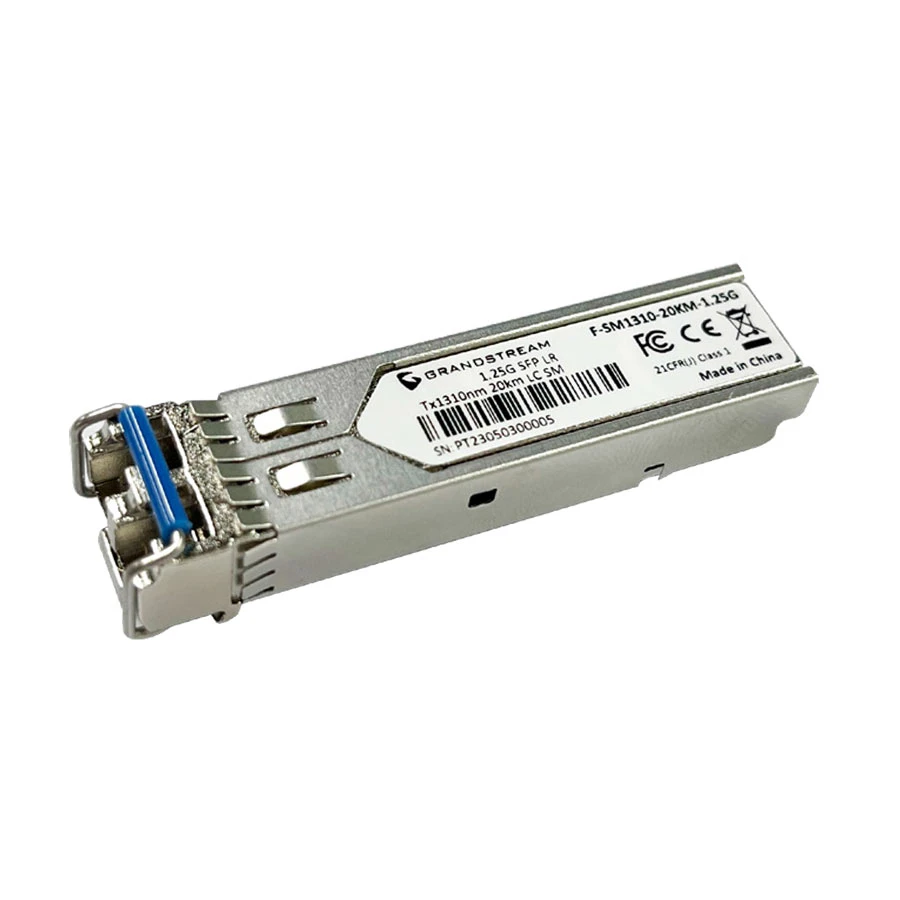

Grandstream F-SM1310-20KM-1.25G 20KM Single-Mode LC-LC Duplex SFP Fiber Module

Item: Grandstream F-SM1310-20KM-1.25G 20KM Single-Mode LC-LC Duplex SFP Fiber Module
Rating: 5
Author: Verified Buyer

Product Id: 29.10.726.90

Coming Soon

Quick Overview

Type - SFP Fiber Module
Color - Gray

Payment Method Shipping & Charge Order Procedure

General

Brand

Grandstream

Model

Grandstream F-SM1310-20KM-1.25G

Type

SFP Fiber Module

Technical Info

Port Side-1

Port Side-2

Physical Description

Weight (gm)

17gm

Color

Gray

Warranty

No warranty

Additional Info

Feature

Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.

Others

20KM Single-Mode LC-LC Duplex SFP Fiber Module. Connector Type Duplex LC, DDM Yes, I2C for integrated Digital Diagnostic Monitoring, Nominal Wavelength 1310nm, Data Rate 1.25Gbps SFP, Max Power Consumption 1W, Transfer Distance 20km, TX Power -9 to -3dBm, -/+3dB, RX Power -18 to -1dBm, -/+3dB, Operation Voltage 3.3V -/+0.3V, Environmental Operation: 0 to 70 Degree C, humidity: 5% to 85%, Storage: -40 to 85 Degree C. Standards: SFF-8472, SFP MSA, IEEE 802.3z, RoHS-6. Compliance FCC, CE, FDA.

Details

Features of Grandstream F-SM1310-20KM-1.25G Network Accessories In Bangladesh

Brand - Grandstream, Model - Grandstream F-SM1310-20KM-1.25G, Type - SFP Fiber Module, Connector Type (End 1) - No, Connector Type (End 2) - No, Weight (gm) - 17gm, Color - Gray, Feature - Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links., Others - 20KM Single-Mode LC-LC Duplex SFP Fiber Module. Connector Type Duplex LC, DDM Yes, I2C for integrated Digital Diagnostic Monitoring, Nominal Wavelength 1310nm, Data Rate 1.25Gbps SFP, Max Power Consumption 1W, Transfer Distance 20km, TX Power -9 to -3dBm, -/+3dB, RX Power -18 to -1dBm, -/+3dB, Operation Voltage 3.3V -/+0.3V, Environmental Operation: 0 to 70 Degree C, humidity: 5% to 85%, Storage: -40 to 85 Degree C. Standards: SFF-8472, SFP MSA, IEEE 802.3z, RoHS-6. Compliance FCC, CE, FDA., Warranty - No Warranty

What is the price of Grandstream F-SM1310-20KM-1.25G Network Accessories In Bangladesh?

The price of Grandstream F-SM1310-20KM-1.25G Network Accessories not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Grandstream F-SM1310-20KM-1.25G Network Accessories from our website or visit our showrooms nearby.
