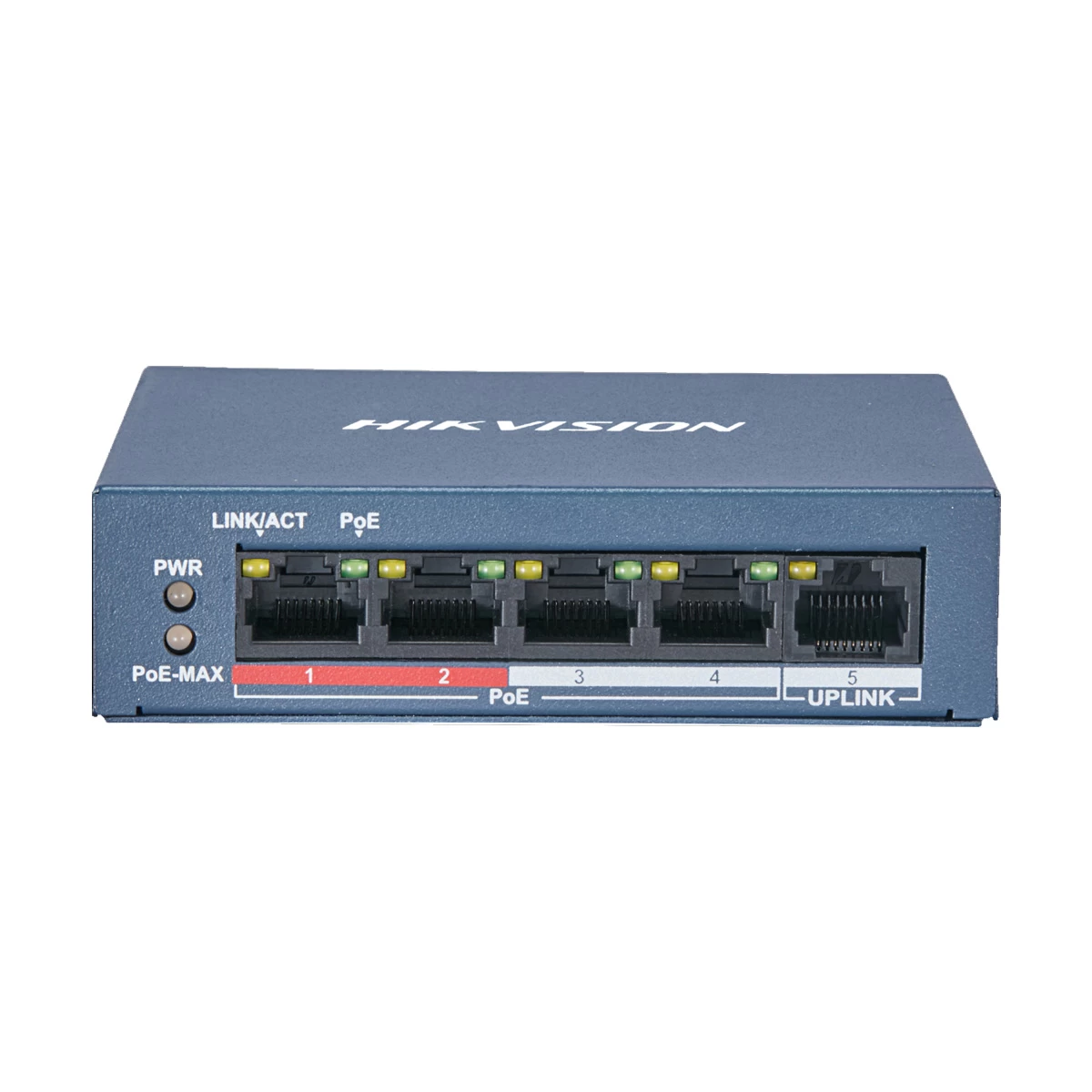

Hikvision DS-3E0105P-E/M 5 Port Unmanaged PoE Switch

Product Id: 29.05.485.06

Brand Hikvision

Regular Price
Tk 0
Out Of Stock

See similar model

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 5 Port
  • PoE - Yes
  • Manageability - Unmanaged
  • Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Data Transfer Rate - 10/100 Mbps
  • Form Factor - Desktop/Wall Mounting
General
Brand
Hikvision

Model
Hikvision DS-3E0105P-E/M

Type
Network Switch


Ports & Slots
Number of Total Port
5 Port

PoE Port
4


Technical Info
PoE
Yes

Manageability
Unmanaged

Interface(s)
5 x RJ45, 10/100 Base-T(X)

Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Data Transfer Rate
10/100 Mbps

Transmission Method
Store-and-Forward

Switching Capacity
1 Gbps


Physical Description
Indicators
Link/Act LED indicators, PoE LED indicator, Power LED indicator

Body Material
Metal Shell

Form Factor
Desktop/Wall Mounting

Dimension
100 x 100 x 26mm

Weight
0.141 Kg

Packet Contents
Hikvision DS-3E0105P-E/M


Power
Power Supply
48 VDC, 0.8 A

Approx. Power Consumption
3 W (In Idle), < 38 W (Max.)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Port amount: 5, QoS: Supported on ports 1 and 2, Priority queue: 2, Flow control: Back-pressure flow control in IEEE 802.3x full duplex, Port Type: RJ45, 10/100 Base-T(X), full duplex, MDI/MDI-X adaptive, MAC Address Table: 1 K, Packet Forwarding Rate: 0.744 Mpps, Internal Cache: 448 Kbits, fan-free design, Operating Temperature: -10 degree C to 55 degree C, Storage Temperature: -40 degree C to 85 degree C, Operating Humidity: 5% to 95% (no condensation), Storage Humidity: 5% to 95% (no condensation), Approval: FCC, CE-EMC, RCM, CB, CE-RoHS, WEEE

Specialty
Ports 1 to 4 support IEEE 802.3af standard. When the switch is in EXTEND mode and the data rate is 10 Mbps, ports 1 to 4 support long-distance data transmission up to 250 meters. All ports support 6 kV lightning protection. This switch supports Auto MDI/MDIX. This switch supports store-and-forward. This switch supports MAC address auto learning and auto aging. This switch supports smart cache optimization. This switch supports desktop / wall mounting.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
