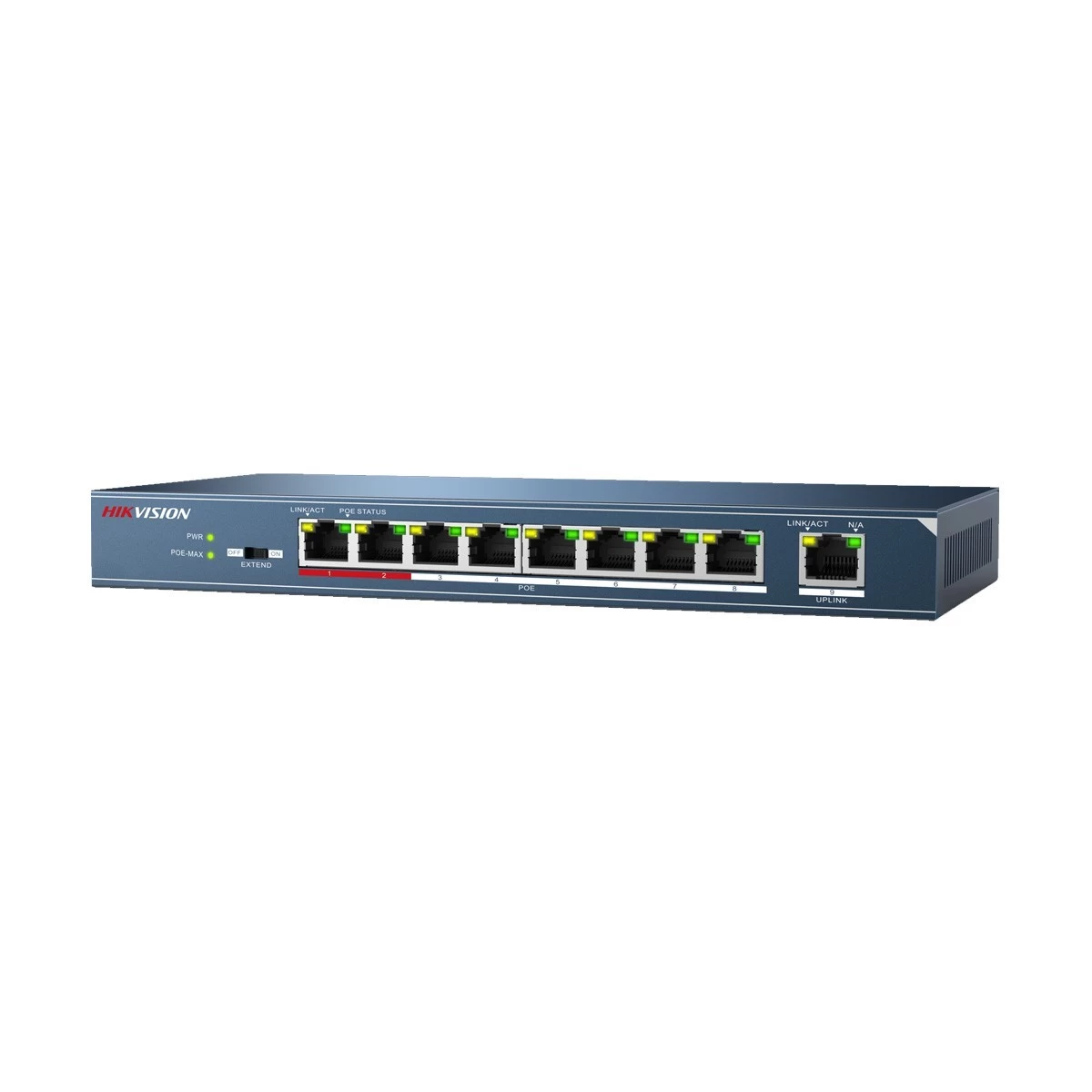

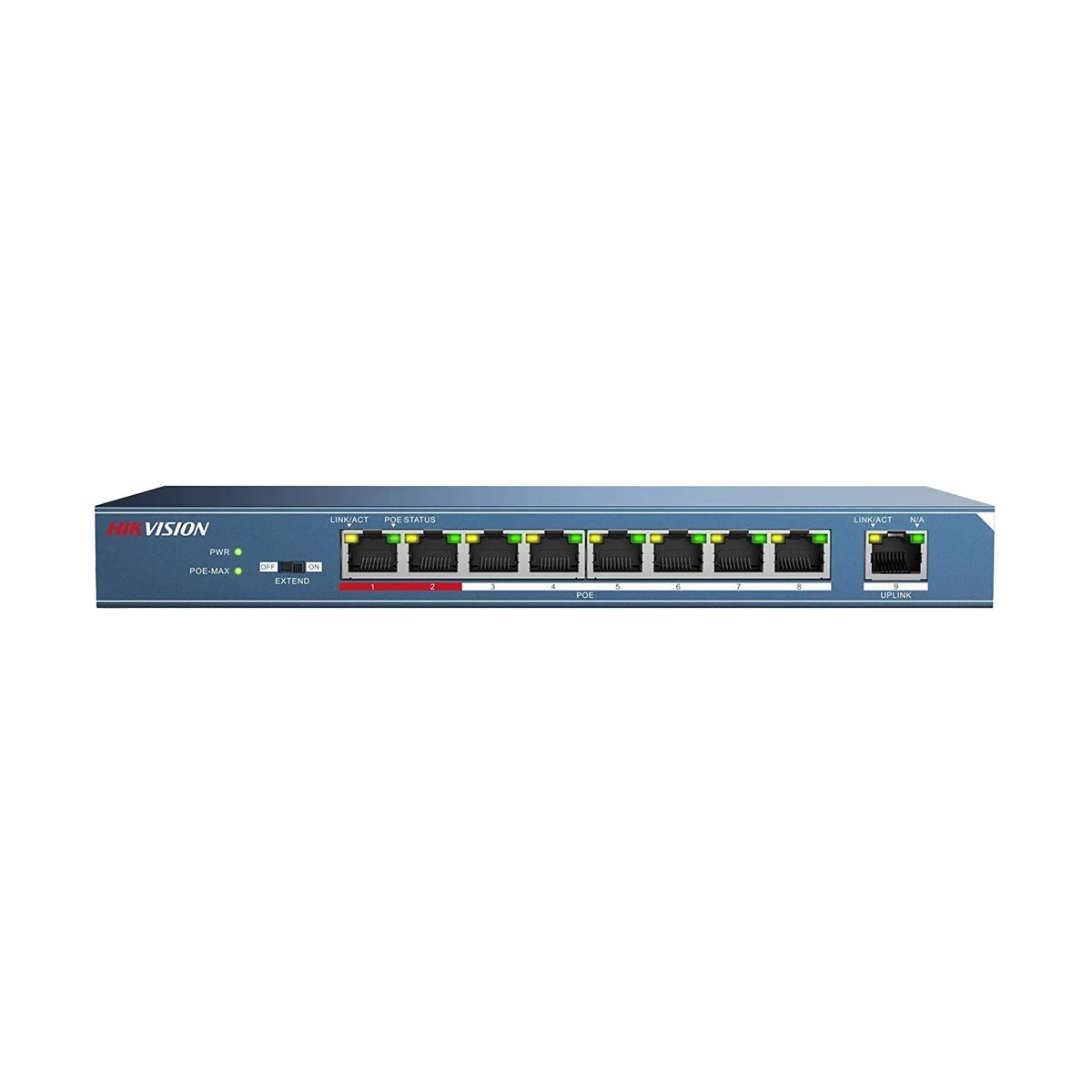

Hikvision DS-3E0109P-E/M 9 Port Unmanaged PoE Switch
Product Id: 29.05.485.05
Brand
Hikvision
Regular Price
Tk 0
This item is discontinued.
Quick Overview
- Type - Network Switch
- Number of Total Port - 9 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE802.3at, IEEE 802.3x
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
General
Brand
Hikvision
Model
Hikvision DS-3E0109P-E/M
Type
Network Switch
Ports & Slots
Number of Total Port
9 Port
PoE Port
8
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
9 x 10/100 Base-TX Ethernet ports
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE802.3at, IEEE 802.3x
Data Transfer Rate
10/100 Mbps
Switching Capacity
1.8 Gbps
Physical Description
Form Factor
Desktop/Wall Mounting
Packet Contents
Hikvision DS-3E0109P-E/M
Power
Power Supply
51 V DC, 1.25 A
Approx. Power Consumption
<-63w
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
High-priority Port: Port 1-2, Lightning-proof Ranking: 4 kV, Store-and-forward: Supported, MAC Learning: Auto-learning/ Auto-aging, PoE Port: 1-8, Maximum Port Output: 30 W, Maximum Total Output: 58 W, Working Mode: Extend Off, Extend On, MAC Address Table: 4k, PoE Powering Mode: Supports 8-pin power supply, Transmission Speed: Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex). Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex). Transmission Medium: Ethernet: Cat 3 or better UTP/STP, Fast Ethernet: Cat 5 or better UTP/STP.
Specialty
10/100 Base-TX Ethernet ports, Supports standard and EXTEND network mode, Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standards, Store-and-Forward switching, 4K MAC address table and MAC address learning, 1.8 Gbps backplane bandwidth, All-mental construction, Desktop and wall-mounted installation
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Hikvision DS-3E0109P-E/M Network Switch In Bangladesh
Hikvision DS-3E0109P-E/M
DS-3E0109P-E/M(B)
Unmanaged PoE Switch
- 8 x 100M PoE ports and 1 x 100M Ethernet port.
- Supports IEEE802.3at/af.
- Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.
- Supports high priority ports.
- Supports 8-core power supply.
- Up to 250 m transmission distance.
- PoE port with 6 KV surge protection.
- Supports PoE output power management.
- 100M network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Fan-free design with high reliability.
Brand - Hikvision, Model - Hikvision DS-3E0109P-E/M, Type - Network Switch, Number of Total Port - 9 Port, PoE - Yes, Manageability - Unmanaged, PoE Port - 8, Interface - 9 x 10/100 Base-TX Ethernet ports, Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE802.3at, IEEE 802.3x, Data Transfer Rate (Mbps) - 10/100 Mbps, Switching Capacity - 1.8 Gbps, Power Supply - 51 V DC, 1.25 A, Power Consumption - <-63w, Form Factor - Desktop/Wall Mounting, Others - High-priority Port: Port 1-2, Lightning-proof Ranking: 4 kV, Store-and-forward: Supported, MAC Learning: Auto-learning/ Auto-aging, PoE Port: 1-8, Maximum Port Output: 30 W, Maximum Total Output: 58 W, Working Mode: Extend Off, Extend On, MAC Address Table: 4k, PoE Powering Mode: Supports 8-pin power supply, Transmission Speed: Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex). Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex). Transmission Medium: Ethernet: Cat 3 or better UTP/STP, Fast Ethernet: Cat 5 or better UTP/STP., Specialty - 10/100 Base-TX Ethernet ports, Supports standard and EXTEND network mode, Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standards, Store-and-Forward switching, 4K MAC address table and MAC address learning, 1.8 Gbps backplane bandwidth, All-mental construction, Desktop and wall-mounted installation, Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
What is the price of Hikvision DS-3E0109P-E/M Network Switch In Bangladesh?
The price of Hikvision DS-3E0109P-E/M Network Switch not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Hikvision DS-3E0109P-E/M Network Switch from our website or visit our showrooms nearby.
