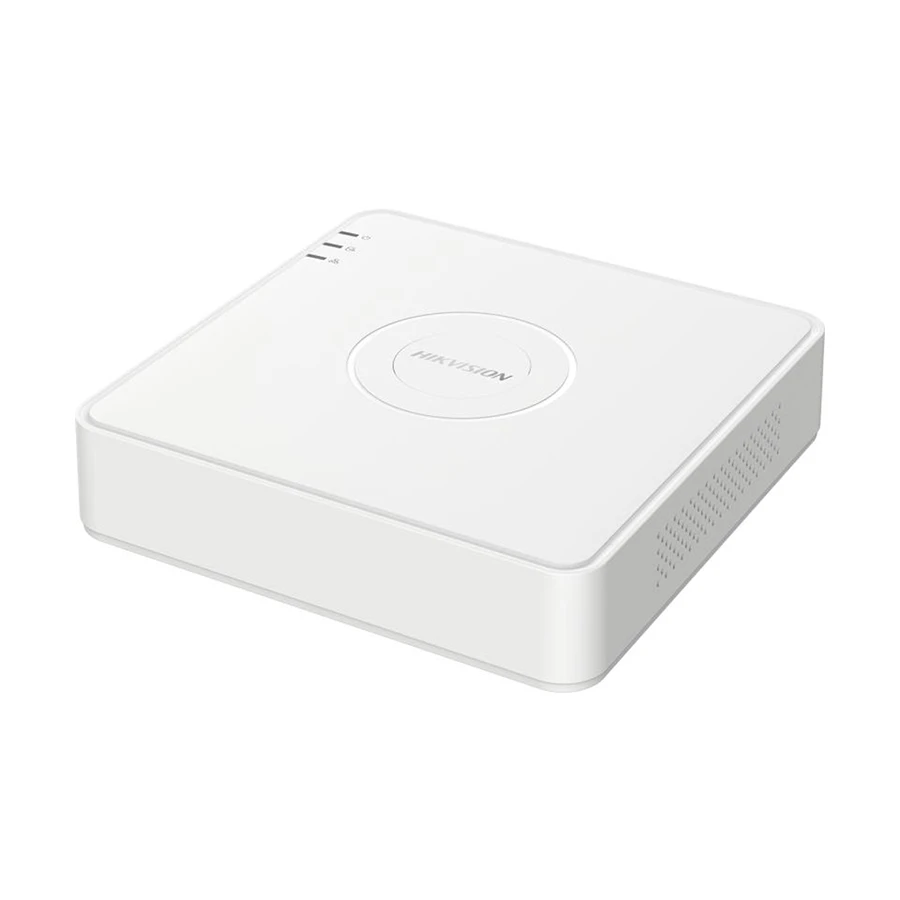

Hikvision DS-7104HQHI-K1 04 Channel HD 1080p Turbo HD DVR

Item: Hikvision DS-7104HQHI-K1 04 Channel HD 1080p Turbo HD DVR
Rating: 5
Author: Verified Buyer

2 reviews

Product Id: 127.02.485.64

Out Of Stock

See similar model

Quick Overview

Number of Input Channel - 04 Channel
Video Recording Res. - 4MP, 3MP, 1080p, 720p, VGA, WD1, 4CIF, CIF
Dual Stream Support - Yes
Number HDD Interface (SATA) - 1 SATA
Max. Storage Support - 6TB
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Hikvision

Model

Hikvision DS-7104HQHI-K1

Type

Turbo HD DVR

Number of Input Channel

04 Channel

Video Output (VGA)

1-channel, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (HDMI)

1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Max. Video Recording Res.

1080p

Audio Input Channel (RCA)

1-channel, RCA (2.0 Vp-p, 1K omega)

Two way Audio

1-channel, RCA (2.0 Vp-p, 1K omega)

Dual Stream Support

Yes

Live View / Playback Resolution

3 MP/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

Up to 6TB capacity for each disk

Wi-Fi

USB Port

2 x USB2.0

Chassis

Mini 1U chassis

Approx. Power Consumption

<-8 W

Color

White

Dimensions

200 x 200 x 45mm

Weight (Kg)

1Kg

XVR Supported

Yes

Smart Phone Supported

Yes

Warranty Details

2 Year (Without Adapter)

General

Brand

Hikvision

Model

Hikvision DS-7104HQHI-K1

Type

Turbo HD DVR

Part No

DS-7104HQHI-K1

Video Info

Number of Input Channel

04 Channel

Video Input Channel (BNC)

4-channel, BNC Interface (1.0Vp-p, 75 omega)

Video Compression/Format

H.265/ H.265+/ H.264/ H.264+

Video Output (VGA)

1-channel, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (HDMI)

1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Recording Res.

4MP, 3MP, 1080p, 720p, VGA, WD1, 4CIF, CIF

Max. Video Recording Res.

1080p

Video Bit Rate

32 Kbps-6 Mbps

IP Video Input

1-channel (up to 5-ch)

Analog & HD-TVI Video Input

1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

Audio Info

Audio Input Channel (RCA)

1-channel, RCA (2.0 Vp-p, 1K omega)

Audio Compression

G.711u

Audio Output Channel

1-channel, RCA (Linear, 1K omega)

Two way Audio

1-channel, RCA (2.0 Vp-p, 1K omega)

Audio Bit Rate

64kbps

Recording & Decoding

Frame Rate

Main stream: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF 15fps, 1080p/720p 15fps; VGA/WD1/4CIF/CIF 25fps (P)/30fps (N), 720p/VGA/WD1/4CIF/CIF 25fps (P)/30fps (N)

Stream Type

Video/Video & Audio

Dual Stream Support

Yes

Live View / Playback Resolution

3 MP/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF

Synchronous Playback

4-channel

Network

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Wi-Fi

Wi-Fi Details

Not Applicable

Wi-Fi Coverage (Approximate)

Not Applicable

Network Interface (RJ45)

1, RJ45 10M/100M self-adaptive Ethernet interface

Remote Connections

128

Auxiliary Interface

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

Up to 6TB capacity for each disk

Max. Storage Support

6TB

eSATA

Serial Interface

USB Port

2 x USB2.0

Technical Info

CVBS Input

Yes

Incoming Bandwidth

24 Mbps

Outgoing Bandwidth

72 Mbps

Compatibility

XVR Supported

Yes

Smart Phone Supported

Yes

Power Info

Power Supply

12 VDC, 1.5 A

Approx. Power Consumption

<-8 W

Physical Description

Chassis

Mini 1U chassis

Color

White

Dimensions

200 x 200 x 45mm

Weight (Kg)

1Kg

Warranty

Warranty Details

2 Year (Without Adapter)

Additional Info

Feature

H.265 Pro+/H.265 Pro/H.265 video compression, HDTVI/AHD/CVI/CVBS/IP video input, Audio via coaxial cable, Up to 6/12/24-ch IP camera inputs (up to 6 MP), Max. 800 m for 1080p and 1200 m for 720p HDTVI signal, Up to 6 TB capacity per HDD

Others

Working temperature: -10 degree C to +55 degree C, Working humidity: 10% to 90%, Stream type: Video, Video & Audio

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Hikvision DS-7104HQHI-K1 DVR/NVR/XVR In Bangladesh

DS-7104HQHI-K1

4-ch 1080p Mini 1U H.265 DVR

4 channels and 1 HDD mini size DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 6 network cameras can be connected

Hikvision DS-7104HQHI-K1 04 Channel HD 1080p Turbo HD DVR

Ever heard of a cool gadget that helps keep your home safe and sound? It's called the Hikvision DS-7104HQHI-K1! Sounds fancy, right? Well, let's break it down into simple bits!

What Does Hikvision DS-7104HQHI-K1?

Imagine having eyes all around your house! That's what this gadget does. It records videos like a camera but in a clear way, just like the ones you see in movies!

Why Hikvision DS-7104HQHI-K1 Is Awesome?

Super Clear Videos: You know those blurry videos? Forget about them! This gadget records videos so clear, you can see even the tiniest details, like who's at the door or what your pet is up to.
Works with Different Cameras: It's like having friends with different talents! This gadget can work with different types of cameras, so you can choose the ones you like best.
Easy to Use: It's like playing your favorite game! With a few buttons, you can set it up and make it work.
Keep an Eye from Anywhere: Ever wanted to check what's happening at home when you're not there? This gadget lets you do that! Use your phone or computer, and voila! You're a home security pro!

Things to Think About Before Getting One

Where Will It Go?: Think about where you want to put it. Make sure it fits and can see all the cool spots around your home.
How Many Cameras Do You Need?: Do you want to keep an eye on one room or the whole house? Figure out how many cameras you'll need.
Ask a Grown-Up: It's always a good idea to ask a grown-up for help. They can make sure everything is set up and working right.

Ready to become the ultimate home security? Ask you experts about getting the Hikvision DS-7104HQHI-K1 and start protecting your home like a pro!

What is the price of Hikvision DS-7104HQHI-K1 DVR/NVR/XVR In Bangladesh?

The price of Hikvision DS-7104HQHI-K1 DVR/NVR/XVR not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Hikvision DS-7104HQHI-K1 DVR/NVR/XVR from our website or visit our showrooms nearby.
