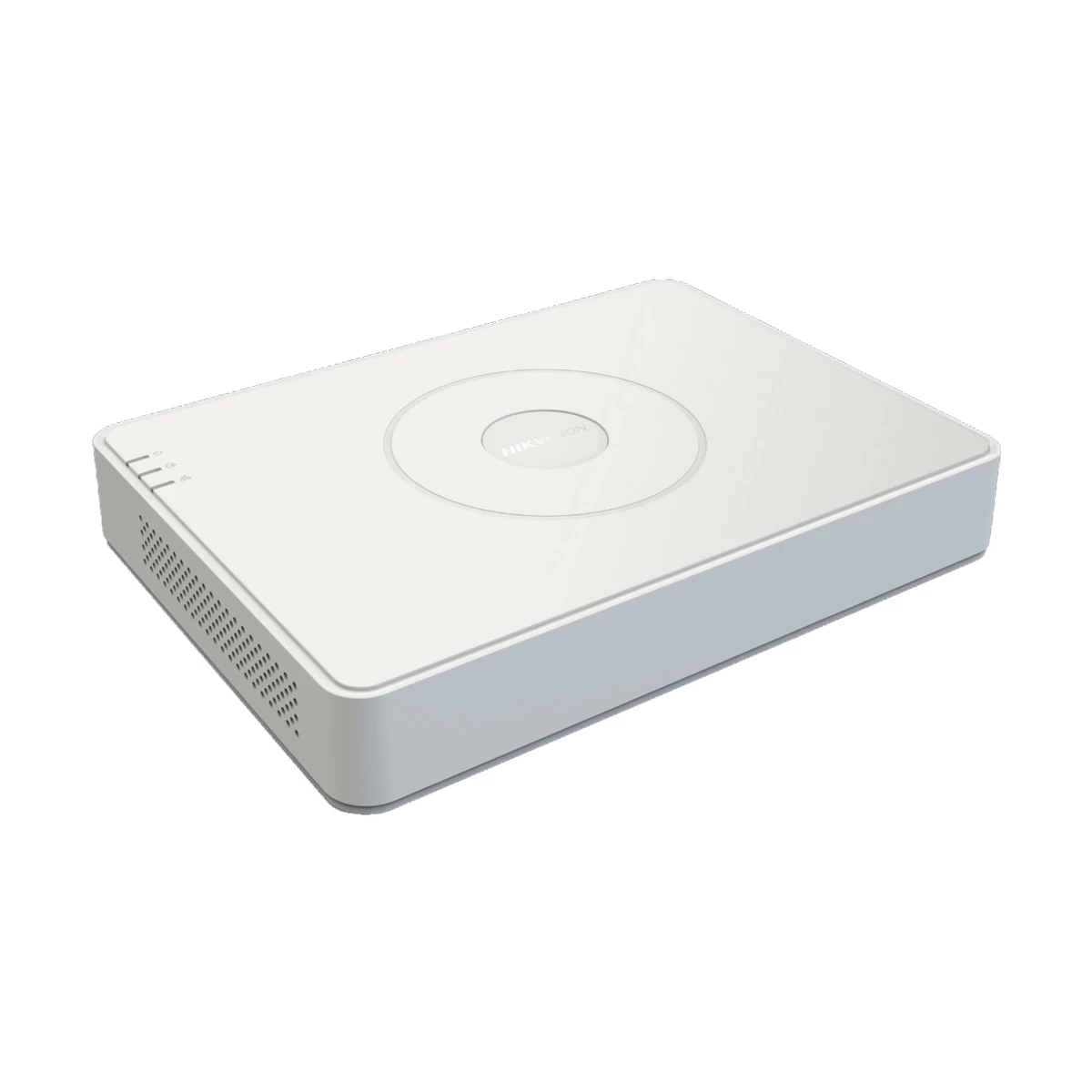

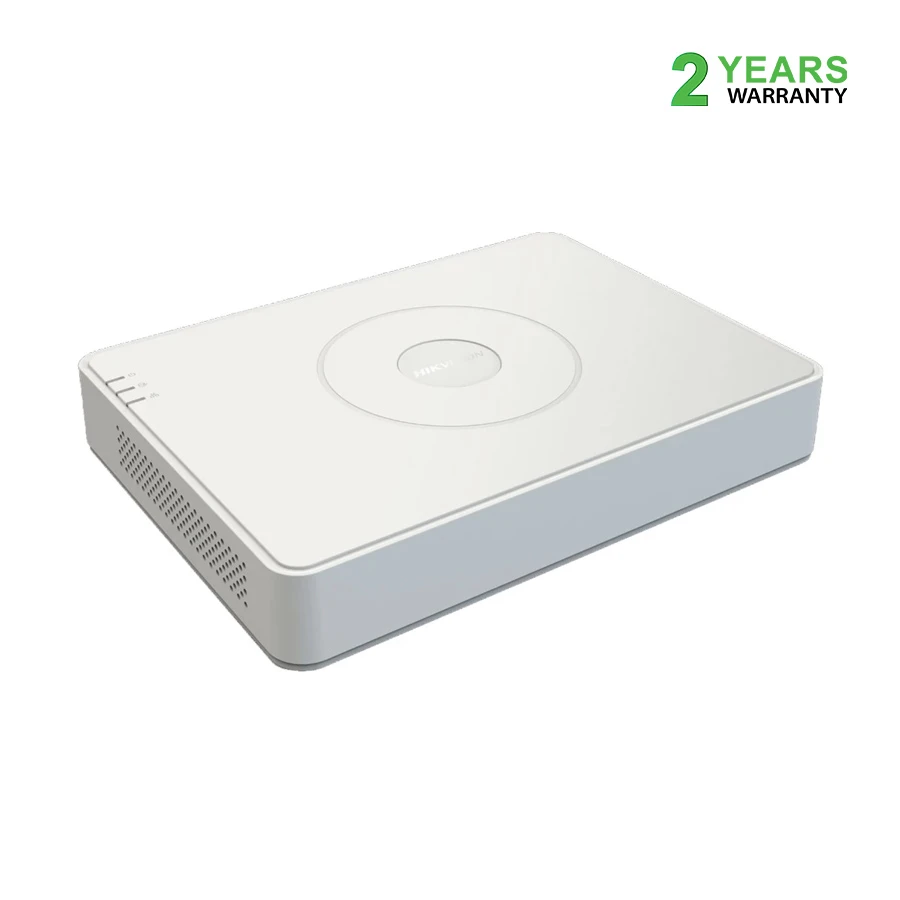

Hikvision DS-7116HGHI-K1 16 Channel DVR

Item: Hikvision DS-7116HGHI-K1 16 Channel DVR
Rating: 5
Author: Verified Buyer

2 reviews

Product Id: 127.02.485.175

Out Of Stock

See similar model

Quick Overview

Number of Input Channel - 16 Channel
Video Recording Res. - 1080p lite, 720p, VGA, WD1, 4CIF, CIF
Dual Stream Support - Yes
Number HDD Interface (SATA) - 1 SATA
Max. Storage Support - 10TB
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Hikvision

Model

Hikvision DS-7116HGHI-K1

Type

16 Channel DVR

Number of Input Channel

16 Channel

Video Output (VGA)

1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (HDMI)

1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Max. Video Recording Res.

1080p

Audio Input Channel (RCA)

1 Channel RCA

Two way Audio

1-ch, RCA (2.0 Vp-p, 1 K)

Dual Stream Support

Yes

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

Up to 10 TB capacity for each disk

Wi-Fi

USB Port

2 x USB 2.0

Approx. Power Consumption

7 W

Color

White

Dimensions

285 x 210 x 45mm

Weight (Kg)

1.8 kg

Warranty Details

2 Year (Without Adapter)

General

Brand

Hikvision

Model

Hikvision DS-7116HGHI-K1

Type

16 Channel DVR

Video Info

Number of Input Channel

16 Channel

Video Input Channel (BNC)

16-ch BNC interface (1.0 Vp-p, 75 )

Video Compression/Format

H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264

Video Output (VGA)

1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (HDMI)

1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Recording Res.

1080p lite, 720p, VGA, WD1, 4CIF, CIF

Max. Video Recording Res.

1080p

Video Bit Rate

32 Kbps to 4 Mbps

IP Video Input

2-Channel (up to 18-ch), Up to 5MP

Analog & HD-TVI Video Input

1080p25, 1080p30, 720p25, 720p30

Audio Info

Audio Input Channel (RCA)

1 Channel RCA

Audio Compression

G.711u

Audio Output Channel

1 Channel, RCA

Two way Audio

1-ch, RCA (2.0 Vp-p, 1 K)

Audio Bit Rate

64 Kbps

Recording & Decoding

Frame Rate

Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Stream Type

Video, Video & Audio

Dual Stream Support

Yes

Synchronous Playback

16-ch

Network

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Wi-Fi

Wi-Fi Details

Not Applicable

Wi-Fi Coverage (Approximate)

Not Applicable

Network Interface (RJ45)

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Remote Connections

128

Auxiliary Interface

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

Up to 10 TB capacity for each disk

Max. Storage Support

10TB

USB Port

2 x USB 2.0

Technical Info

CVBS Input

PAL/NTSC

Video Detection

Motion Detection 2.0

Power Info

Power Supply

12 VDC, 1.6 A

Approx. Power Consumption

7 W

Physical Description

Color

White

Dimensions

285 x 210 x 45mm

Weight (Kg)

1.8 kg

Warranty

Warranty Details

2 Year (Without Adapter)

Additional Info

Feature

16 channels and 1 HDD mini size DVR, H.265 Pro+ / H.265 Pro video compression, Encoding ability up to 1080p lite 15 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 18 network cameras can be connected. hikvision own cloud??service supported.

Others

Total Bandwidth: 96 Mbps, Working Temperature -10 degree C to 55 degree C (14 °F to 131 °F), Working Humidity 10% to 90%

Country Of Origin

China

Made in/ Assemble

China

Details

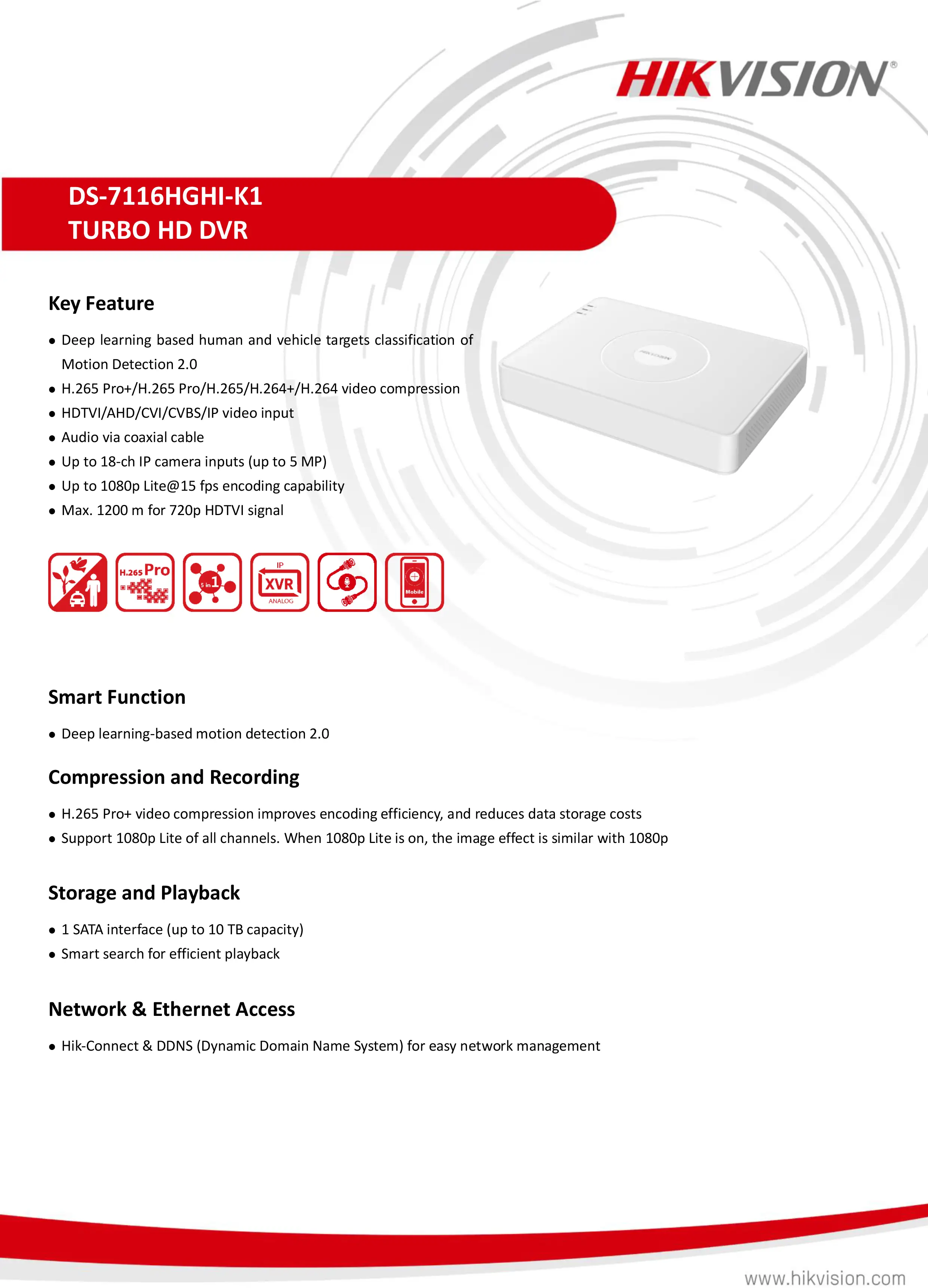

Features of Hikvision DS-7116HGHI-K1 DVR/NVR/XVR In Bangladesh

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 18-ch IP camera inputs (up to 5 MP)
Up to 1080p Lite15 fps encoding capability
Max. 1200 m for 720p HDTVI signal

What is the price of Hikvision DS-7116HGHI-K1 DVR/NVR/XVR In Bangladesh?

The price of Hikvision DS-7116HGHI-K1 DVR/NVR/XVR not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Hikvision DS-7116HGHI-K1 DVR/NVR/XVR from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

QUESTION & ANSWER

Customer Questions

এই ডিভিআর এ কত জিবি হার্ডডিস্ক রয়েছে

Asked By Omar

প্রিয় গ্রাহক,
এই প্রোডাক্টটিতে প্র্রি ইনস্টলড কোন স্টোরেজ দেয়া নেই, তবে এটিতে 10 TB পর্যন্ত স্টোরেজ ইনস্টল করা যাবে l
বিস্তারিত তথ্যের জন্য হেল্পলাইন নাম্বারে যোগাযোগ করুন l
ধন্যবাদ l
16810

Answered By Ryans Computers Ltd. , 12 Feb 2025

এই মডেলের ডিভিআর এর জন্য হার্ডডিস্ক কি আছে ভাই এই মডেলের ডিভিআর এর জন্য হার্ডডিস্ক চাচ্ছি

Asked By

প্রিয় গ্রাহক, ডিভিআর এর জন্য যেই হার্ডডিস্ক গুলো প্রযোজ্য সেই প্রোডাক্ট গুলোর লিংকটি শেয়ার করা হয়েছে । লিংকে ক্লিক করে আপনি আপনার পছন্দ এবং বাজেট অনুসারে যে কোন একটি ক্রয় করে নিতে পারেন সর্বোচ্চ 10 TB সাপোর্ট করবে https://www.ryans.com/category/internal-hdd?sort=LH&attr=59(a_s_i)0(a_s_i)Surveillance%20HDD(a_s_o)&osp=1&st=0

Answered By Ryans Computers Ltd. , 12 Oct 2024

177/1 a arjatpara, shahinbag,Tejgaon, Dhaka 1215

Asked By Md.jumman

Dear Sir, Please share your specific query with us. Thanks!

Answered By Ryans Computers Ltd. , 20 Dec 2023
