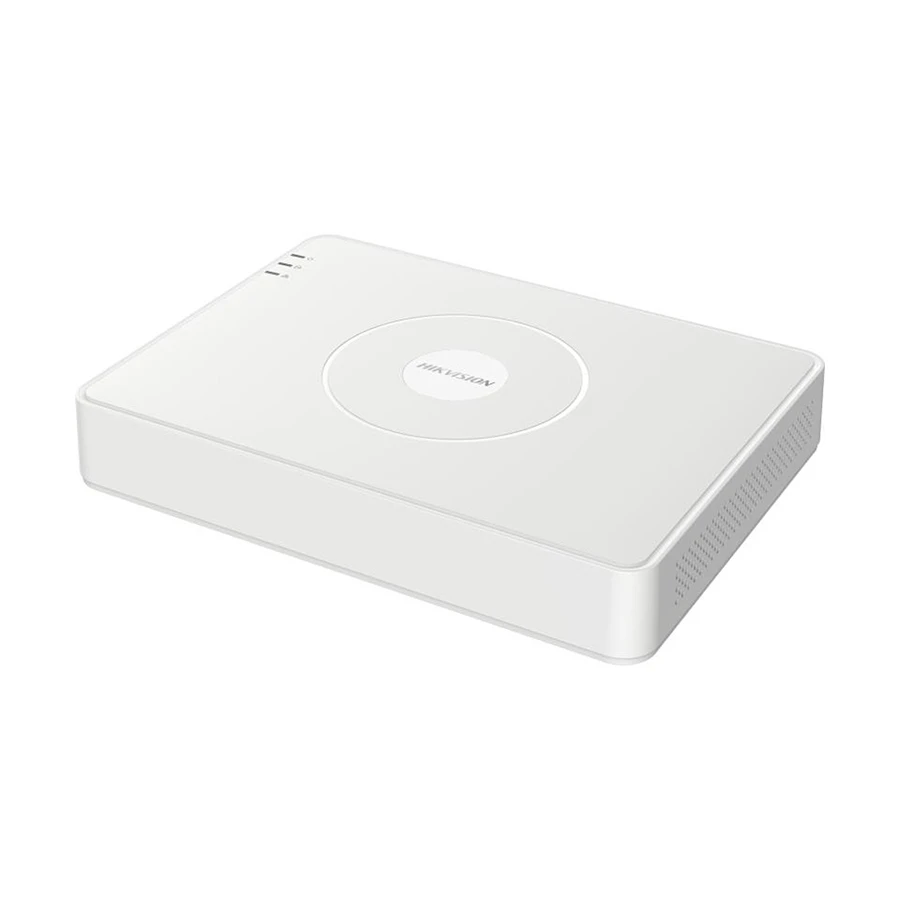

Hikvision DS-7116HGHI-M1 16 Channel DVR
Product Id: 127.02.485.364
Brand
Hikvision
Regular Price Tk 9,010
Monthly EMI Tk 751
Special Price Tk 8,300
Quick Overview
- Dual Stream Support - Yes
- Number HDD Interface (SATA) - 1 SATA
- Video Recording Res. - 1080p
- Max. Storage Support - 10TB
Brand
Hikvision
Model
Hikvision DS-7116HGHI-M1
Type
TURBO HD DVR
Video Input Channel (BNC)
16 Channel
Video Compression/Format
H.265 Pro+/ H.265 Pro/ H.265
Video Output (VGA)
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Video Output (HDMI)
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Video Recording Res.
1080p
Max. Video Recording Res.
1080p
Video Bit Rate
32 Kbps to 4 Mbps
IP Video Input
2-ch (up to 18-ch)
Analog & HD-TVI Video Input
16-ch
Audio Input Channel (RCA)
1-ch RCA
Audio Compression
G.711u
Audio Output Channel
1-ch, RCA (Linear, 1 K ohm)
Two way Audio
1-ch, RCA (2.0 Vp-p, 1 K ohm) (using the first audio input)
Frame Rate
30FPS
Stream Type
Main Stream, Sub steram
Dual Stream Support
Yes
Synchronous Playback
16-ch
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP, HTTPS, ONVIF
Number HDD Interface (SATA)
1 SATA
Max HDD Support (GB,TB)
10TB
Max. Storage Support
10TB
Network Interface (RJ45)
1 x RJ45 10M/100M self-adaptive Ethernet
USB Port
2 x USB 2.0
Remote Connections
128
CVBS Input
PAL/NTSC
Power Supply
12 VDC, 1.6 A
Approx. Power Consumption
<- 7 W (without HDD)
Dimensions
285 x 210 x 45mm
Weight (Kg)
<- 1.8 kg
Feature
Deep learning based human and vehicle targets classification of Motion Detection 2.0, H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, HDTVI/AHD/CVI/CVBS/IP video input, Audio via coaxial cable, Up to 18-ch IP camera inputs (up to 5 MP), Up to 1080p Lite@15 fps encoding capability, Max. 1200 m for 720p HDTVI signal
Others
Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF, For 720p stream access: 720p/WD1/4CIF/VGA/CIF, For standard definition stream access: WD1/4CIF/VGA/CIF, Frame Rate: Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps, For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps, For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N), Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15 fps, For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
