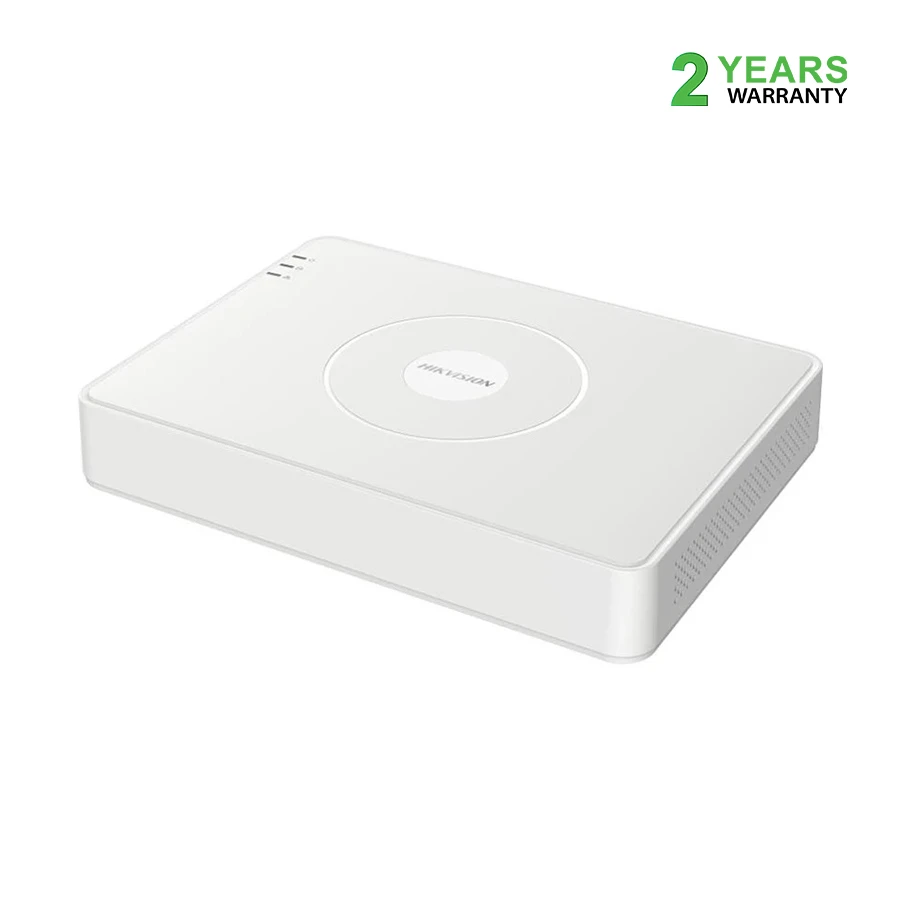

Item: Hikvision DS-7116HGHI-M1 16 Channel DVR
Rating: 5
Author: Verified Buyer

Brand

Hikvision

Model

Hikvision DS-7116HGHI-M1

Type

TURBO HD DVR

Number of Input Channel

16 Channel

Video Output (VGA)

1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz

Video Output (HDMI)

1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz

Max. Video Recording Res.

1080p

Audio Input Channel (RCA)

1-ch RCA

Two way Audio

1-ch, RCA (2.0 Vp-p, 1 K ohm) (using the first audio input)

Dual Stream Support

Yes

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

10TB

Wi-Fi

USB Port

2 x USB 2.0

Approx. Power Consumption

<- 7 W (without HDD)

Color

White

Dimensions

285 x 210 x 45mm

Weight (Kg)

<- 1.8 kg

Warranty Details

2 Year (Without Adapter)

General

Brand

Hikvision

Model

Hikvision DS-7116HGHI-M1

Type

TURBO HD DVR

Video Info

Number of Input Channel

16 Channel

Video Input Channel (BNC)

16 Channel

Video Compression/Format

H.265 Pro+/ H.265 Pro/ H.265

Video Output (VGA)

1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz

Video Output (HDMI)

1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz

Video Recording Res.

1080p

Max. Video Recording Res.

1080p

Video Bit Rate

32 Kbps to 4 Mbps

IP Video Input

2-ch (up to 18-ch)

Analog & HD-TVI Video Input

16-ch

Audio Info

Audio Input Channel (RCA)

1-ch RCA

Audio Compression

G.711u

Audio Output Channel

1-ch, RCA (Linear, 1 K ohm)

Two way Audio

1-ch, RCA (2.0 Vp-p, 1 K ohm) (using the first audio input)

Recording & Decoding

Frame Rate

30FPS

Stream Type

Main Stream, Sub steram

Dual Stream Support

Yes

Synchronous Playback

16-ch

Network

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP, HTTPS, ONVIF

Wi-Fi

Wi-Fi Details

Not Applicable

Wi-Fi Coverage (Approximate)

Not Applicable

Network Interface (RJ45)

1 x RJ45 10M/100M self-adaptive Ethernet

Remote Connections

128

Auxiliary Interface

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

10TB

Max. Storage Support

10TB

USB Port

2 x USB 2.0

Technical Info

CVBS Input

PAL/NTSC

Power Info

Power Supply

12 VDC, 1.6 A

Approx. Power Consumption

<- 7 W (without HDD)

Physical Description

Color

White

Dimensions

285 x 210 x 45mm

Weight (Kg)

<- 1.8 kg

Warranty

Warranty Details

2 Year (Without Adapter)

Additional Info

Feature

Deep learning based human and vehicle targets classification of Motion Detection 2.0, H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, HDTVI/AHD/CVI/CVBS/IP video input, Audio via coaxial cable, Up to 18-ch IP camera inputs (up to 5 MP), Up to 1080p Lite@15 fps encoding capability, Max. 1200 m for 720p HDTVI signal

Others

Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF, For 720p stream access: 720p/WD1/4CIF/VGA/CIF, For standard definition stream access: WD1/4CIF/VGA/CIF, Frame Rate: Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps, For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps, For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N), Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15 fps, For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Hikvision DS-7116HGHI-M1 DVR/NVR/XVR In Bangladesh

The Hikvision DS-7116HGHI-M1 16 Channel DVR is a reliable solution for home and business security. It supports up to 16 cameras, recording high-definition video at 1080p resolution. This DVR ensures that your surveillance system captures every detail, offering peace of mind and security.

Benefits & Features

16 Channel DVR Setup: Connect up to 16 cameras to cover all areas of your property.
High-Definition Video Recording: Records at a maximum resolution of 1080p for clear and detailed footage.
Remote Viewing on Hikvision DVR: Access live or recorded video remotely through your smartphone or computer.
DVR with Motion Detection: Automatically records when motion is detected, saving storage and ensuring critical moments are captured.
Hikvision DVR Compatibility with Cameras: Compatible with a wide range of Hikvision cameras, making it versatile for different setups.

What You Need to Know Before Hitting 'Add to Cart'

Check Camera Compatibility: Ensure your existing cameras are compatible with this DVR model.
Consider Storage Needs: Determine if additional hard drives are needed for extended recording periods.
Verify Remote Access Features: Confirm that your network supports remote viewing capabilities.

How To Use

Connect the Cameras: Use BNC cables to connect up to 16 cameras to the DVR.
Configure Settings: Adjust video quality, motion detection, and recording schedules through the user interface.
Set Up Remote Access: Use the Hik-Connect app to monitor your cameras remotely from any location.
Regular Maintenance: Check for firmware updates to keep your Hikvision DVR running smoothly.

Sum it up

The Hikvision DS-7116HGHI-M1 16 Channel DVR is an excellent choice for those seeking comprehensive security coverage. With 1080p recording, motion detection, and remote access, it provides everything you need for effective surveillance.

What is the price of Hikvision DS-7116HGHI-M1 DVR/NVR/XVR In Bangladesh?

The price of Hikvision DS-7116HGHI-M1 DVR/NVR/XVR starts from 6,050 . The price may vary due to your customization and product availability. You can buy Hikvision DS-7116HGHI-M1 DVR/NVR/XVR from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.
