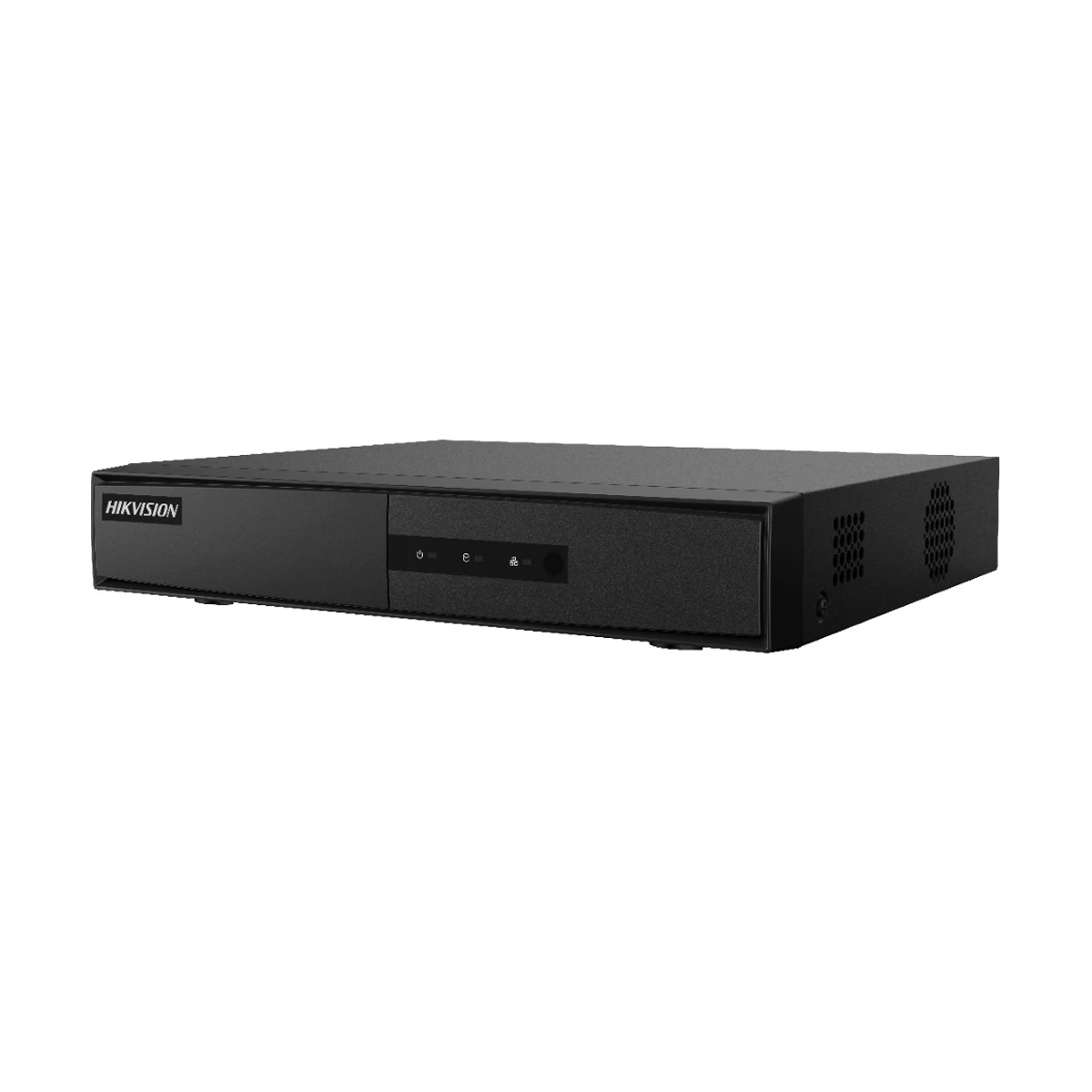

Hikvision DS-7204HGHI-F1 04 Channel HD 720p TVI DVR

Item: Hikvision DS-7204HGHI-F1 04 Channel HD 720p TVI DVR
Rating: 5
Author: Verified Buyer

2 reviews

Product Id: 127.02.485.42

Out Of Stock

See similar model

Quick Overview

Number of Input Channel - 04 Channel
Video Recording Res. - 720p
Dual Stream Support - Yes
Number HDD Interface (SATA) - 1 SATA
Max. Storage Support - 6TB
Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Hikvision

Model

Hikvision DS-7204HGHI-F1

Type

04 Channel TVI DVR

Number of Input Channel

04 Channel

Video Output (VGA)

1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz

Video Output (HDMI)

1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz

Max. Video Recording Res.

720p

Audio Input Channel (RCA)

RCA (2.0 Vp-p, 1 kΩ)

Two way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Dual Stream Support

Yes

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

Up to 6 TB capacity for each disk

Wi-Fi

USB Port

2 x USB2.0

Approx. Power Consumption

≤ 8 W

Color

Black

Dimensions

260 x 222 x 45mm

Weight (Kg)

1 kg

XVR Supported

Yes

Smart Phone Supported

Yes

Supported Camera Models

DS-2CE16C0T-IR, DS-2CE16C0T-IRP, DS-2CE56C0T-IR, DS-2CE56C0T-IRP, DS-2CE16C0T-IT3, DS-2CE56C0T-IT3

Warranty

1 year

General

Brand

Hikvision

Model

Hikvision DS-7204HGHI-F1

Type

04 Channel TVI DVR

Video Info

Number of Input Channel

04 Channel

Video Input Channel (BNC)

BNC (1.0 Vp-p, 75Ω)

Video Compression/Format

H.264

Video Output (VGA)

1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz

Video Output (HDMI)

1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz

Video Recording Res.

720p

Max. Video Recording Res.

720p

Video Bit Rate

32 Kbps to 4 Mbps

IP Video Input

1-ch (up to 5-ch) Up to 960p resolution Support H.264+/H.264 IP cameras

Analog & HD-TVI Video Input

4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Audio Info

Audio Input Channel (RCA)

RCA (2.0 Vp-p, 1 kΩ)

Audio Compression

G.711u

Audio Output Channel

1-ch RCA(Linear, 1kΩ)

Two way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Audio Bit Rate

64 Kbps

Recording & Decoding

Frame Rate

1/16 fps - Real time frame rate

Stream Type

Video/Video & Audio

Dual Stream Support

Yes

Synchronous Playback

4-ch

Network

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Wi-Fi

Wi-Fi Details

Not Applicable

Wi-Fi Coverage (Approximate)

Not Applicable

Network Interface (RJ45)

1 x 10M / 100M self-adaptive Ethernet

Remote Connections

Auxiliary Interface

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

Up to 6 TB capacity for each disk

Max. Storage Support

6TB

eSATA

Serial Interface

USB Port

2 x USB2.0

Technical Info

CVBS Input

Yes

Compatibility

XVR Supported

Yes

Smart Phone Supported

Yes

Supported Camera Models

DS-2CE16C0T-IR, DS-2CE16C0T-IRP, DS-2CE56C0T-IR, DS-2CE56C0T-IRP, DS-2CE16C0T-IT3, DS-2CE56C0T-IT3

Power Info

Power Supply

12V DC

Approx. Power Consumption

≤ 8 W

Physical Description

Color

Black

Dimensions

260 x 222 x 45mm

Weight (Kg)

1 kg

Warranty

1 year

Additional Info

Feature

H.264+ / H.264 video compression, Encoding ability up to 1080p lite @ 25/30 fps

Others

Supported camera Models: DS-2CE16C0T-IR, DS-2CE16C0T-IRP, DS-2CE56C0T-IR, DS-2CE56C0T-IRP, DS-2CE16C0T-IT3, DS-2CE56C0T-IT3, Support AHD input: 720P/25, 720P/30, CVBS, IP Video Input: 1-ch Up to 960P resolution, Recording resolution: Main stream: 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: 2CIF (non-real-time) / CIF, Video Bit Rate: 32 Kbps - 4 Mbps, Audio Bit Rate: 64kbps, Playback Resolution: 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF, Remote connections: 32, Port: RS485 Port Available

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Hikvision DS-7204HGHI-F1 DVR/NVR/XVR In Bangladesh

Brand - Hikvision, Model - DS-7204HGHI-F1, Type - 04 Channel TVI DVR, Number of Input Channel - 04 Channel, Video Input Channel (BNC) - BNC (1.0 Vp-p, 75??), Video Compression/Format - H.264, Video Output (VGA) - 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz, Video Output (HDMI) - 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz, Video Recording Res. - 720p, Audio Input Channel (RCA) - RCA (2.0 Vp-p, 1 k??), Audio Compression - G.711u, Audio Output Channel - 1-ch RCA(Linear, 1k??), Two way Audio - 1-ch, RCA (2.0 Vp-p, 1 K??) (using audio input), Frame Rate - 1/16 fps - Real time frame rate, Stream Type - Video/Video & Audio, Dual Stream Support - Support, Number HDD Interface (SATA) - 1 x SATA, Max HDD Support (GB,TB) - Up to 6 TB capacity for each disk, Network Interface (RJ45) - 1 x 10M / 100M self-adaptive Ethernet, USB Port - 2 x USB2.0, Power Supply - 12V DC, Color - Black, Dimension - 260 x 222 x 45mm, Others - Supported camera Models: DS-2CE16C0T-IR, DS-2CE16C0T-IRP, DS-2CE56C0T-IR, DS-2CE56C0T-IRP, DS-2CE16C0T-IT3, DS-2CE56C0T-IT3, Support AHD input: 720P/25, 720P/30, CVBS, IP Video Input: 1-ch Up to 960P resolution, Recording resolution: Main stream: 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: 2CIF (non-real-time) / CIF, Video Bit Rate: 32 Kbps - 4 Mbps, Audio Bit Rate: 64kbps, Playback Resolution: 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF, Remote connections: 32, Port: RS485 Port Available, Warranty - 1 year

What is the price of Hikvision DS-7204HGHI-F1 DVR/NVR/XVR In Bangladesh?

The price of Hikvision DS-7204HGHI-F1 DVR/NVR/XVR not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Hikvision DS-7204HGHI-F1 DVR/NVR/XVR from our website or visit our showrooms nearby.
