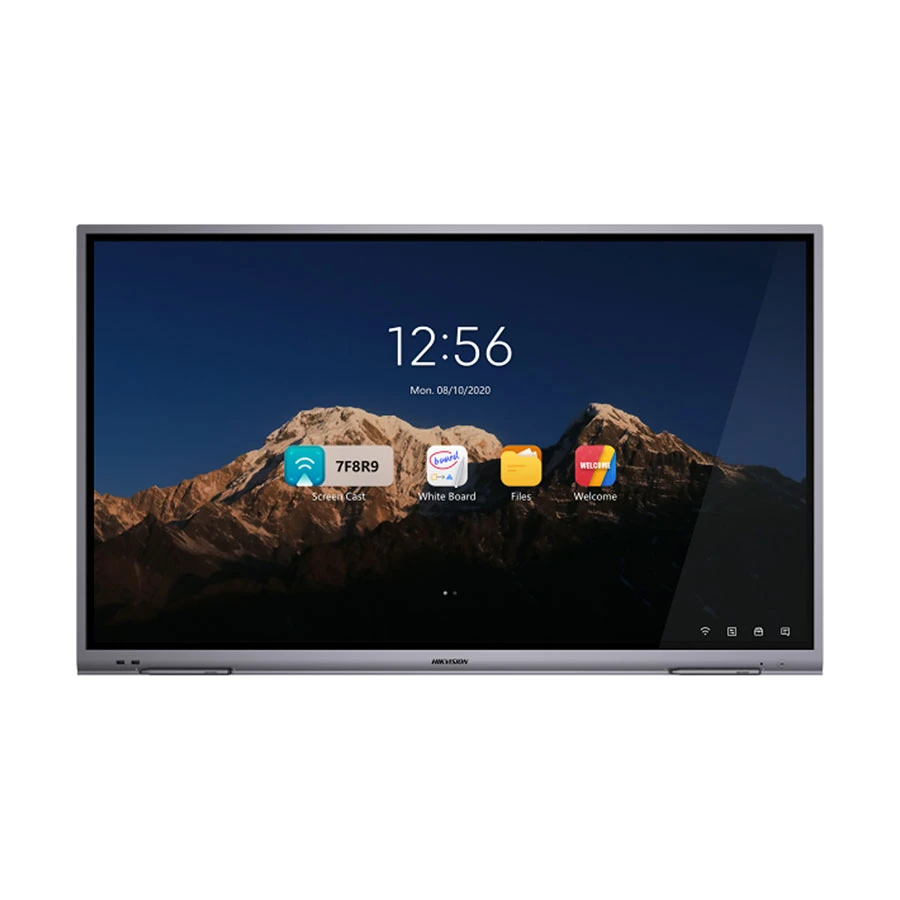

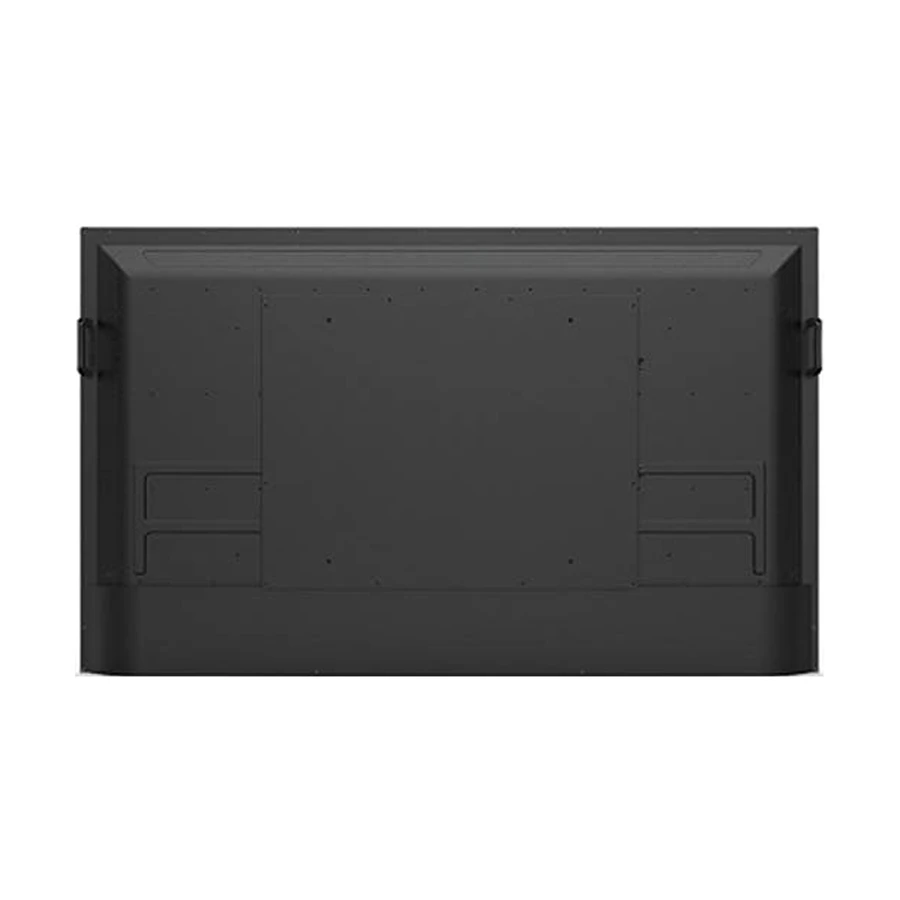

Hikvision DS-D5B86RB/C 86 Inch (4GB RAM, 64GB ROM) 4K UHD Touch Interactive Flat Panel Display (Android 11)
Product Id: 118.01.485.13
Brand
Hikvision
Quick Overview
- Technology - Infrared touch technology
- Display Size - 86 Inch
- Resolution - 3840 x 2160
- Storage (MB/GB/TB) - 64GB
- Embedded OS - Android 11
General
Brand
Hikvision
Model
Hikvision DS-D5B86RB/C
Technology
Infrared touch technology
Display
Display Size
86 Inch
Resolution
3840 x 2160
Supported Display Resolutions
3840 x 2160
Panel Bit
10 bit
Display Orientation
Landscape
Brightness (cd/m2)
350cd/m2
Light Life
50000 Hours
Color Gamut
90% NTSC
Refresh Rate (Hz)
60Hz
Contrast Ratio
4000 : 1
Response Time (ms)
6ms
Viewing Angle.
178 Degree (H & V)
Screen Share
Yes
Surface
Number of Touch
45 Point
Touch Interface
1 x Touch-USB
Hardware
Processor
A72x2 + A53x4, 1.8 GHz
RAM
4GB
Storage (MB/GB/TB)
64GB
Technical Info
Camera (Built-in)
No
Tempered Glass
AG Smooth Glass
Connectivity
Control
1 x RS-232, 1 x Touch-USB
Connectivity
Wi-Fi & Bluetooth
Input Ports
2 x HDMI IN (Max 4K 30 Hz), 1 x LINE IN
Output Ports
1 x HDMI 2.0 OUT (Max 4K 60 Hz), 1 x LINE OUT
HDMI Input
2
HDMI Output
1
USB Port
1 x USB-C, 2 x USB-A (Front), 2 x USB-A (Rear)
RS232 Input/Output
1 x RS-232
Lan Port
2 x RJ45 (1000 Mbps)
Audio
Speaker (Built-in)
Yes
Speaker Details
2 x 16W
Microphone (Built-in)
No
Audio In
1 x LINE IN
Audio Out
1 x LINE OUT
Electrical
Power (AC) Input
100 to 240 V, AC, 50/60 Hz
Approx. Power Consumption
<= 490 W
Environmental
Operating Temperature
0 to 40 Degree C
Operating Humidity
10% to 90% RH
Physical Description
Body Color
Gray
Dimensions
1963 x 1159 x 87.5mm
Weight
65.12 kg (Net)
Software
Embedded OS
Android 11
Operating System.
Android
Warranty
Warranty Details
1 year
Additional Info
Others
Backlight: DLED, Touch Response Time: <10 ms, Touch Precision: -+1 mm ( 90% touching area). NIC: Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 x 2 MIMO, supporting both 2.4 GHz and 5GHz bands. Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version.
Feature
Ultra HD display with up to 3840x2160 resolution of input signal available. 20px ultra fine writing, and 2 mm diameter recognizable with the precision of 1 mm. Built-in Wi-Fi realizes miracasting without any cable connection. Built-in interactive whiteboard system allows annotating and sharing by QR code. Looping-out display available. Various audio and video interfaces for device access. Built-in network switch chip saves a network switch. Built-in Android system provides kinds of applications. Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems. Ultra-thin design with aluminum profile frame.
Country Of Origin
China
Made in/ Assemble
China
