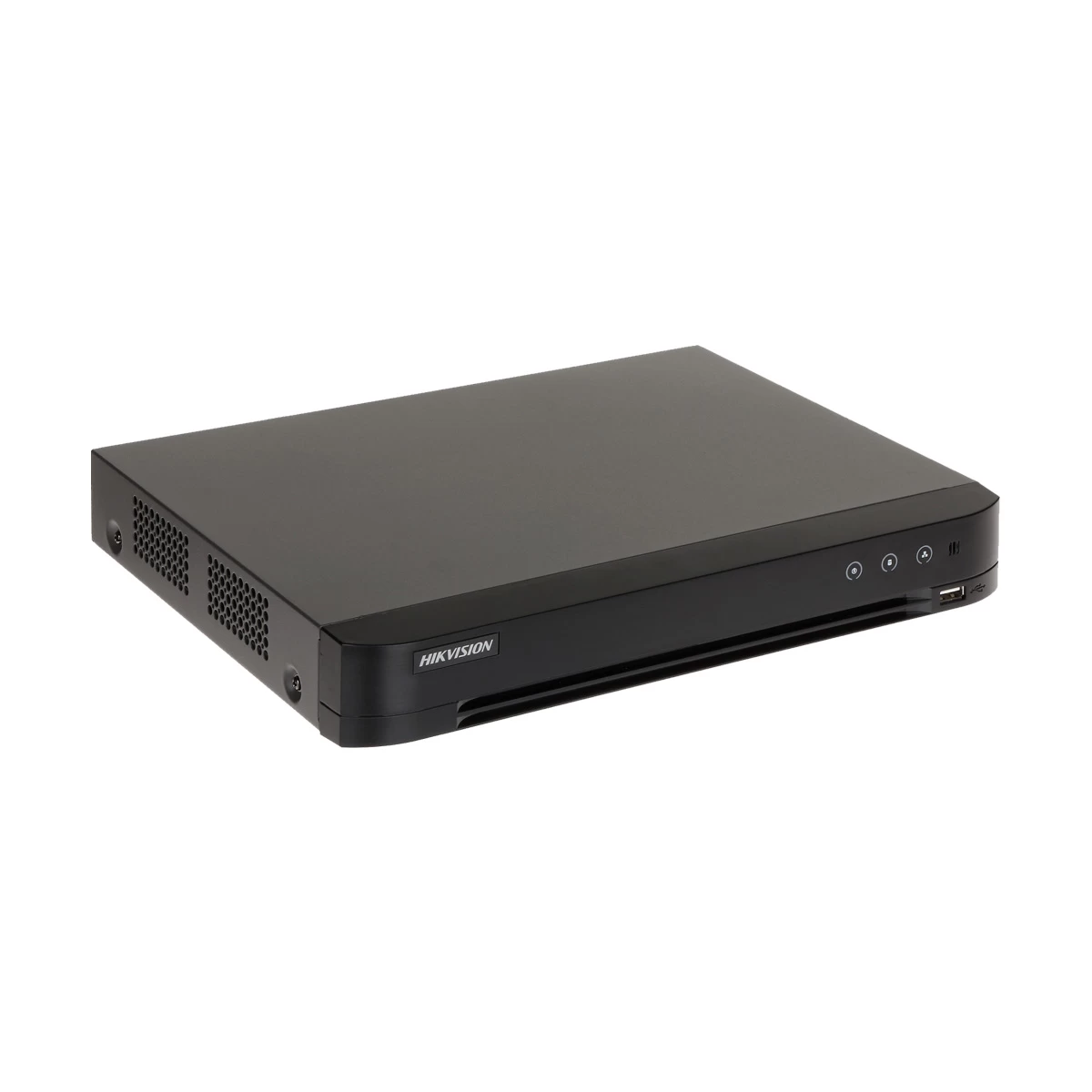

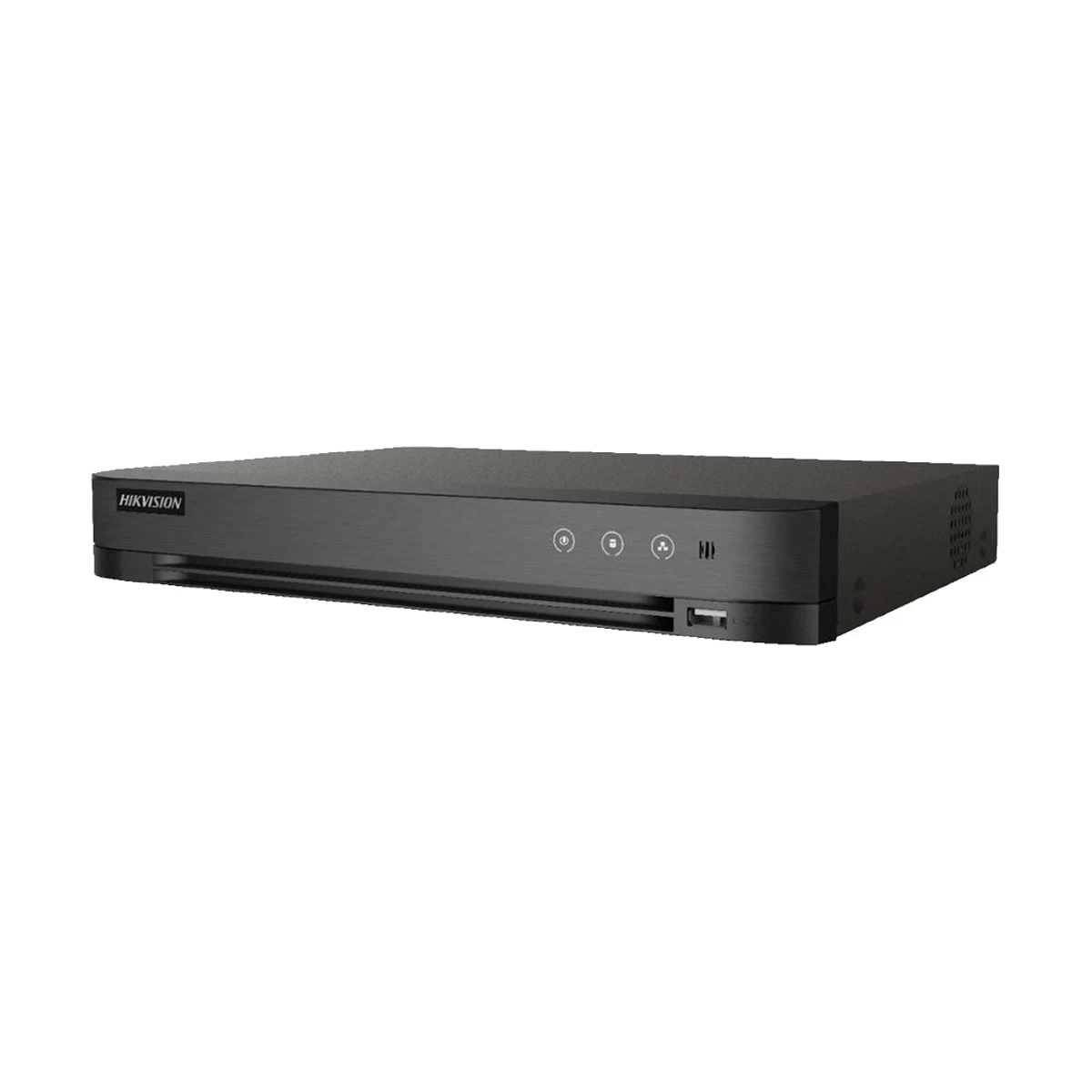

Hikvision IDS-7204HQHI-M1-S 4-ch 1080p 1U H.265 AcuSense DVR

Item: Hikvision IDS-7204HQHI-M1-S 4-ch 1080p 1U H.265 AcuSense DVR
Rating: 5
Author: Verified Buyer

2 reviews

Product Id: 127.02.485.185

Out Of Stock

See similar model

Quick Overview

Number of Input Channel - 04 Channel
Video Recording Res. - 4MP, 3MP
Dual Stream Support - Yes
Number HDD Interface (SATA) - 1 SATA
Max. Storage Support - 10TB
Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Hikvision

Model

Hikvision IDS-7204HQHI-M1-S

Type

04 Channel DVR

Number of Input Channel

04 Channel

Video Output (VGA)

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output (HDMI)

1 channel, resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI/VGA simultaneous output

Max. Video Recording Res.

1080p

Audio Input Channel (RCA)

1 channel, RCA

Two way Audio

1 Channel, RCA

Dual Stream Support

Yes

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

Up to 10TB capacity for each disk

Wi-Fi

USB Port

2 x USB 2.0

Approx. Power Consumption

<-18W

Color

Black

Dimensions

315 x 242 x 45mm

Weight (Kg)

<-1.16 kg

Warranty

1 year

General

Brand

Hikvision

Model

Hikvision IDS-7204HQHI-M1-S

Type

04 Channel DVR

Video Info

Number of Input Channel

04 Channel

Video Input Channel (BNC)

4 Channel

Video Compression/Format

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Video Output (VGA)

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output (HDMI)

1 channel, resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI/VGA simultaneous output

Video Recording Res.

4MP, 3MP

Max. Video Recording Res.

1080p

Video Bit Rate

32 Kbps to 6 Mbps

IP Video Input

1-channel (up to 5-channel)

Analog & HD-TVI Video Input

Up to 4-channel

Audio Info

Audio Input Channel (RCA)

1 channel, RCA

Audio Compression

G.711u

Audio Output Channel

1 Channel, RCA

Two way Audio

1 Channel, RCA

Audio Bit Rate

64 Kbps

Recording & Decoding

Frame Rate

Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Stream Type

Video, Video & Audio

Dual Stream Support

Yes

Synchronous Playback

4-channel

Network

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Wi-Fi

Wi-Fi Details

Not Applicable

Wi-Fi Coverage (Approximate)

Not Applicable

Network Interface (RJ45)

1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

Remote Connections

Auxiliary Interface

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

Up to 10TB capacity for each disk

Max. Storage Support

10TB

Serial Interface

RS-485 (half-duplex)

USB Port

2 x USB 2.0

Technical Info

CVBS Input

PAL/NTSC

Video Detection

Motion Detection 2.0

Power Info

Power Supply

12 VDC / 1.5 A

Approx. Power Consumption

<-18W

Physical Description

Color

Black

Dimensions

315 x 242 x 45mm

Weight (Kg)

<-1.16 kg

Warranty

1 year

Additional Info

Feature

Deep learning-based motion detection 2.0 for all analog channels, Deep learning-based perimeter protection, H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression

Others

HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps, AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps, HDTVI Input: 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps, CVBS Output Resolution: PAL: 704 x 576, NTSC: 704 x 480

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Hikvision IDS-7204HQHI-M1-S DVR/NVR/XVR In Bangladesh

Brand - Hikvision, Model - Hikvision IDS-7204HQHI-M1-S, Type - 04 Channel DVR, Number of Input Channel - 04 Channel, Video Input Channel (BNC) - 4 Channel, Video Compression/Format - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264, Video Output (HDMI) - 1 channel, resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI/VGA simultaneous output, Video Recording Res. - 4MP, 3MP, Video Bit Rate - 32 Kbps to 6 Mbps, IP Video Input - 1-channel (up to 5-channel), Analog & HD-TVI Video Input - Up to 4-channel, Audio Input Channel (RCA) - 1 channel, RCA, Audio Compression - G.711u, Audio Output Channel - 1 Channel, RCA, Two way Audio - 1 Channel, RCA, Audio Bit Rate - 64 Kbps, Stream Type - Video, Video & Audio, Dual Stream Support - Yes, Synchronous Playback - 4-channel, Network Protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, Number HDD Interface (SATA) - 1 SATA, Max HDD Support (GB,TB) - Up to 10TB capacity for each disk, Network Interface (RJ45) - 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface, Serial Interface - RS-485 (half-duplex), USB Port - 2 x USB 2.0, Remote Connections - 32, CVBS Input - PAL/NTSC, Power Supply - 12 VDC / 1.5 A, Approx. Power Consumption - <-18W, Color - Black, Dimension - 315 x 242 x 45mm, Weight (Kg) - <-1.16 kg, Others - HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps, AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps, HDTVI Input: 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps, CVBS Output Resolution: PAL: 704 x 576, NTSC: 704 x 480, Warranty - 1 year, Country of Origin - China, Made in/ Assemble - China

What is the price of Hikvision IDS-7204HQHI-M1-S DVR/NVR/XVR In Bangladesh?

The price of Hikvision IDS-7204HQHI-M1-S DVR/NVR/XVR not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Hikvision IDS-7204HQHI-M1-S DVR/NVR/XVR from our website or visit our showrooms nearby.
