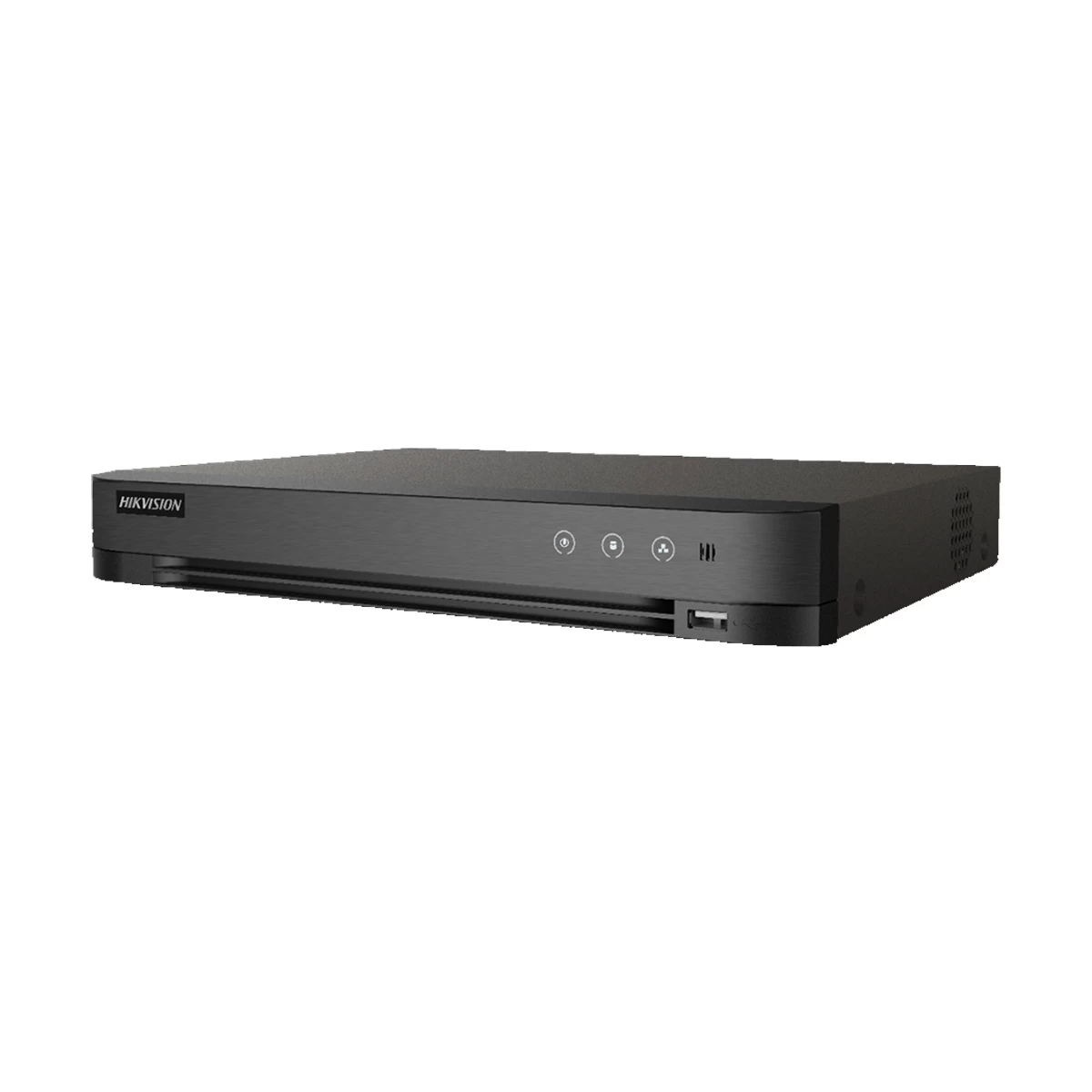

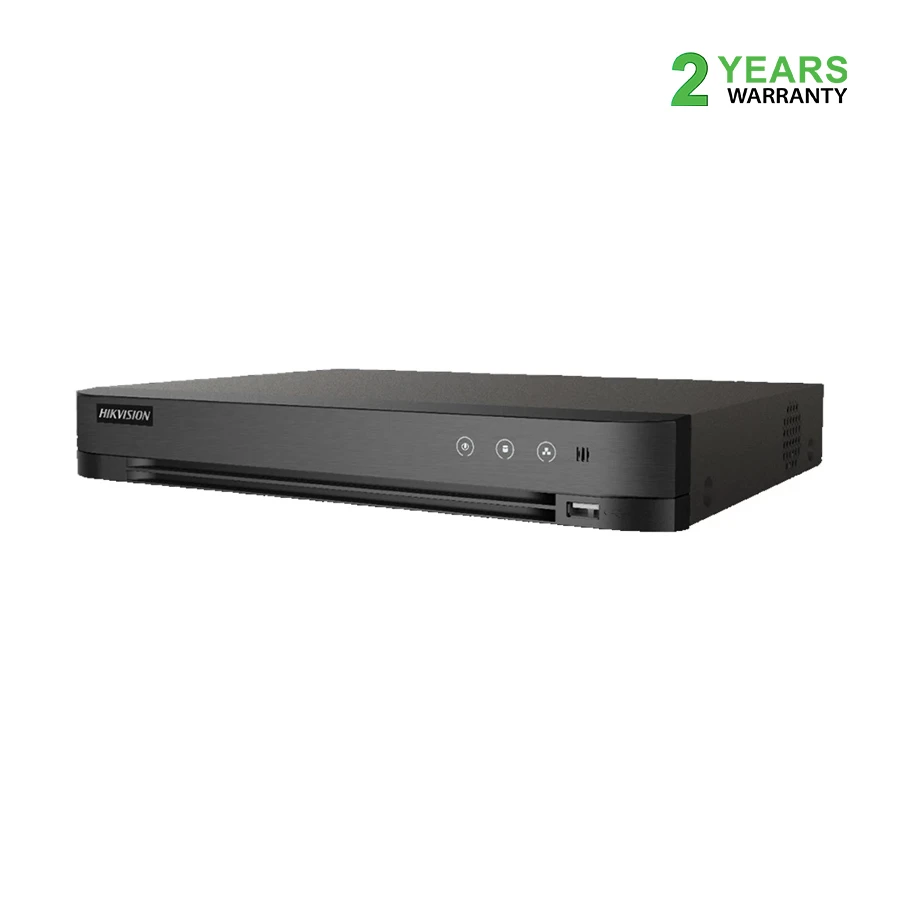

Hikvision IDS-7208HQHI-M1-S 8 channel 1080p 1U H.265 AcuSense DVR

Product Id: 127.02.485.186

Brand Hikvision

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Dual Stream Support - Yes
  • Number HDD Interface (SATA) - 1 SATA
  • Video Recording Res. - 4MP, 3MP
  • Max. Storage Support - 10TB
Brand
Hikvision

Model
Hikvision IDS-7208HQHI-M1-S

Type
08 channel DVR

Video Input Channel (BNC)
8 Channel

Video Compression/Format
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Video Output (VGA)
1 channel, resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI/VGA simultaneous output

Video Output (HDMI)
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Recording Res.
4MP, 3MP

Max. Video Recording Res.
1080p

Video Bit Rate
32 Kbps to 6 Mbps

IP Video Input
2-channel (up to 10-channel)

Analog & HD-TVI Video Input
Up to 8-channel

Audio Input Channel (RCA)
1 channel, RCA

Audio Compression
G.711u

Audio Output Channel
1 Channel, RCA

Two way Audio
1 Channel, RCA

Audio Bit Rate
64 Kbps

Frame Rate
Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Stream Type
Video, Video & Audio

Dual Stream Support
Yes

Synchronous Playback
08 Channel

Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Number HDD Interface (SATA)
1 SATA

Max HDD Support (GB,TB)
Up to 10TB capacity for each disk

Max. Storage Support
10TB

Network Interface (RJ45)
1, RJ45 10M/100M self-adaptive Ethernet interface

Serial Interface
RS-485 (half-duplex)

USB Port
2 x USB 2.0

Remote Connections
64

CVBS Input
PAL/NTSC

Video Detection
Motion Detection

Power Supply
12 VDC

Approx. Power Consumption
<-18W

Dimensions
315 x 242 x 45mm

Weight (Kg)
<-1.78 kg

Feature
8 channels and 1 HDD 1U AcuSense DVR, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Encoding ability up to 1080p @ 15 fps

Others
HDTVI Input: 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps, AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps, Working Humidity: 10% to 90%, Working Temperature-10 Degree C to +55 Degree C

Warranty Details
1 year

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
