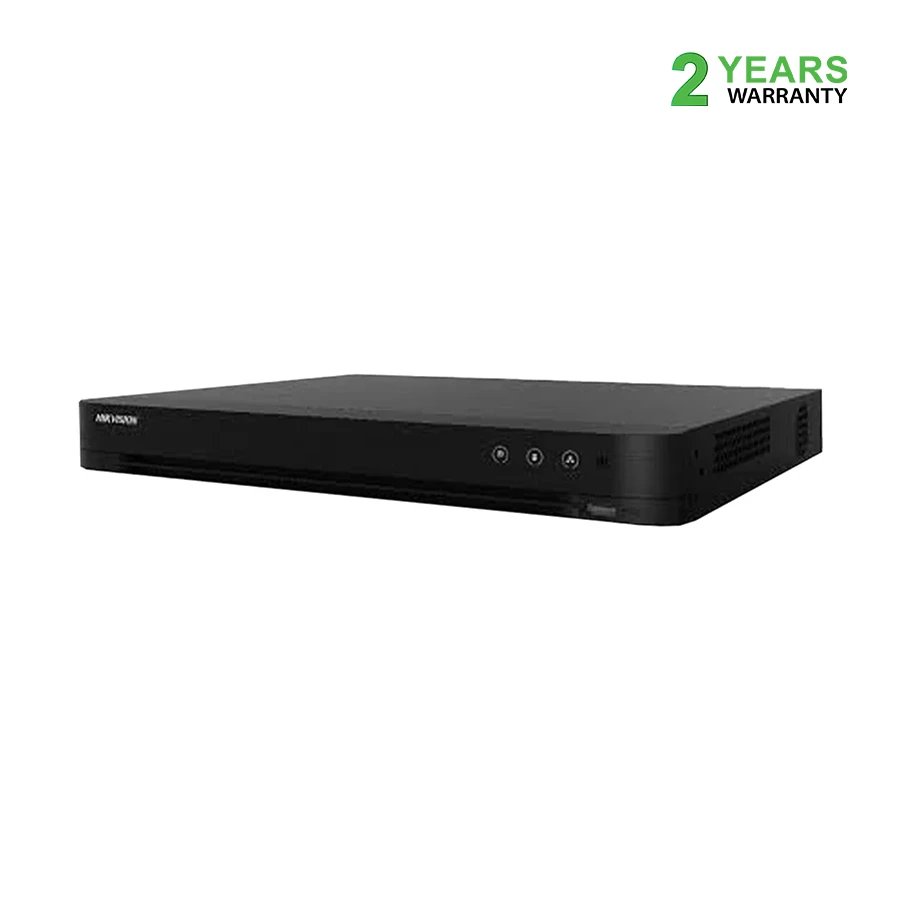

Hikvision iDS-7208HQHI-M2/S 08 Channel Turbo HD 1080p AcuSense DVR
Product Id: 127.02.485.210
Brand
Hikvision
Quick Overview
- Dual Stream Support - Yes
- Number HDD Interface (SATA) - 2 SATA
- Video Recording Res. - Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
- Max. Storage Support - 10TB
Brand
Hikvision
Model
Hikvision iDS-7208HQHI-M2/S
Type
DVR
Video Input Channel (BNC)
8-ch
Video Compression/Format
H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264
Video Output (VGA)
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Video Output (HDMI)
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Video Output (BNC)
1-ch
Video Recording Res.
Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Max. Video Recording Res.
1080p
Video Bit Rate
32 Kbps to 6 Mbps
IP Video Input
2-ch (up to 10-ch)
Analog & HD-TVI Video Input
8-ch
Audio Input Channel (RCA)
1-ch, RCA (2.0 Vp-p, 1 K ohm), 8-ch via coaxial cable
Audio Compression
G.711u
Audio Output Channel
1-ch, RCA (Linear, 1 K ohm)
Two way Audio
1-ch, RCA (2.0 Vp-p, 1 K ohm) (using the first audio input)
Audio Bit Rate
64 Kbps
Stream Type
Video, Video & Audio
Dual Stream Support
Yes
Synchronous Playback
08 Channel
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Number HDD Interface (SATA)
2 SATA
Max HDD Support (GB,TB)
Up to 10 TB capacity for each disk
Max. Storage Support
10TB
Network Interface (RJ45)
1 x RJ45 10/100 Mbps self-adaptive Ethernet interface
Serial Interface
RS-485 (half-duplex)
USB Port
1 x USB 2.0 (Front), 1 x USB 2.0 (Rear)
Remote Connections
64
CVBS Input
PAL/NTSC
Video Detection
Motion Detection
Power Supply
12 VDC, 2.5 A
Approx. Power Consumption
<- 30 W (without HDD)
Dimensions
380 x 320 x 48mm (W x D x H)
Weight (Kg)
1.78 Kg (without HDD)
Feature
Deep learning-based motion detection 2.0 for all analog channels. Deep learning-based perimeter protection. H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression. HDTVI/AHD/CVI/CVBS/IP video inputs. Audio via coaxial cable. Up to 12/24-ch IP camera inputs (up to 6 MP). Up to 10 TB capacity per HDD.
Others
HDTVI input: 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps. AHD input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps. HDCVI input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps. CVBS output: 1-ch, BNC (1.0 Vp-p, 75 ohm), resolution: PAL: 704 x 576, NTSC: 704 x 480
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
