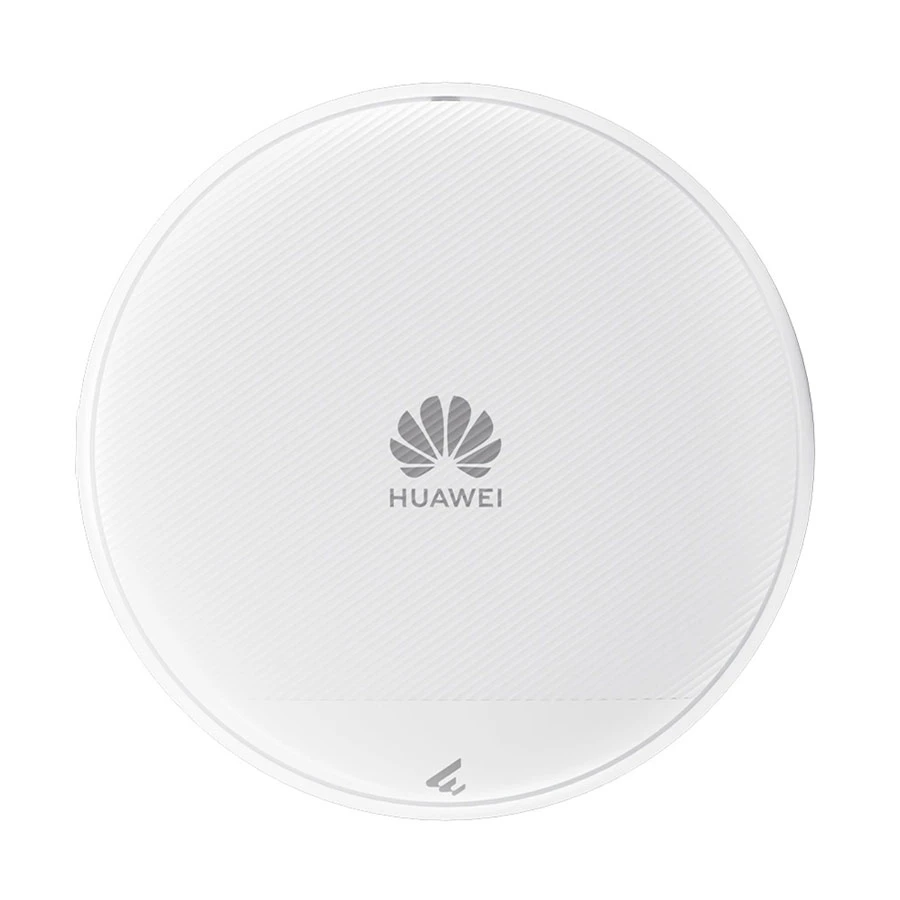

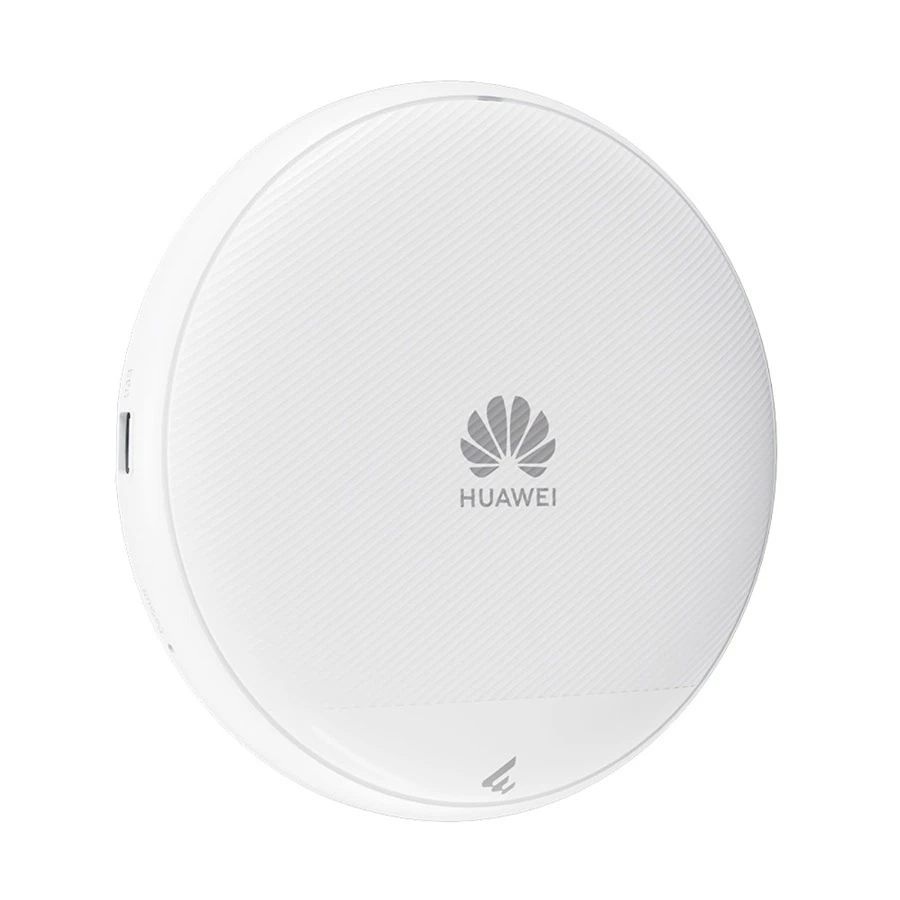

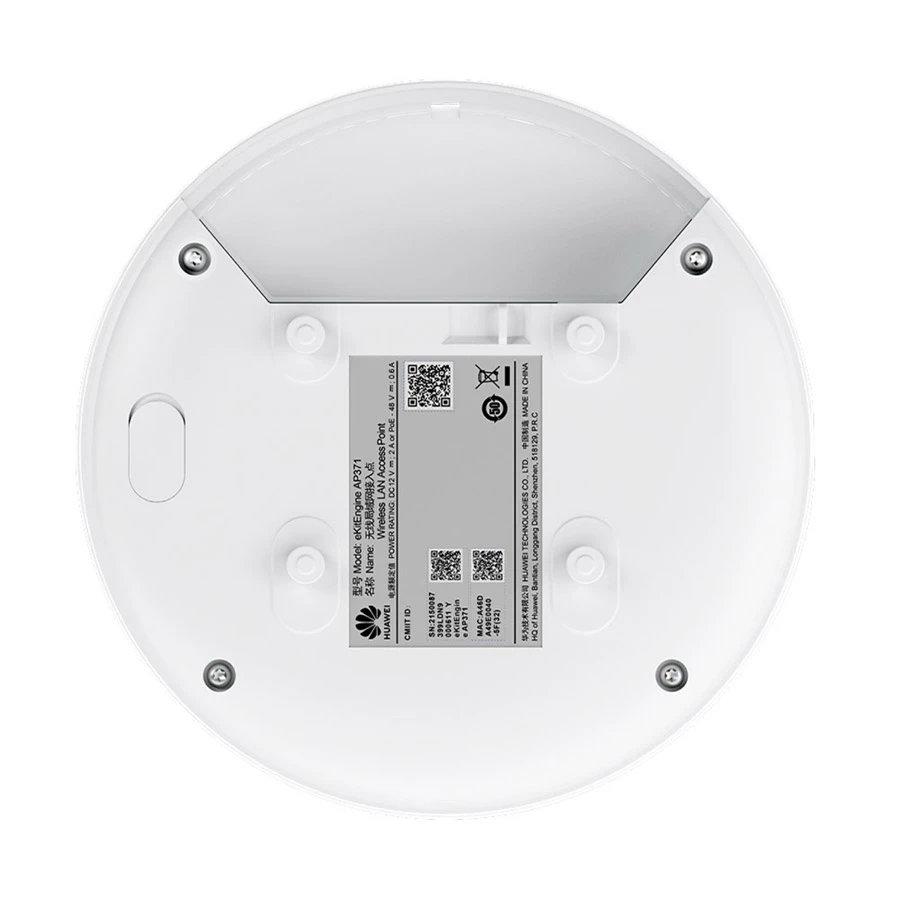

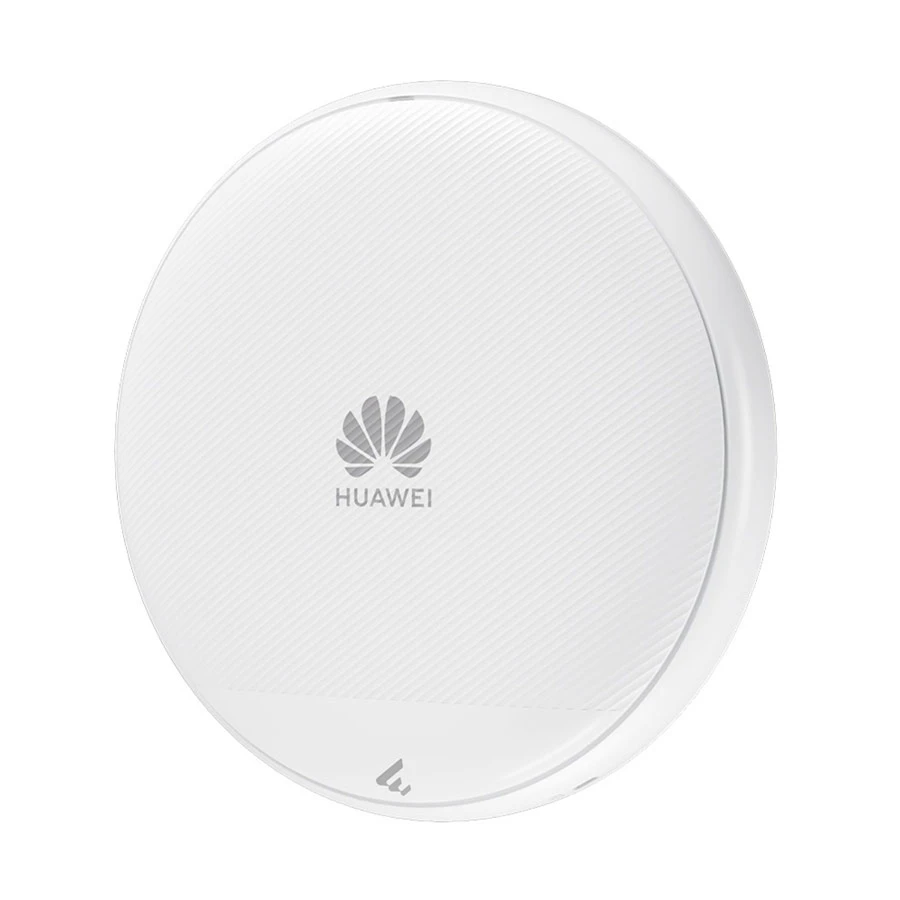

Huawei eKitEngine AP371 Wireless Dual Band Wi-Fi 7 Settled Access Point

Item: Huawei eKitEngine AP371 Wireless Dual Band Wi-Fi 7 Settled Access Point
Rating: 5
Author: Verified Buyer

Product Id: 29.02.487.50

Coming Soon

Quick Overview

Network Standards - IEEE 802.11a/b/g/n/ac/ax
Data Transfer Rates - Unmentioned
Band - Dual
Interface(s) - 1 x 100M/1GE/2.5GE electrical port, 1 x USB
Antenna (Type & Qty) - 2 x Internal
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Huawei

Model

Huawei eKitEngine AP371

Network Standards

IEEE 802.11a/b/g/n/ac/ax

Data Transfer Rates

Unmentioned

Band

Dual

Interface(s)

1 x 100M/1GE/2.5GE electrical port, 1 x USB

Number of WAN Port

Unmentioned

Number of LAN Port

Unmentioned

Bluetooth

Antenna (Type & Qty)

2 x Internal

MU-MIMO Support

Yes

Multi-User MIMO

Yes

Max. Power Consumption

13.6 W (excluding USB)

Mounting

Yes

Color

White

Dimensions

180x 35mm

Warranty

3 Year (Without Adapter)

General

Brand

Huawei

Model

Huawei eKitEngine AP371

Hardware

Network Standards

IEEE 802.11a/b/g/n/ac/ax

Data Transfer Rates

Unmentioned

Interface

Interface(s)

1 x 100M/1GE/2.5GE electrical port, 1 x USB

Number of WAN Port

Unmentioned

Number of LAN Port

Unmentioned

Wireless

Security Protocols

802.11i, Wi-Fi Protected Access (WPA), WPA2, WPA2-Enterprise, WPA2-PSK, WPA3, WAPI, 802.1X, Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP), WEP, Open, EAP Type(s)

Band

Dual

Frequency

2.4 GHz, 5 GHz

Bluetooth

Antenna (Type & Qty)

2 x Internal

Antenna Gain

2.4 GHz: 4 dBi, 5 GHz: 5 dBi

MU-MIMO Support

Yes

Multi-User MIMO

Yes

Management

SSID Numbers

Performance

OFDM/OFDMA

Yes

Technical Info

DHCP

Yes

Electrical

DC Input Power

DC: 12 V -/+ 10%

Max. Power Consumption

13.6 W (excluding USB)

Passive PoE Power Supply

PoE power supply: in compliance with 802.3at/af

Environmental

Operating Temperature

-10 Degree C to +50 Degree C

Operating Humidity

5% to 95% (non-condensing

Storing/Storage Temperature

-40 Degree C to +70 Degree C

Physical Description

LED Indicators

Indicates the power-on, startup, running, alarm, and fault states of the system.

Mounting

Yes

Dimensions

180x 35mm

Color

White

Warranty

3 Year (Without Adapter)

Additional Info

Others

Altitude -60 m to +5000 m (–196.85 ft to +16404.20 ft), Atmospheric pressure 53 kPa to 106 kPa.

Specialty

Fit AP Mode: Compliance with IEEE 802.11be and compatibility with IEEE 802.11a/b/g/n/ac/ax Maximum ratio combining (MRC) Space time block code (STBC) Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD) Beamforming Multi-user multiple-input multiple-output (MU-MIMO) Orthogonal frequency division multiple access (OFDMA) Compliance with 4096-quadrature amplitude modulation (QAM) and compatibility with 1024-QAM, 256-QAM, 64-QAM, 16-QAM, 8-QAM, quadrature phase shift keying (QPSK), and binary phase shift keying (BPSK) Low-density parity-check (LDPC) Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Short guard interval (GI) in 20 MHz, 40 MHz, 80 MHz, and 160 MHz modes Wi-Fi multimedia (WMM) for priority-based data processing and forwarding. Compliance with IEEE 802.3ab Auto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X) Compliance with IEEE 802.1Q SSID-based VLAN assignment Uplink VLAN trunks on Ethernet ports Management channel of the AP's uplink port in tagged and untagged mode DHCP client, obtaining IP addresses through DHCP Tunnel data forwarding and direct data forwarding STA isolation in the same VLAN IP access control lists (ACLs) Link Layer Discovery Protocol (LLDP) Service holding upon CAPWAP link disconnection in Fit AP mode. WMM power saving Priority mapping for upstream packets and flow-based mapping for downstream packets. Open system authentication WEP authentication/encryption using a 64-bit, 128-bit, 152-bit or 192-bit encryption key WPA2-PSK authentication and encryption (WPA2-Personal) WPA2-802.1X authentication and encryption (WPA2-Enterprise) WPA3-SAE authentication and encryption (WPA3-Personal) WPA3-802.1X authentication and encryption (WPA3-Enterprise) WPA-WPA2 hybrid authentication WPA2-WPA3 hybrid authentication WPA2-PPSK authentication and encryption in Fit AP mode WAPI authentication and encryption Wireless intrusion detection system (WIDS) and wireless intrusion prevention system (WIPS), including rogue device detection and containment, attack detection and dynamic blacklist, and STA/AP blacklist and whitelist 802.1X authentication, MAC address authentication, and Portal authentication DHCP snooping 802.11w Protected Management Frames (PMF). Unified management and maintenance on the AC in Fit AP mode Automatic onboarding, automatic configuration loading, and plug-and-play (PnP) in Fit AP mode Automatic batch upgrade in Fit AP mode STelnet using SSHv2 SFTP using SSHv2 System status alarm. Cloud-based Management Mode: Compliance with IEEE 802.11be and compatibility with IEEE 802.11a/b/g/n/ac/ax Maximum ratio combining (MRC) Space time block code (STBC). Compliance with IEEE 802.3ab Auto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X) Compliance with IEEE 802.1Q SSID-based VLAN assignment DHCP client, obtaining IP addresses through DHCP STA isolation in the same VLAN IPv4/IPv6 access control lists (ACLs) Unified authentication on the cloud management platform Network address translation (NAT). WMM power saving Priority mapping for upstream packets and flow-based mapping for downstream packets Queue mapping and scheduling User-based bandwidth limiting Adaptive bandwidth management (automatic bandwidth adjustment based on the user quantity and radio environment) to improve user experience Airtime scheduling. Open system authentication WPA2-PSK authentication and encryption (WPA2-Personal) WPA2-802.1X authentication and encryption (WPA2-Enterprise) WPA3-SAE authentication and encryption (WPA3-Personal) WPA3-802.1X authentication and encryption (WPA3-Enterprise) WPA-WPA2 hybrid authentication WPA2-WPA3 hybrid authentication WPA2-PPSK authentication and encryption. Unified management and maintenance on the cloud management platform Automatic AP onboarding and configuration loading, and plug-and-play (PnP) Batch upgrade STelnet using SSHv2 SFTP using SSHv2 Real-time configuration monitoring and fast fault locating using the NMS System status alarm Network Time Protocol (NTP).

Details

Features of Huawei eKitEngine AP371 Access Point In Bangladesh

Brand - Huawei, Model - Huawei eKitEngine AP371, Network Standards - IEEE 802.11a/b/g/n/ac/ax, Data Transfer Rates - Unmentioned, Security Protocols - 802.11i, Wi-Fi Protected Access (WPA), WPA2, WPA2-Enterprise, WPA2-PSK, WPA3, WAPI, 802.1X, Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP), WEP, Open, EAP Type(s), Band - Dual, Frequency - 2.4 GHz, 5 GHz, Interface(s) - 1 x 100M/1GE/2.5GE electrical port, Number of WAN Port - Unmentioned, Number of LAN Port - Unmentioned, Bluetooth - No, Antenna (Type & Qty) - 2 x Internal, Antenna Gain - 2.4 GHz: 4 dBi, 5 GHz: 5 dBi, OFDM/OFDMA - Yes, MU-MIMO Support - Yes, Multi-User MIMO - Yes, LED Indicators - Indicates the power-on, startup, running, alarm, and fault states of the system., DC Input Power - DC: 12 V -/+ 10%, Max. Power Consumption - 13.6 W (excluding USB), Operating Temperature - -10 Degree C to +50 Degree C, Operating Humidity - 5% to 95% (non-condensing, Storing/Storage Temperature - -40 Degree C to +70 Degree C, Passive PoE Power Supply - PoE power supply: in compliance with 802.3at/af, SSID Numbers - 10, DHCP - Yes, Mounting - Yes, Color - White, Dimensions - 180x 35mm, Warranty - 3 Year (Without Adapter), Additional: Warranty Info - 3 Year, Sales Rules - Rules are given on I-Note

What is the price of Huawei eKitEngine AP371 Access Point In Bangladesh?

The price of Huawei eKitEngine AP371 Access Point not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Huawei eKitEngine AP371 Access Point from our website or visit our showrooms nearby.
