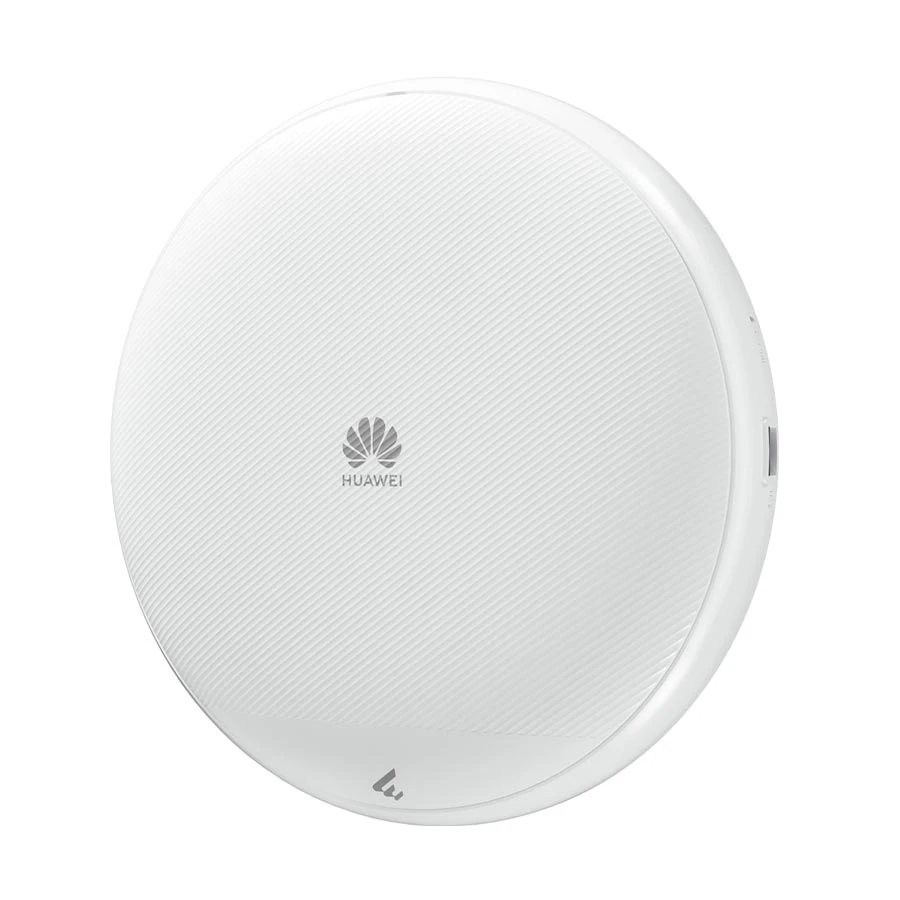

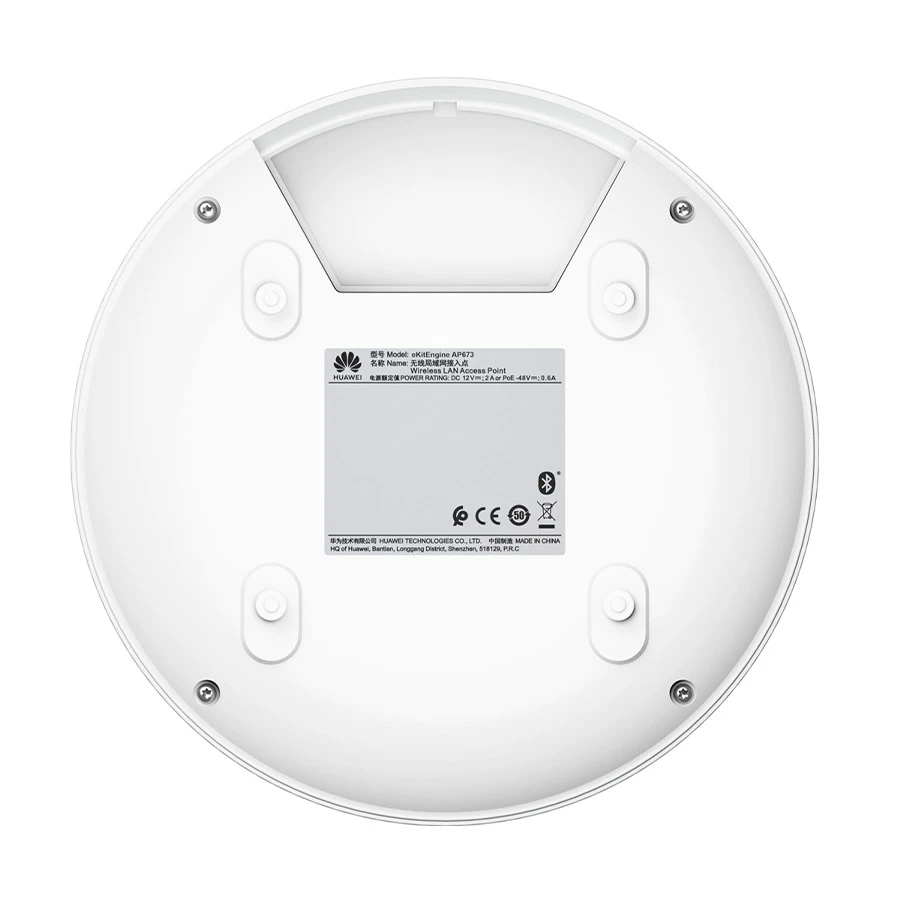

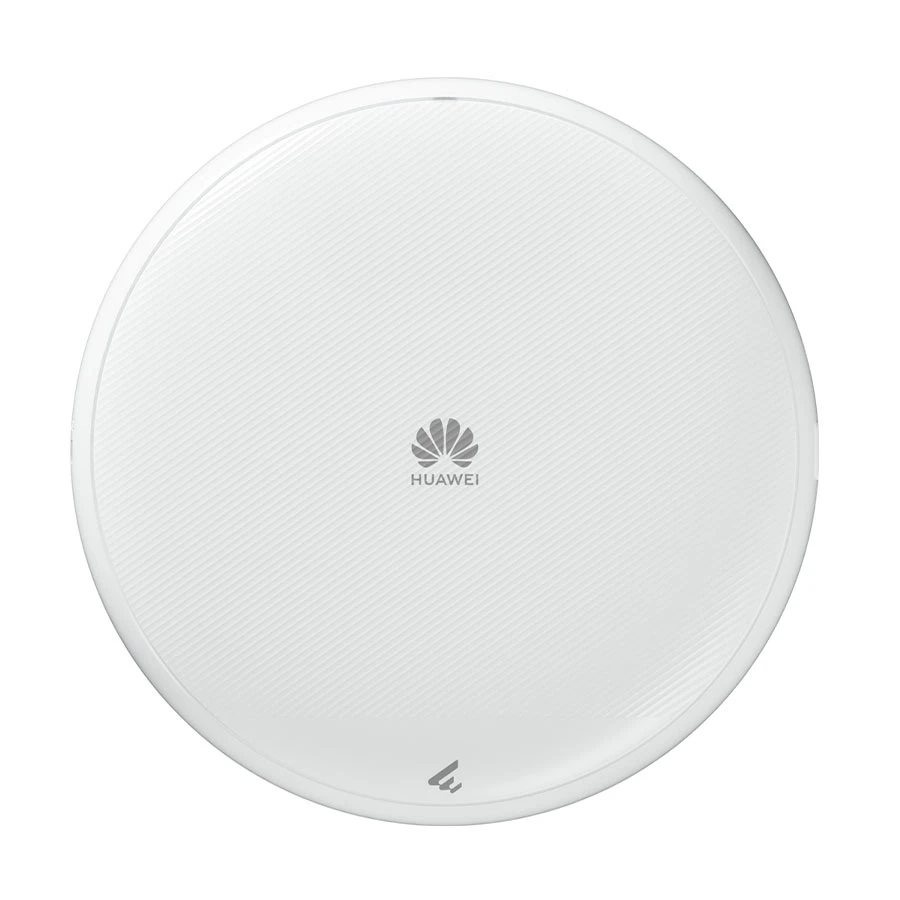

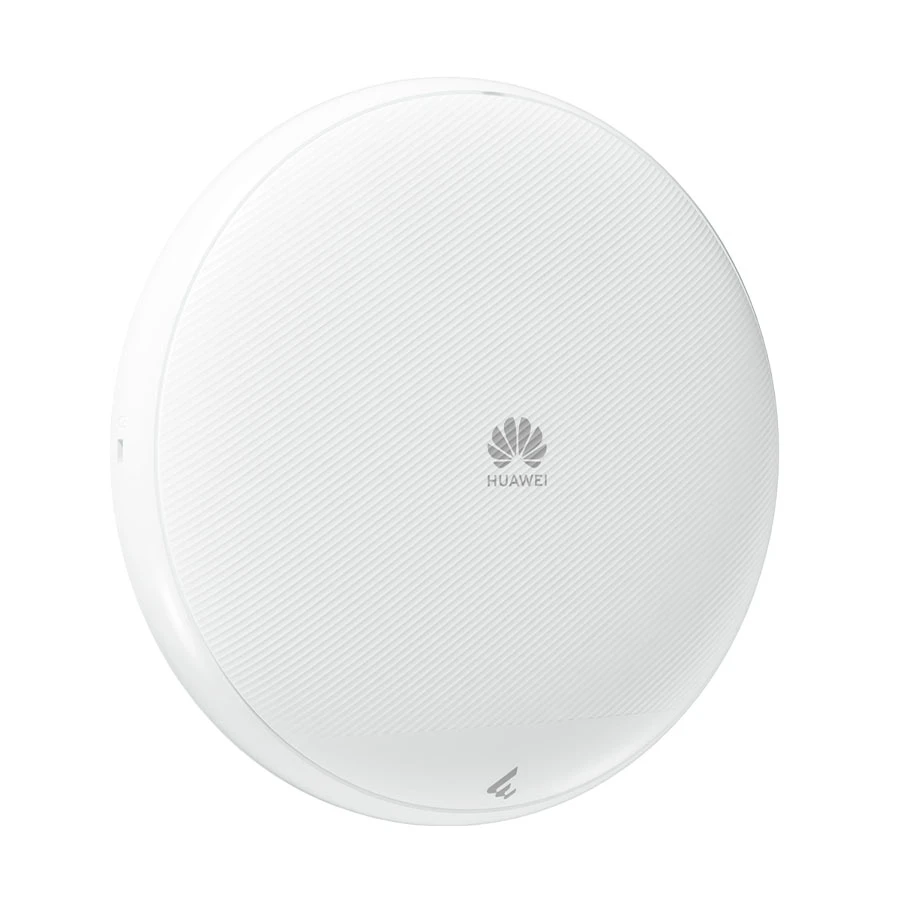

Huawei eKitEngine AP673 Wireless Tri Band Wi-Fi 7 Settled Access Point

Item: Huawei eKitEngine AP673 Wireless Tri Band Wi-Fi 7 Settled Access Point
Rating: 5
Author: Verified Buyer

Product Id: 29.02.487.49

Coming Soon

Quick Overview

Network Standards - IEEE 802.11a/b/g/n/ac/ax
Data Transfer Rates - 13660 Mbps
Band - Tri

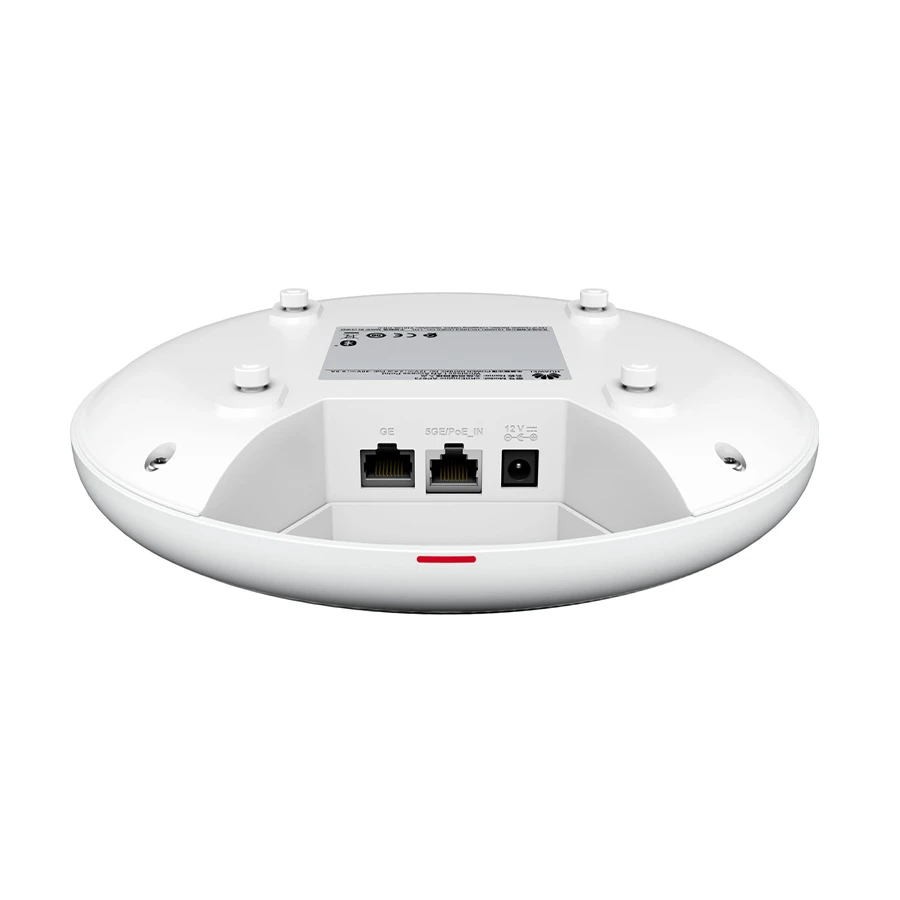

Interface(s) - 1 x 100M/GE/2.5GE/5GE electrical port, 1 x 10M/100M/GE electrical port, 1 x USB port
Antenna (Type & Qty) - 3 x Internal
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Huawei

Model

Huawei eKitEngine AP673

Network Standards

IEEE 802.11a/b/g/n/ac/ax

Data Transfer Rates

13660 Mbps

Band

Tri

Interface(s)

1 x 100M/GE/2.5GE/5GE electrical port, 1 x 10M/100M/GE electrical port, 1 x USB port

Number of WAN Port

Unmentioned

Number of LAN Port

Unmentioned

Bluetooth

Antenna (Type & Qty)

3 x Internal

MU-MIMO Support

Yes

Multi-User MIMO

Yes

Max. Power Consumption

21.1W (excluding USB)

Mounting

Unmentioned

Color

White

Dimensions

220 x 45mm

Warranty

3 Year (Without Adapter)

General

Brand

Huawei

Model

Huawei eKitEngine AP673

Hardware

Network Standards

IEEE 802.11a/b/g/n/ac/ax

Data Transfer Rates

13660 Mbps

Interface

Interface(s)

1 x 100M/GE/2.5GE/5GE electrical port, 1 x 10M/100M/GE electrical port, 1 x USB port

Number of WAN Port

Unmentioned

Number of LAN Port

Unmentioned

Wireless

Security Protocols

(WPA), WPA2, WPA2-Enterprise, WPA2-PSK, WPA3, WAPI, Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP), WEP, Open, 802.1X, EAP Type(s)

Band

Tri

Frequency

2.4 GHz, 5 GHz, 6 GHz

Bluetooth

Antenna (Type & Qty)

3 x Internal

Antenna Gain

2.4 GHz: 4 dBi, 5 GHz: 5 dBi, 6 GHz: 5 dBi

MU-MIMO Support

Yes

Multi-User MIMO

Yes

Management

SSID Numbers

Performance

OFDM/OFDMA

Yes

Technical Info

DHCP

Yes

Electrical

DC Input Power

DC: 12 V -/+10%

Max. Power Consumption

21.1W (excluding USB)

Passive PoE Power Supply

In compliance with IEEE 802.3at/af

Environmental

Operating Temperature

-10 Degree C to +50 Degree C

Operating Humidity

5% to 95% (non-condensing)

Storing/Storage Temperature

-40 Degree C to +70 Degree C

Storing/Storage Humidity

-40 Degree C to +70 Degree C

Physical Description

LED Indicators

Indicate the power-on, startup, running, alarm, and fault states of the system.

Mounting

Unmentioned

Dimensions

220 x 45mm

Color

White

Warranty

3 Year (Without Adapter)

Additional Info

Others

Altitude -60 m to +5000 m, Atmospheric pressure 53 kPa to 106 kPa, Built-in smart antennas, Maximum number of access STAs 1024.

Specialty

Fit AP Mode: Compliance with IEEE 802.11be and compatibility with IEEE 802.11a/b/g/n/ac/ax Maximum ratio combining (MRC) Space time block code (STBC) Cyclic delay diversity (CDD)/Cyclic shift diversity (CSD), Beamforming MU-MIMO OFDMA Compliance with 4096-QAM and compatibility with 1024-QAM/256-QAM/64-QAM/16-QAM/8- QAM/QPSK/BPSK Low-density parity-check (LDPC) Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Short guard interval (GI) in 20 MHz, 40 MHz, 80 MHz, and 160 MHz modes Wi-Fi Multimedia (WMM) for priority-based data processing and forwarding WLAN channel management and channel rate adjustment Automatic channel scanning and interference avoidance. Compliance with IEEE 802.3ab Auto-negotiation of the rate and duplex mode SSID-based VLAN assignment Management channel of the AP's uplink port in tagged or untagged mode DHCP client, obtaining IP addresses through DHCP Tunnel data forwarding and direct data forwarding Mesh backhaul IPv6 HotSpot2.0 STA isolation in the same VLAN Access control list (ACL) Link layer discovery protocol (LLDP) Uninterrupted service forwarding upon CAPWAP tunnel disconnection in Fit AP mode Unified authentication on the WAC in Fit AP mode Telemetry in Fit AP mode, quickly collecting AP status and application experience parameters. WMM power saving Priority mapping for uplink packets; flow-based mapping for downlink packets Queue mapping and scheduling User-based bandwidth limiting Adaptive bandwidth management (automatic bandwidth adjustment based on the user quantity and radio environment) for user experience improvement. Open system authentication WPA2-PSK authentication and encryption (WPA2-Personal) WPA2-802.1X authentication and encryption (WPA2-Enterprise) WPA3-SAE authentication and encryption (WPA3-Personal) WPA3-802.1X authentication and encryption (WPA3-Enterprise) WPA-WPA2/WPA2-WPA3 hybrid authentication WPA2-PPSK authentication and encryption in Fit AP mode Wireless intrusion detection system (WIDS) and wireless intrusion prevention system (WIPS) 802.1X authentication, MAC address authentication, Portal authentication, etc. DHCP snooping 802.11w Protected Management Frames (PMF) 802.11w Protected Management Frames (PMF) DTLS encryption Dynamic ARP inspection (DAI) IP Source Guard (IPSG). Unified management and maintenance on the WAC in Fit AP mode Automatic login, automatic configuration loading, and plug-and-play (PnP) in Fit AP mode Automatic batch upgrade in Fit AP mode STelnet using SSHv2 SFTP using SSHv2 Real-time configuration monitoring and fast fault locating using the network management system (NMS) System status alarm. Cloud Management Mode/FAT AP Mode: Compliance with IEEE 802.11be and compatibility with IEEE 802.11a/b/g/n/ac/ax Maximum ratio combining (MRC) Space time block code (STBC) Cyclic delay diversity (CDD)/Cyclic shift diversity (CSD) Beamforming MU-MIMO OFDMA Compliance with 4096-QAM and compatibility with 1024-QAM/256-QAM/64-QAM/16-QAM/8- QAM/QPSK/BPSK LDPC Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) 802.11 DFS Short GI in 20 MHz, 40 MHz, 80 MHz, 160MHz and 320 MHz modes. Compliance with IEEE 802.3ab Auto-negotiation of the rate and duplex mode SSID-based VLAN assignment DHCP client, obtaining IP addresses through DHCP STA isolation in the same VLAN ACL Unified authentication on the cloud management platform Mesh backhaul IPv6 HotSpot2.0. WMM power saving Priority mapping for uplink packets; flow-based mapping for downlink packets Queue mapping and scheduling User-based bandwidth limiting Adaptive bandwidth management (automatic bandwidth adjustment based on the user quantity and radio environment) for user experience improvement Airtime scheduling.

Details

Features of Huawei eKitEngine AP673 Access Point In Bangladesh

Brand - Huawei, Model - Huawei eKitEngine AP673, Network Standards - IEEE 802.11a/b/g/n/ac/ax, Data Transfer Rates - 13660 Mbps, Security Protocols - (WPA), WPA2, WPA2-Enterprise, WPA2-PSK, WPA3, WAPI, Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP), WEP, Open, 802.1X, EAP Type(s), Band - Tri, Frequency - 2.4 GHz, 5 GHz, 6 GHz, Interface(s) - 1 x 100M/GE/2.5GE/5GE electrical port, 1 x 10M/100M/GE electrical port, 1 x USB port, Number of WAN Port - Unmentioned, Number of LAN Port - Unmentioned, Bluetooth - No, Antenna (Type & Qty) - 3 x Internal, Antenna Gain - 2.4 GHz: 4 dBi, 5 GHz: 5 dBi, 6 GHz: 5 dBi, OFDM/OFDMA - Yes, MU-MIMO Support - Yes, Multi-User MIMO - Yes, LED Indicators - Indicate the power-on, startup, running, alarm, and fault states of the system., DC Input Power - DC: 12 V -/+10%, Max. Power Consumption - 21.1W (excluding USB), Operating Temperature - -10 Degree C to +50 Degree C, Operating Humidity - 5% to 95% (non-condensing), Storing/Storage Temperature - -40 Degree C to +70 Degree C, Storing/Storage Humidity - -40 Degree C to +70 Degree C, Passive PoE Power Supply - In compliance with IEEE 802.3at/af, SSID Numbers - 10, DHCP - Yes, Mounting - Unmentioned, Color - White, Dimensions - 220 x 45mm, Warranty - 3 Year (Without Adapter), Additional: Warranty Info - 3 Year, Sales Rules - Rules are given on I-Note

What is the price of Huawei eKitEngine AP673 Access Point In Bangladesh?

The price of Huawei eKitEngine AP673 Access Point not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Huawei eKitEngine AP673 Access Point from our website or visit our showrooms nearby.
