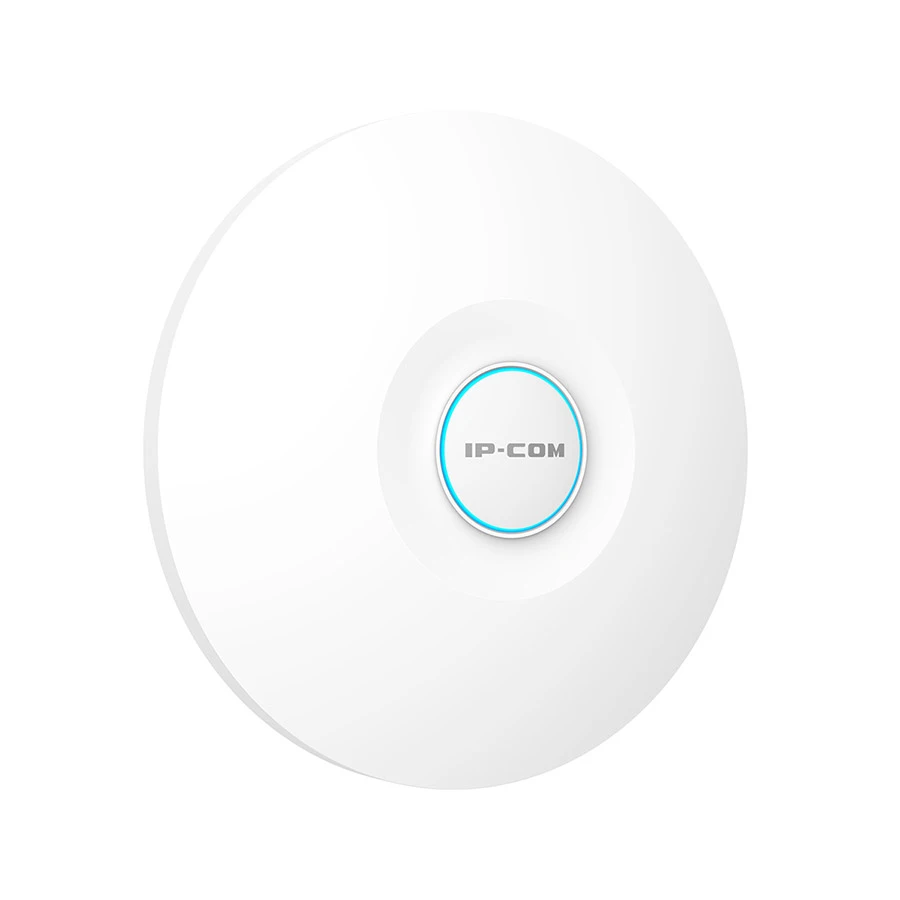

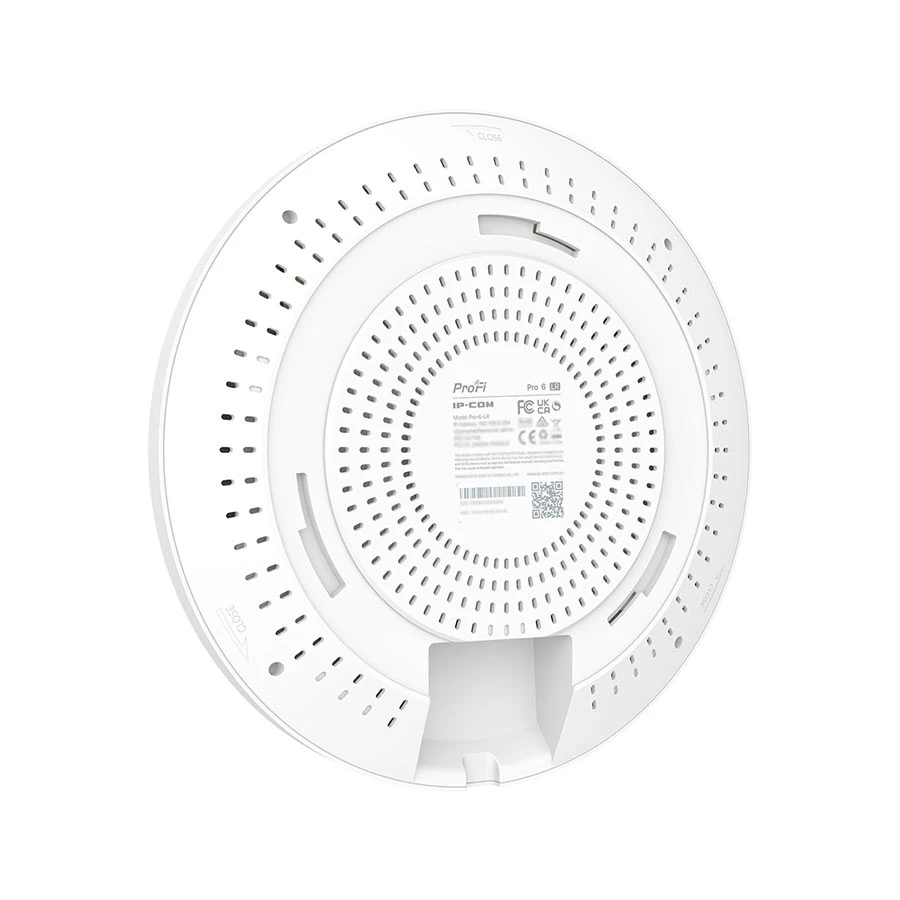

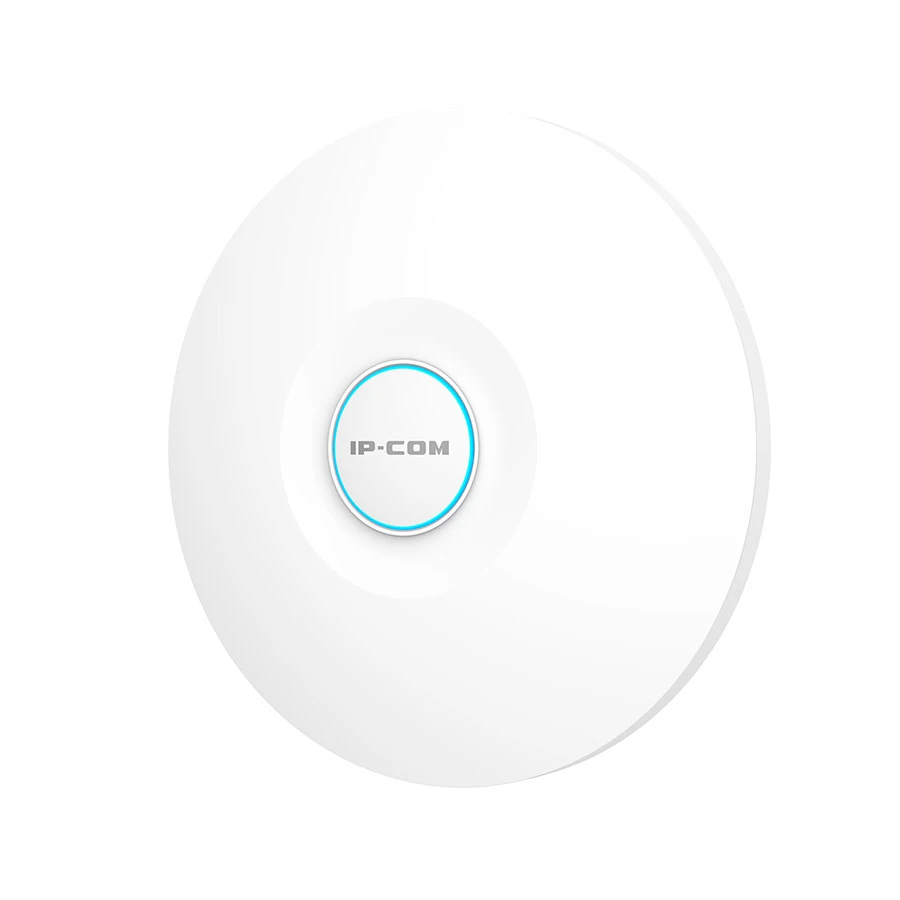

IP-Com Pro-6-LR 3000Mbps Dual-Band Long Range Access Point
Product Id: 29.02.947.03
Brand
IP-Com
Quick Overview
- Data Transfer Rates - 3000 Mbps
- Network Standards - IEEE 802.11a/b/g/n/ac/ax
- Antenna (Type & Qty) - 4 x Internal

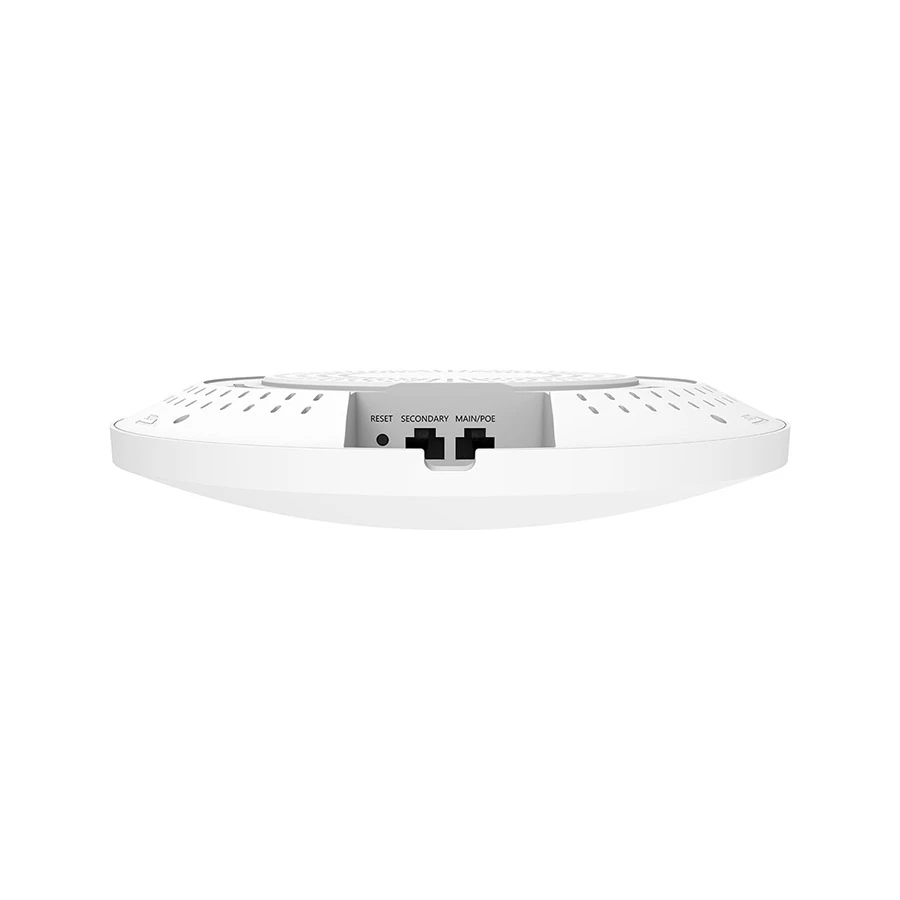

- Interface(s) - 1x 10/100/1000 Mbps Ethernet Port 1 x 10/100/1000 Mbps Ethernet Port (PoE)
- Band - Dual
General
Brand
IP-Com
Model
IP-Com Pro-6-LR
Hardware
Network Standards
IEEE 802.11a/b/g/n/ac/ax
Data Transfer Rates
3000 Mbps
LAN Network Standard
10/100/1000
Interface
Interface(s)
1x 10/100/1000 Mbps Ethernet Port 1 x 10/100/1000 Mbps Ethernet Port (PoE)
Number of WAN Port
No
Number of LAN Port
2
USB Sharing Support
No
Wireless
Security Protocols
WEP/WPA-PSK/ AES/TKIP WPA2-PSK/ AES/TKIP WPA3-ASE/ AES WPA/ WPA2
Band
Dual
Frequency
2.4 GHz-5 GHz
Bluetooth
No
Antenna (Type & Qty)
4 x Internal
Antenna Gain
4 dBi
Antenna Placement
Internal
MU-MIMO Support
Yes
Multi-User MIMO
Yes
Management
Throughput
1-574 Mbp/s, 2.4 GHz : 6-2402 Mbp/s,5 GHz
Max. Concurrent Clients
254
SSID Numbers
Up to 4 SSIDs
Operating Mode
AP
Electrical
Max. Power Consumption
15.74 W
Passive PoE Power Supply
IEEE 802.3at PoE
Environmental
Operating Temperature
-10 Degree C - 45 Degree C
Operating Humidity
(10 - 90%) RH, non-condensing
Storage Temperature
-30 Degree C - 70 Degree C
Storage Humidity
(10 - 90%) RH, non-condensing
Physical Description
Button
1 x Reset button
LED Indicators
RGB
Mounting
Yes
Mount Options
Ceiling /Wall Mounting
Dimensions
250.6 x 55 mm
Warranty
Warranty Details
1 year
Additional Info
Others
Concurrent clients:254, Channel width: 20 MHz/40 MHz/80 MHz/160 MHz. 802.11b RX sensitivity:-97 dBm 2.4 GHz 802.11n (MCS7) RX sensitivity: -75 dBm 5 GHz 802.11a RX sensitivity: -95 dBm 5 GHz 802.11n (MCS7) RX sensitivity:-75 dBm
Specialty
Pro-6-LR is designed based on the new Wi-Fi 6 technology. It realizes a bandwidth of 160 MHz and a 5 GHz rate as high as 2.4 Gbps, a rate three times higher than that of ordinary Wi-Fi 5 APs and two times that of ordinary Wi-Fi 6 APs. The application of such new technologies as OFDMA, spatial multiplexing, and MU-MIMO drives the network capacity of a single Pro-6-LR to 4 times higher. The high-power RF design helps maintain the quality of Wi-Fi signal even over a long distance, so that wireless clients and AP can work under the high-performance Wi-Fi 6 mode. Pro-6-LR is a perfect choice for such locations as businesses and hotels to deploy high-performance Wi-Fi networks. ProFi Controller makes it easy to manage and monitor the whole ProFi series in a real-time manner and cloud services enable a remote and secure access free from the restrictions of device location.More than 20% wider Wi-Fi coverage With the long OFDM symbol transmission mechanism and 2 MHz narrowband transmission, the 802.11ax protocol significantly reduces packet loss rate and noise interference, and improves the receiving sensitivity of clients. In addition, Pro-6-LR adopts a high-specification RF amplifying circuit, greatly widening the Wi-Fi coverage.Higher capacity Supporting OFDMA, SR, and MU-MIMO, 802.11ax greatly improves the system capacity compared with the last generation 802.11ac. With the TWT technology, AP can uniformly schedule the wakening and sleep of clients, significantly reducing client conflicts and unnecessary wakeups, and therefore is suitable for high-density crowd scenarios where large numbers of clients are deployed.Higher security The Wi-Fi 6 AP supports the new-generation WPA3 Wi-Fi encryption protocol. Under the WPA3 encryption protocol, even the simple password cannot be cracked, greatly enhancing the security of Wi-Fi networks.Intelligent roaming protocol. Standard PoE supported, easy installation and deployment. Centralized management
Country Of Origin
China
Made in/ Assemble
China
