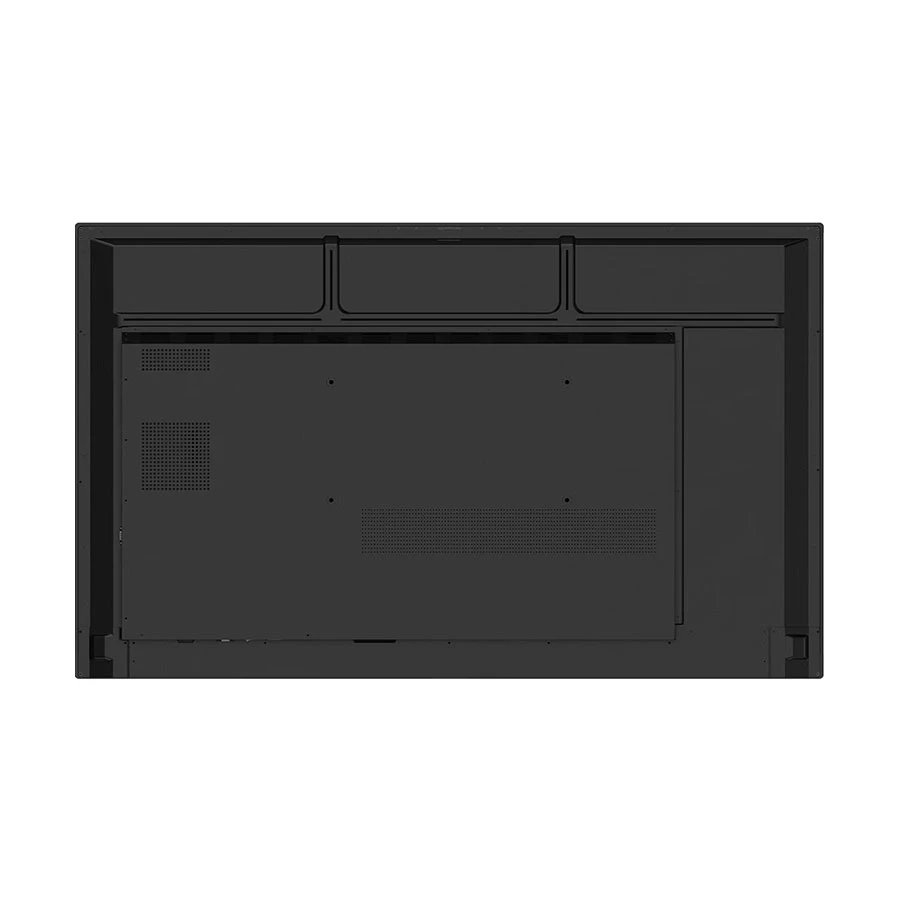

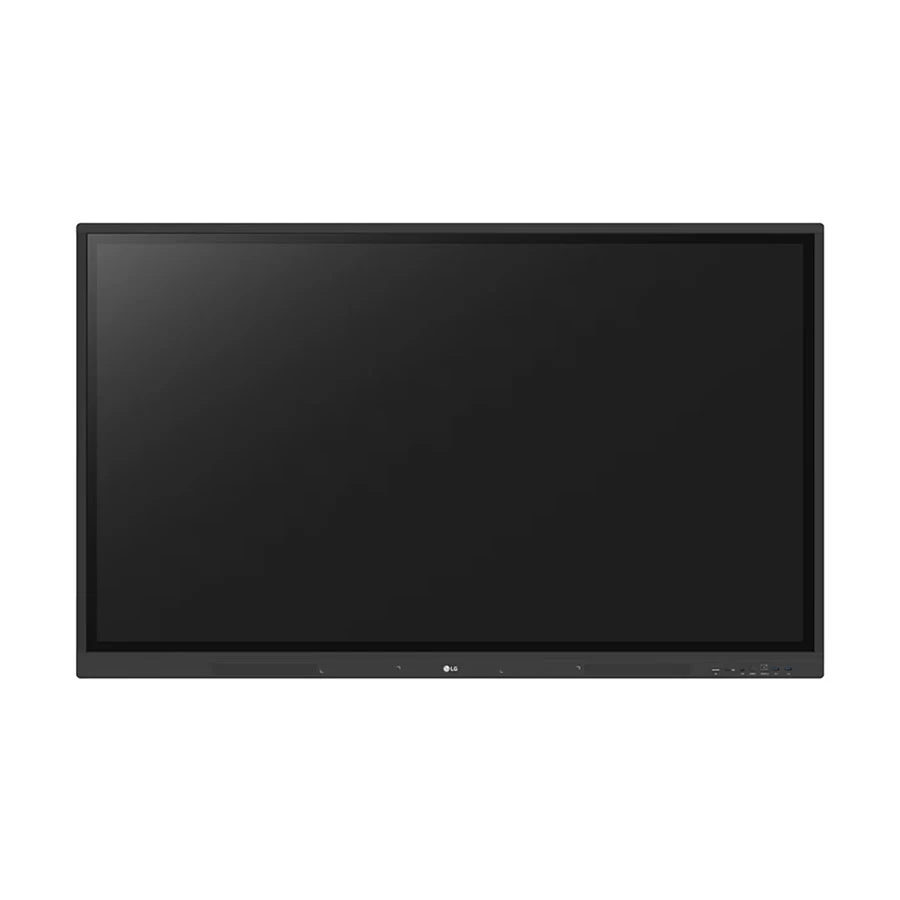

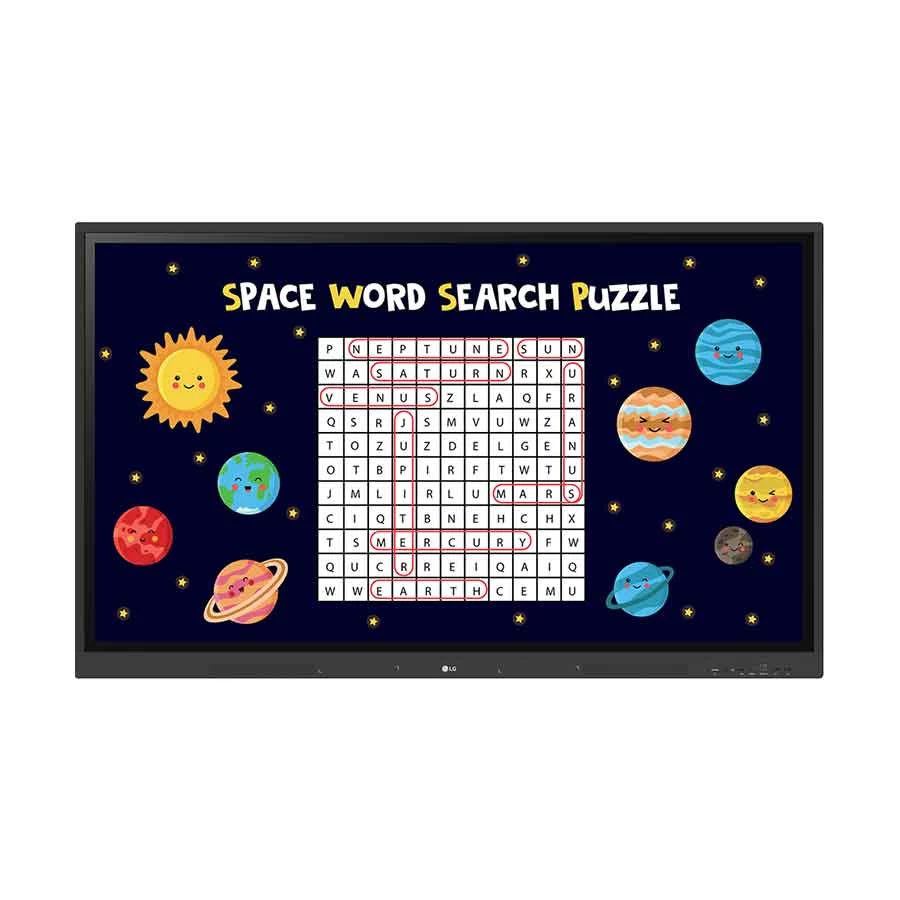

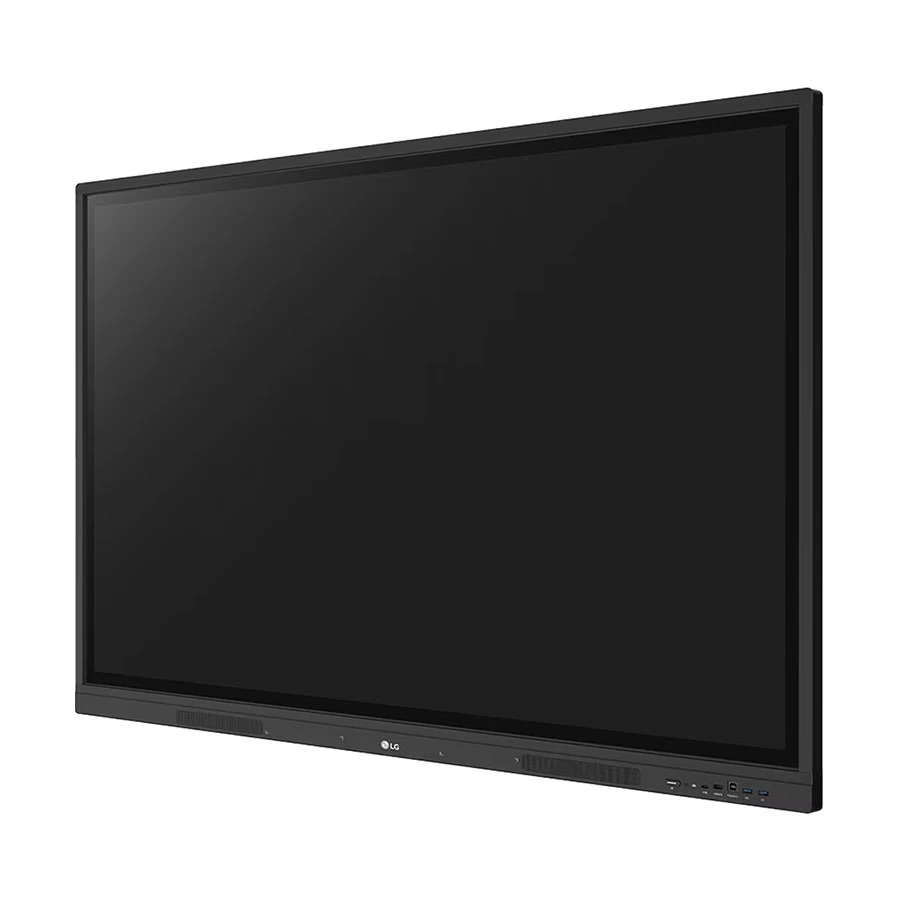

LG 86TR3DK-BG 86 Inch 4K UHD Touch Interactive Flat Panel Display (Android 11)
4 x USB 3.0 Type A, 1 x USB 2.0 Type A, 1 x USB Type C (USB-PD, DP-Alt)
Lan Port
1 x RJ45 (LAN) Input, 1 x RJ45 (LAN) Output
OPS Included
No
Slot
OPS Slot, WiFi Slot
OPS Slot
1
Embedded OS
Android 11.0
Wall Mounting
800 x 600mm
Body Color
Black
Dimensions
1957 x 1,160 x 100mm
Weight
58.6 kg (Head)
Accessories In The Box
Power Cord (3 M x 1), USB Cable (Type A-Type B) 5 M x 1, HDMI Cable (3 M x 1), Writing Pen x 2 Pcs, User Manual, QSG, Carton Box, Remote Controller, Wi-Fi Module
Warranty
3 year
General
Brand
LG
Model
LG 86TR3DK-BG
Technology
4K UHD Interactive Flat Panel
Display
Display Size
86 Inch
Resolution
3840 x 2160
Anti-Glare
Yes
Panel Type
IPS
Aspect Ratio
16:9
Display Orientation
Landscape
Brightness (cd/m2)
440cd/m2
Colors
1.07 Billion
Light Life
50,000 Hours
Color Gamut
NTSC 68%
Refresh Rate (Hz)
60Hz
Contrast Ratio
1,200 : 1
Response Time (ms)
8ms
Viewing Angle.
178 Degree (H & V)
Screen Share
Yes
Surface
Surface
28% Haze
Number of Touch
40 Point
Touch Interface
2 x Touch USB
Hardware
Processor
Quad Core A55
RAM
4GB
Storage (MB/GB/TB)
32GB
GPU
Mali G52MP2
Slot
OPS Slot, WiFi Slot
Technical Info
Camera (Built-in)
No
Mechanical
Bezel Color: Black. Handle: Yes. VESA Standard Mount Interface: 800 x 600 mm.
Connectivity
Control
Remote Control
Input Ports
3 x HDMI, 1 x VGA, 1 x Audio In, 1 x RS-232C In, 1 x RJ45 (LAN), 4 x USB 3.0 Type A, 1 x USB 2.0 Type A, 1 x USB Type C (USB-PD, DP-Alt).
Output Ports
1 x HDMI Out, 1 x Audio Out, 1 x Optical SPDIF, 2 x Touch USB, 1 x RJ45 (LAN)
VGA Input
1
HDMI Input
3
USB Port
4 x USB 3.0 Type A, 1 x USB 2.0 Type A, 1 x USB Type C (USB-PD, DP-Alt)
Lan Port
1 x RJ45 (LAN) Input, 1 x RJ45 (LAN) Output
OPS Included
No
OPS Slot
1
SPDIF
1
Audio
Speaker (Built-in)
Yes
Speaker Details
2 x 15W
Microphone (Built-in)
No
Audio In
1
Audio Out
1
Electrical
Power (AC) Input
100-240 V, 50/60 Hz, 5.5 A
Approx. Power Consumption
580W
Environmental
Operating Temperature
0 to 40 Degree C
Operating Humidity
10% to 90% RH
Certifications
Safety - CB / NRTL, EMC - FCC Class ``A`` / CE / KC, ErP / Energy Star.
Physical Description
Wall Mounting
800 x 600mm
Body Color
Black
Dimensions
1957 x 1,160 x 100mm
Weight
58.6 kg (Head)
Accessories In The Box
Power Cord (3 M x 1), USB Cable (Type A-Type B) 5 M x 1, HDMI Cable (3 M x 1), Writing Pen x 2 Pcs, User Manual, QSG, Carton Box, Remote Controller, Wi-Fi Module
Software
Embedded OS
Android 11.0
OS Supported
Windows 7 / 8 / 10 / Linux / Mac / Android (Supports one point touch on Windows XP / Linux / Mac)
Warranty
Warranty
3 year
Additional Info
Others
Back Light Type - Direct, Refresh Rate - 60 Hz, Operation Hours (Hours / Days) - 16 / 7, Touch - 2 mm, Response Time- <=5 ms, Accuracy - -+1 mm, Interface - USB 2.0, Protection Glass Thickness - 3 T (Anti-Glare), Protection Glass Transmission - 88%, Wi-Fi - 802.11a/b/g/n/ac/ax (Wi-Fi 6), LAN - Gigabit LAN, Bluetooth - Bluetooth 5.0.
