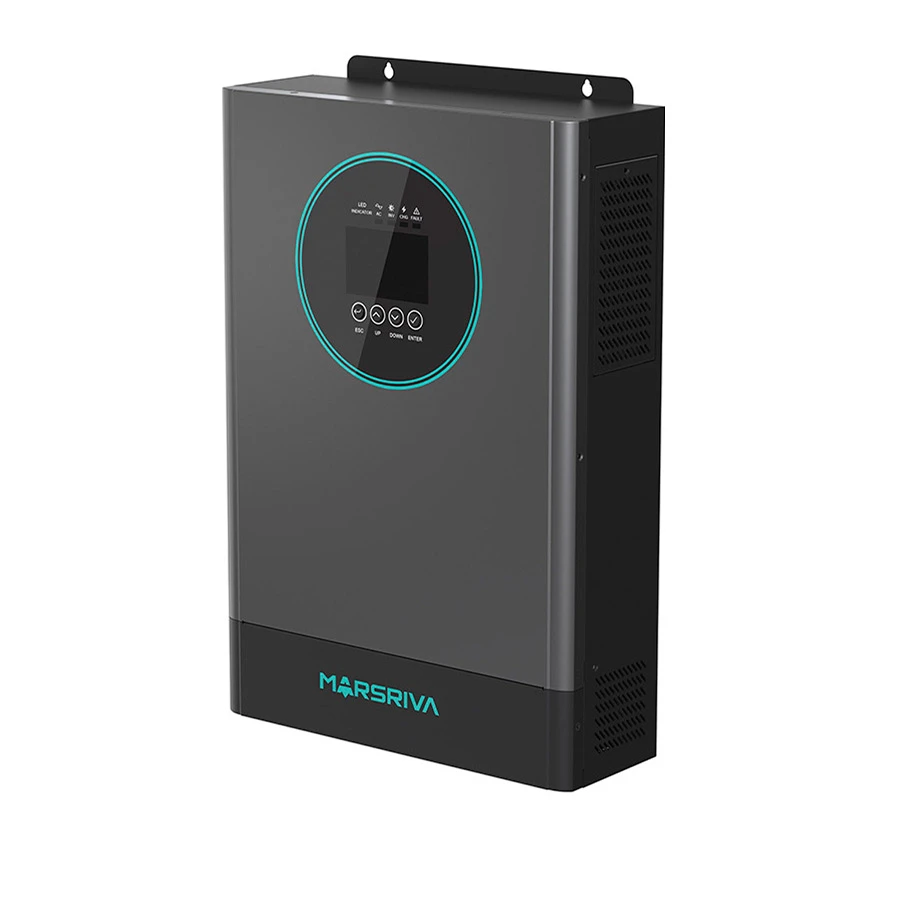

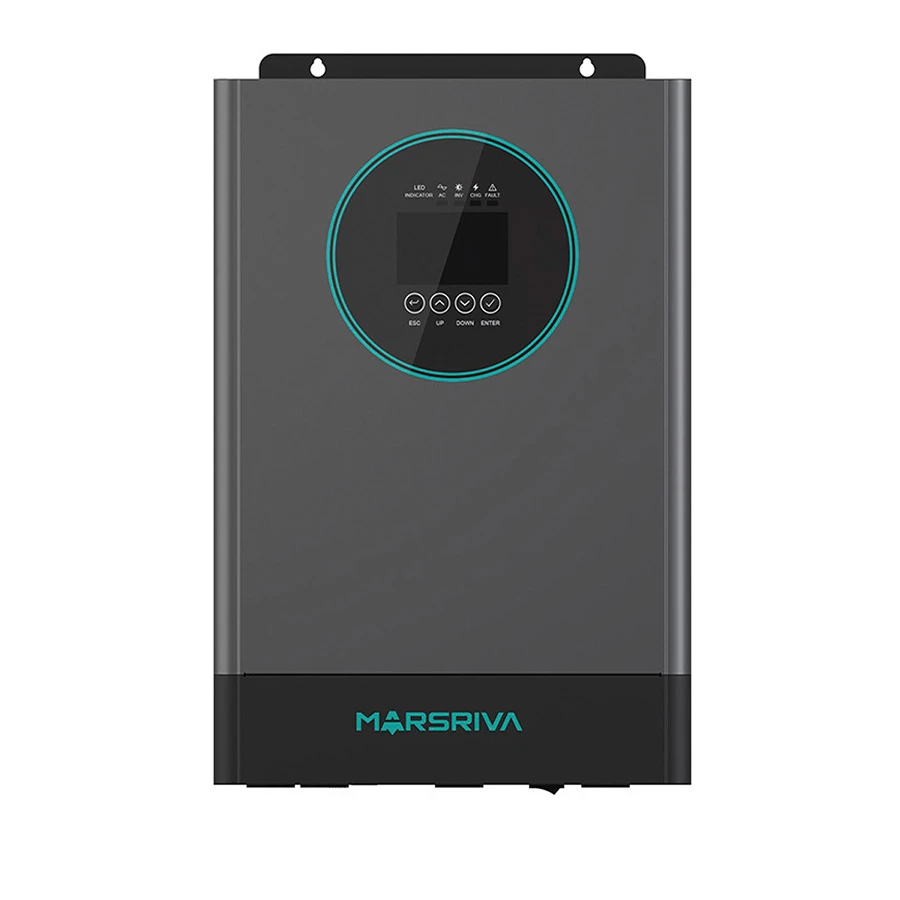

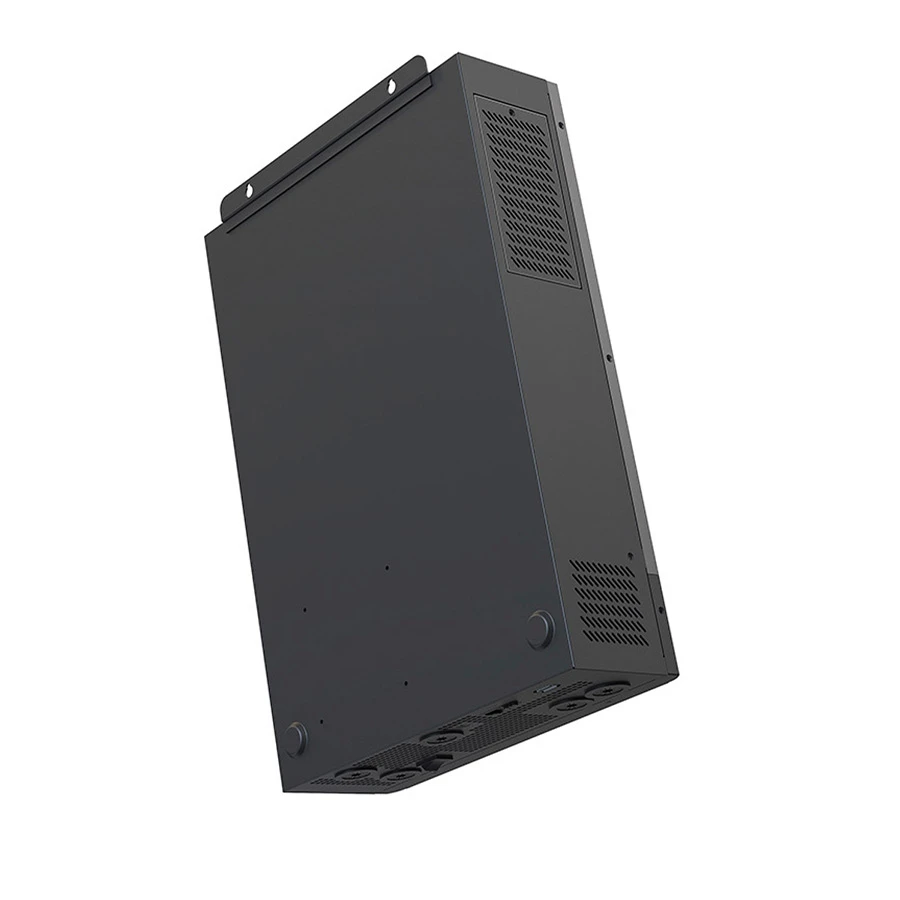

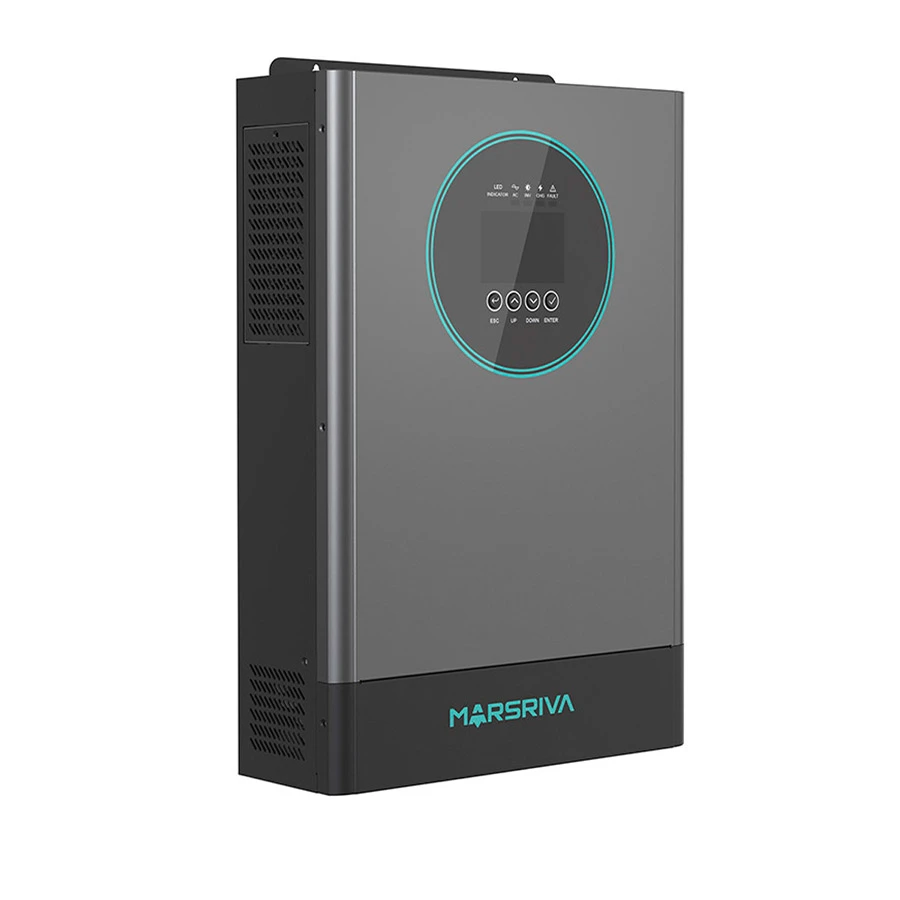

Marsriva MR-SPF3.6K-LP1-TL20E 3.6kW Hybrid Solar Inverter

Item: Marsriva MR-SPF3.6K-LP1-TL20E 3.6kW Hybrid Solar Inverter
Rating: 5
Author: Verified Buyer

Product Id: 48.16.874.45

Coming Soon

Quick Overview

Rated Power - 3600W
Surge Power - 2x Rated Power
Transfer Rate - 10ms
Battery Type - Lead-acid / Lithium / User-defined
Solar Charger Type - MPPT
Max. Solar Charging Current - 100A
Max. AC Charging Current - 100A
Max. Hybrid Charging Current - 100A
Color - Black & Grey

Payment Method Shipping & Charge Order Procedure

General

Brand

MARSRIVA

Model

Marsriva MR-SPF3.6K-LP1-TL20E

Type

Hybrid Solar Inverter

Product Specification

Inverter Type

Inverter

Phase

Single Phase

Waveform

Pure Sine Wave

Transfer Rate

10ms

Interface(s)

BMS(485/CAN), Dry-contact, WiFi Module

IP Rating

IP20

Power

Rated Power

3600W

Power Factor

Input Voltage

208 / 220 / 230 / 240VAC

Input Frequency

50 / 60Hz +-10Hz (Auto sensing)

Output Voltage

208 / 220 / 230 / 240VAC +- 5%

Output Frequency

50 / 60Hz +- 0.1% (Batt. Mode)

Surge Power

2x Rated Power

Efficiency

92%

Battery Type

Lead-acid / Lithium / User-defined

Nominal Battery Voltage

24VDC

Operating Temperature

-10 Degree C to 50 Degree C

Storing/Storage Temperature

-15 Degree C to 60 Degree C

Operating Humidity

5% to 95% Relative Humidity (Non-condensing)

AC & Solar Charging

Solar Charger Type

MPPT

Max. PV Input Power

5000W

Max. PV Open Circuit Voltage (Voc)

500VDC

Max. Solar Charging Current

100A

Max. AC Charging Current

100A

Max. Hybrid Charging Current

100A

Physical Description

Dimensions

284 x 420 x 104mm

Weight

6.4Kg

Color

Black & Grey

Warranty

2 year

Additional Info

Feature

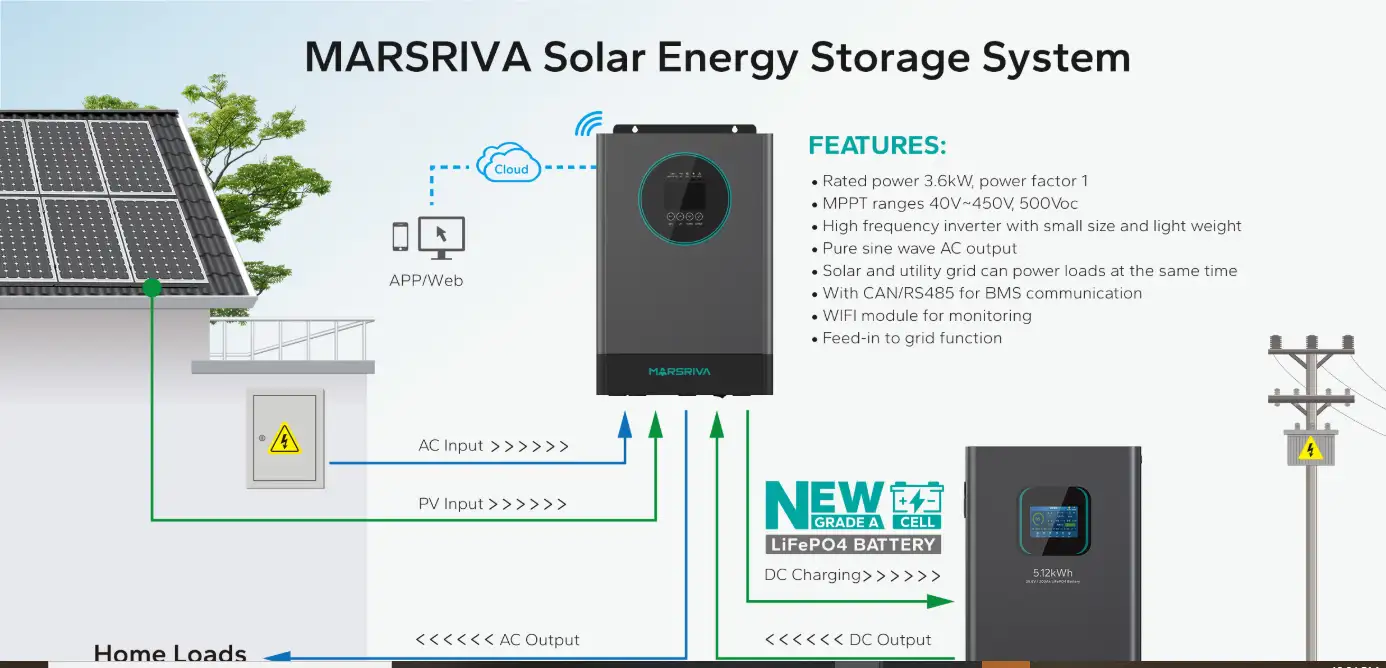

Single Phase - IP20 - High Frequency, Rated power 3.6kW, power factor 1, MPPT ranges 40V~450V, 500Voc, High frequency inverter with small size and light weight, Pure sine wave AC output, Solar and utility grid can power loads at the same time, With CAN/RS485 for BMS communication, WiFi module for monitoring, Feed-in to grid function

Others

Input Voltage Range: 170 - 264VAC (UPS Mode); 90 - 280VAC (APP/GEN Mode), Output Power: Rated 3.6kW, Efficiency: Max. 92% (Batt. Mode), Transfer Time: 10ms (UPS/APP Mode); 20ms (GEN Mode), Battery Voltage Range: 20VDC-30.5VDC, Max. PV Input Current: 18A, MPPT Voltage Range: 40 - 450VDC (Min. 60VDC without battery connected)

Specialty

Hybrid Solar Inverter 3.6KW, Single Phase - High Frequency - IP20, External Wi-Fi Module Supported, Built-in MPPT, Support Lithium Battery, Pure Sine Wave, Unlimited, and Ultra-Smart Power, MARSRIVA Solar Energy Storage System is an intelligent whole-house energy system for extended outages. the system adapts to diverse power backup needs, ensuring you never sacrifice living convenience, (Day-Time Charging, Night-Time Discharging), Pure sine wave output is as stable as mains power, The waveform converted by the pure sine wave inverter is the same as the pure sine wave of the mains, It has strong compatibility and is suitable for most household appliances, Fridge, Washing Machine, TV, Air Conditioner, Microwave, Coffee Maker, Laptop, Lighting

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Marsriva MR-SPF3.6K-LP1-TL20E Inverter In Bangladesh

What is the price of Marsriva MR-SPF3.6K-LP1-TL20E Inverter In Bangladesh?

The price of Marsriva MR-SPF3.6K-LP1-TL20E Inverter not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Marsriva MR-SPF3.6K-LP1-TL20E Inverter from our website or visit our showrooms nearby.
