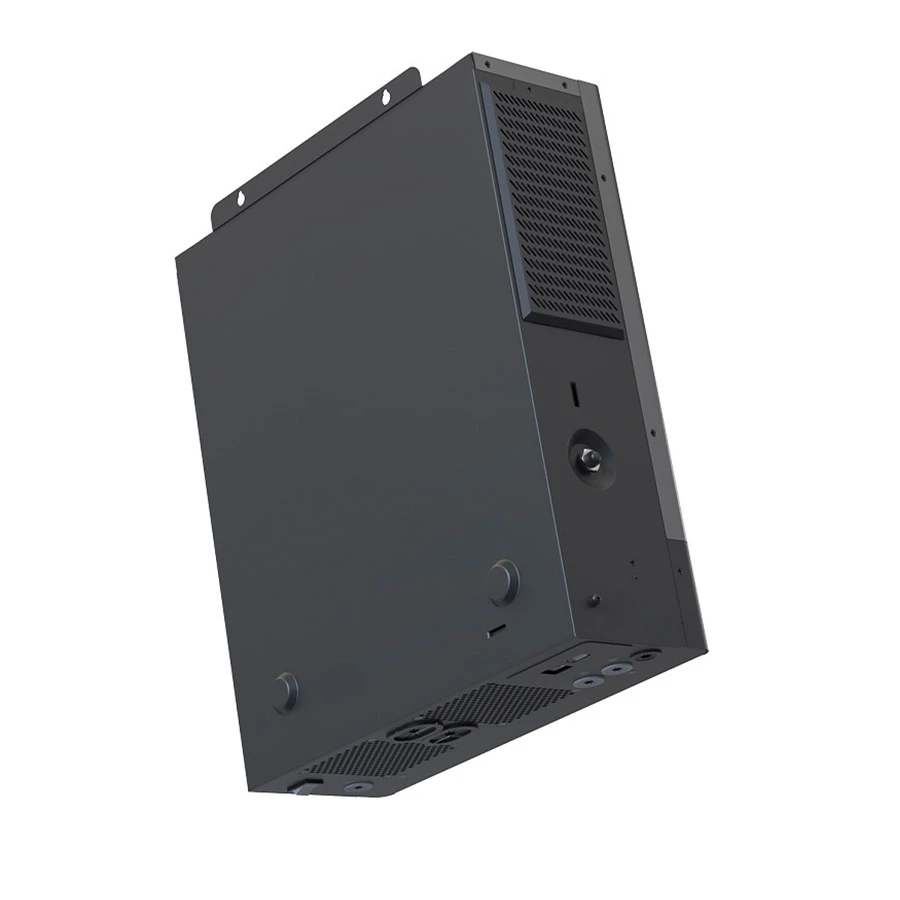

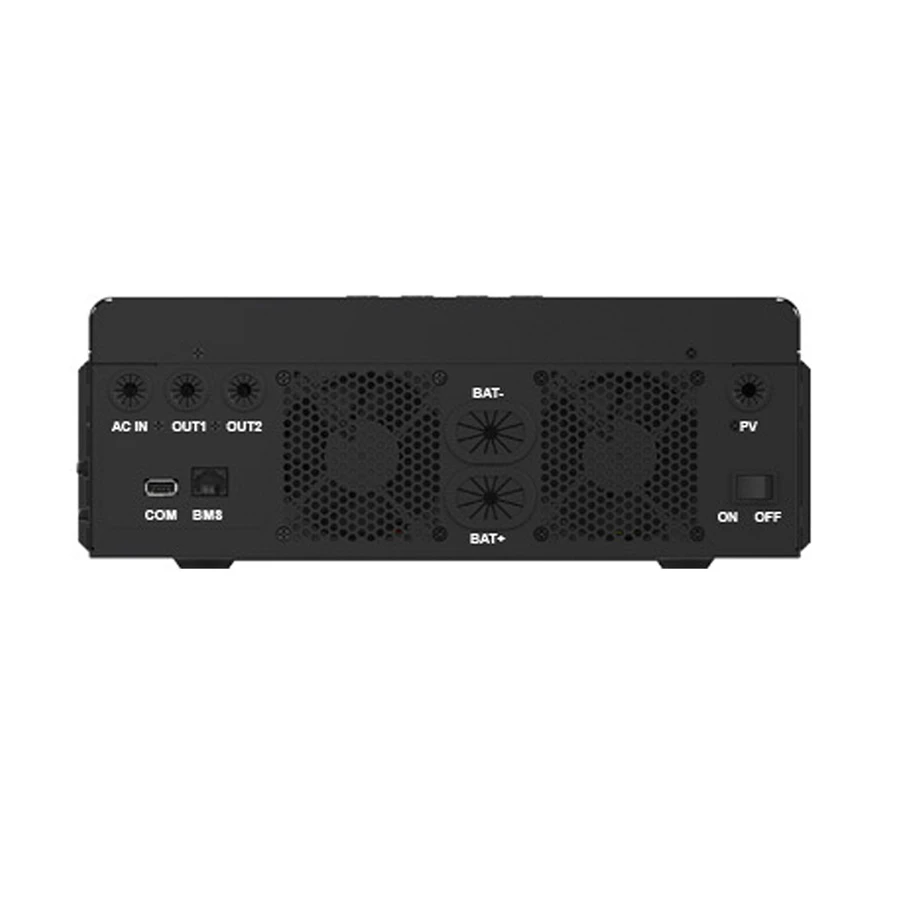

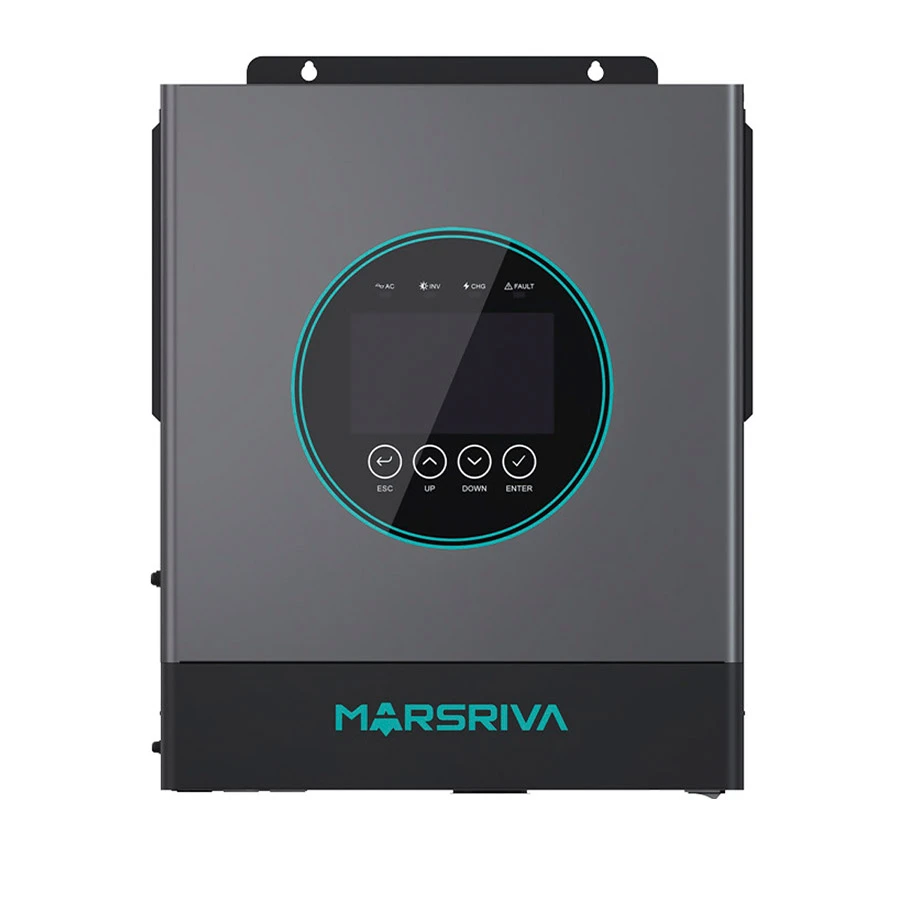

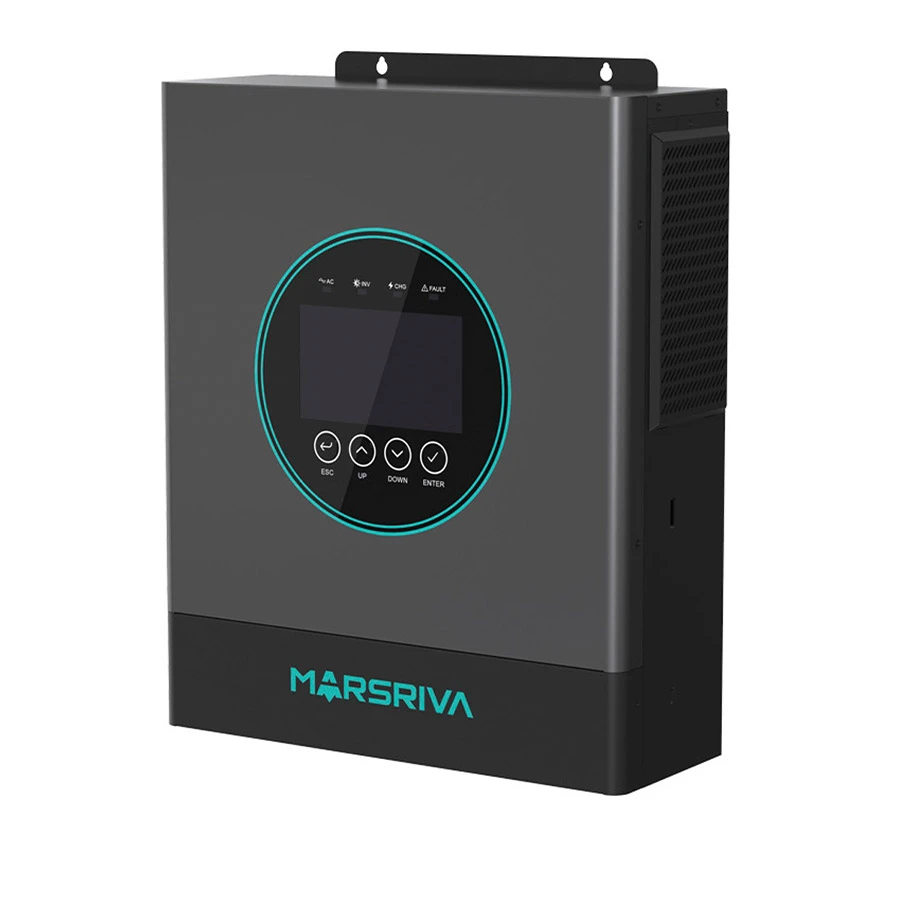

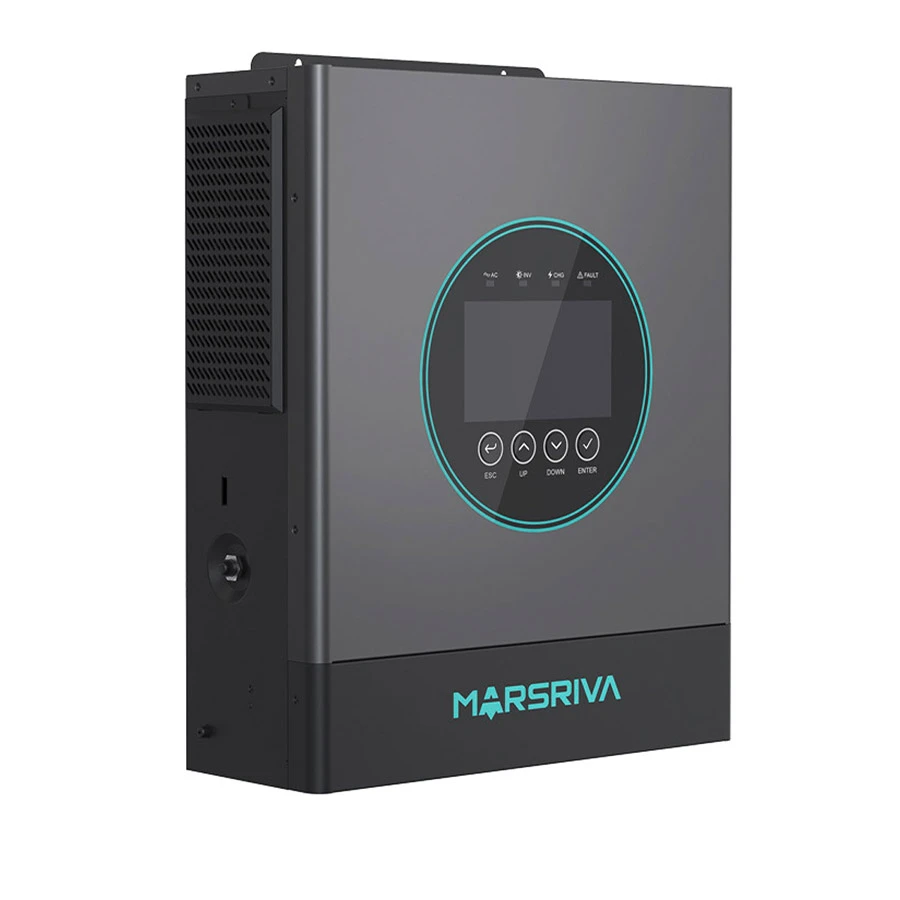

Marsriva MR-SPF6.5K-LP1-TL20E 6.5kW Hybrid Solar Inverter

Item: Marsriva MR-SPF6.5K-LP1-TL20E 6.5kW Hybrid Solar Inverter
Rating: 5
Author: Verified Buyer

Product Id: 48.16.874.46

Coming Soon

Quick Overview

Rated Power - 6500W
Surge Power - 2x Rated Power
Transfer Rate - 10ms
Battery Type - Lead-acid / Lithium / User-defined
Solar Charger Type - MPPT
Max. Solar Charging Current - 120A
Max. AC Charging Current - 120A
Max. Hybrid Charging Current - 120A
Color - Black & Grey

Payment Method Shipping & Charge Order Procedure

General

Brand

MARSRIVA

Model

Marsriva MR-SPF6.5K-LP1-TL20E

Type

Hybrid Solar Inverter

Product Specification

Inverter Type

Inverter

Phase

Single Phase

Waveform

Pure Sine Wave

Transfer Rate

10ms

Interface(s)

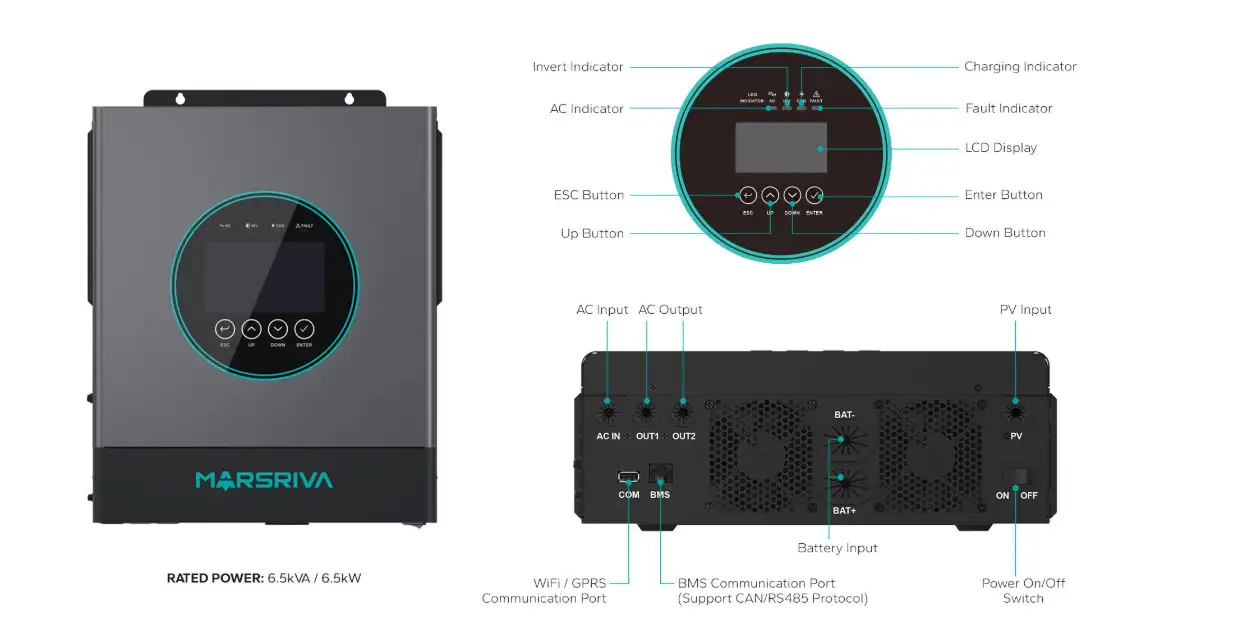

BMS(485/CAN), WiFi Module

IP Rating

IP20

Power

Rated Power

6500W

Power Factor

Input Voltage

208 / 220 / 230 / 240VAC

Input Frequency

50 / 60Hz +-10Hz (Auto sensing)

Output Voltage

208 / 220 / 230 / 240VAC +- 5%

Output Frequency

50 / 60Hz +- 0.1% (Batt. Mode)

Surge Power

2x Rated Power

Efficiency

94%

Battery Type

Lead-acid / Lithium / User-defined

Nominal Battery Voltage

48VDC

Operating Temperature

-10 Degree C to 50 Degree C

Storing/Storage Temperature

-15 Degree C to 60 Degree C

Operating Humidity

5% to 95% Relative Humidity (Non-condensing)

AC & Solar Charging

Solar Charger Type

MPPT

Max. PV Input Power

9000W

Max. PV Open Circuit Voltage (Voc)

500VDC

Max. Solar Charging Current

120A

Max. AC Charging Current

120A

Max. Hybrid Charging Current

120A

Physical Description

Dimensions

336 x 410 x 110

Weight

10Kg

Color

Black & Grey

Warranty

2 year

Additional Info

Feature

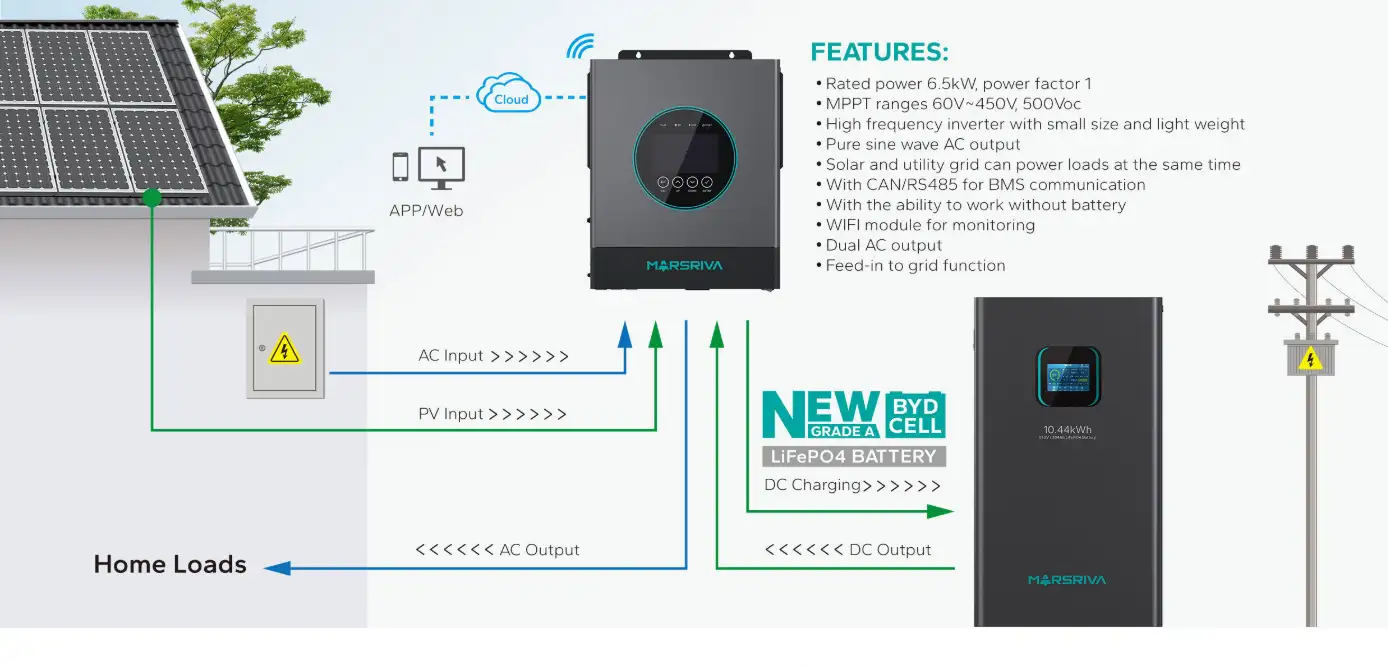

Single Phase - IP20 - High Frequency, Rated power 6.5kW, power factor 1, MPPT ranges 60V~450V, 500Voc, High frequency inverter with small size and light weight, Pure sine wave AC output, Solar and utility grid can power loads at the same time, With CAN/RS485 for BMS communication, With the ability to work without battery, WiFi module for monitoring, Dual AC output, Feed-in to grid function

Others

Input Voltage Range: 170 - 264VAC (UPS Mode); 90 - 280VAC (APP/GEN Mode), Output Power: Rated Nominal 6kW; 6.5kW @PV+Battery, Efficiency: Max. 94% (Batt. Mode), Transfer Time: 10ms (UPS/APP Mode); 20ms (GEN Mode), Battery Voltage Range: 40VDC-61VDC, Max. PV Input Current: 27A, MPPT Voltage Range: 60 - 450VDC (Min. 80VDC without battery connected)

Specialty

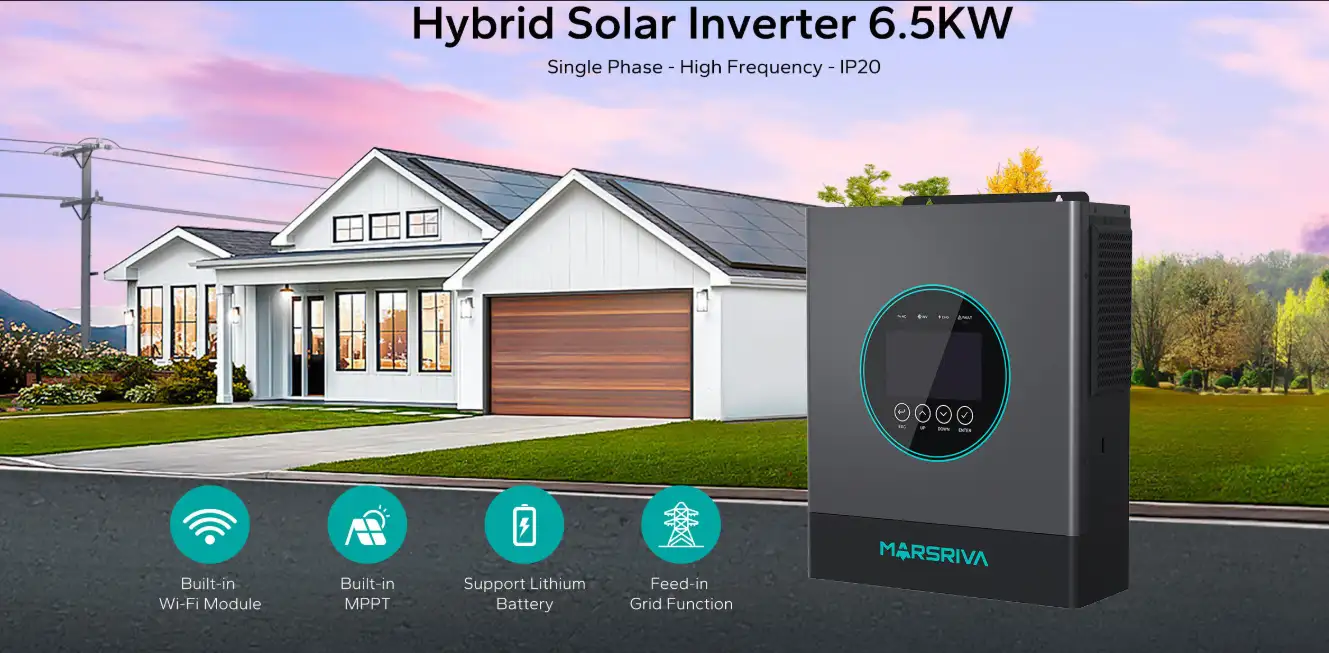

Hybrid Solar Inverter 6.5KW, Single Phase - High Frequency - IP20, Built-in Wi-Fi Module Supported, Built-in MPPT, Support Lithium Battery, Pure Sine Wave, Pure sine wave output is as stable as mains power, The waveform converted by the pure sine wave inverter is the same as the pure sine wave of the mains, The use of electrical appliances can reduce interference and impurities, It has strong compatibility and is suitable for most household appliances and precision technology appliances, Fridge, Washing Machine, TV, Air Conditioner, Microwave, Coffee Maker, Laptop, Lighting

Country Of Origin

China

Made in/ Assemble

China
