Marsriva MR-US3K 3000VA Online UPS

Product Id: 48.06.874.14

Brand Marsriva

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Input Voltage (V) - 110V-300V
  • Output Voltage (V) - 208V/ 220V/ 230V/ 240V (+/- 1%)
  • Type - Online UPS
  • Load Capacity - 3000W
  • Back up time(Full load) - 15 Minutes
  • Body Material - Unmentioned
Brand
Marsriva

Model
Marsriva MR-US3K 3000VA

Type
Online UPS

Volt Ampere (VA)
3000V

Input Voltage (V)
110V-300V

Output Voltage (V)
208V/ 220V/ 230V/ 240V (+/- 1%)

Frequency (Hz - KHz)
50Hz/ 60Hz

Load Capacity
3000W

Transfer Rate
0ms

LED Display
No

Fuse
Unmentioned

Stabilizer
Unmentioned

Battery.
6 pcs with 12V & 9Ah

Back up time(Full load)
15 Minutes

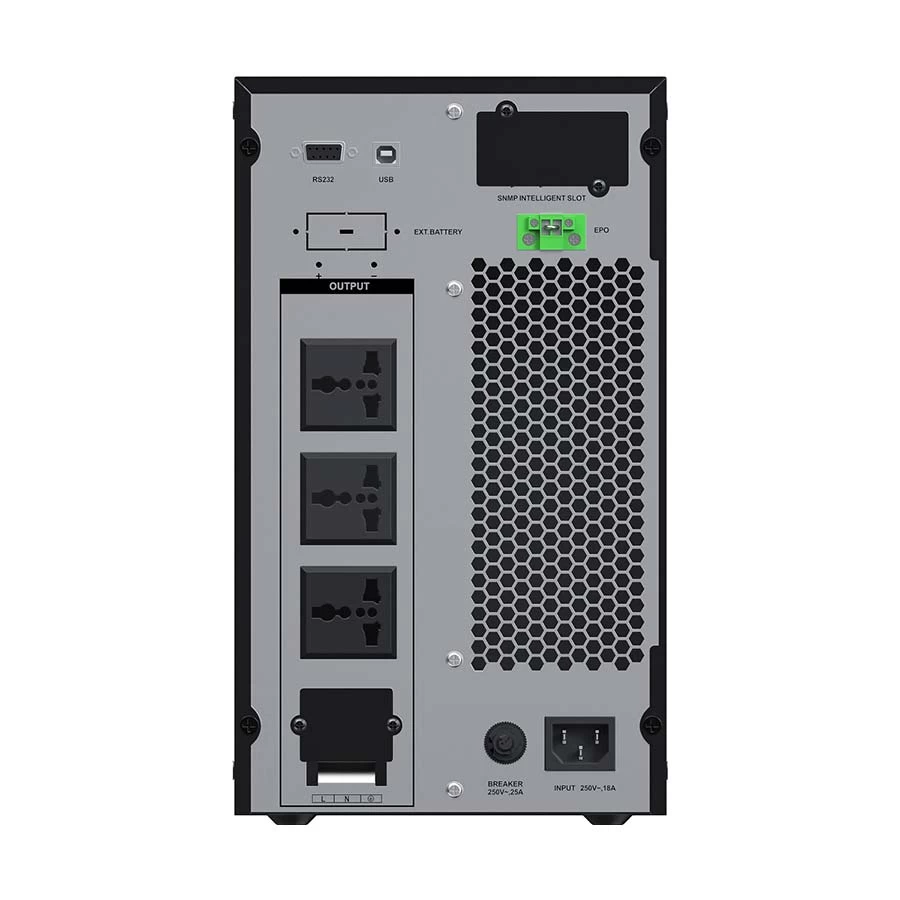

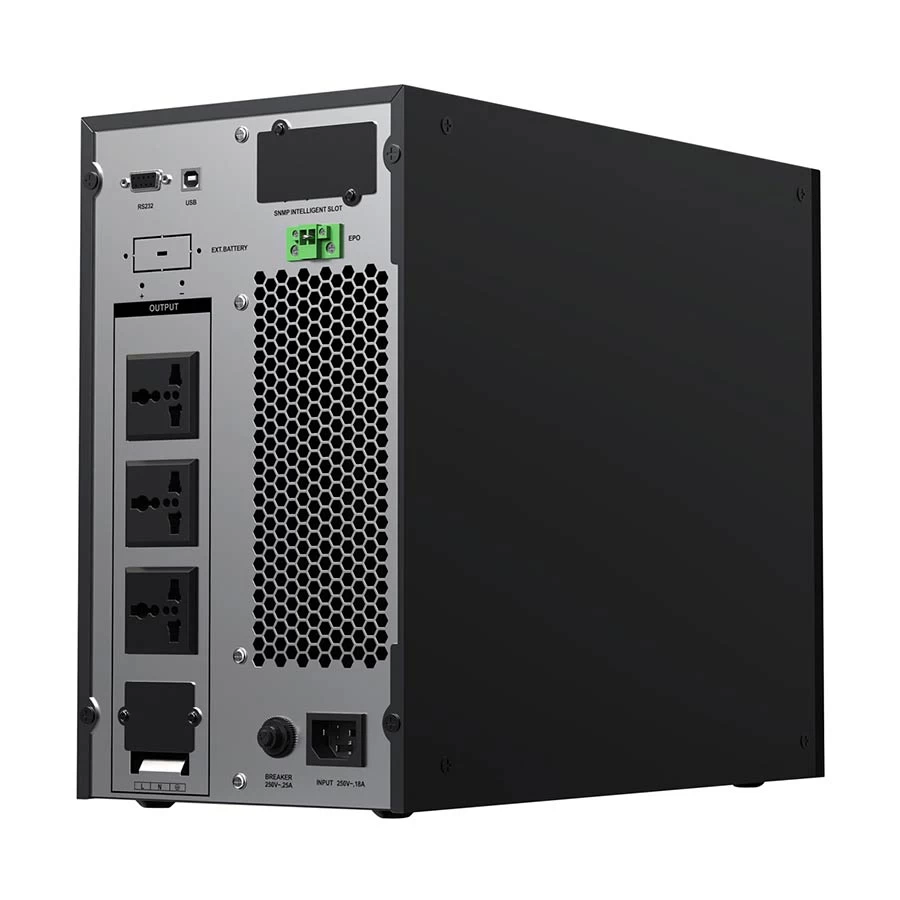

Output connection (Back side)
3 Port

Body Material
Unmentioned

Specialty
High frequency double conversion online with DSP control. Supply utility power to the connected loads in the event of a UPS power overload or fault. Give higher application availability by correcting poor frequency and voltage conditions. Provide notification of changing utility power and UPS power conditions. Provides temporary battery power when the utility power is out. Quickly understand unit and power status with control panel. Support economic operation mode for energy saving. Wide input voltage range for main operations. Extend runtime with extra battery modules.

Others
Output Frequency (sync to mains): 50Hz/ 60Hz (+-10Hz), Topology: Double conversion online, Waveform type: Sine wave, Crest factor: 3:1, Output voltage distortion: <=1 THD (linear load), <=3 THD (non-linear load), Mains to bypass: less than 4ms transfer rate, Input voltage: 208V/ 220V/ 230V/ 240V, Power factor: >=0.99, Efficiency: Full load efficiency 95.5% @ 220VAC (AC mode), Full load efficiency 91.5% @ 96VAC (Battery), 1.0A Charge current (Battery), Typical recharge time: 4-5 hours recover to 90% capacity, Communication & management: Load Capability: Load 102%-110% last 30min, Load 110%-130% last 10min, Load 130%-150% last 30s, Load more than 150% 300ms (AC), Load 102%-110% last 1min, Load 110%-130% last 10s, Load 130%-150% last 3s, Load more than 150% 200ms (Battery), Control panel: LCD status display sith load, battery, input, output, operating mode information, Operating Temperature: 0 degree C - 40 degree C, Storage Temperature: -25 Degree - 55 Degree C, Relative 0-95% (non-condensing), Audible noise: less than 55db (1 meter from surface), Interface: RS232, USB.

Dimensions
395 x 325 x 190mm

Weight (Kg)
21.5 kg

Warranty Details
2 Year (1 Year for Battery) (Box Mandatory While Claiming)

Made in/ Assemble
China

Country Of Origin
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
