MAXSUN Terminator B760M D4 (Wi-Fi 6) Motherboard #MS-TERMINATOR B760M D4 WIFI

Item: MAXSUN Terminator B760M D4 (Wi-Fi 6) Motherboard #MS-TERMINATOR B760M D4 WIFI
Rating: 5
Author: Verified Buyer

12 reviews

Product Id: 02.01.970.05

Special Price
Tk 16,500

Regular Price

Tk 17,690

EMI TK 1,475

Delivery in 1 days

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel B760
Sockets Supported - LGA1700
Supported CPU - 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Generation - 12th/13th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Avail EMI Offer

EMI starts from Tk 1,966/months

Payment Method Shipping & Charge Order Procedure

Brand

Maxsun

Model

Maxsun Terminator B760M D4 (Wi-Fi 6)

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated with Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.2

Form Factor

Micro-ATX

Supported Operating System

Windows 11, 10

Body Color

Black

Warranty Details

3 Year Replacement

General

Brand

Maxsun

Model

Maxsun Terminator B760M D4 (Wi-Fi 6)

Body Color

Black

Part No

MS-TERMINATOR B760M D4 WIFI

CPU

Chipset Brand

Intel

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Generation

12th/13th

Memory Support

Memory Type

DDR4

Memory MHz

5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz

Memory Channel

Dual

Memory Slot

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2 (1 x M.2 type 2242/2280 (supports PCIe 4.0 x4 mode), 2 x M.2 2242/2280/22110 (supports PCIe 4.0 x4 mode))

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated with Processor

Multi-GPU Support

PCI Express Slot

1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x4 slot

Audio & Video

Audio Chipset

Realtek ALC897 Codec

Audio Channel

5.1

Network & Connectivity

LAN Chipset

Realtek RTL8125BG 2.5G LAN

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Intel Wi-Fi 6 AX101

Bluetooth

Bluetooth 5.2

Ports

USB Port

2 x USB 3.2 Gen1 Type A, 6 x USB 2.0

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

RGB

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Compatibility

Supported Operating System

Windows 11, 10

Compatible Products

Raptor Lake Refresh 14600K, Core i3 12100F, Core i3 13100F, Core i5 12400F, Core i5 13400F, Core i5 13500, Core i7 13700KF etc Intel Core Processors, Pentium Gold and Celeron Processors

Warranty

Warranty Details

3 Year Replacement

Additional Info

Feature

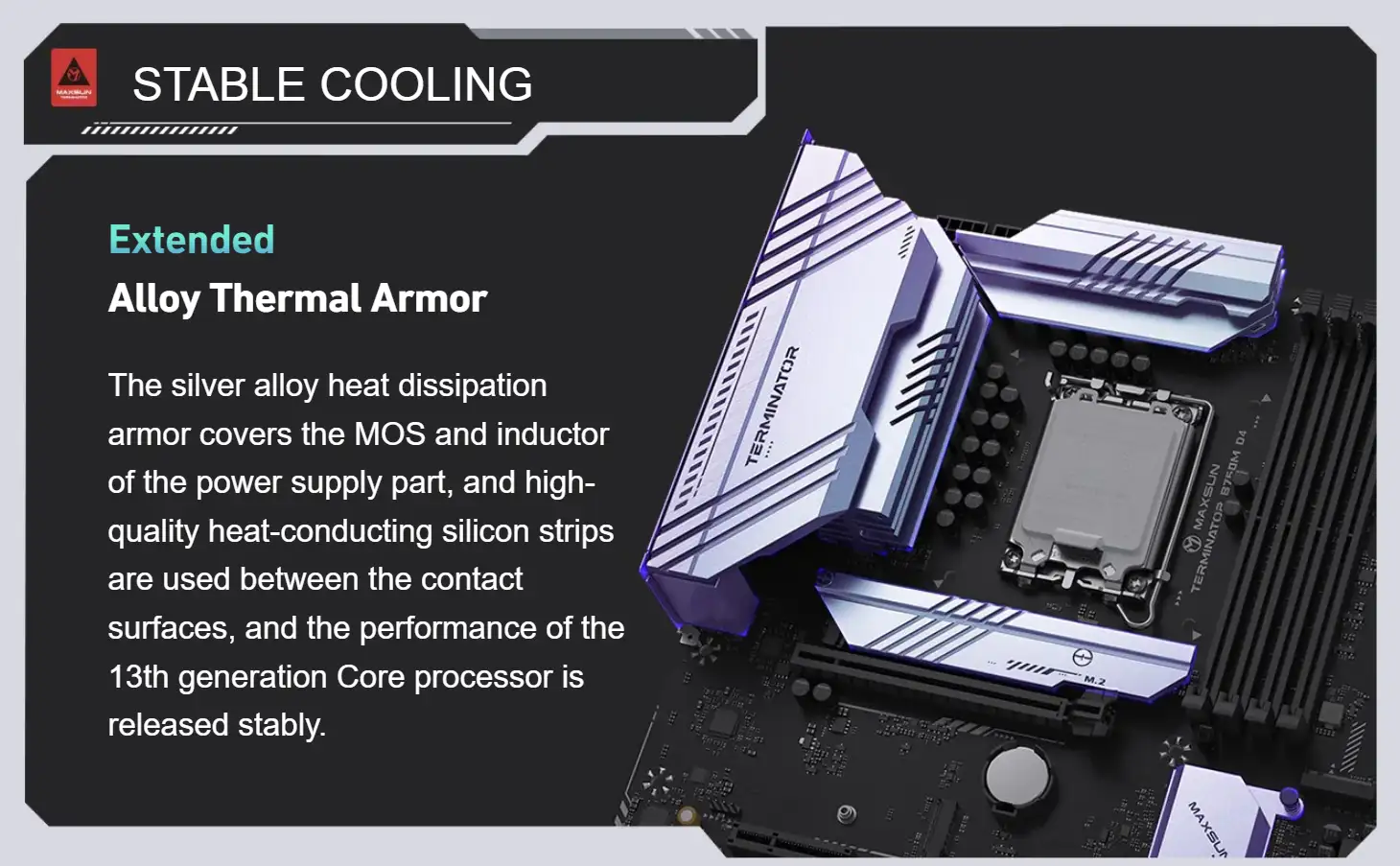

10 phases core 50A Dr.Mos power supply, 6 layers 2oz PCB, Alloy Radiator Armor, 3 x M.2, 2.5G Networkcard

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Maxsun Terminator B760M D4 (Wi-Fi 6) Motherboard In Bangladesh

The Maxsun Terminator B760M D4 (Wi-Fi 6) Motherboard is designed for power users and gamers alike. Supporting Intel’s 12th and 13th generation processors, it offers exceptional performance. With four memory slots, it supports up to 128GB of RAM, ensuring smooth multitasking.

Benefits & Features

Advanced Compatibility: Supports 12th and 13th generation Intel CPUs with LGA1700 sockets, making it future-proof.
High Memory Capacity: Four memory slots allow up to 128GB of RAM, ideal for heavy multitasking and gaming.
Durable Build: The 6-layer 2oz PCB strengthens the power supply, ensuring long-lasting durability.

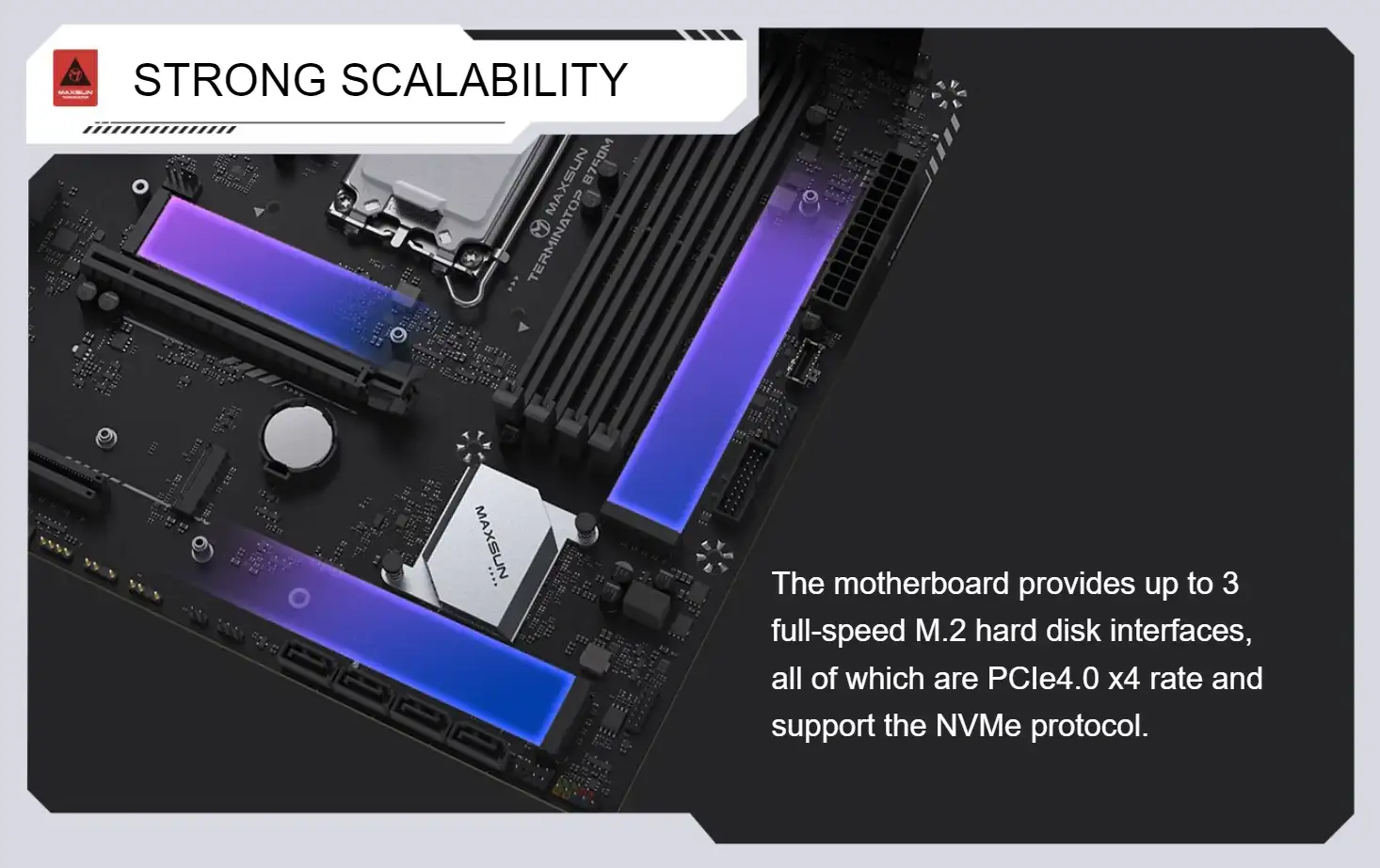

High-Speed Storage: Features full-speed PCIe 4.0 x4 M.2 slots, allowing you to maximize SSD performance.
Next-Gen Networking: Includes 2.5G NIC and Wi-Fi 6E, providing fast and reliable internet connectivity.

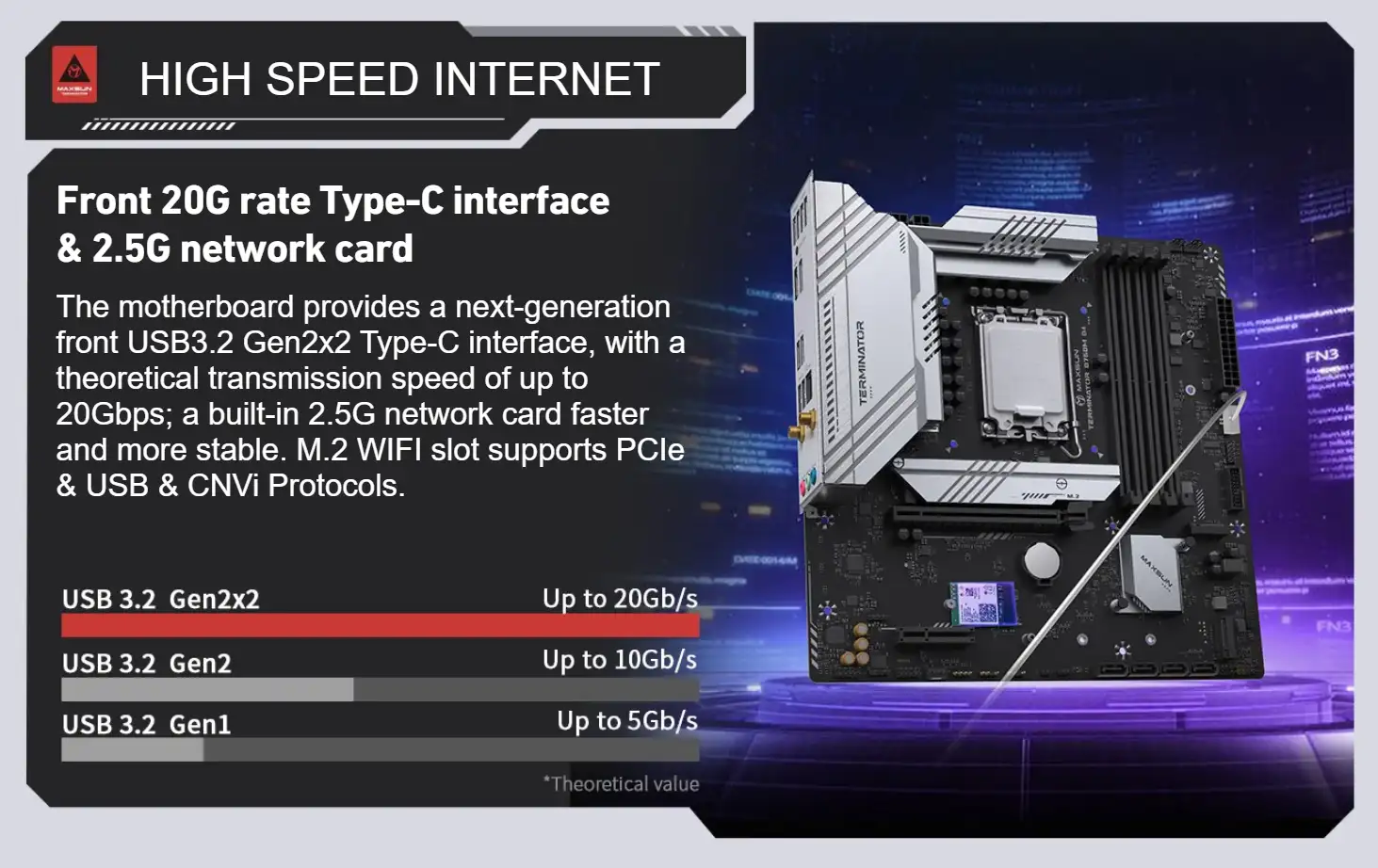

Modern Connectivity: Front 20Gbps Type-C port allows fast data transfers and convenient device connections.

What You Need to Know

Check Compatibility: Ensure your CPU and RAM are compatible with the Maxsun Terminator B760M D4 (Wi-Fi 6) Motherboard.
Installation: Handle with care during installation to avoid any potential damage.
Cooling: Ensure your setup has adequate cooling to maintain performance under heavy loads.
Upgrade Ready: This motherboard is designed to handle future upgrades, so plan your build accordingly.

Sum it up

The Maxsun Terminator B760M D4 (Wi-Fi 6) Motherboard offers top-tier performance, modern connectivity, and room for upgrades, perfect for any power user.

What is the price of Maxsun Terminator B760M D4 (Wi-Fi 6) Motherboard In Bangladesh?

The price of Maxsun Terminator B760M D4 (Wi-Fi 6) Motherboard starts from 16,500 . The price may vary due to your customization and product availability. You can buy Maxsun Terminator B760M D4 (Wi-Fi 6) Motherboard from our website or visit our showrooms nearby.
