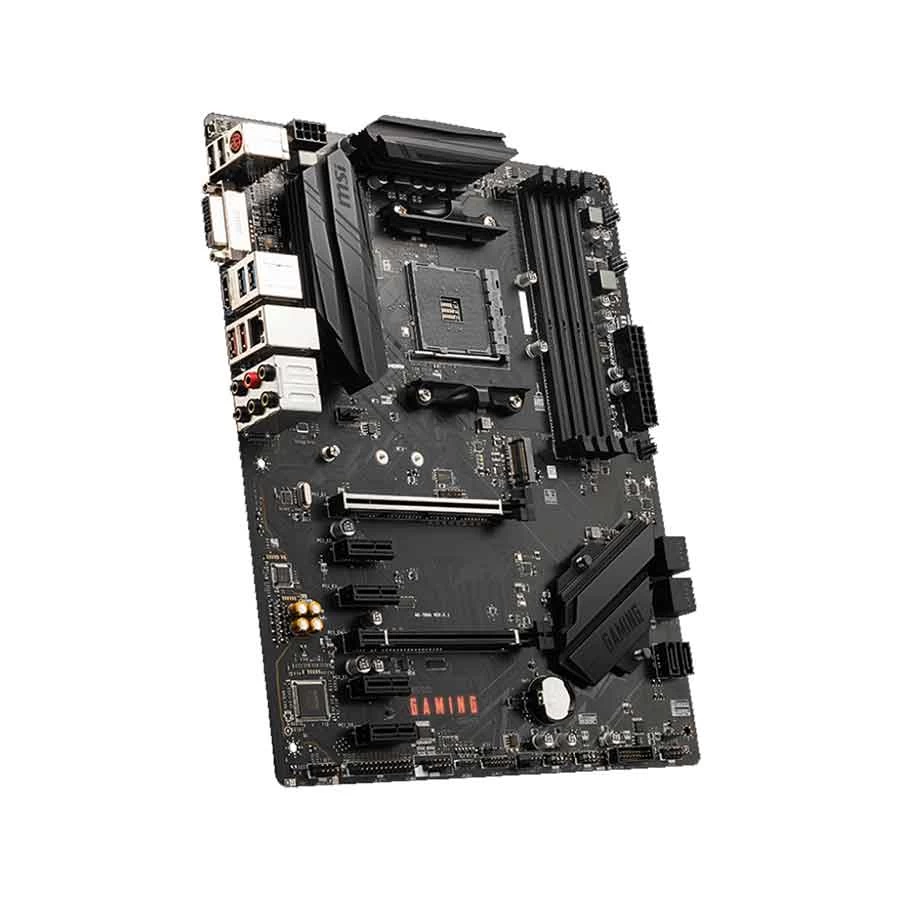

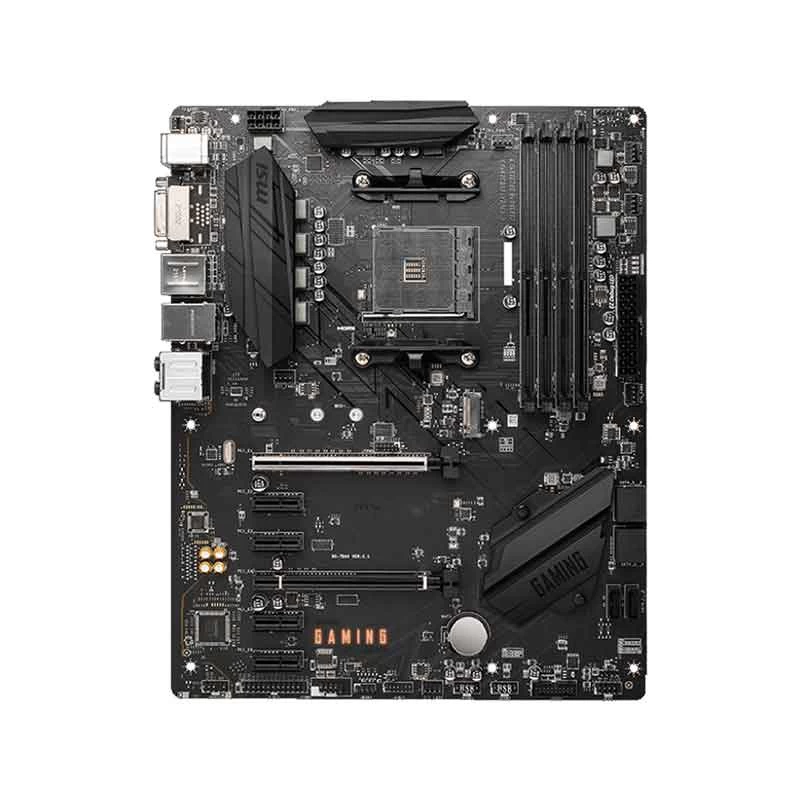

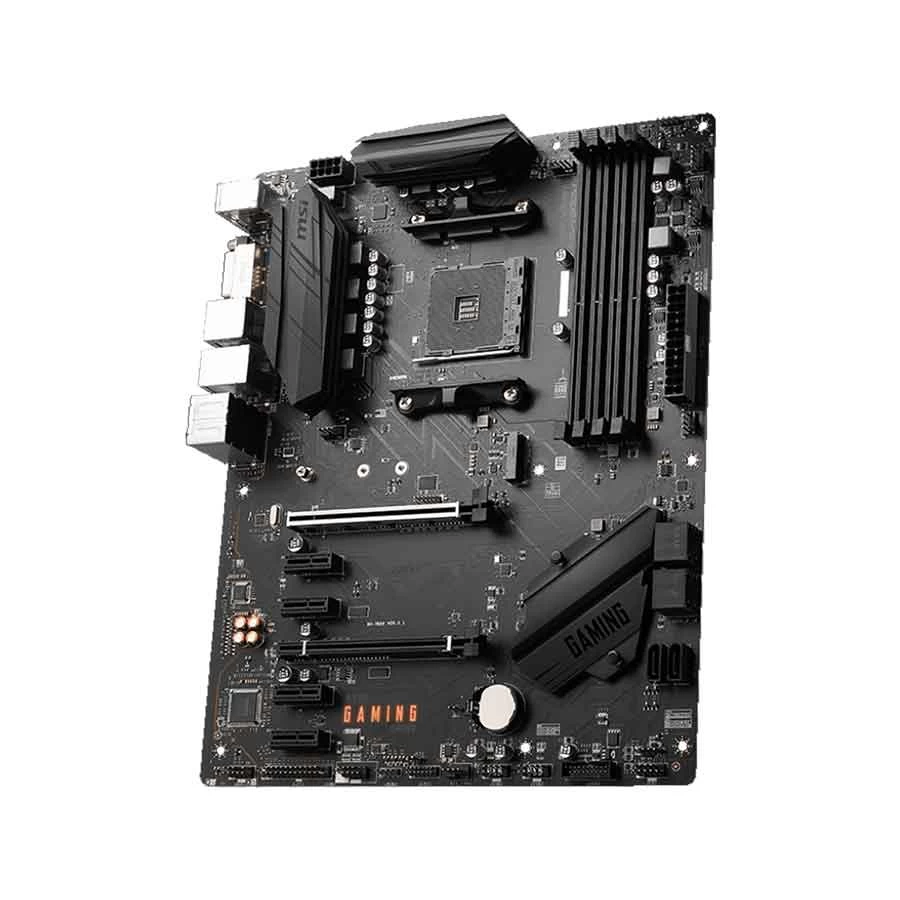

MSI B550 GAMING GEN3 DDR4 AM4 Socket AMD Motherboard

Product Id: 02.02.033.374

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD B550
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
  • Generation - Not Applicable
General
Brand
MSI

Model
MSI B550 GAMING GEN3

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B550

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMMs

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (1 x M.2 (Key M) (From CPU) PCIe 3.0 x4 Supports 2260/ 2280/ 22110 storage devices)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
Yes, AMD CrossFire Technology

PCI Express Slot
2x PCIe x16 slots, 4x PCIe x1 slots


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 8111H Gigabit LAN

WiFi
No

WiFi Technology
No

Bluetooth
No

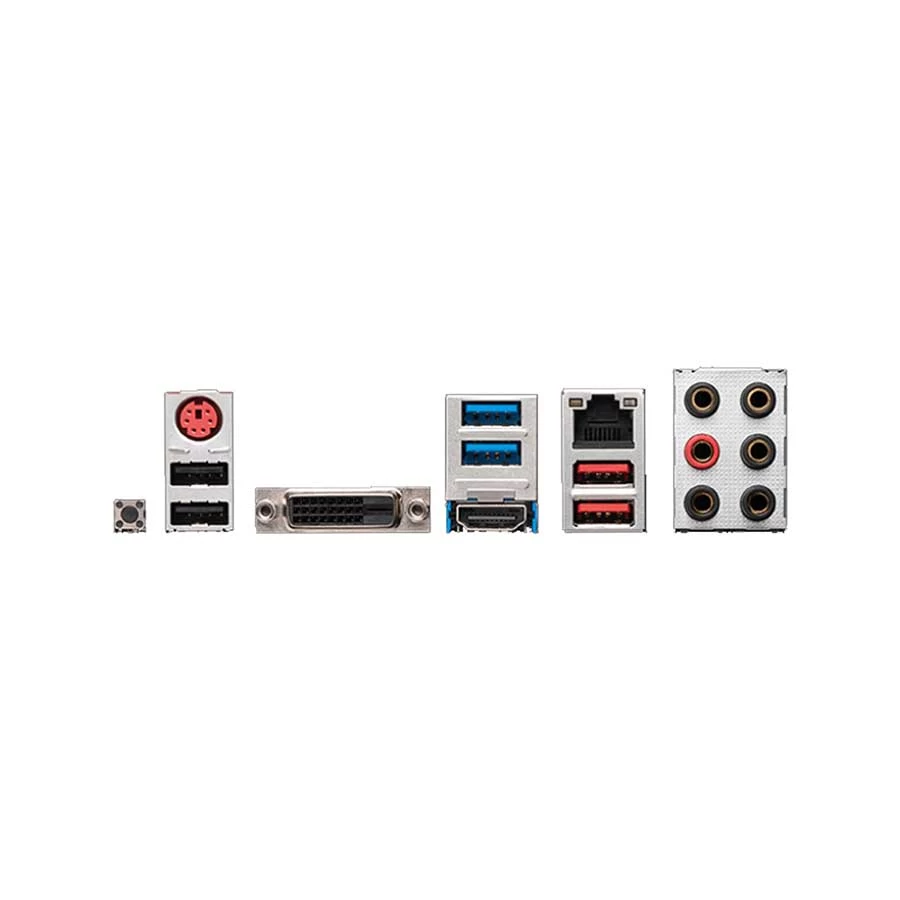

Ports
USB Port
2 x USB 3.2 Gen 1 5Gbps Type-A, 2 x USB 2.0, 2 x USB 3.2 Gen 2 10Gbps Type-A

VGA Port
No

DVI Port
1

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
6

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0 , 1 , 10

RGB Support
RGB

RGB Connector
2 x 4-pin RGB LED connectors

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mb flash

BIOS Model
UEFI AMI BIOS

BIOS Version
ACPI 6.1, SMBIOS 2.8


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
Ryzen 5 5600G, Ryzen 5 5600, Ryzen 5 4600G, Ryzen 5 5600X, Ryzen 5 Pro 4650G, Ryzen 5 4600G, Ryzen 5 3500


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info

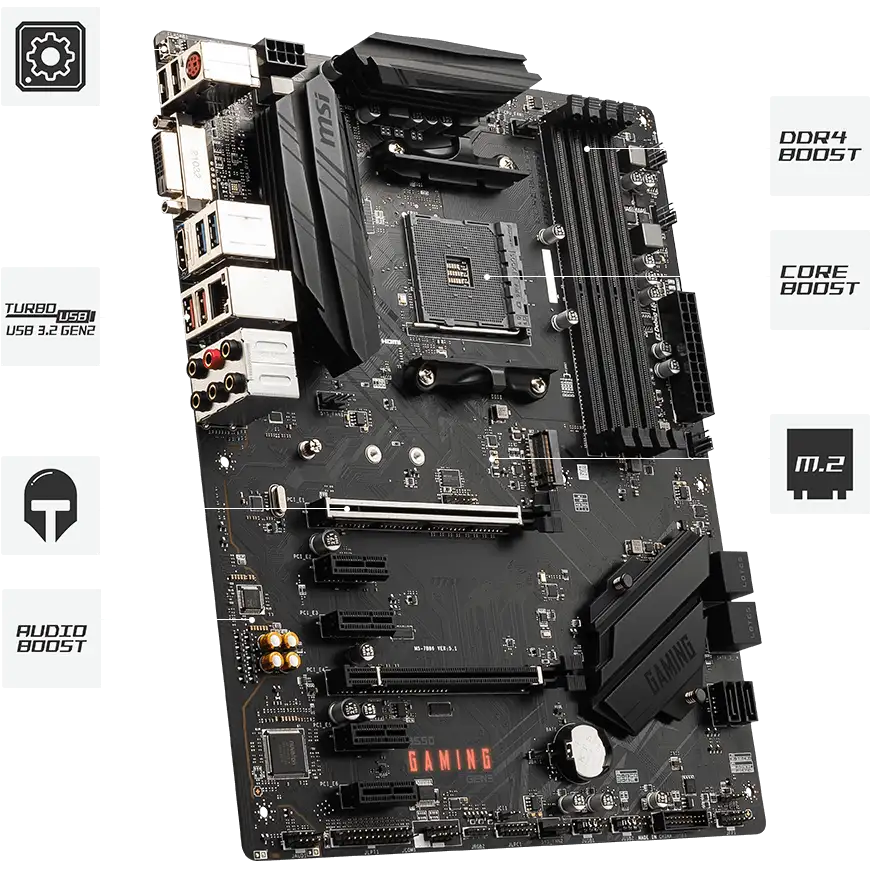

Feature
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability. Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

Others
EZ Debug LED: Easiest way to troubleshoot. Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card. Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience. MULTI-GPU: Supports 2-way AMD CrossFire with optimal slot placement for the best airflow.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
