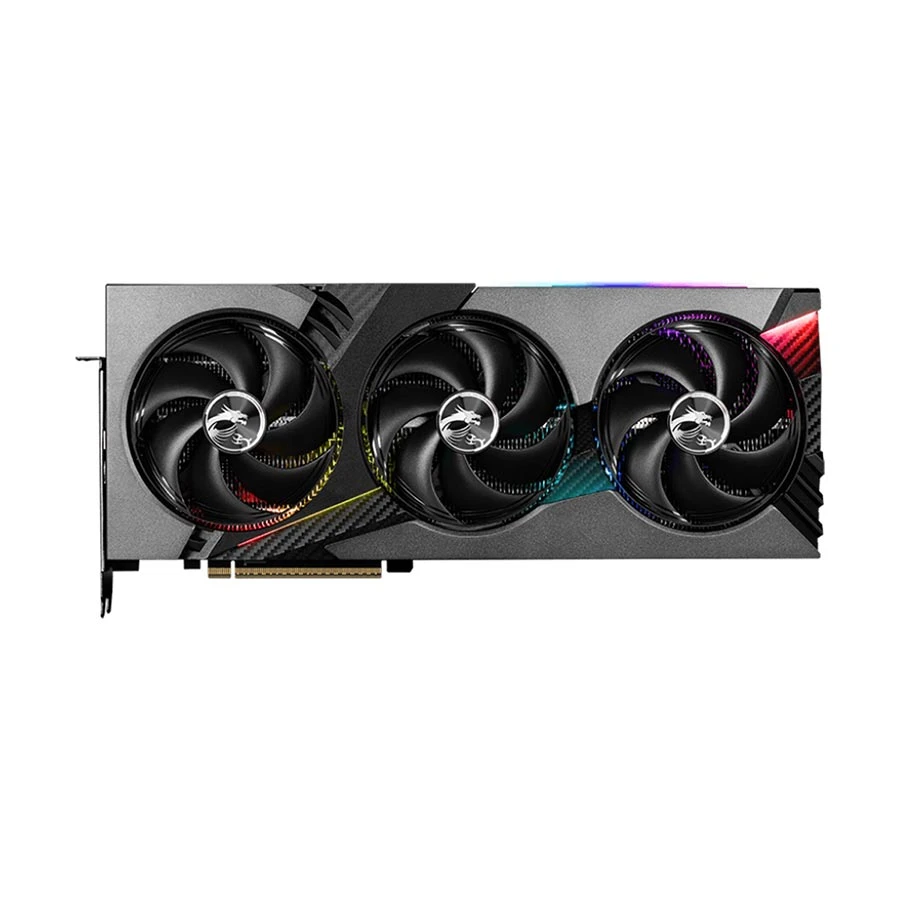

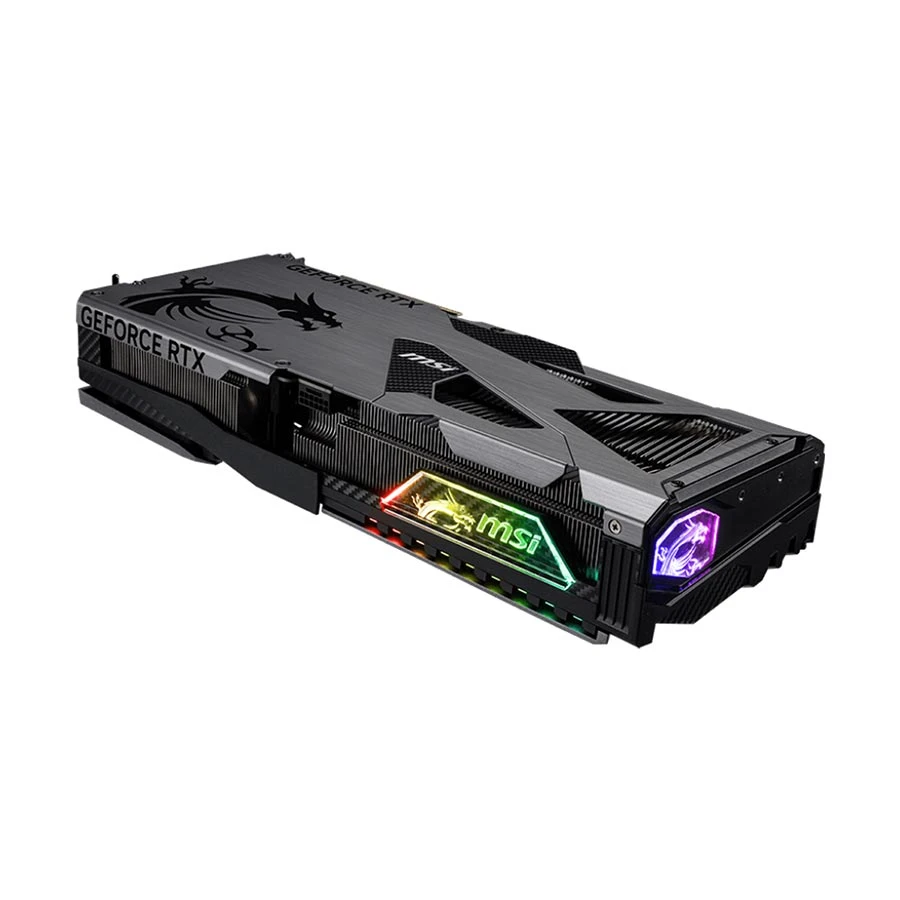

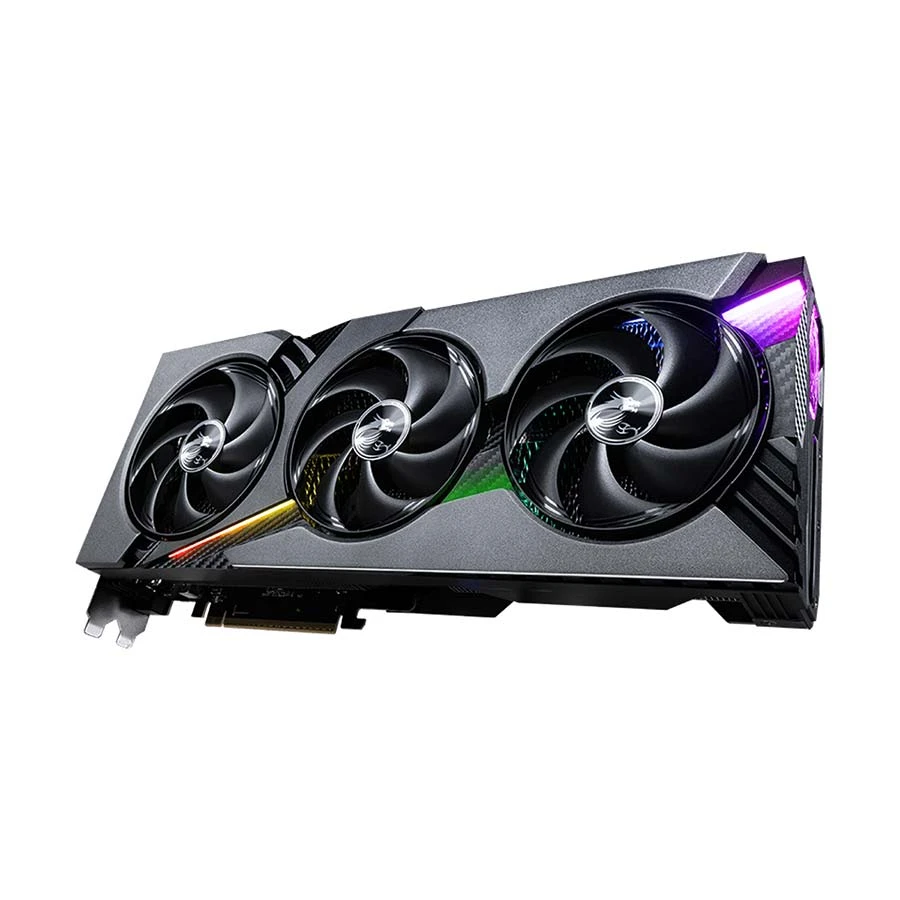

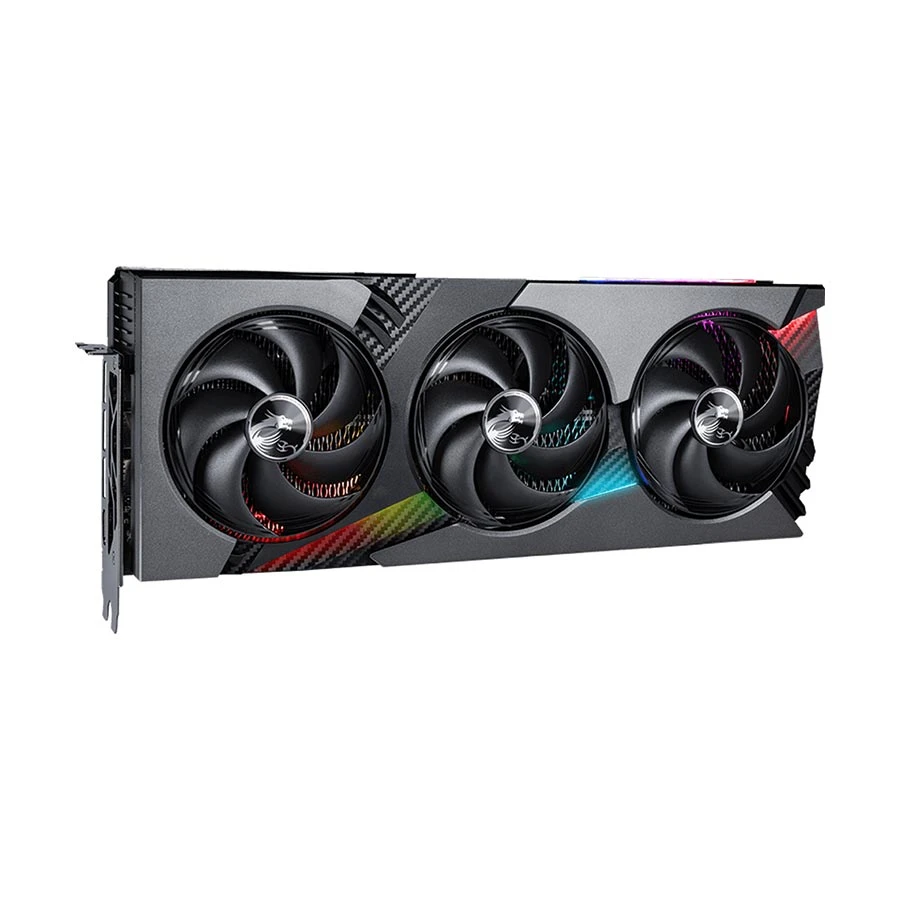

MSI GeForce RTX 5060 Ti 16G VANGUARD SOC 16GB GDDR7 Graphics Card #G506T-16VGS

Item: MSI GeForce RTX 5060 Ti 16G VANGUARD SOC 16GB GDDR7 Graphics Card #G506T-16VGS
Rating: 5
Author: Soumiya Binte Ishaque

15 reviews

Product Id: 14.01.033.322

Regular Price

Tk 0

Out Of Stock

See similar model

Quick Overview

Chipset - NVIDIA GeForce
Capacity (GB/TB) - 16GB
Graphics Resolution Max. - 7680 x 4320
VGA Port - No
HDMI Port - 1
Display Port - 3
Multi Display Capability - Quad Display

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Chipset

NVIDIA GeForce

Series

RTX 5000

Chipset Model

GeForce RTX 5060

Model

MSI GeForce RTX 5060 Ti 16G VANGUARD SOC

Boost Engine Clock Speed

2692 MHz

Capacity (GB/TB)

16GB

Memory Type

GDDR7

Interface(s)

PCI Express Gen 5 x16 (uses x8)

Graphics Resolution Max.

7680 x 4320

DirectX Support

12 Ultimate

OpenGL Support

4.6

Approx. Power Consumption

180W

Recommended PSU

600W

Power Connectors

16-pin x 1

Multi Display Capability

Quad Display

Cooler Type

Fan

Lighting

RGB

Body Color

Black

Warranty Details

3 Year (No Warranty for Mining)

General

Brand

MSI

Chipset

NVIDIA GeForce

Series

RTX 5000

Chipset Model

GeForce RTX 5060

Model

MSI GeForce RTX 5060 Ti 16G VANGUARD SOC

Part No

G506T-16VGS

Technical Info

CUDA Core / Stream Processors

4608 (Cuda)

Engine Clock

Extreme Performance: 2707 MHz (MSI Center), Boost: 2692 MHz

Boost Engine Clock Speed

2692 MHz

Capacity (GB/TB)

16GB

Memory Bus

128-bit

Memory Bandwidth

28 Gbps

Memory Type

GDDR7

Interface(s)

PCI Express Gen 5 x16 (uses x8)

DirectX Support

12 Ultimate

OpenGL Support

4.6

HDCP Support

Yes

Supported Operating System

Android, Windows, Mac OS, iOS

Display & Resolution

Graphics Resolution Max.

7680 x 4320

Multi Display Capability

Quad Display

Ports

VGA Port

DVI Port

HDMI Port

Display Port

Power

Approx. Power Consumption

180W

Recommended PSU

600W

Power Connectors

16-pin x 1

Physical Description

Card Dimension

337 x 140 x 61mm

Cooler Type

Fan

Cooling Fan

Triple

PCB Form

ATX

Lighting

RGB

Body Color

Black

Package Contents

Graphics Card, Manual

Warranty

Warranty Details

3 Year (No Warranty for Mining)

Additional Info

Others

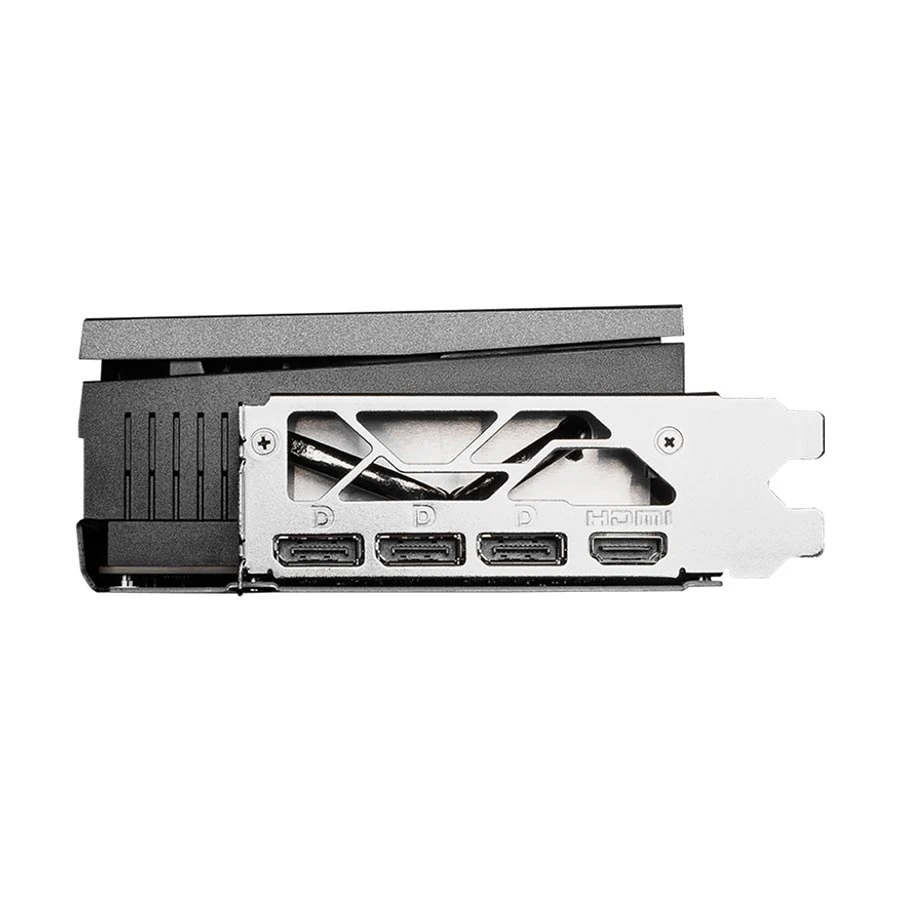

Output: DisplayPort x 3 (v2.1b), HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR), G-SYNC technology Yes.

Specialty

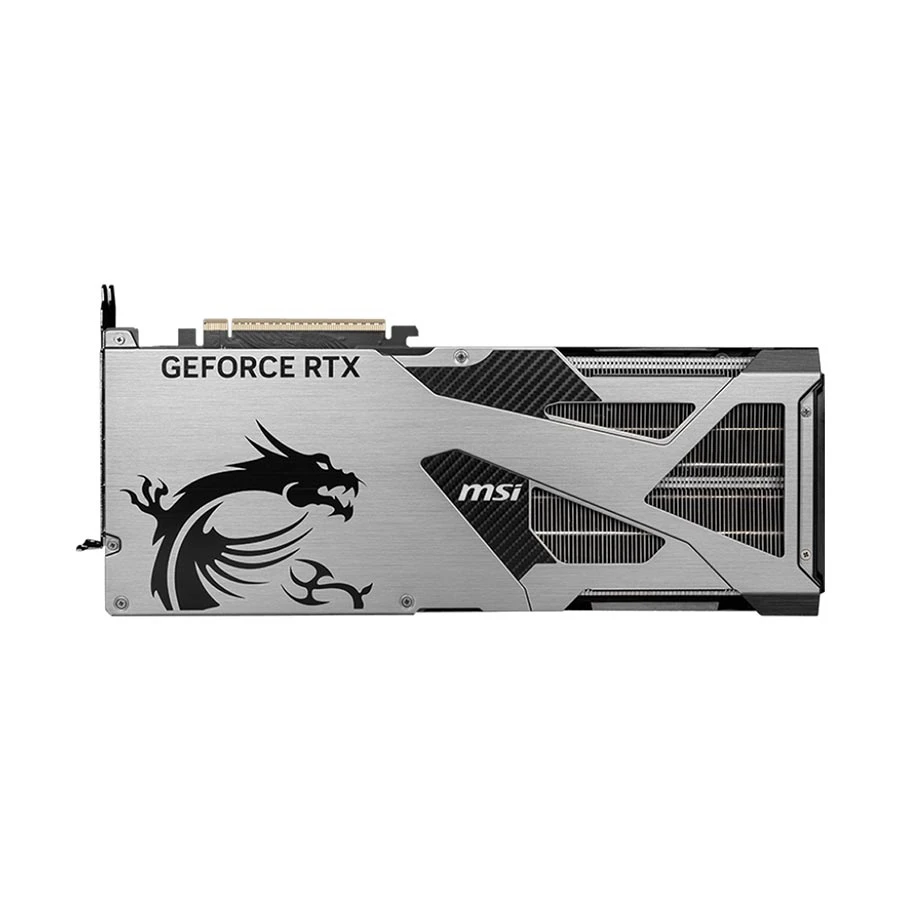

TRI FROZR 4: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation. STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise. Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel- plated copper baseplate and transferred. Core Pipes: Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management. Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling. Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence. Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency. MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time. Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI GeForce RTX 5060 Ti 16G VANGUARD SOC Graphics Card In Bangladesh

What is the price of MSI GeForce RTX 5060 Ti 16G VANGUARD SOC Graphics Card In Bangladesh?

The price of MSI GeForce RTX 5060 Ti 16G VANGUARD SOC Graphics Card not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy MSI GeForce RTX 5060 Ti 16G VANGUARD SOC Graphics Card from our website or visit our showrooms nearby.
